5 pairs 110 connecting block for Wiring Block

    Descriptions

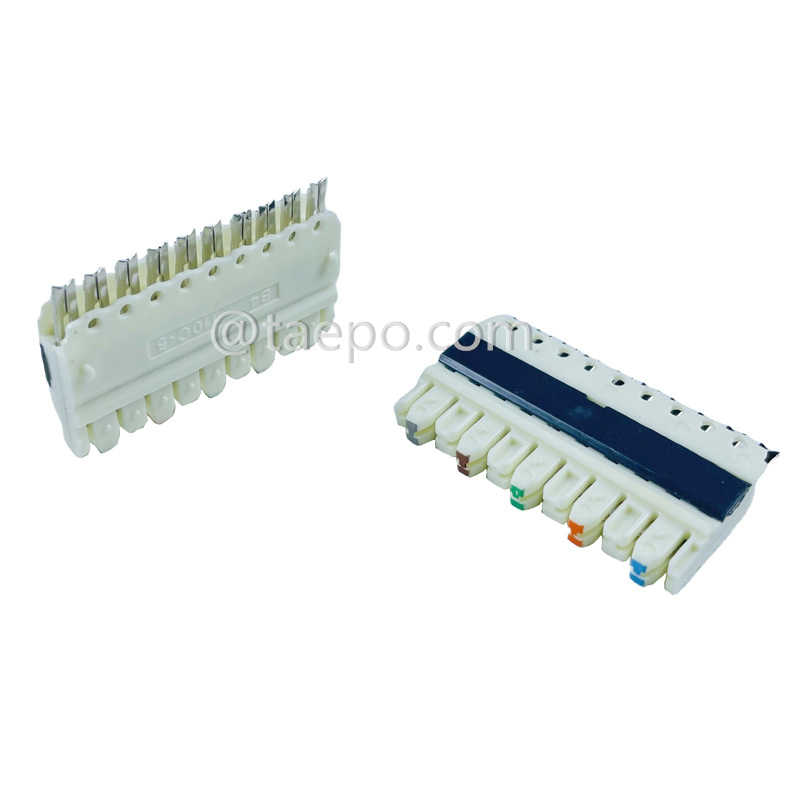

A "5 pairs 110 connecting block" refers to a type of wiring block used in telecommunications and structured cabling systems.

Here’s a breakdown of what each part of the term typically means:

5 pairs: This indicates the number of pairs of wires that the block can accommodate. In telecommunications and networking, a pair usually refers to a twisted pair of wires, which consists of two conductors twisted together (e.g., for Ethernet cables, one pair is used for transmitting and one for receiving signals).

110 connecting block: The "110" designation refers to a type of punch-down block used for terminating and connecting wires. It gets its name from the standard IDC (Insulation Displacement Connection) method it uses, where wires are punched down into metal slots to establish electrical contact.

    Main Features

• Termination: The 110 connecting block allows for the termination of up to 5 pairs of wires. Each wire is punched down into its respective slot on the block, and a punch-down tool is typically used to secure the wire into place.

• Connection: These blocks are used to connect incoming and outgoing wires within a structured cabling system. For example, in a telecommunications closet or data center, wires from various locations (such as wall outlets or patch panels) can be terminated onto the block, and then cross-connected as needed.

• Organization: They help organize and manage cables by providing a structured termination point. This improves the clarity and accessibility of network connections, making it easier to trace and troubleshoot wiring issues.

• Compatibility: 110 blocks are standard components in many structured cabling installations, designed to work with various types of cables including Cat5, Cat6, and other twisted pair cables commonly used in Ethernet networks.

In summary, a "5 pairs 110 connecting block" is a specific type of wiring block designed for terminating and connecting up to 5 pairs of wires in telecommunications and networking applications. It facilitates organized and reliable connections within structured cabling systems, contributing to efficient network operations and maintenance.

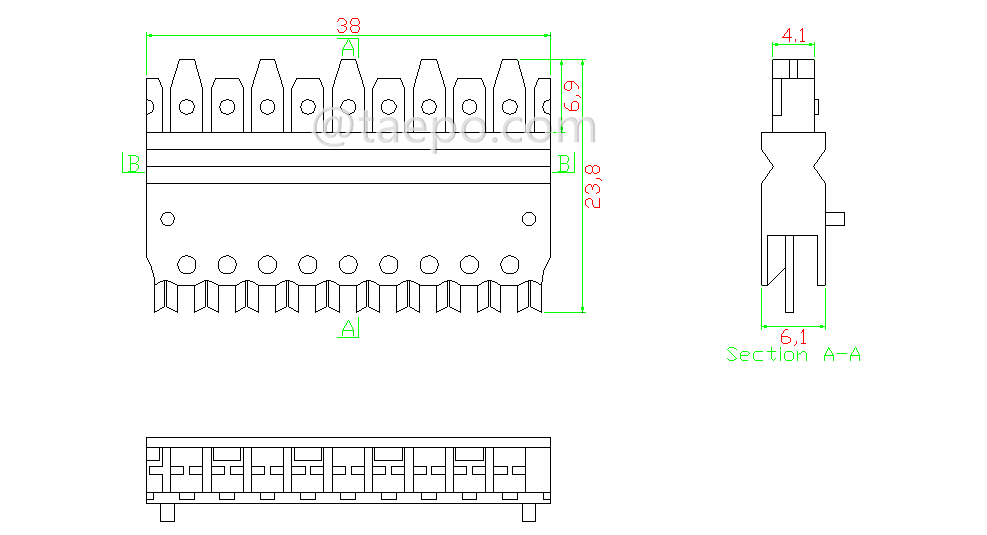

    Schematic Diagrams
