Descriptions
A 4-pair 110 connecting block refers to a type of wiring block used in telecommunications and networking.
Here's what each part means:
4-pair: This indicates that the block is designed to accommodate connections for four pairs of wires. In telecommunications, a pair typically consists of two wires twisted together, often carrying signals in both directions (one for sending, one for receiving).
110: This refers to the specific type of insulation displacement connector (IDC) used on the block. 110 IDCs are commonly used for terminating copper wires without stripping the insulation, making them efficient for punch-down connections in telephone and data networks.
Together, a 4-pair 110 connecting block is designed to facilitate the termination and organization of up to four pairs of twisted-pair cables using IDC connections, typically found in structured cabling environments.
Main Features
The main features of a 4-pair 110 connecting block include:
Termination for 4 Pairs: It is designed to terminate up to four pairs of twisted-pair cables, commonly used in telecommunications and networking applications.
Insulation Displacement Connector (IDC) Technology: Utilizes IDCs, specifically 110-type IDCs, which allow for quick and reliable termination of wires without the need for stripping insulation.
Punch-down Design: The block typically features a punch-down design, where wires are punched into slots on the block using a punch-down tool, ensuring secure connections.
Compact and Organized: Provides a structured and organized way to manage multiple cable connections in a compact space, commonly used in telecom rooms, data centers, and building infrastructure.
Compatibility: Often designed to be compatible with standard mounting frames or backboards, facilitating installation and maintenance in structured cabling systems.
Overall, the main feature of a 4-pair 110 connecting block is its ability to efficiently terminate and manage multiple twisted-pair cable connections using IDC technology, ensuring reliable connectivity in telecommunications and networking environments.

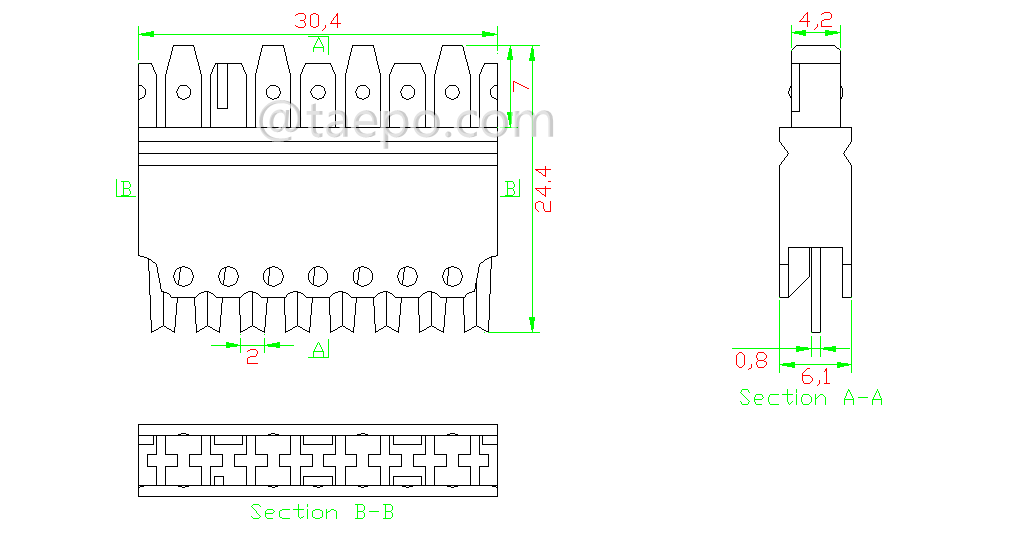

Schematic Diagrams

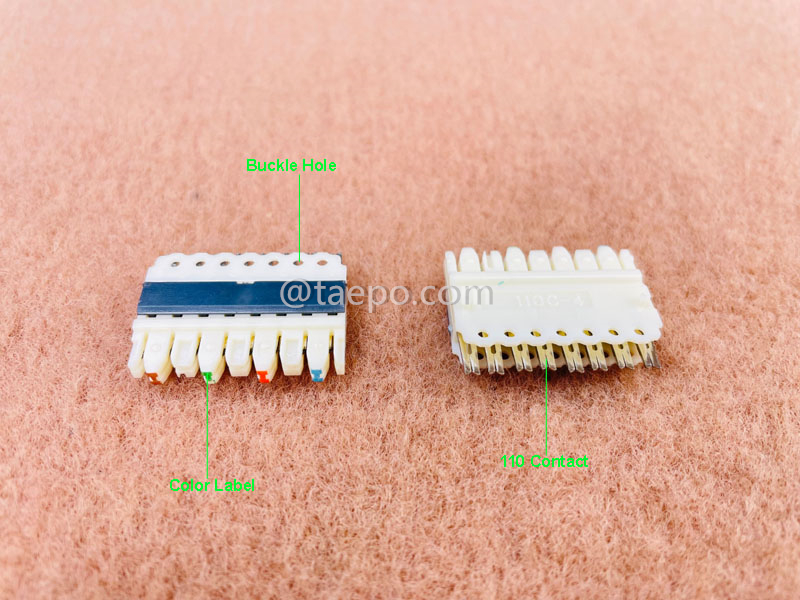

Packing Pictures
Order Data
Item No | Descriptions |
TP-5404-4 | 4 pairs 110 connecting block |
