2.5Gbps 1.25Gbps SM SC 20KM GPON SFP OLT Transceiver

2.5Gbps 1.25Gbps SM SC 20KM GPON SFP OLT Transceiver

Name: 2.5Gbps 1.25Gbps SM SC 20KM GPON SFP OLT Transceiver
Brand: TAEPO Official Website
SKU: TP-GPON-OLT-B+
Availability: InStock
Rating: 5 (1 reviews)

Item No.: TP-GPON-OLT-B+

It is a high-speed optical module used in GPON systems to connect an Optical Line Terminal with single-mode fiber over distances up to 20 kilometers.

Color: Silver

Brand: Neutral / OEM / TAEPO

Packing: Blister + ctn

MOQ: 10pcs

Delivery: 7-14 days

INQUIRY

Description

Descriptions

A 2.5Gbps 1.25Gbps SM SC 20KM GPON SFP OLT Transceiver is a optical transceiver used in Passive Optical Networks (PON), specifically in the context of Gigabit Passive Optical Networks (GPON).

Here's a breakdown:

Data Rate:

2.5Gbps and 1.25Gbps: The transceiver supports data transmission speeds of 2.5 Gbps downstream (from the OLT to the ONU) and 1.25 Gbps upstream (from the ONU to the OLT).

Optical Fiber Type:

Single-Mode (SM): Designed for single-mode fiber, which allows for long-distance data transmission.

Connector Type:

SC (Subscriber Connector): A common type of fiber optic connector used for single-mode applications.

Distance:

20KM (Kilometers): The transceiver can operate over distances up to 20 kilometers.

GPON Specification:

GPON (Gigabit Passive Optical Network): It adheres to the GPON standard, used for delivering high-speed internet access to end users over optical fiber networks.

OLT (Optical Line Terminal):

OLT: This transceiver is designed for use in the Optical Line Terminal equipment, which is the central device in a GPON network that manages multiple Optical Network Units (ONUs).

The 2.5Gbps 1.25Gbps SM SC 20KM GPON SFP OLT Transceiver is a high-speed optical module used in GPON systems to connect an Optical Line Terminal with single-mode fiber over distances up to 20 kilometers. It supports downstream speeds of 2.5 Gbps and upstream speeds of 1.25 Gbps, using an SC connector for fiber connectivity.

Main Features

The main feature of the 2.5Gbps 1.25Gbps SM SC 20KM GPON SFP OLT Transceiver is its ability to provide high-speed optical connectivity for GPON networks, enabling downstream data transmission at 2.5 Gbps and upstream at 1.25 Gbps over single-mode fiber for distances up to 20 kilometers. This supports efficient and long-distance data transfer in optical network systems.

Schematic Diagrams

Packing Pictures

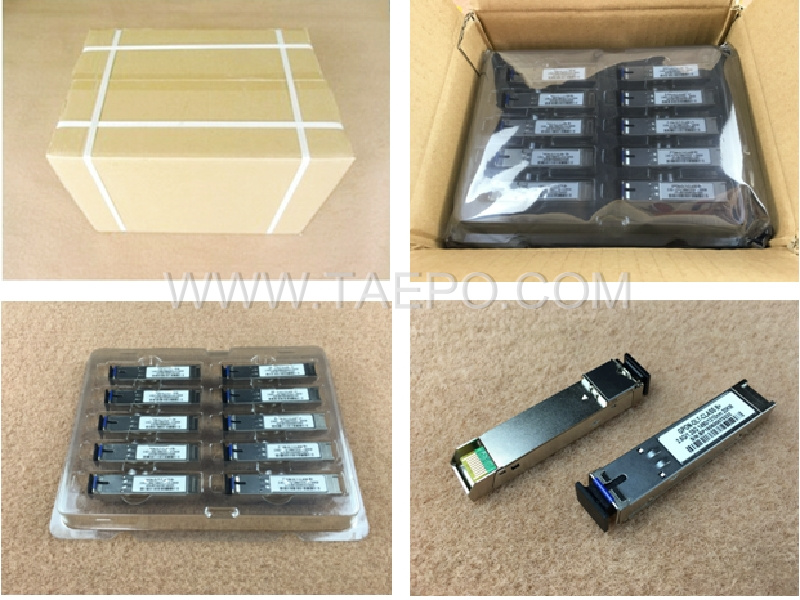

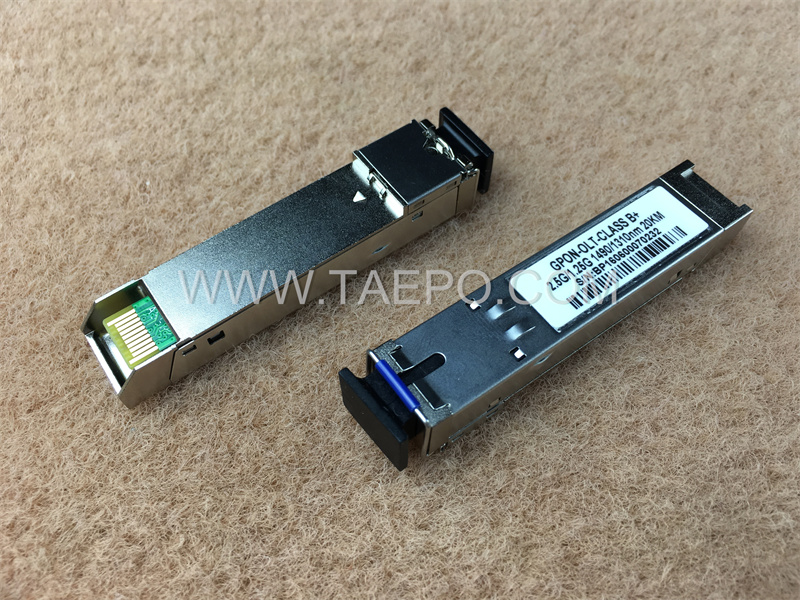

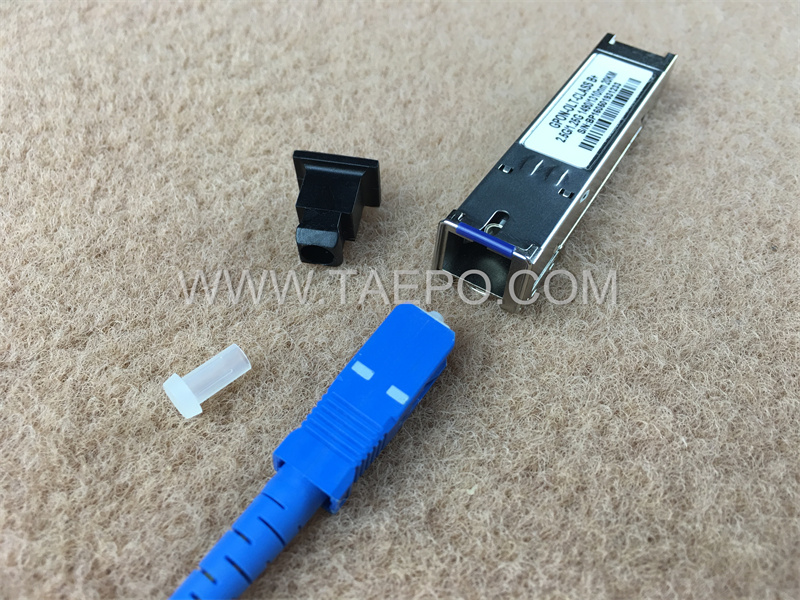

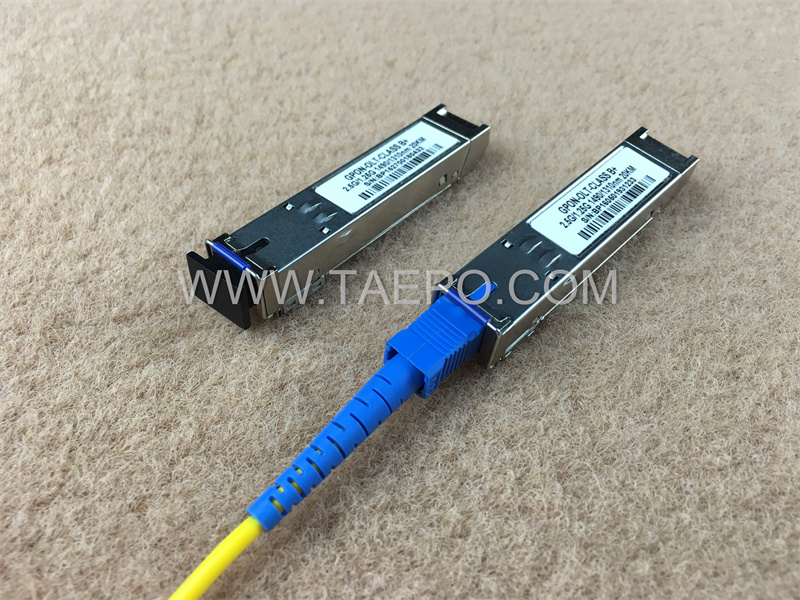

Packing Picture for 20KM GPON SFP OLT Transceiver
