Descriptions
1000BASE-T is a standard for Gigabit Ethernet over twisted-pair copper cabling.
Here’s a breakdown:
- Speed: It supports data transmission rates up to 1 Gbps (Gigabit per second).
- Medium: It uses Category 5e (Cat 5e) or higher twisted-pair copper cables (e.g., Cat 6 or Cat 6a).
- Distance: It can operate effectively up to 100 meters (328 feet) on Cat 5e or better cabling.
- Connector: It typically uses an RJ45 connector, which is the standard connector for Ethernet cables.
1000BASE-T is commonly used in local area networks (LANs) and is well-suited for connecting devices like computers, network switches, and routers within a building.

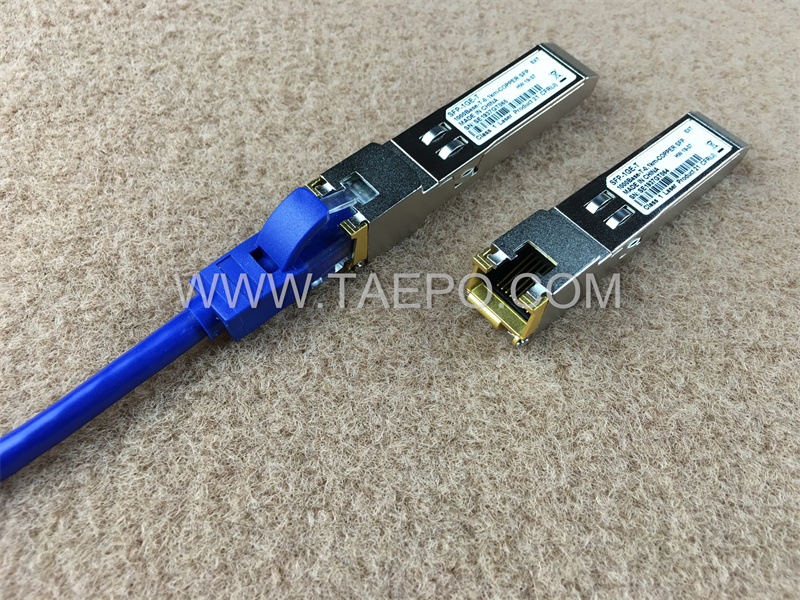

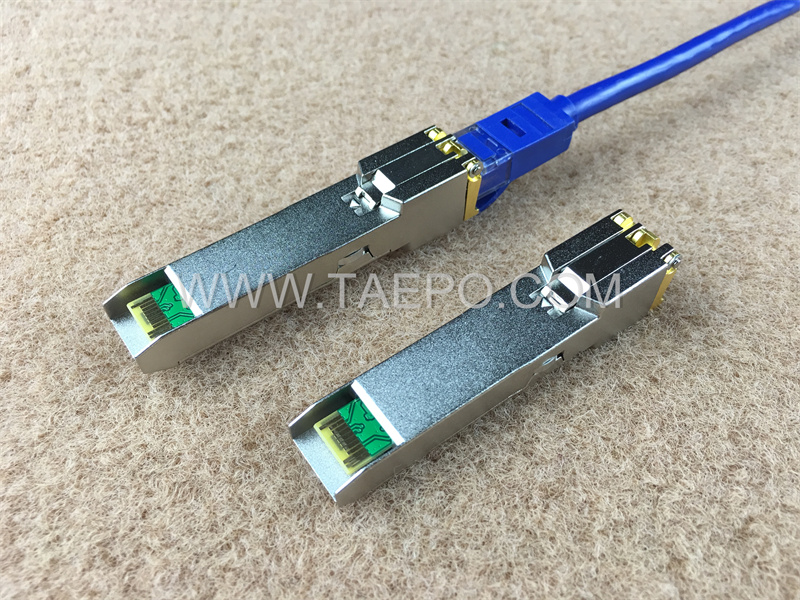

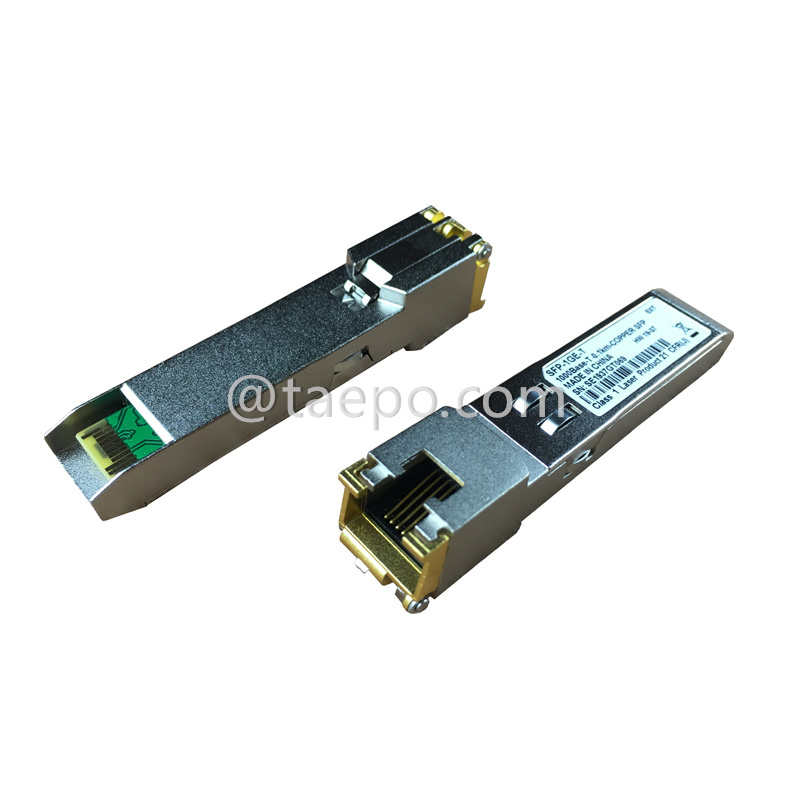

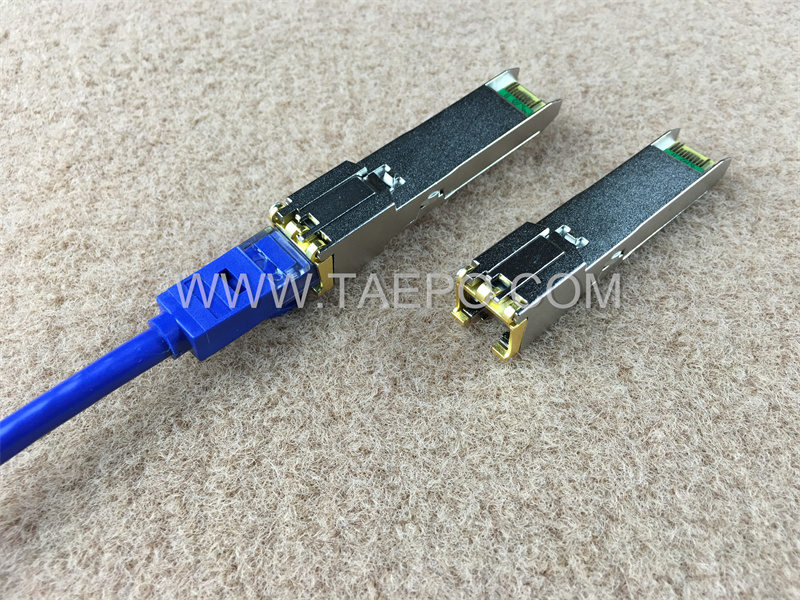

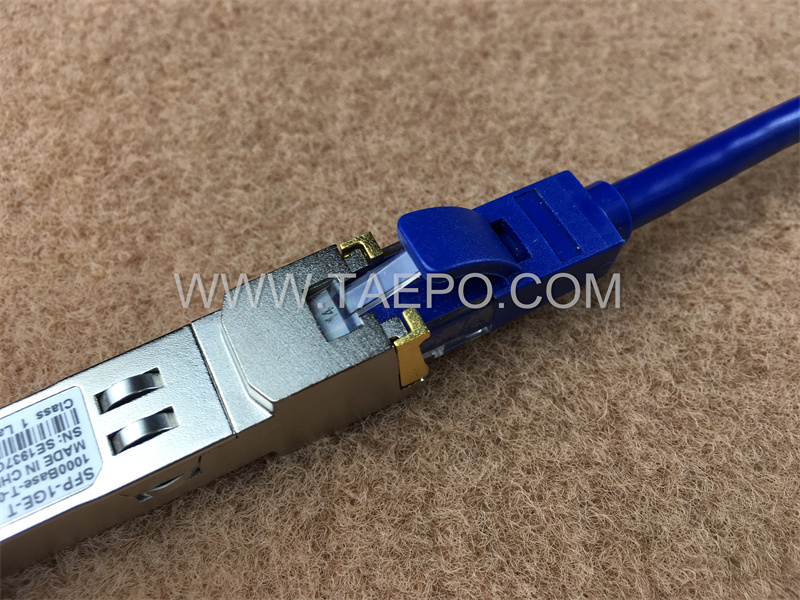

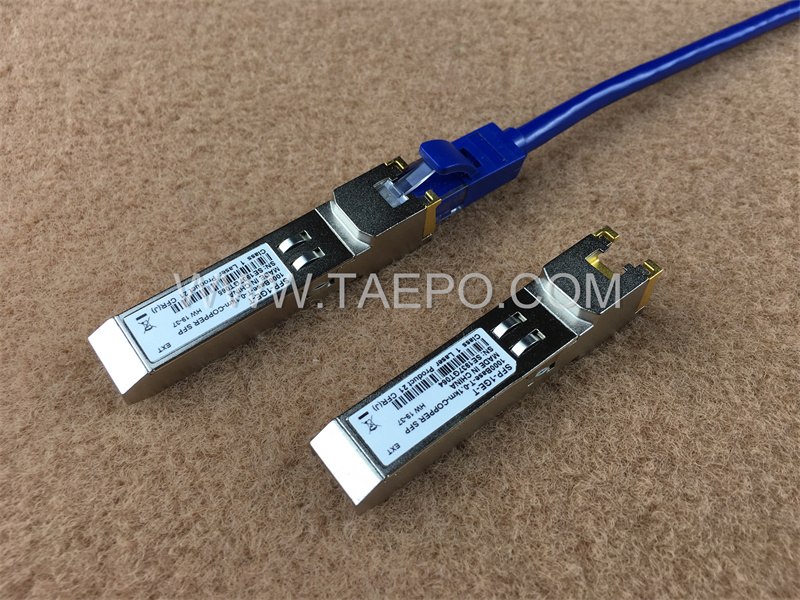

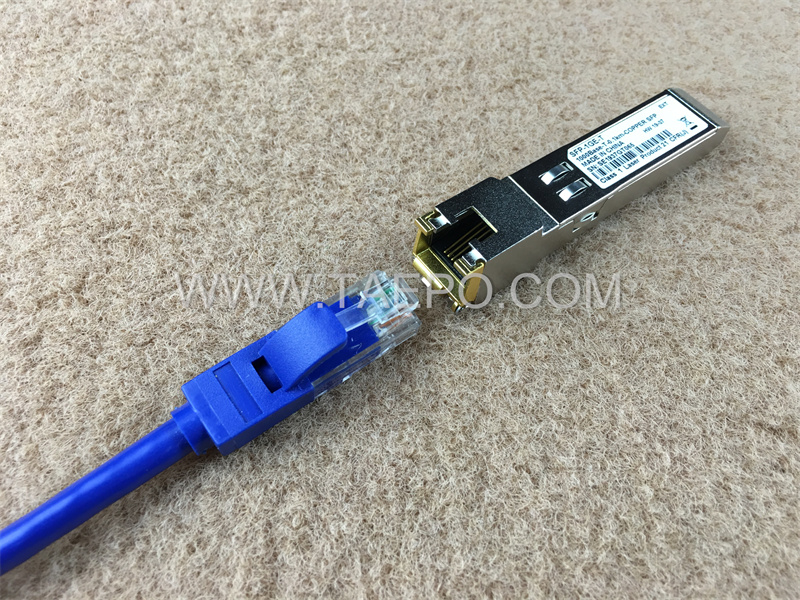

A 10/100/1000BASE-T Copper SFP Transceiver is a specific type of SFP (Small Form-Factor Pluggable) module designed to provide Gigabit Ethernet connectivity over copper cabling.
Here’s what makes it special:
- Versatility: The "10/100/1000" part indicates that the transceiver can operate at multiple speeds: 10 Mbps, 100 Mbps, or 1 Gbps. It is backward compatible with older Ethernet standards, which allows it to adapt to different network speeds as needed.
- Copper: This transceiver uses twisted-pair copper cables (Cat 5e or better), and it connects via an RJ45 port, just like traditional Ethernet ports.
- SFP Form Factor: Being an SFP module, it can be hot-swapped and inserted into a compatible SFP slot on networking equipment such as switches or routers. This modularity allows for flexible network configurations and easy upgrades.
Main Features
The main features of a 10/100/1000BASE-T Copper SFP Transceiver include:
1. Speed Versatility
Multi-Speed Support: It operates at multiple speeds—10 Mbps, 100 Mbps, and 1 Gbps (Gigabit Ethernet). This flexibility allows it to work with a variety of network configurations and standards.
2. Copper Cabling Compatibility
Twisted-Pair Cables: It uses Category 5e (Cat 5e) or better twisted-pair copper cables, making it suitable for environments where copper cabling is already in place.
3. Modular Design
SFP Form Factor: It fits into an SFP slot on network equipment, such as switches and routers. This modular design allows for easy installation, removal, and upgrades without shutting down the device (hot-swappable).
4. Standard Connector
RJ45 Interface: It uses a standard RJ45 connector, which is widely compatible with existing network infrastructure and equipment.
5. Cost-Effectiveness
Affordable Cabling: Copper cabling is generally less expensive than fiber optics, making it a cost-effective solution for short to medium-distance connections.
6. Backward Compatibility
Support for Older Standards: It can operate at lower speeds (10/100 Mbps), providing compatibility with older network equipment and allowing for a gradual upgrade to Gigabit Ethernet.
The main feature of a 10/100/1000BASE-T Copper SFP Transceiver is its ability to provide flexible, high-speed connectivity over copper cabling in a modular, hot-swappable format. This allows for easy upgrades and adaptability to various network speeds and existing infrastructure.
Schematic Diagrams

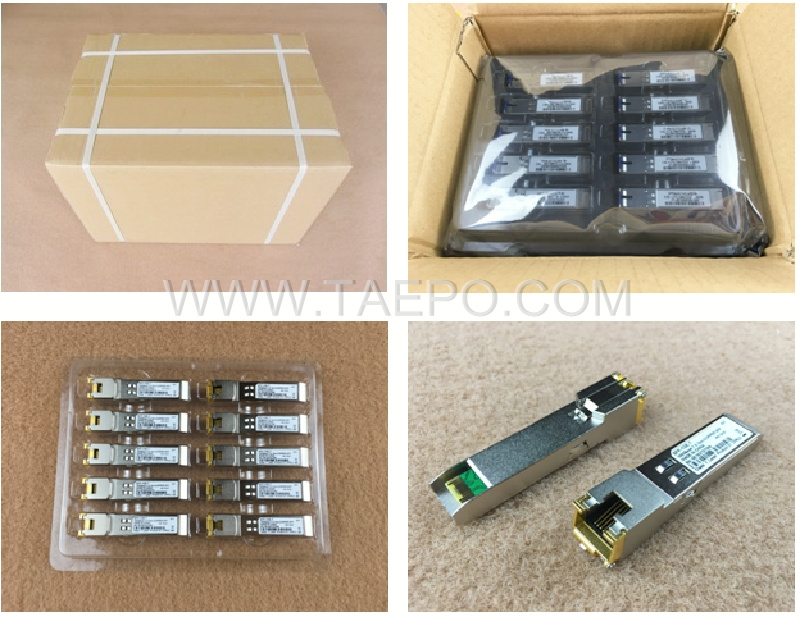

Packing Pictures
Order Data
| Item No |
Descriptions |
| TP-SFP-1GE-T |
1000BASE-T and 10/100/1000BASE-T Copper SFP Transceiver |
