What Exaclty Is a 25 Pairs Gel Filled Straight Splicing Module ?
DESCRIPTIONS

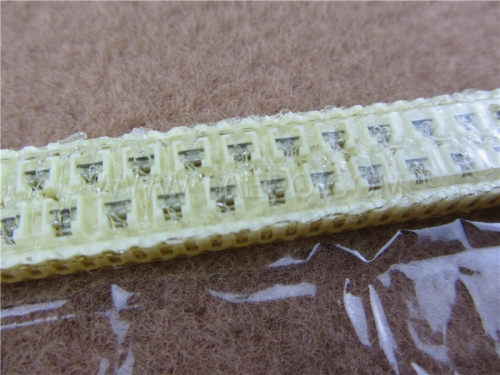

25 pairs gel filled straight splicing modules (TP-1307-25G) are designed to mass terminate communication cables of solid copper or aluminum conductor wires ranging from 0.32 to 0.8 mm of diameter (28 to 20 AWG), with a maximum conductor outside diameter (OD) of 1.65 mm. The connectors are equipped with insulation displacement tin plated contacts that provide a gas-tight termination.

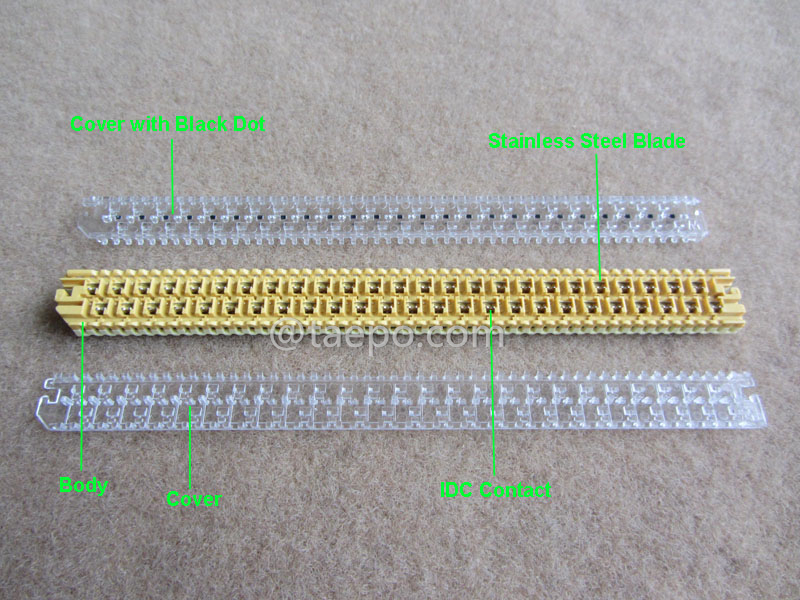

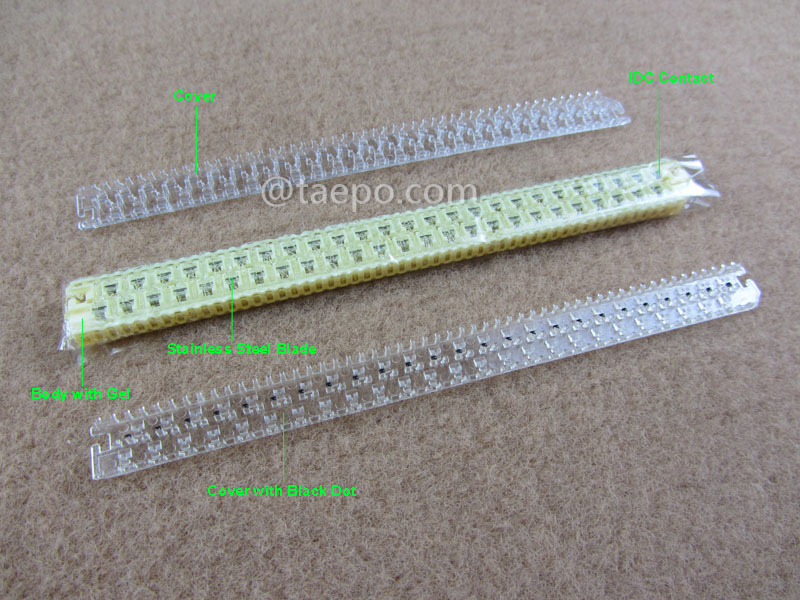

The splicing modules feature an array of U-shaped, phosphor-bronze contacts and stainless steel cut-off blades. As a module is crimped, each contact strips the insulation from the positioned wire and securely grips the conductor. During this crimping operation, the cut-off blades inside each module trim the excess wire. A single crimp completes a gas-tight connection on all 25 pairs in the module, making the entire process simple and fast.
Test entry ports in the front side of the modules allow you to test without opening the module, stripping insulation, or otherwise interrupting service. Module covers, bodies, and bases are constructed of durable polycarbonate, and are compatible with materials common to telecommunications installations. The rugged design and construction of the modules withstands crimping and reopening, facilitating transfers and cable rearrangements at any time. This type of splicing module is coverd by gel for protection against moist.
MAIN FEATURES
- Insulation Displacement Contact (IDC): it is designed to make electrical connections without the need for stripping wires or using separate connectors, by using a sharp blade or wedge to penetrate the insulation of the wire and make contact with the conductor.
- Pair Count: The "25 pairs" part of the term indicates that this module is designed to accommodate and splice 25 pairs of copper cables. In telecommunications, a pair usually refers to a twisted pair of copper wires, which is commonly used for transmitting voice and data signals.
- Straight Splicing: "Straight splicing" typically means that the module is used for joining two straight sections of copper cable together without any cross-connections or alterations in the wiring. This is commonly done when extending or repairing copper cable runs.
- High-Quality Connectors: These modules often come equipped with high-quality connectors or punch-down blocks designed to securely terminate and splice copper wires. These connectors should ensure reliable connections and minimal signal loss.
- Durability: They are typically built to be durable and long-lasting, as they are expected to endure the rigors of telecommunications and networking environments.
- Gel Sealing: The gel inside the module encapsulates and seals the spliced cable pairs, protecting them from moisture, corrosion, and other environmental factors. This feature is particularly important for outdoor installations.

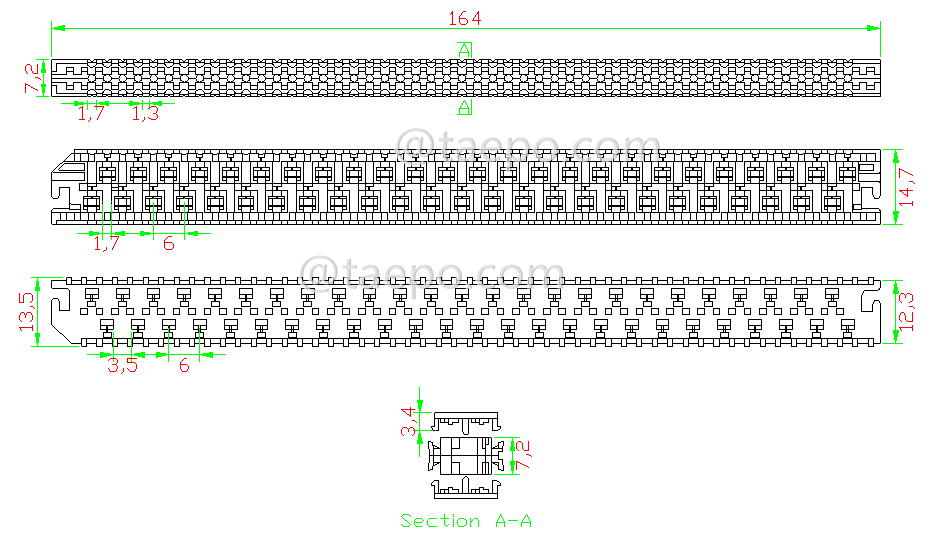

SCHEMATIC DIAGRAMS

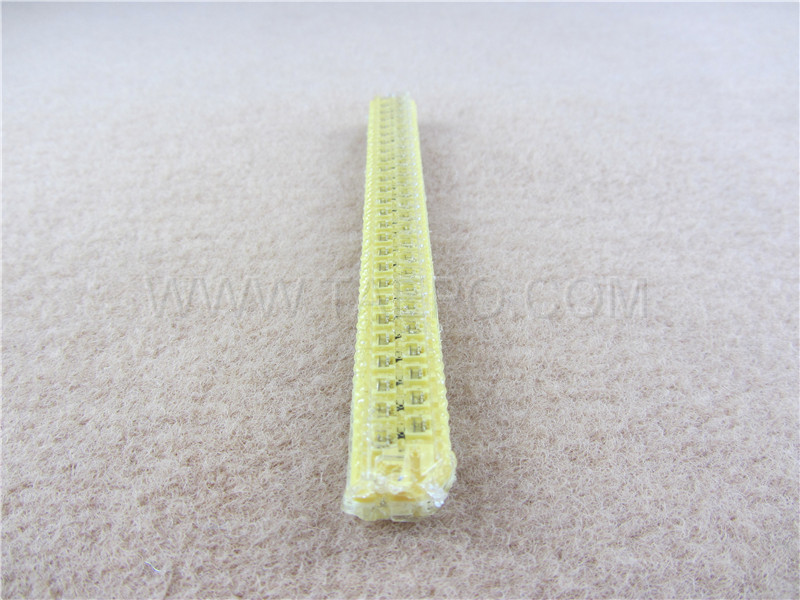

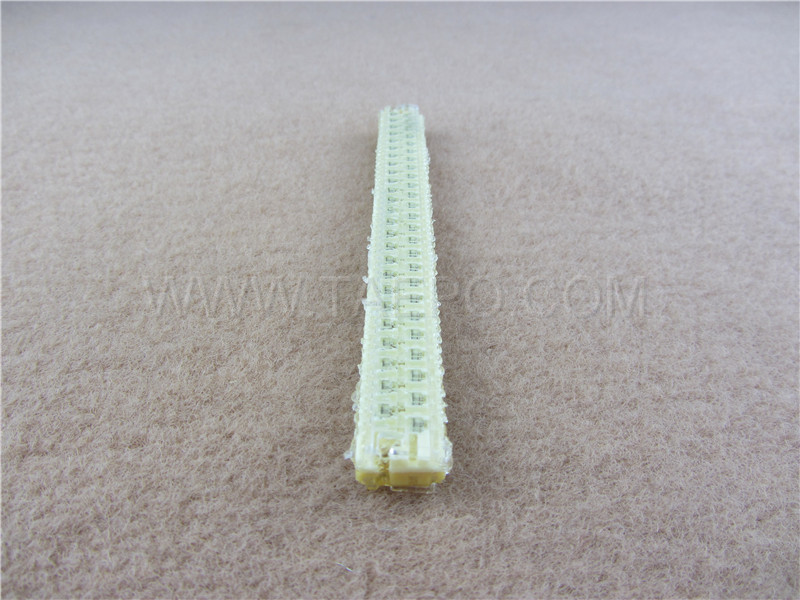

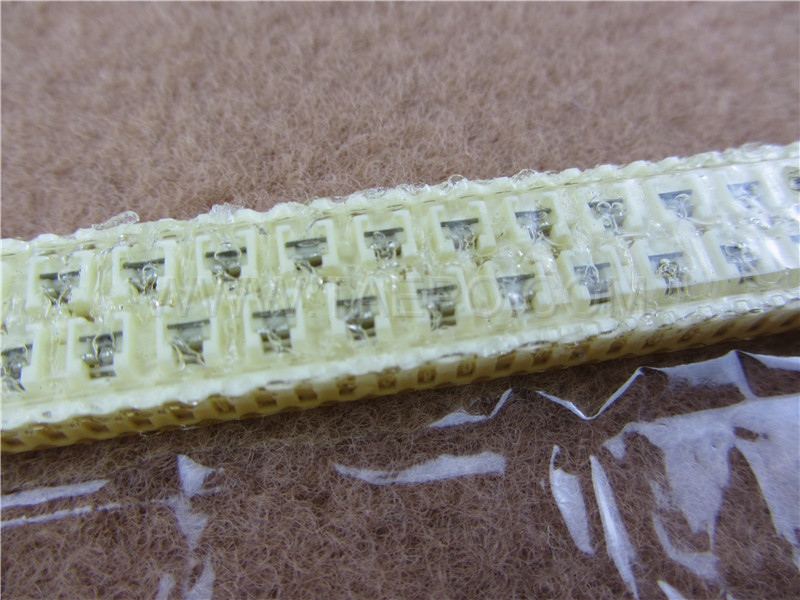

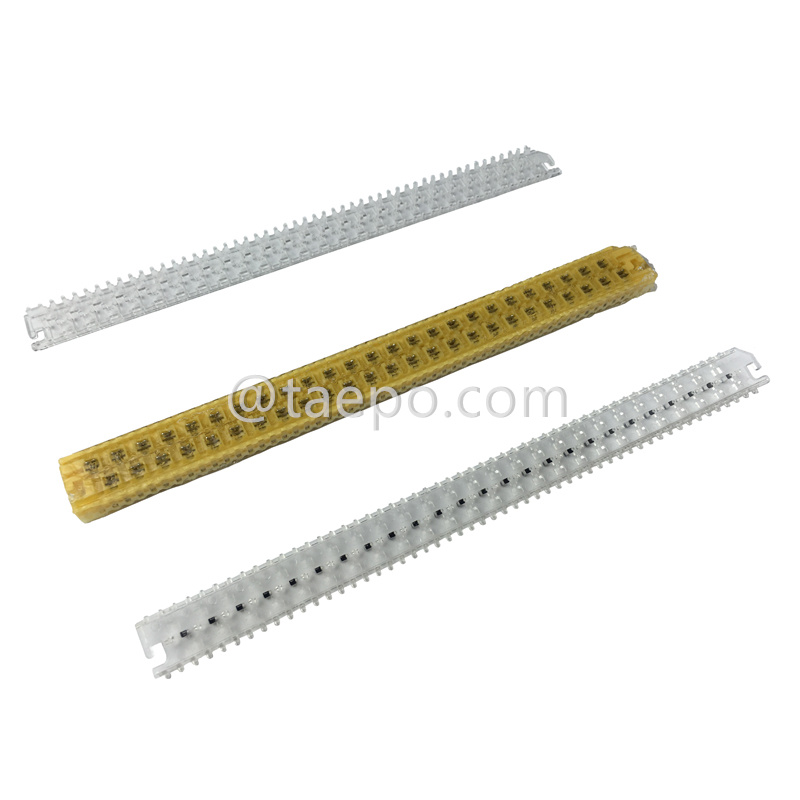

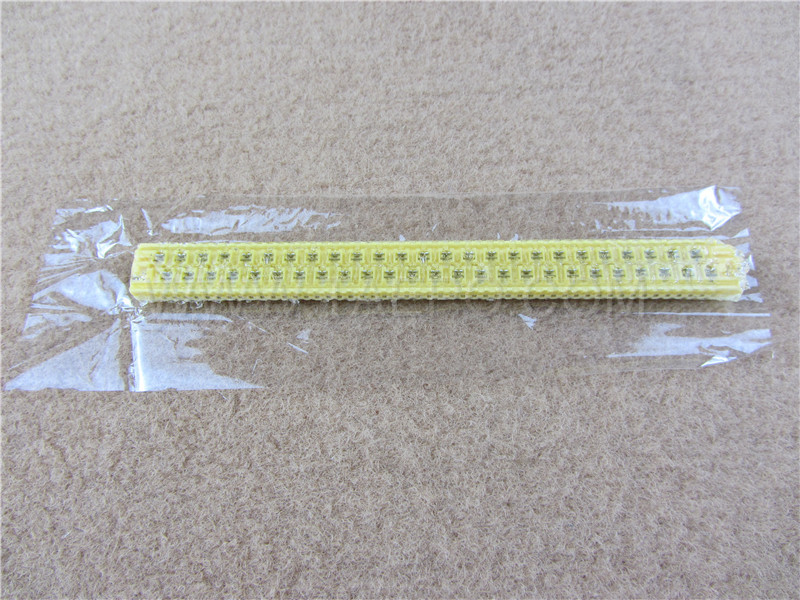

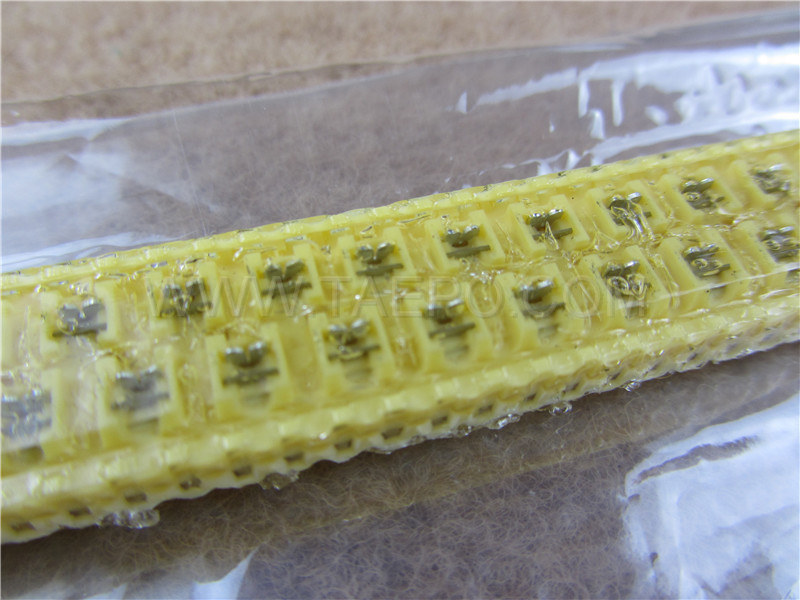

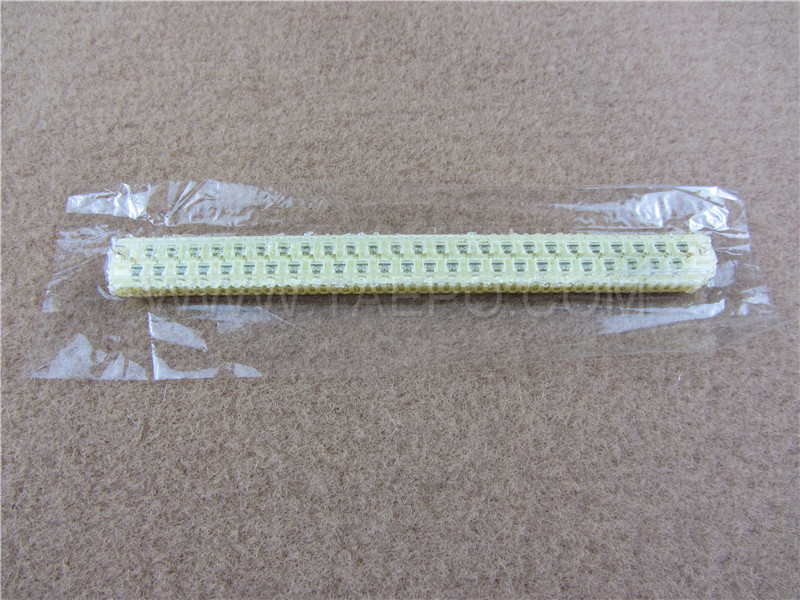

ILLUSTRATION PICTURES

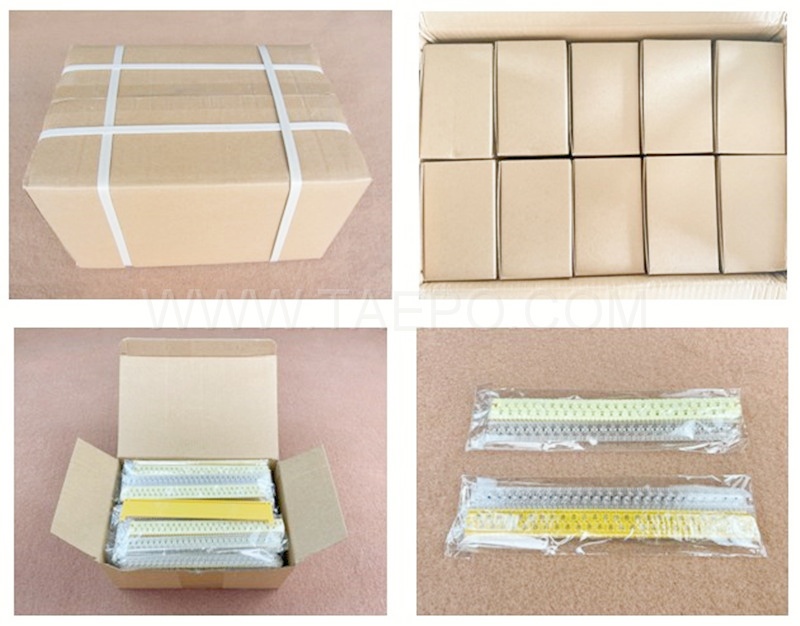

PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-1307-25G |
25 pairs gel filled straight splicing module |
RELATED PRODUCTS

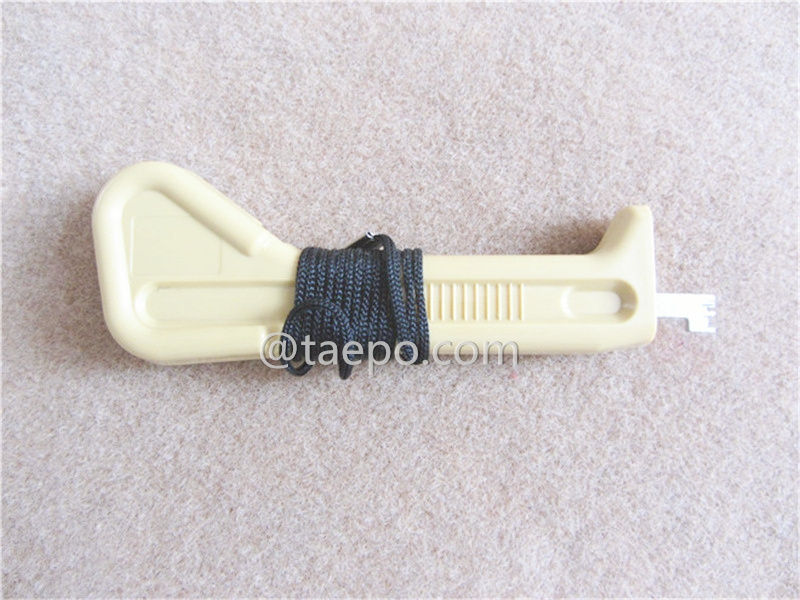

TP-5909 Punch down tool for splicing module

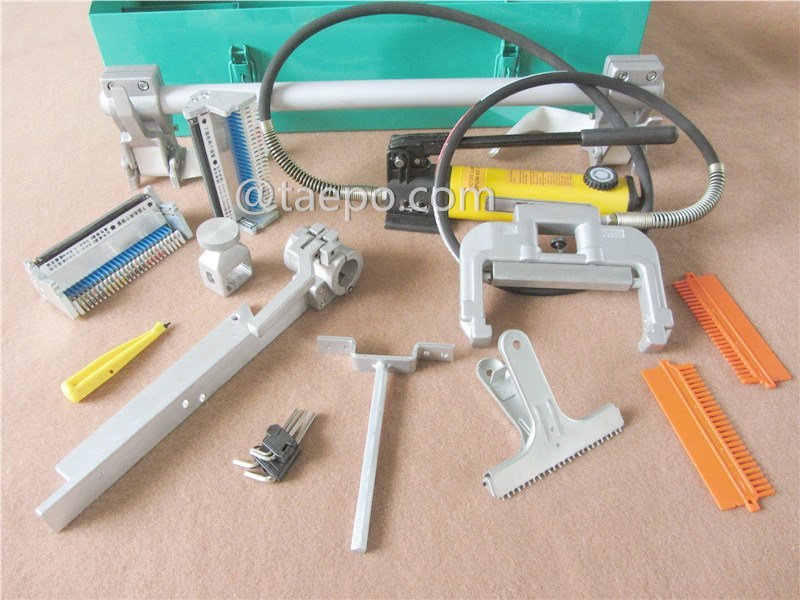

TP-5910 Modular splicing rigs and maintenance kits

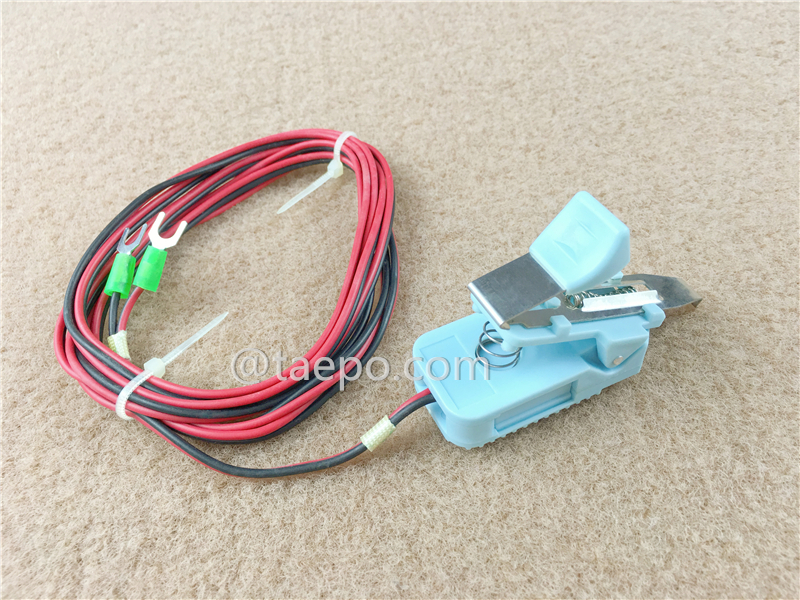

TP-1307-2TS 2-pole test cord for splicing module, test plug to screw terminal
