What Exaclty Is a 2-pole Test Cord ?
DESCRIPTIONS

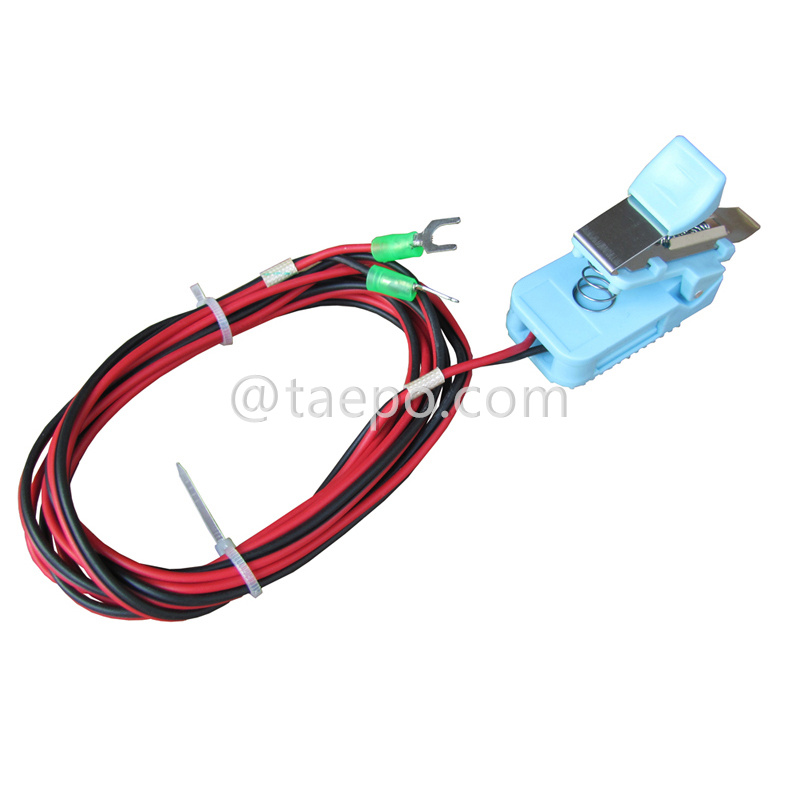

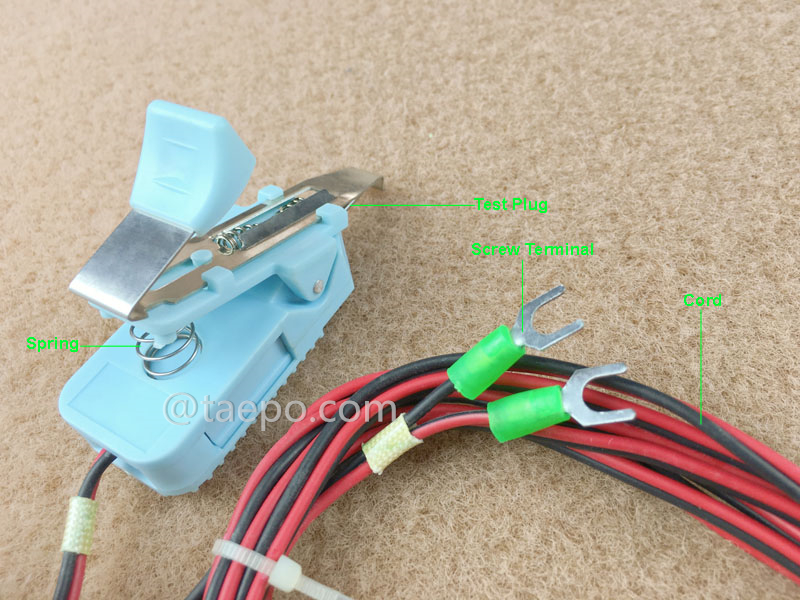

2-pole test cord for splicing module test plug to screw terminal (TP-1307-2TS) is used for testing the telephone line. The test plug is used for inserting into the splicing module, and the screw terminal for connecting to the telephone testing kit.The 2-pole cord permits parallel connection when it is used in the splicing module. This configuration ensures efficient signal tapping, continuity checks, voltage testing, and loopback analysis.
The grey 2-pole cord permits parallel connection (monitor function) when it is used in the connection or disconnection module. The contacts of the cord bridge the centre contacts of the module which permit monitoring of the line (connection line). It serves as a bridge between the field wiring and the technician’s diagnostic tools, allowing for safe and accurate testing without disturbing permanent wiring.
Constructed with high-quality, flexible, and durable materials, the test cord is built for frequent handling and reuse in various indoor and field conditions. The cord is lightweight, easy to manage, and color-coded for polarity recognition, making it a dependable tool for professional telecom technicians. With its adaptable interface and sturdy build, it supports quick deployment and reduces downtime during network testing or maintenance activities.
MAIN FEATURES
- Cable Length: The cable is available in various lengths to suit different testing and connection needs.
- Flexible and Insulated: The cable is flexible and well-insulated to ensure safety and ease of use.
- Test Plug: One end is equipped with a test plug designed for secure connections to terminal blocks commonly used in telecommunications and networking.
- Screw termainal: The other end features a screw terminal, commonly used for telephone lines and networking applications, with two conductors for basic connections.
- Durability: Designed to withstand repeated use, with durable materials and insulating coatings on alligator clips.
- Safety: Alligator clips are coated to prevent accidental short circuits, ensuring safety during testing.
- Dual-Terminated Interface: The test cord features two distinctly different terminations—a test plug for IDC modules and screw terminals for external device connections—allowing technicians to quickly establish a stable temporary interface between network points and diagnostic equipment.
- Color-Coded Leads: The red and black color-coding along the cord’s outer insulation helps technicians quickly identify polarity or channel orientation, minimizing the risk of reversed connections during fast-paced field testing.
- Flexible PVC Jacket: The wire is jacketed in a soft, durable PVC sheath that maintains flexibility even in colder environments, reducing the chance of cracking or tangling and allowing the cord to coil neatly for storage.
- High Conductivity Wires: The internal conductors are made from high-purity, oxygen-free copper strands to ensure low electrical resistance, supporting accurate test results without signal drop or power loss.
- High Mechanical Strength: The assembly is built to resist tearing, stretching, or deformation, ensuring the cord maintains both form and function even under the physical demands of field usage.
INSTALLATION VIDEOS

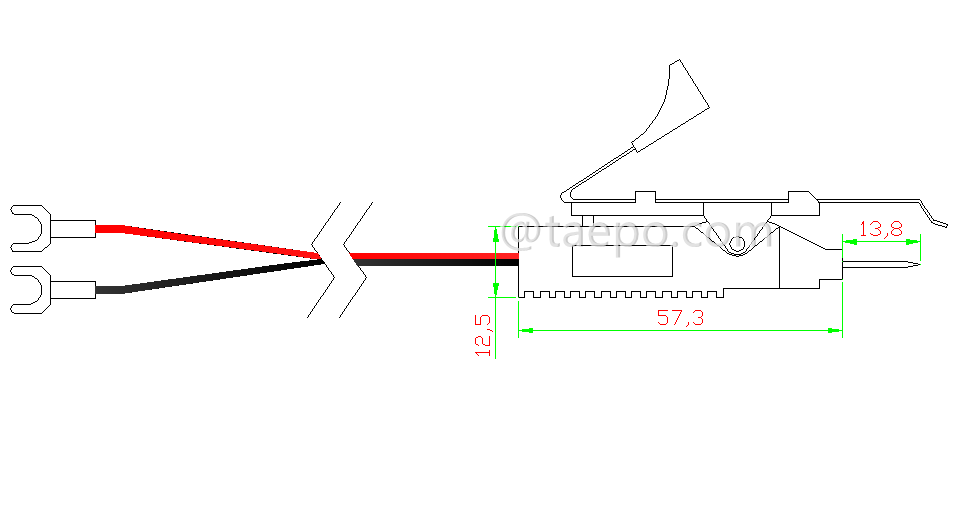

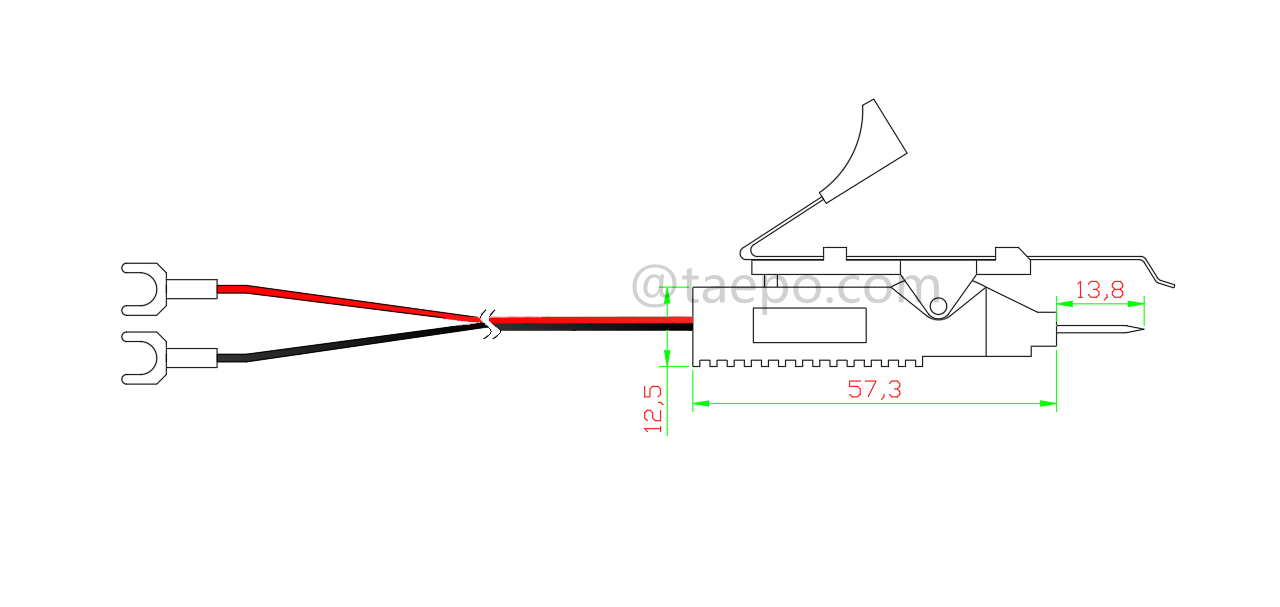

SCHEMATIC DIAGRAMS

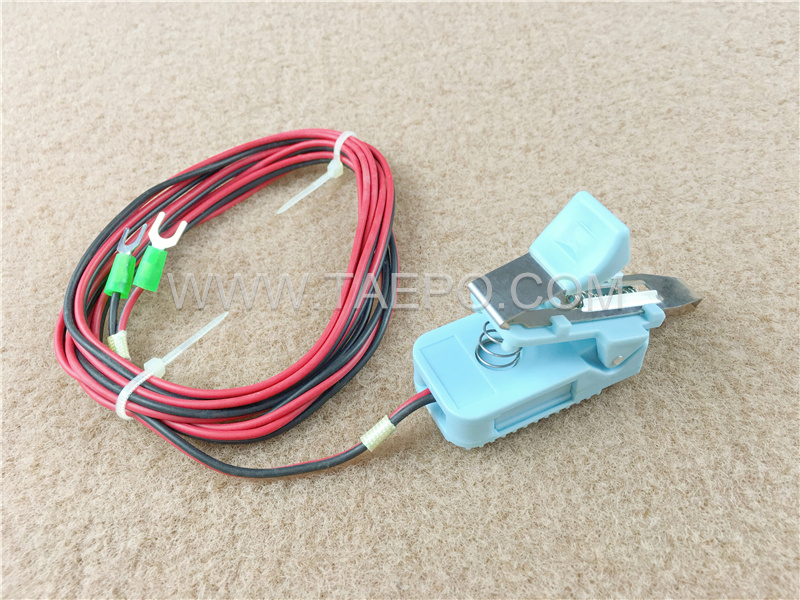

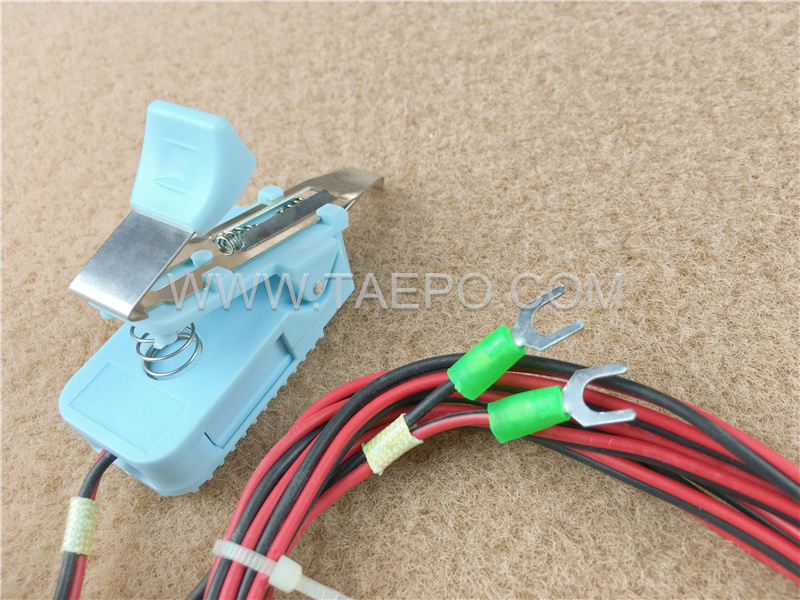

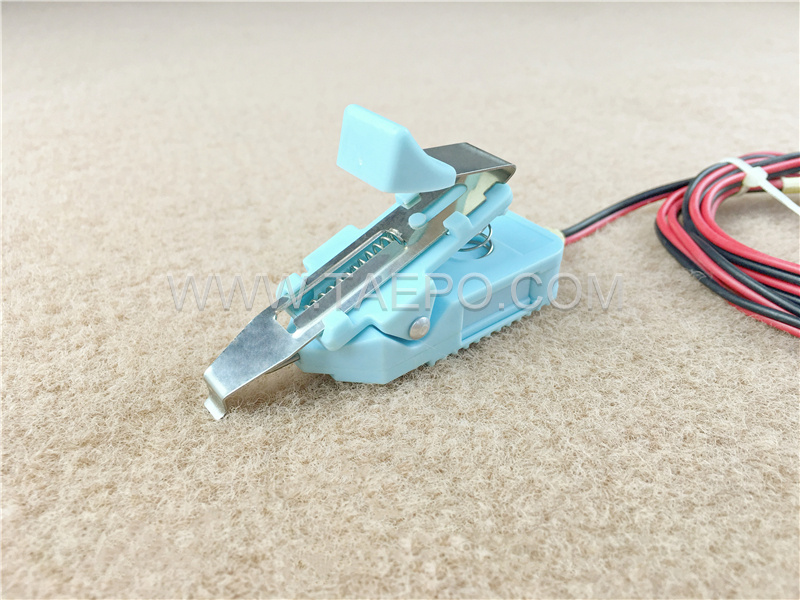

ILLUSTRATION PICTURES
PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-1307-2TS |
2-pole test cord for splicing module, test plug to screw terminal |
