What's the Meaning Behind 10 Pairs LSA Rack Mounting Frame?
DESCRIPTIONS

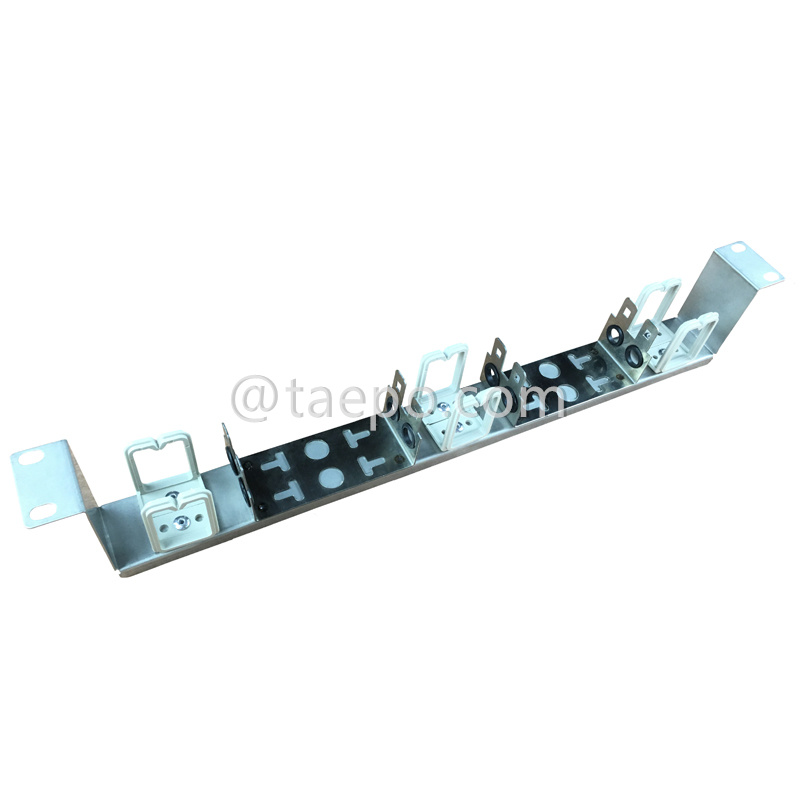

10 pairs LSA rack mounting frame, 4 ways (TP-1245-10-4) is used as to install the LSA modules, with the function of wiring. It is usually mounted onto the 19 inch exsisting rack or cabinets. It belongs to the accessories for the copper connectivity.
In these applications, the pitch of 22.5 mm can always be used, Jumper wires can be fed in from both sides of the module through the cable guide for tidy and beautiful wiring. It is an element within modern telecommunications infrastructure, designed to optimize the organization and distribution of copper wire connections. This sturdy and efficient frame provides a reliable foundation for LSA modules, facilitating secure terminations and streamlined connections for voice and data communication. It simplifies installation, maintenance, and troubleshooting while helping maintain cable organization and signal integrity.
The stainless steel material enhances durability under frequent handling and maintenance operations, ensuring that the frame remains dimensionally stable under physical stress and temperature changes. Precision machining and forming allow the frame to hold the modules securely in alignment for optimal IDC termination and signal reliability.
MAIN FEATURES
- Snap-on Design: Module snap onto the frame and can take the module off with the assistance of the insertion tool
- Efficient Setup: The back mount frame streamlines the installation and arrangement of LSA modules, contributing to quicker network deployment.
- Organized Management: With designated labeling areas and modular capabilities, the frame ensures well-organized wire connections and simplified maintenance.
- Space Optimization: Its design maximizes the use of rack space, making the most of available infrastructure while promoting accessibility.
- Modular Flexibility: The frame's modular configuration allows for flexibility in adapting and expanding the network setup as connectivity needs evolve over time.
- Labeling Space: Dedicated areas for labeling or marking are often included in the frame's design. This aids in identifying and organizing LSA modules and their associated wire connections.
- Cable Protection: Its cable rings shield LSA modules and wire connections from physical damage, ensuring the longevity and reliability of the network infrastructure.
- Rack-Mountable Frame: Specifically designed to be mounted in standard 19-inch network and telecom racks, ensuring compatibility with a wide range of rack systems globally.
- 4-Way Configuration: Supports four horizontal mounting ways for profile rods, each of which can carry a 10-pair LSA module, making it suitable for installations up to 40 wire pairs.

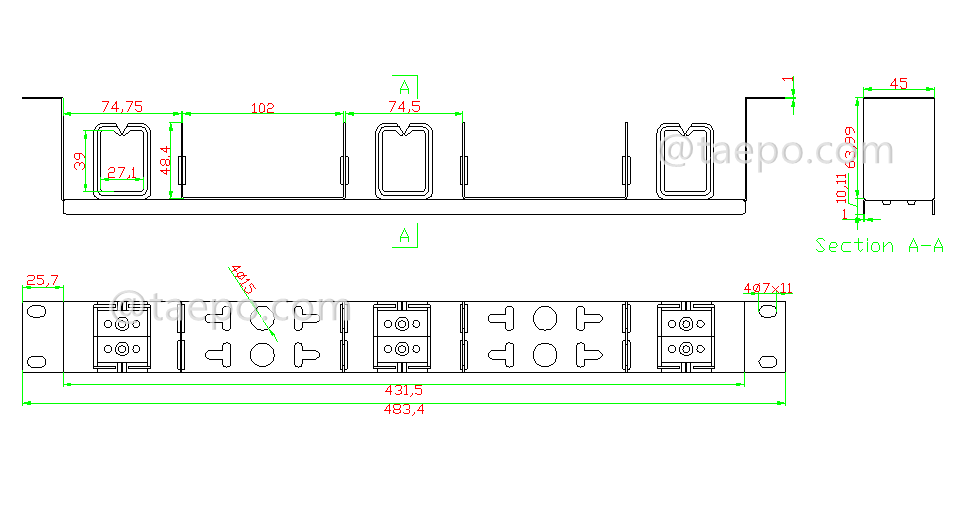

SCHEMATIC DIAGRAMS

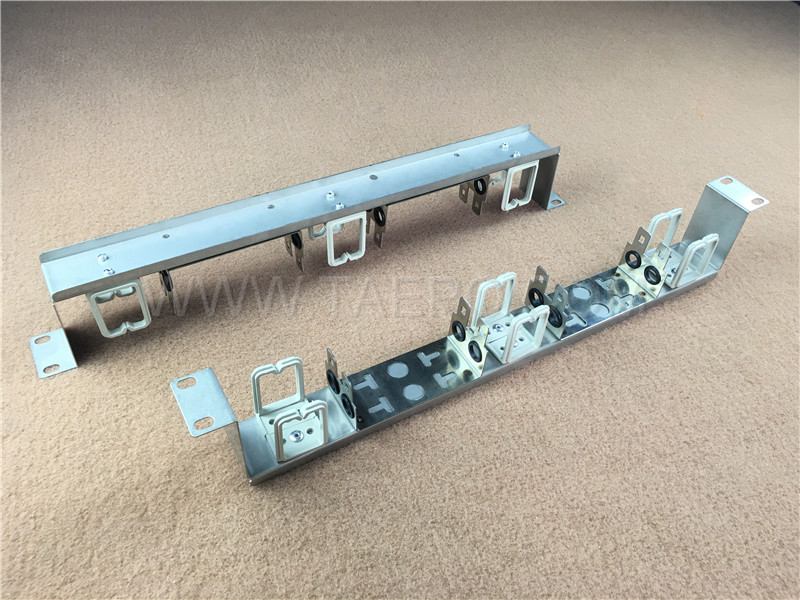

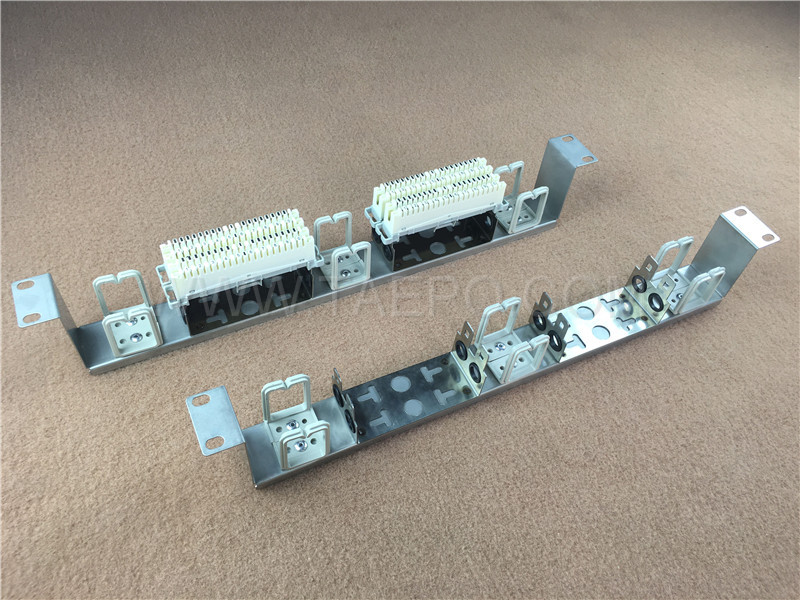

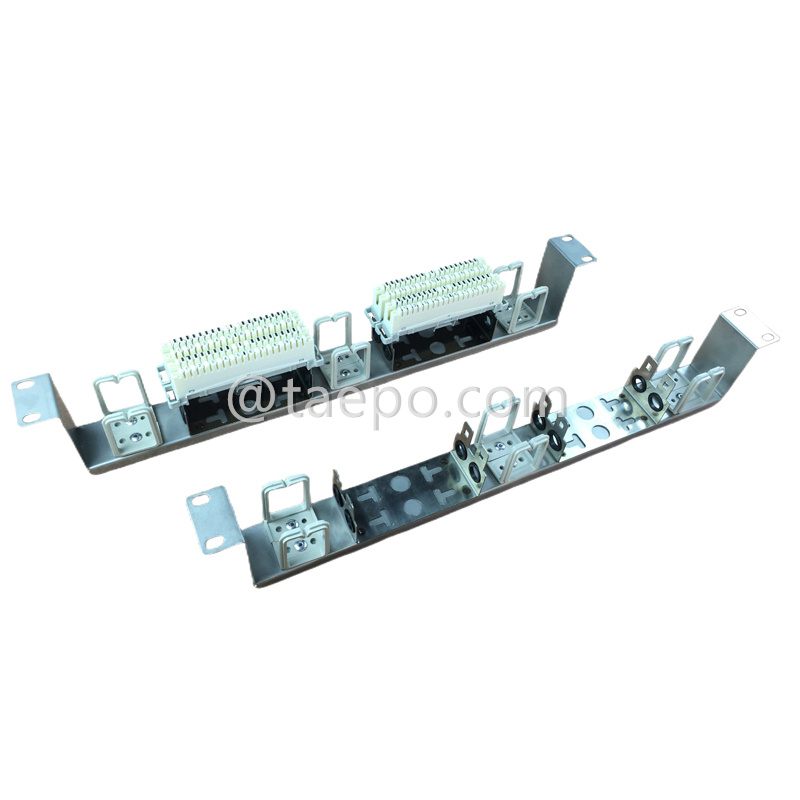

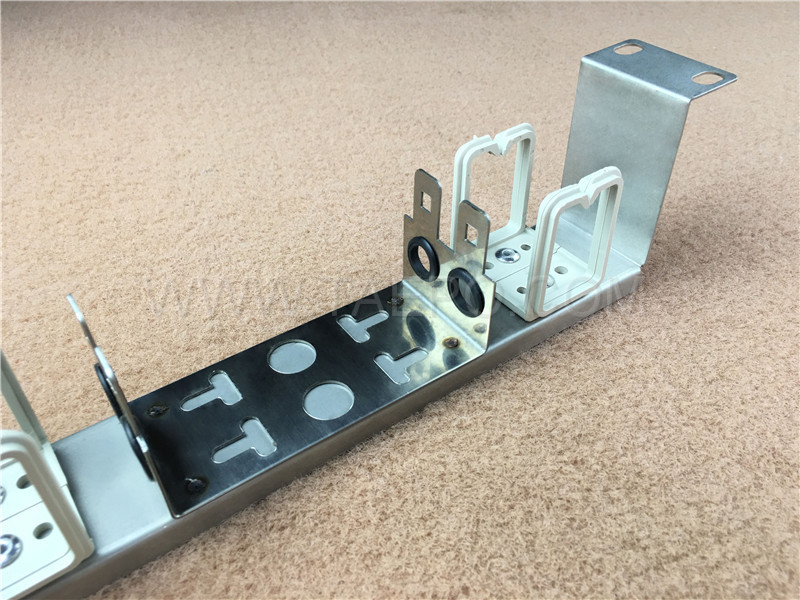

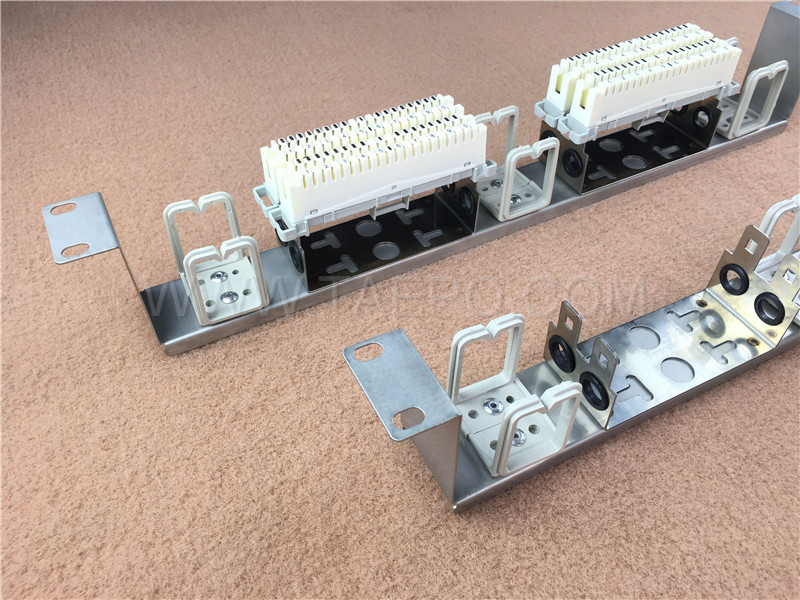

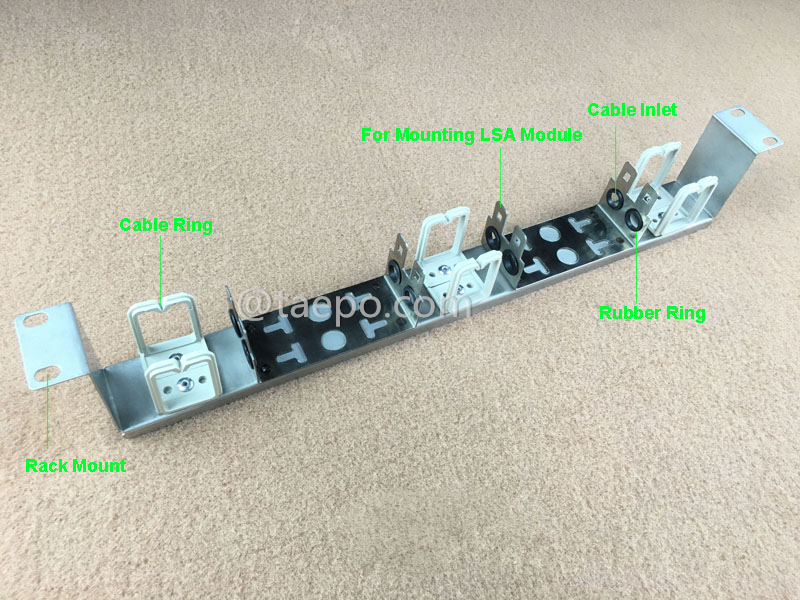

ILLUSTRATION PICTURES

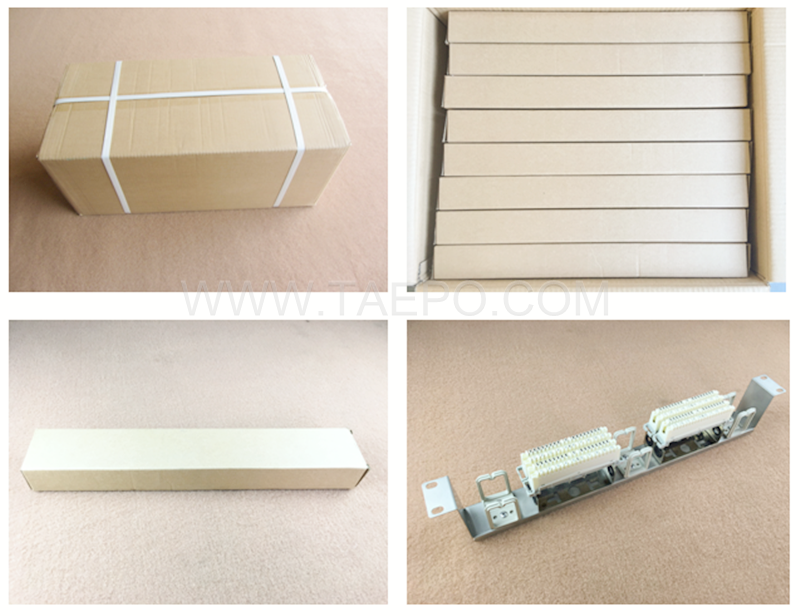

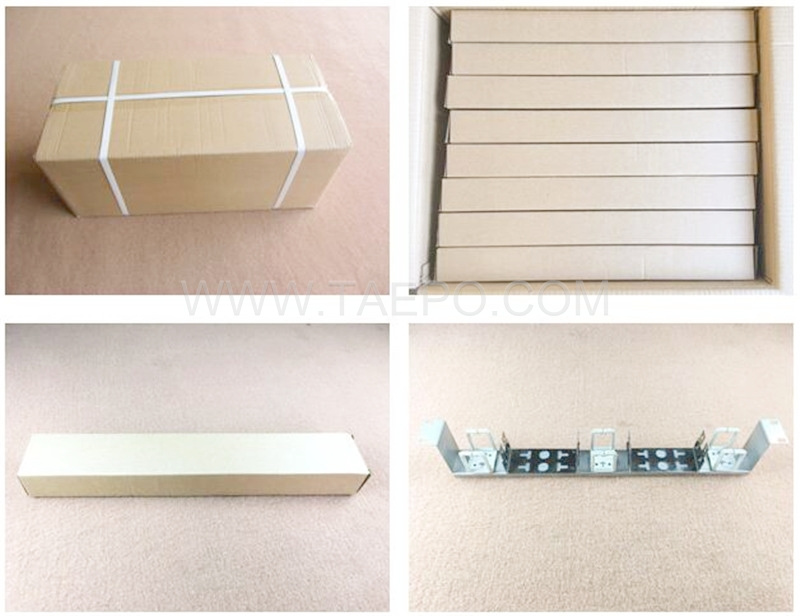

PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-1245-10-4 |
10 pairs LSA rack mounting frame, 4 ways, stainless steel |
