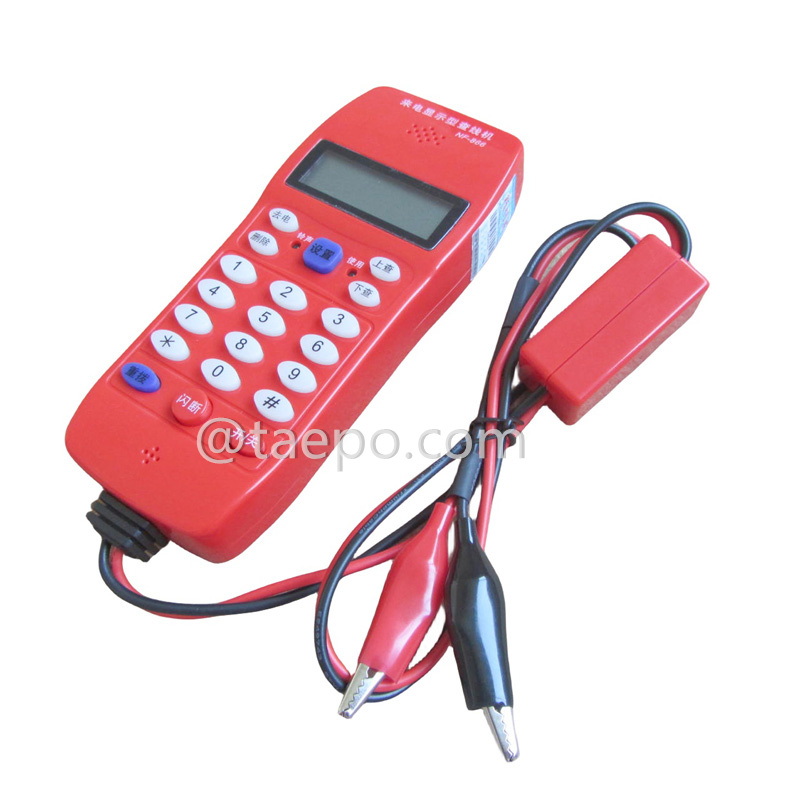

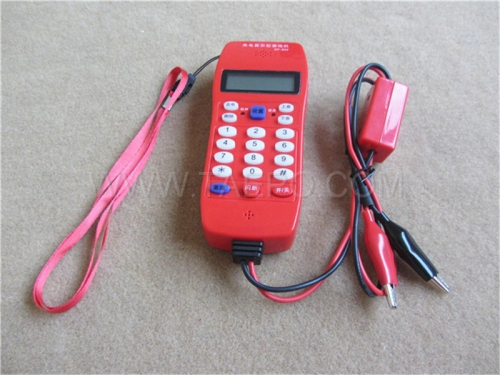

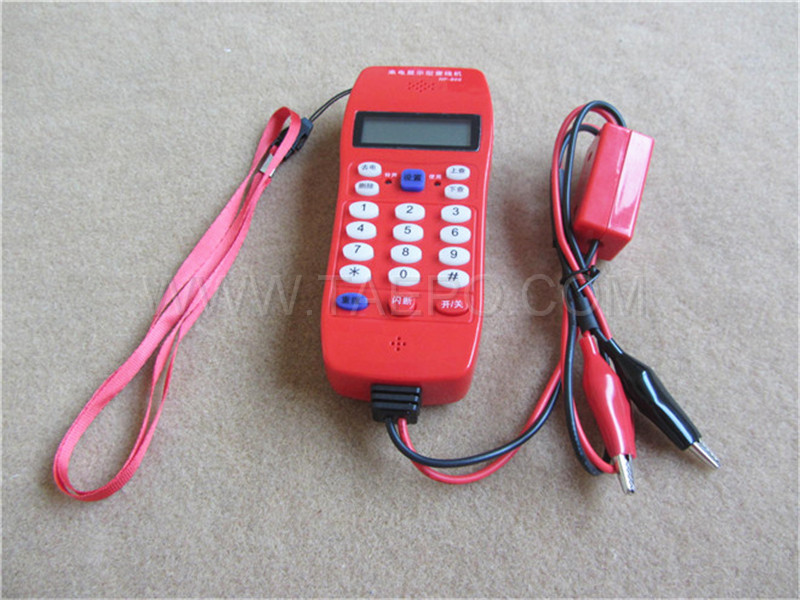

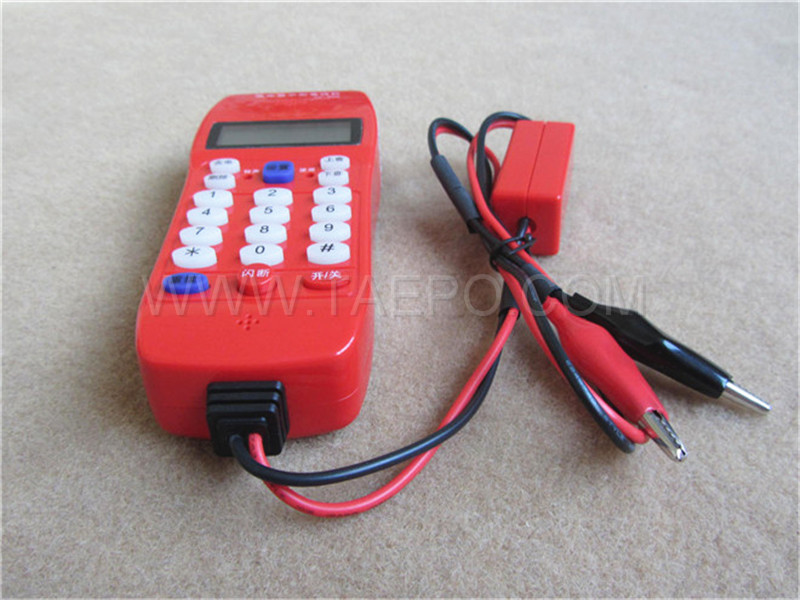

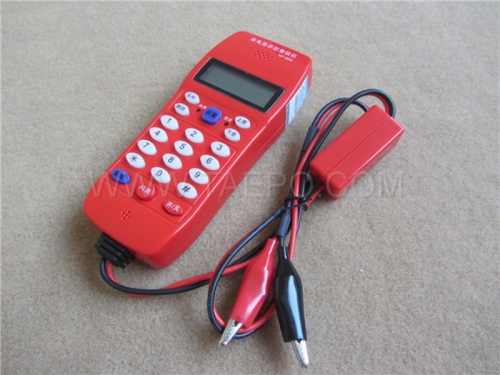

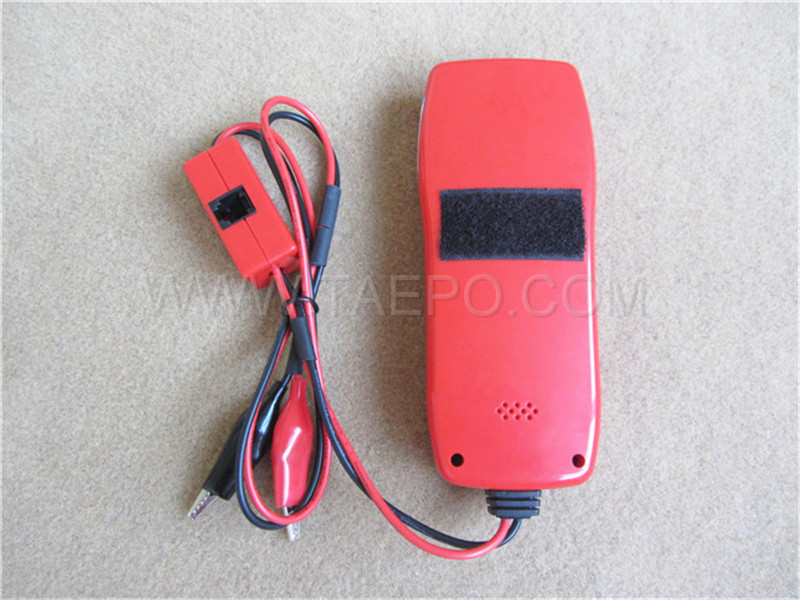

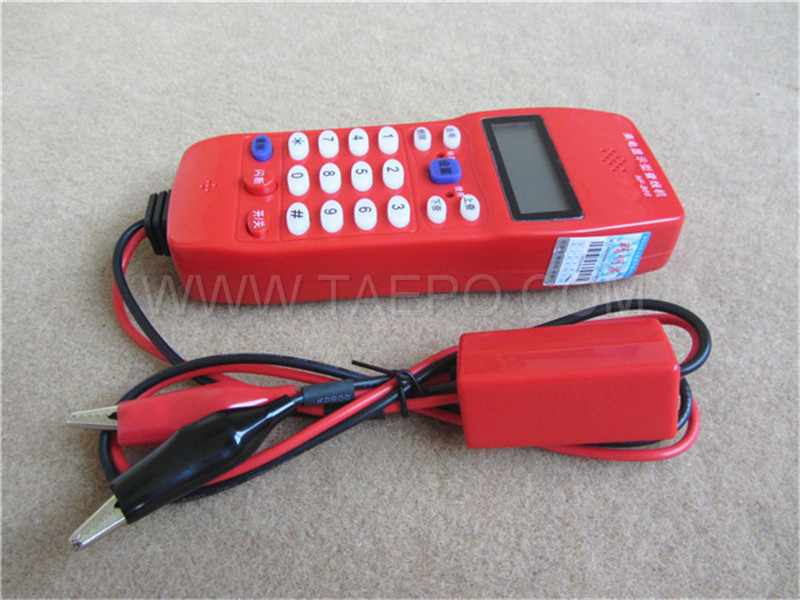

Telephone line tester

    Descriptions

A telephone line tester is a device used to check the functionality and quality of telephone lines. It is typically used by technicians and installers to troubleshoot problems in telephone networks, both in residential and commercial settings.
Telephone line testers come in various forms, from basic handheld devices with simple LED indicators to more sophisticated models with digital displays and data logging capabilities. They are essential tools for maintaining and troubleshooting telephone networks to ensure reliable communication services for users.

    Main Features

• Line Testing: It verifies if the telephone line is working properly by checking for continuity, shorts, and other electrical characteristics.

• Voltage Detection: It can detect the presence of voltage on the line, which is crucial for safety reasons when working with active telephone circuits.

• Polarity Check: Ensures that the wiring is correctly configured with respect to positive and negative polarity, which affects the operation of some telephones and other devices connected to the line.

• Signal Testing: Some advanced testers can measure signal levels and noise on the line, helping to diagnose issues related to signal strength and clarity.

• Line Identification: Helps to identify specific lines in multi-line telephone systems or in situations where multiple lines are present in a building.

• Handset Testing: Allows technicians to test the functionality of telephone handsets, ensuring they can make and receive calls properly.

• DSL Compatibility: In cases where the telephone line is also used for DSL (Digital Subscriber Line) internet service, a tester may include features to check DSL signal integrity and filters.

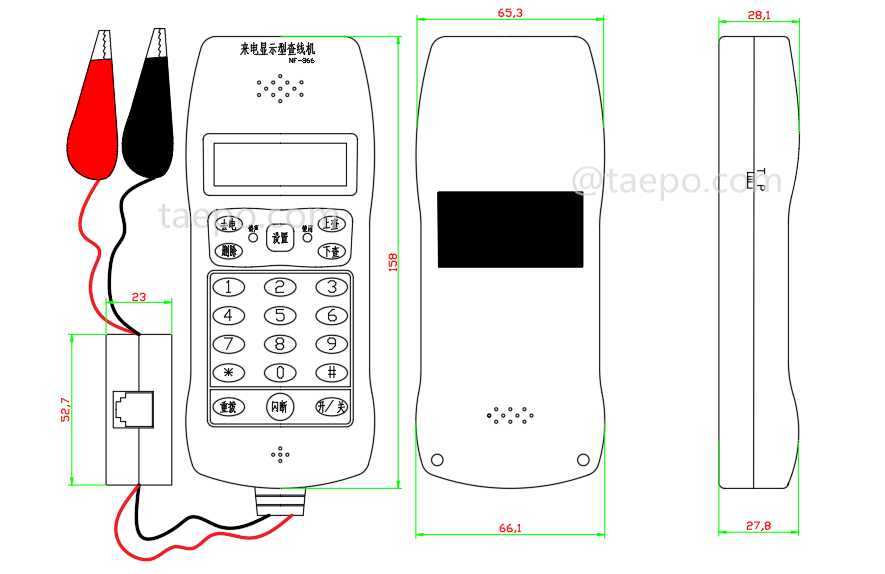

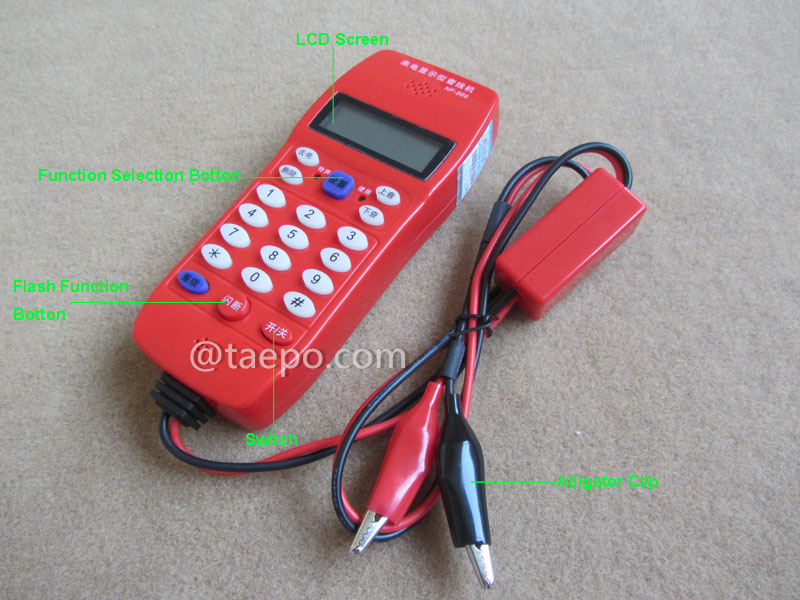

    Schematic Diagrams

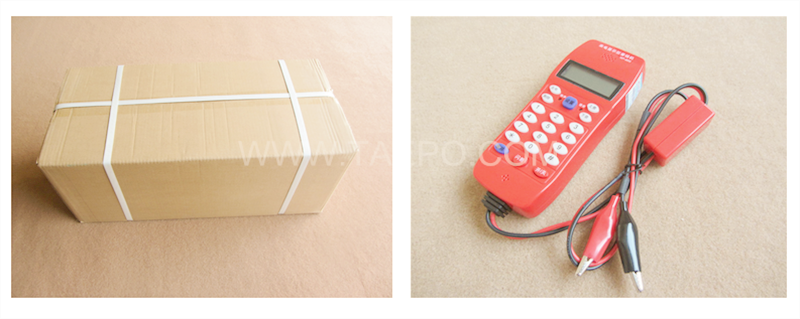

    Packing Pictures

    Order Data
