Spool Insulator

TAEPO - Your Professional Source for Fiber Spool Insulator, Expert Chinese Manufacturing at Its Best !
What is Fiber Spool Insulator used for?


    DESCRIPTIONS

The Spool Insulator (TP-3618-A) is a critical component used to electrically isolate optical fiber cables from metal structures, specifically iron poles, in overhead telecommunication deployments. Its primary role is to prevent current leakage and ensure system integrity by providing robust dielectric separation between the conductive pole and the optical fiber cable, especially in outdoor environments exposed to varying weather conditions.

Manufactured from high-grade ceramic, this insulator boasts excellent dielectric properties and resistance to both mechanical stress and weathering. It features standard dimensions that are compatible with most pole fixtures and cable routing systems, ensuring ease of installation and integration into existing infrastructure. The material’s insulating capabilities remain effective under both dry and wet conditions, making it ideal for long-term use in aerial fiber optic systems.

The insulator is engineered to perform under high voltage exposure, supporting up to 25kV in dry conditions and 12kV to 15kV under wet vertical and horizontal orientations. With a mechanical failing load of 13.3kN, it provides the strength needed to maintain cable positioning while withstanding environmental stress, including wind, ice, and cable tension.

    MAIN FEATURES

• Electrical Isolation: Separates OFC cable from conductive iron pole.
• Ceramic Material: High-durability and excellent dielectric properties.
• Standard Size: Compatible with typical pole fixtures and cable supports.
• Dry Frequency Insulation: Withstands up to 25kV without breakdown.
• Wet Frequency Vertical: Withstands 12kV under vertical wet conditions.
• Wet Frequency Horizontal: Withstands 15kV under horizontal wet conditions.
• Mechanical Load Capacity: Supports up to 13.3kN without failure.
• Thermal Resistance: Performs across wide temperature ranges.
• Corrosion-Free: Ceramic resists rust and degradation over time.
• UV-Resistant: Withstands prolonged exposure to sunlight.
• Outdoor Ready: Built for all-weather aerial applications.
• Non-Conductive Surface: Prevents accidental electrical bridging.
• Low Water Absorption: Maintains insulation even in wet climates.
• Impact Resistant: Tolerates handling and installation shocks.
• Long Service Life: Minimal aging and deterioration in field use.
• High Dielectric Strength: Prevents arcing or flashover.
• Environmentally Stable: Inert and non-reactive material.
• Easy to Mount: Standard fittings for secure installation.
• Reliable Load Distribution: Maintains cable alignment and spacing.
• Maintenance-Free: Requires no upkeep once installed.

    SCHEMATIC DIAGRAMS

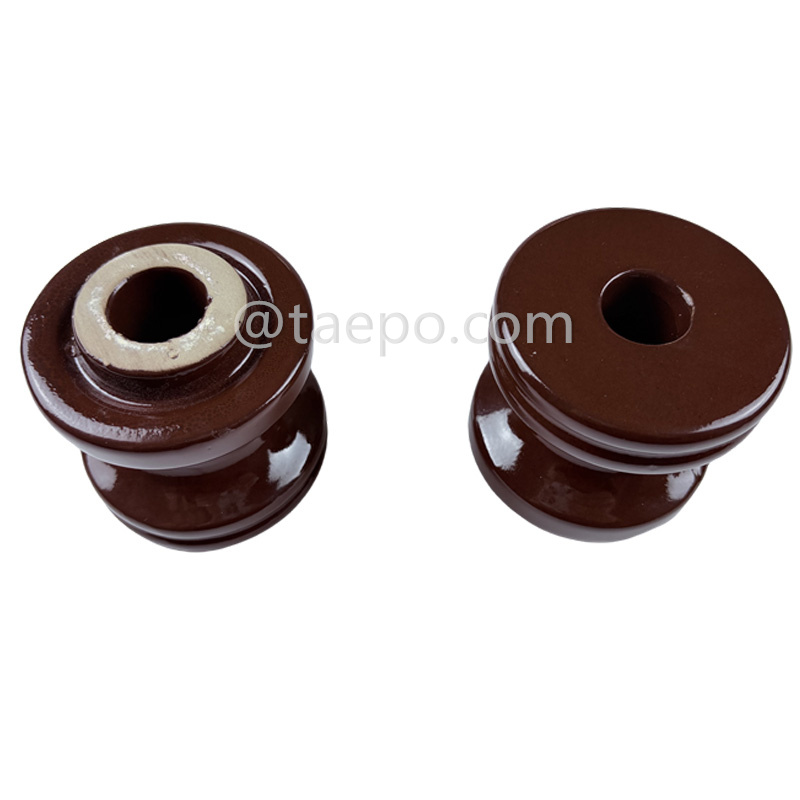

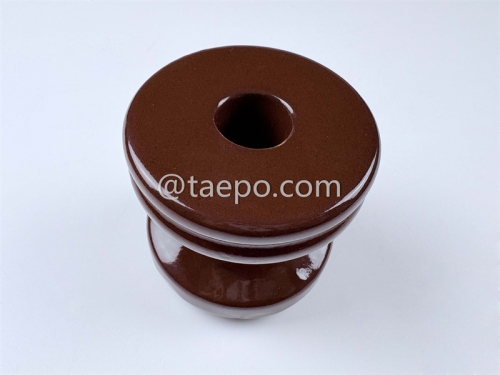

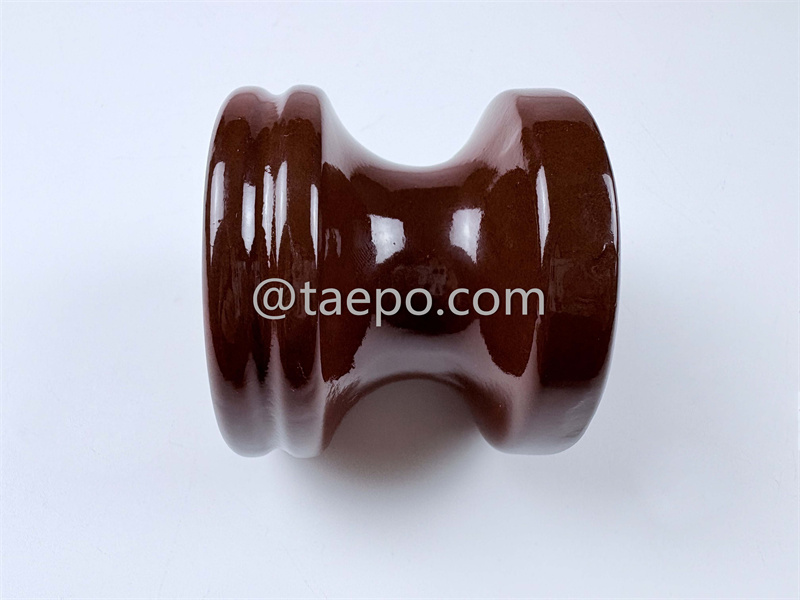

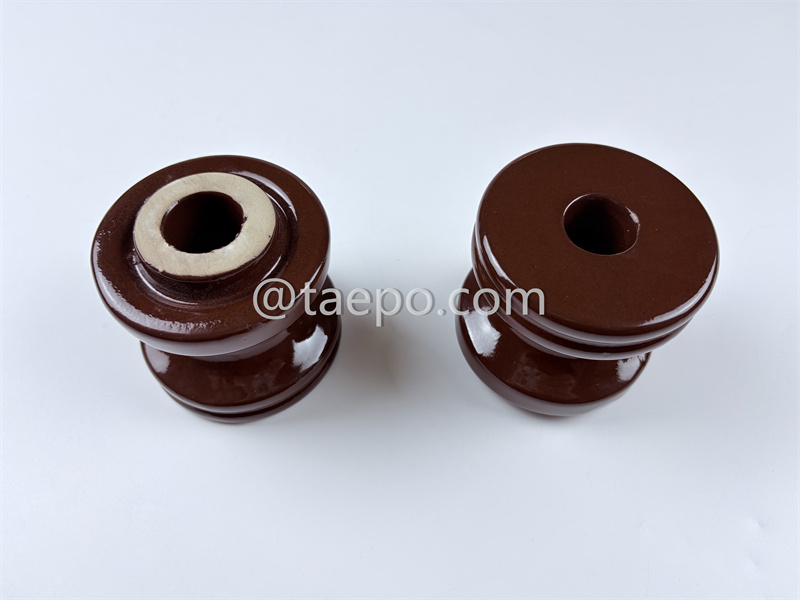

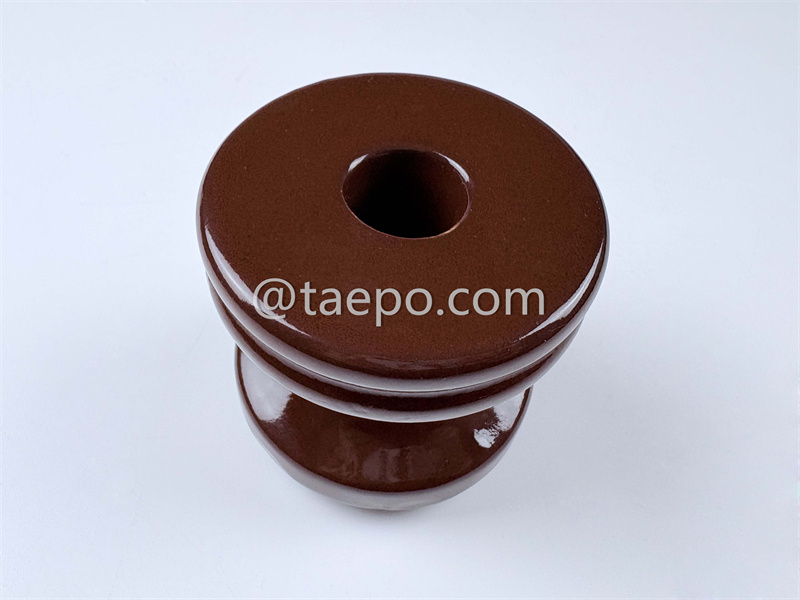

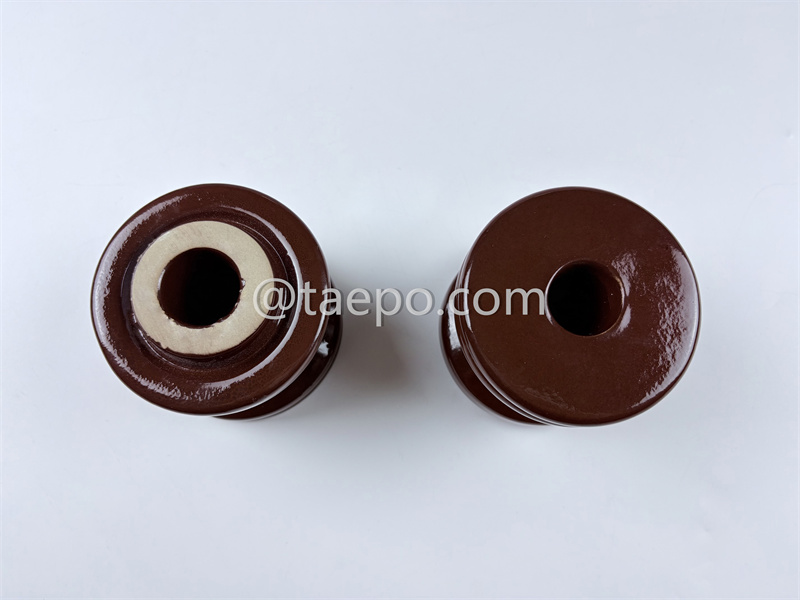

    ILLUSTRATION PICTURES

    PACKING PICTURES

   ORDER DATA
