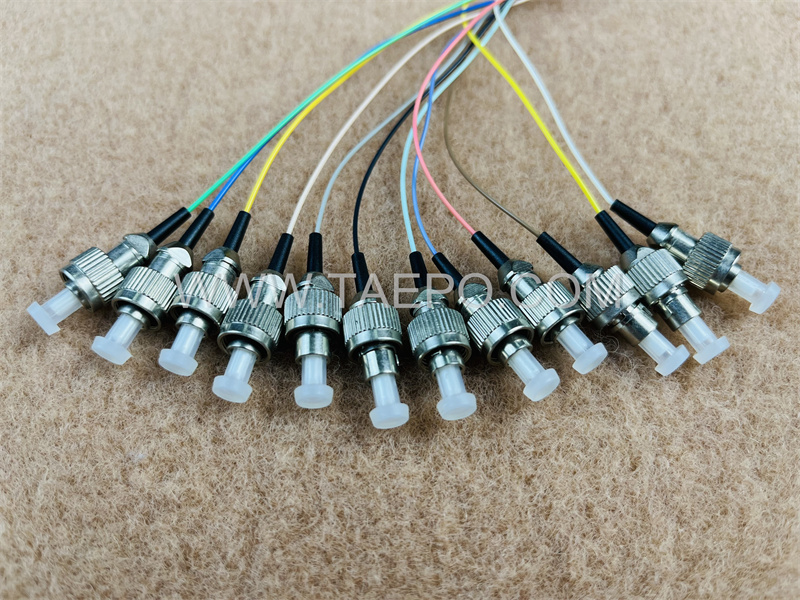

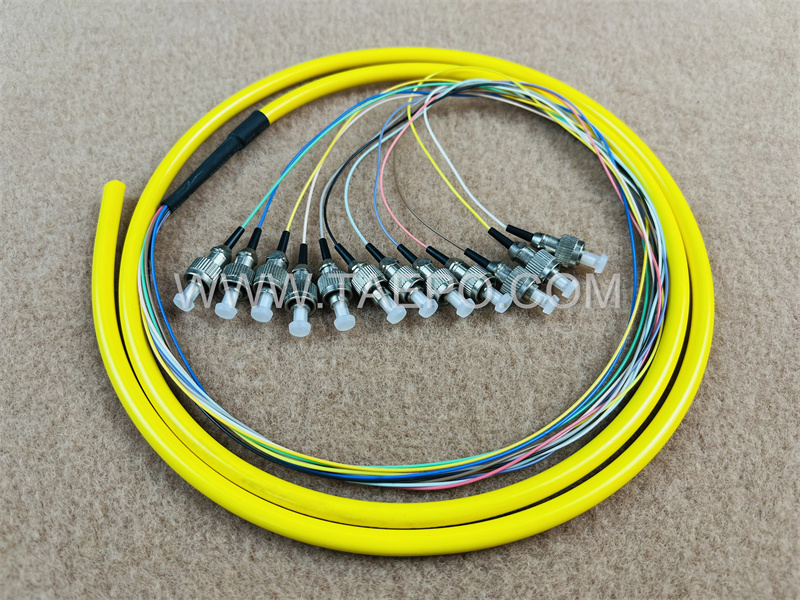

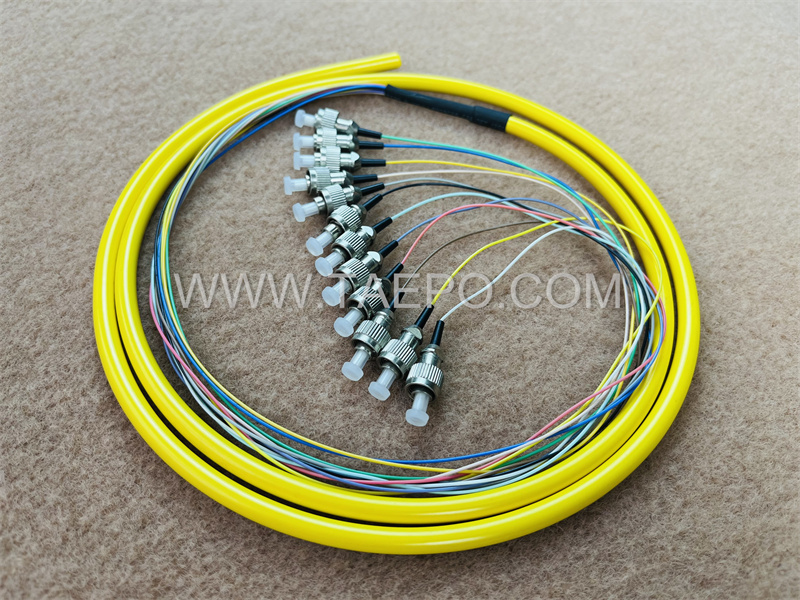

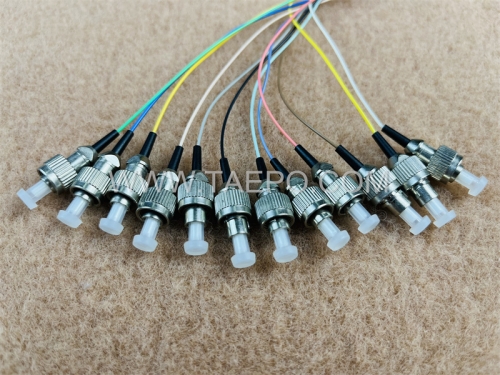

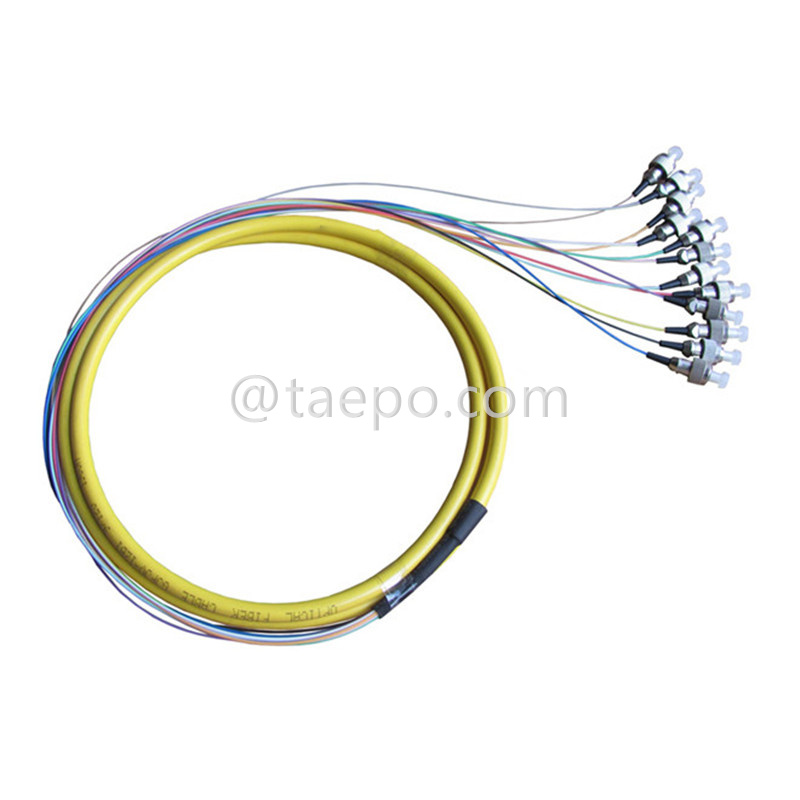

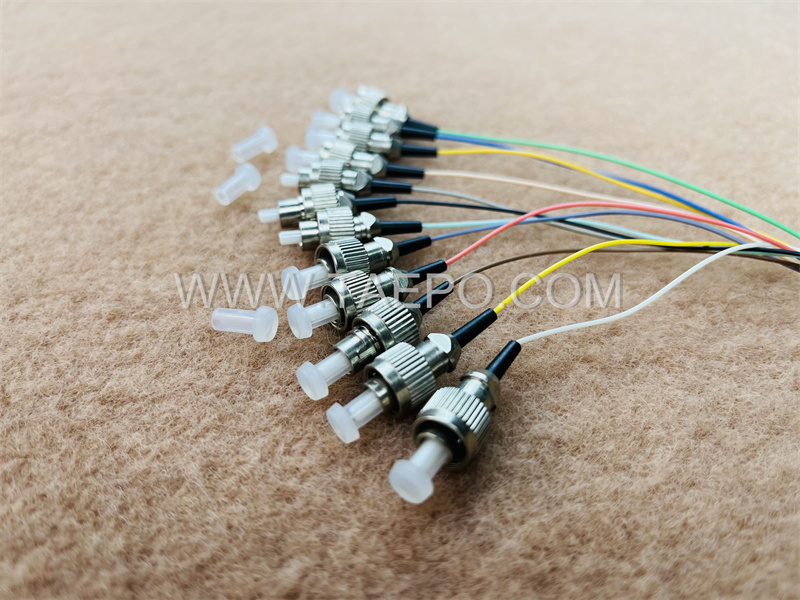

Singlemode simplex FC UPC 0.9mm Fiber optic fanout pigtail bunchy

Singlemode simplex FC UPC 0.9mm Fiber optic fanout pigtail bunchy

Name: Singlemode simplex FC UPC 0.9mm Fiber optic fanout pigtail bunchy
Brand: TAEPO Official Website
SKU: TP-3004-B-9SM12FCU09-0010
Availability: InStock
Rating: 5 (1 reviews)

Item No.: TP-3004-B-9SM12FCU09-0010

It is a single optical fiber with an FC UPC connector, a bunchy, compact arrangement, designed for easy integration and high-performance signal transmission in fiber optic networks.

Color: Yellow

Brand: Neutral / OEM / TAEPO

Packing: Blsiter + ctn

MOQ: 100pcs

Delivery: 7-14 days

INQUIRY

Description

Descriptions

A Singlemode simplex FC UPC 0.9mm fiber optic fanout pigtail bunchy is a specific type of fiber optic component used in networking.
Here’s a breakdown of its features:

Singlemode: Designed for long-distance transmission with a small core diameter, ideal for high-bandwidth and high-speed applications.

Simplex: Refers to a single optical fiber within the pigtail, used for one-way data transmission.

FC: Ferrule Connector, known for its robustness and precision.
UPC: Ultra Physical Contact, a polishing method that minimizes signal loss and back reflection by ensuring a smooth, flat fiber end-face.
0.9mm: Indicates the diameter of the outer jacket of the fiber, which is 0.9 millimeters, providing a compact and manageable size.
Fanout: Refers to the ability to separate a single optical fiber into individual fibers or connections.
Pigtail: A short length of optical fiber with a connector at one end, used for splicing or connecting to other components in the network.
Bunchy: Describes the arrangement where the fibers are bundled together in a compact form, facilitating easier organization and installation.

Main Features

The main feature of a Singlemode simplex FC UPC 0.9mm fiber optic fanout pigtail bunchy is its capability to provide a single, high-performance optical connection with a compact 0.9mm outer diameter and an FC UPC connector. This design ensures reliable, low-loss signal transmission while allowing for easy organization and management of the fiber in networking applications.

Schematic Diagrams

Packing Pictures

Order Data

Item No	Descriptions
TP-3004-B-9SM12FCU09-0010	Fiber optic fanout pigtail, bunchy, singlemode 9/125um OS1, 12 fibers, FC/UPC, 0.9mm, 1.0m
