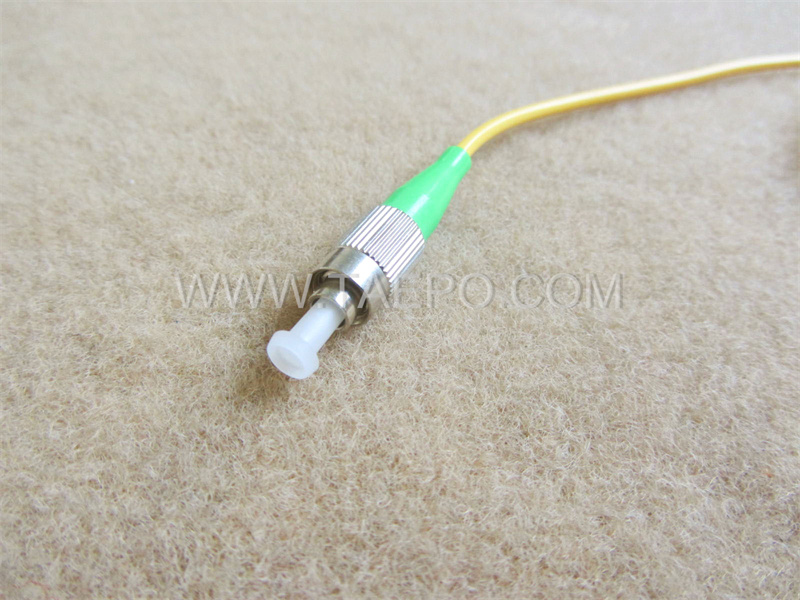

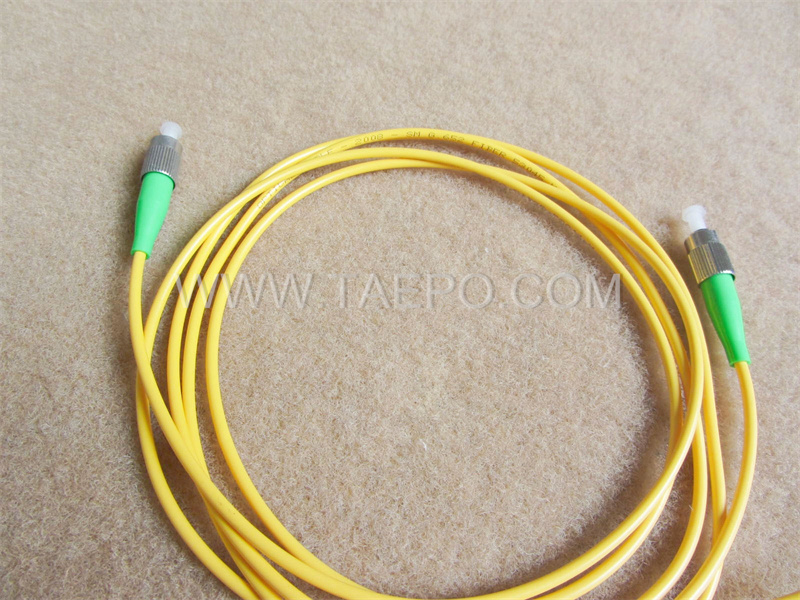

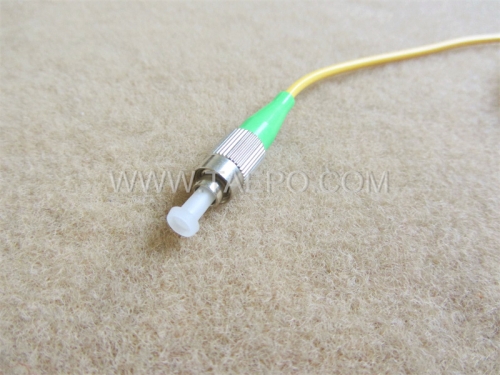

Single mode simplex FC APC Fiber optic patch cord

Item No.: TP-3005-9SM1FCAFCA30-0010
A single mode simplex FC APC fiber optic patch cord is designed for efficient and reliable long-distance data transmission.
  • Color: Yellow pigtail whth Green connector
  • Brand: Neutral / OEM / TAEPO
  • Packing: Polybag + ctn
  • MOQ: 500pcs
  • Delivery: 7-14 days
  • Description

        Descriptions


    A single mode simplex FC APC fiber optic patch cord is a type of fiber optic cable designed for efficient data transmission over long distances.

    Here’s a detailed description of its components :

    Single ModeThis type of fiber allows only one mode of light to propagate through the core, which minimizes signal loss and allows for longer transmission distances, typically up to several kilometers. It’s ideal for high-bandwidth applications over long distances.

    SimplexThe cable contains a single fiber strand, allowing for unidirectional data transmission. For bidirectional communication, two simplex cables or a duplex cable would be required.

    FC ConnectorThe FC (Ferrule Connector) is a type of fiber optic connector known for its screw-on mechanism, providing a secure and stable connection. It is commonly used in high-vibration environments and is often seen in telecom and data communication applications.

    APC (Angled Physical Contact)Refers to the polish of the connector's end face, which is angled (typically 8 degrees). This design reduces back reflection and enhances performance, especially in sensitive applications. APC connectors are preferred in situations where minimal signal loss is crucial.





        Main Features


    The main feature of a single mode simplex FC APC fiber optic patch cord lies in its ability to deliver reliable, high-speed data transmission over long distances with minimal loss and reflection. Its combination of single mode technology, simplex design, secure FC connector, and APC polish makes it highly suitable for demanding telecommunications and networking applications where performance is critical.




        Schematic Diagrams





        Packing Pictures







        Order Data



    Item No Descriptions
    TP-3005-9SM1FCAFCA30-0010                                  Fiber optic patch cord, singlemode 9/125um OS1, simplex, FC/APC-FC/APC, 3mm, 1m
