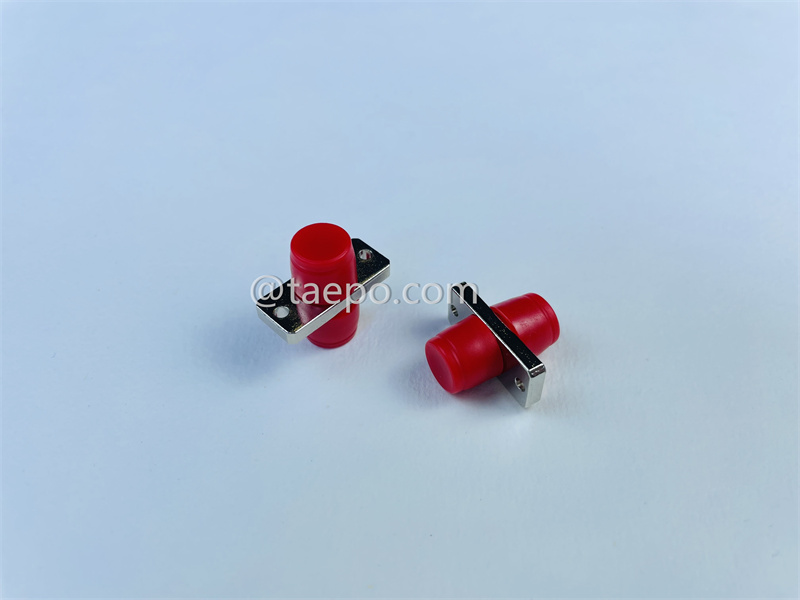

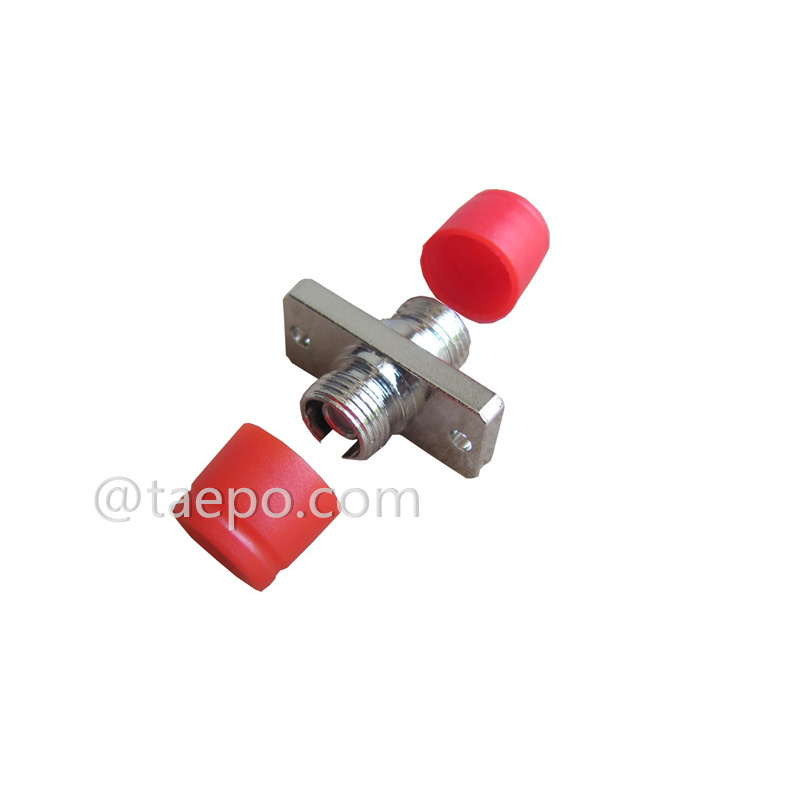

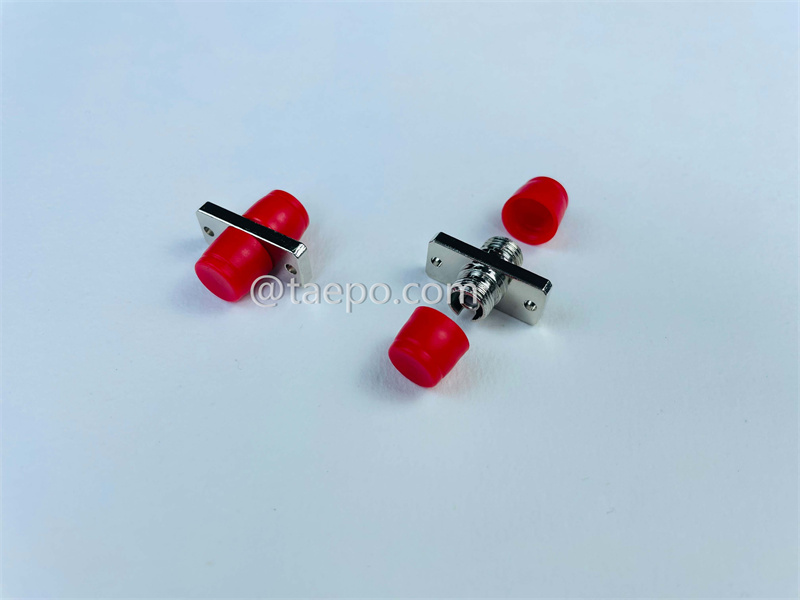

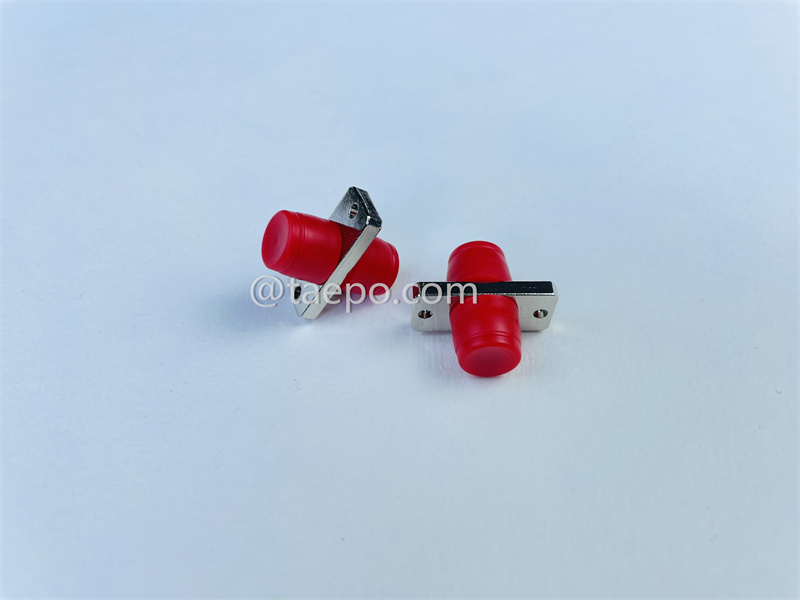

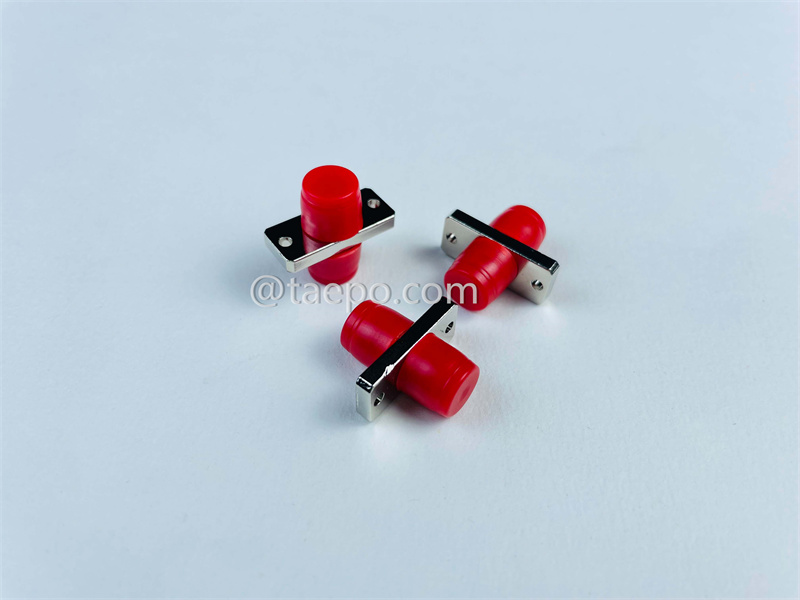

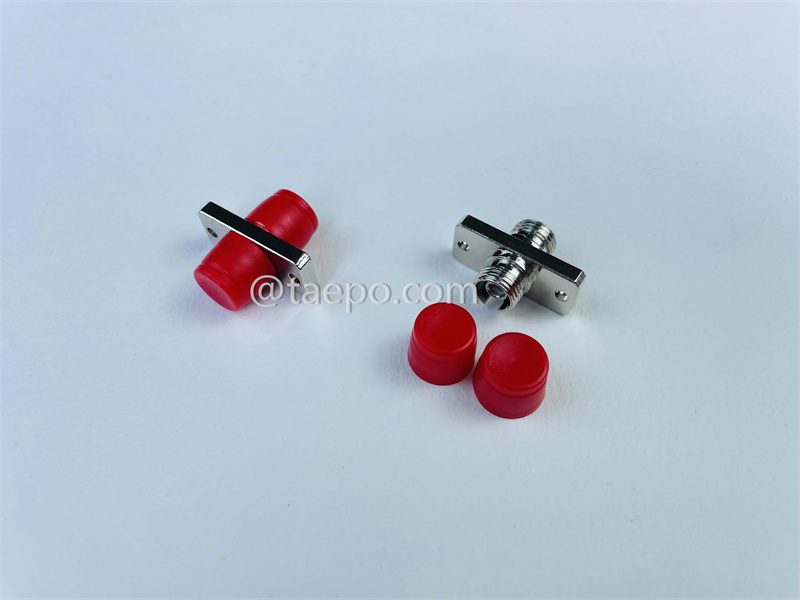

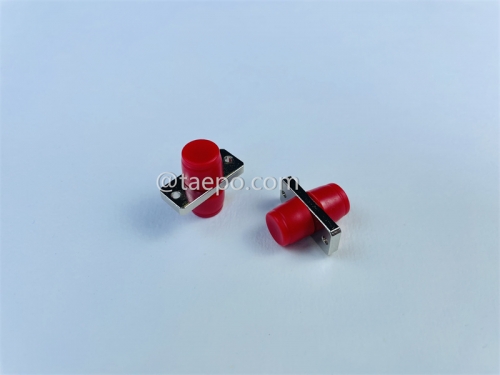

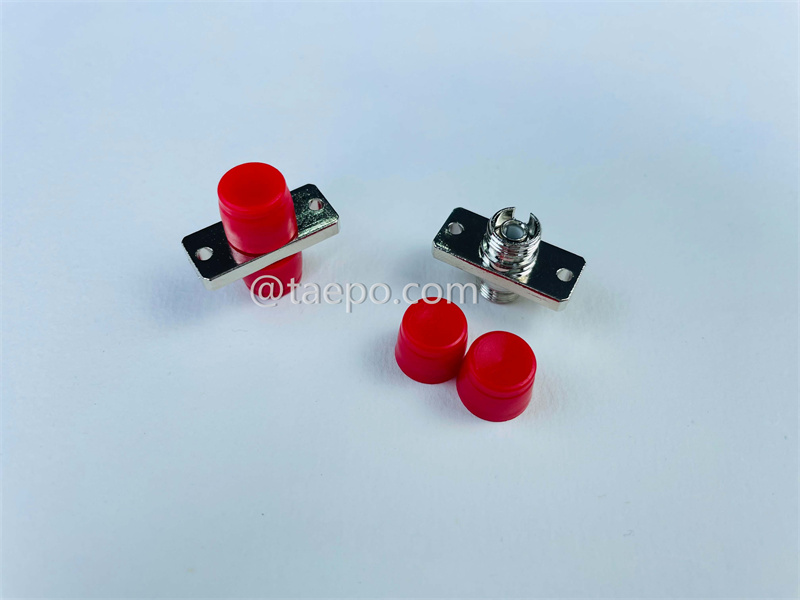

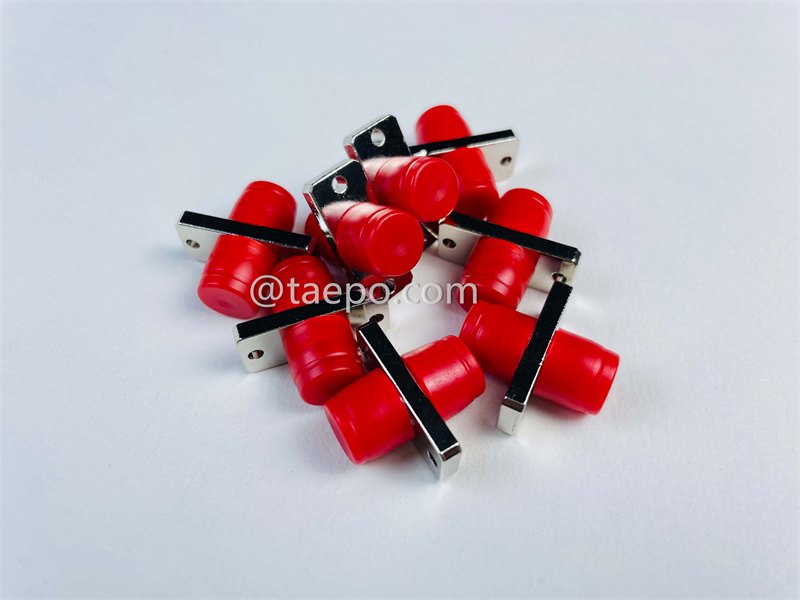

Multimode simplex FC UPC rectangle Fiber optic adapter

    Descriptions

A Multimode Simplex FC UPC Rectangle Fiber Optic Adapter is a specific type of fiber optic adapter used for connecting fiber optic cables.

Here’s a breakdown of its components and features:

Multimode: Refers to the type of fiber optic cable the adapter is designed for. Multimode fibers are used for shorter-distance data transmission and support multiple light modes within the core.

Simplex: Indicates that the adapter supports a single fiber connection, meaning it can handle one-way communication only. For bi-directional communication, two simplex adapters or a duplex adapter would be used.

FC: Stands for "Ferrule Connector," a type of fiber optic connector with a screw-on mechanism, providing a secure connection. The FC connector is known for its durability and precision.

UPC: Stands for "Ultra Physical Contact," a type of connector polish that minimizes signal loss and back reflection, ensuring better performance compared to standard physical contact (PC) connectors.

Rectangle: Describes the shape of the adapter's housing. In this case, it's designed to fit into a rectangular cutout or panel, providing a neat and organized connection point.

    Main Features

Function: Allows for the connection of two multimode fiber optic cables with FC UPC connectors. It provides a reliable and stable link between cables, essential for network and communication systems.

Shape: The rectangular design ensures compatibility with standard wall plates or panels that have a matching rectangular slot for fiber optic adapters.

Connector Type: The FC UPC design ensures low signal loss and minimal reflection, improving the overall performance of the fiber optic connection.

Durability: Built to withstand physical stress and provide a secure connection, maintaining the integrity of the fiber optic network.

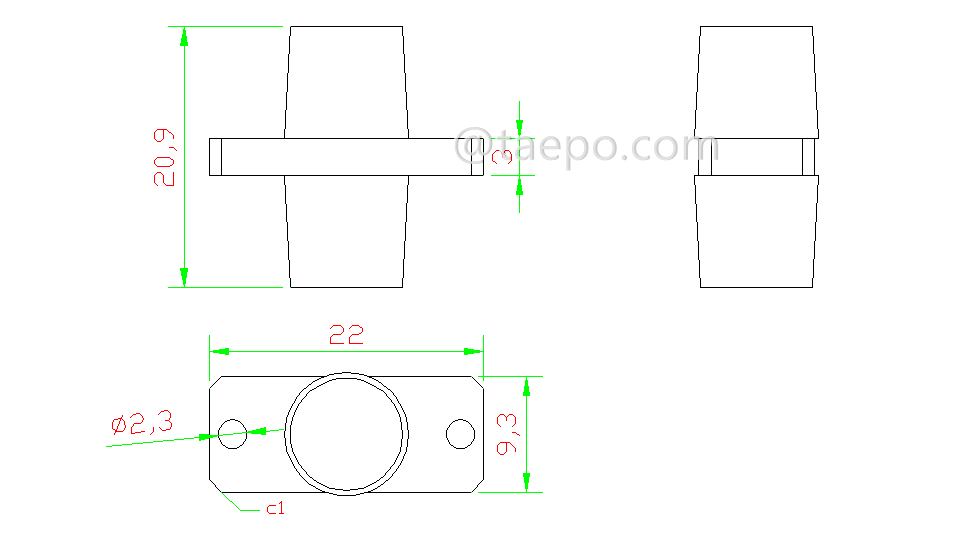

    Schematic Diagrams

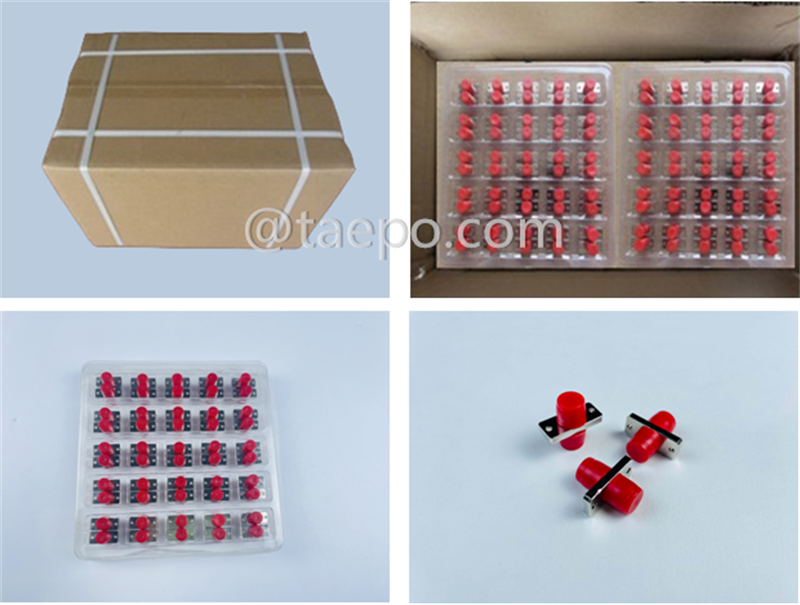

    Packing Pictures

    Order Data
