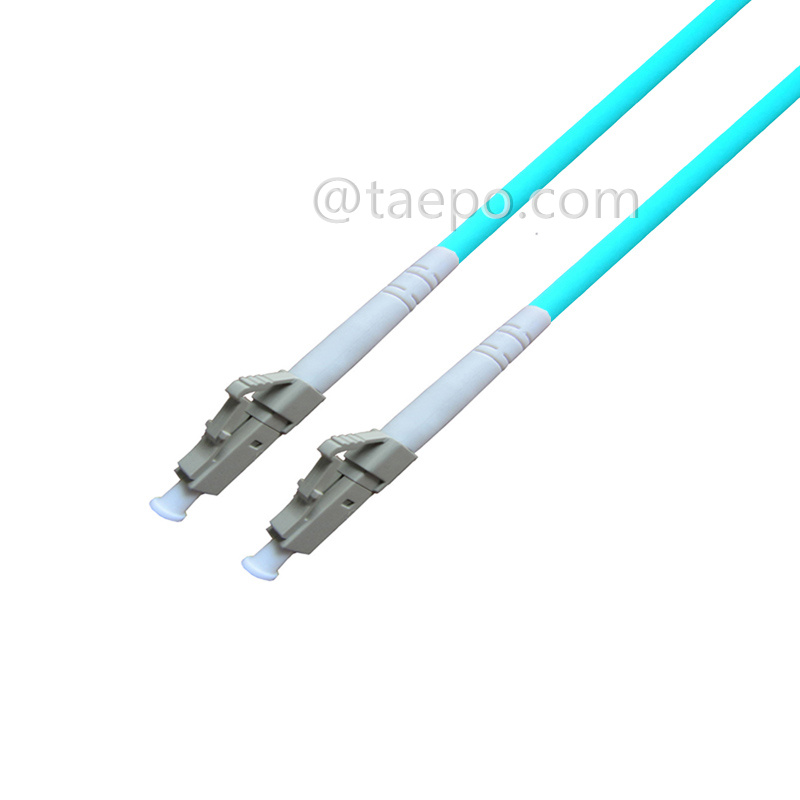

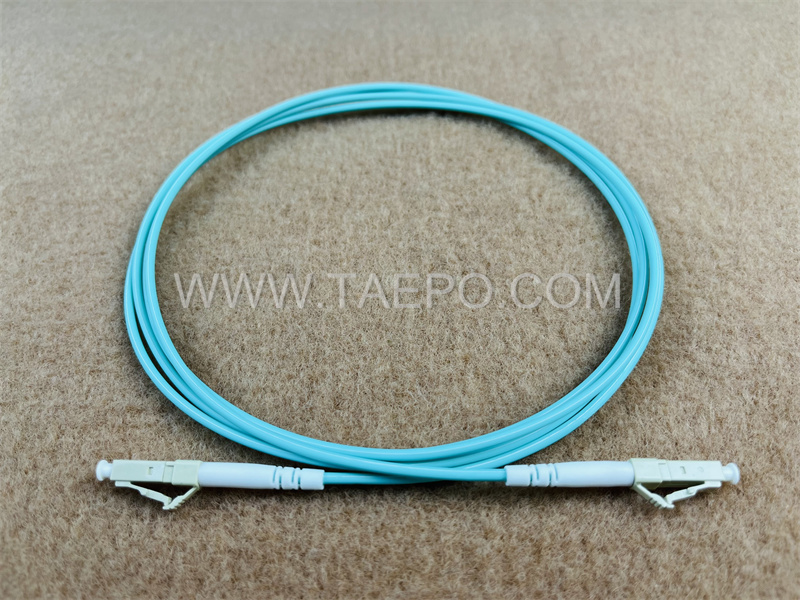

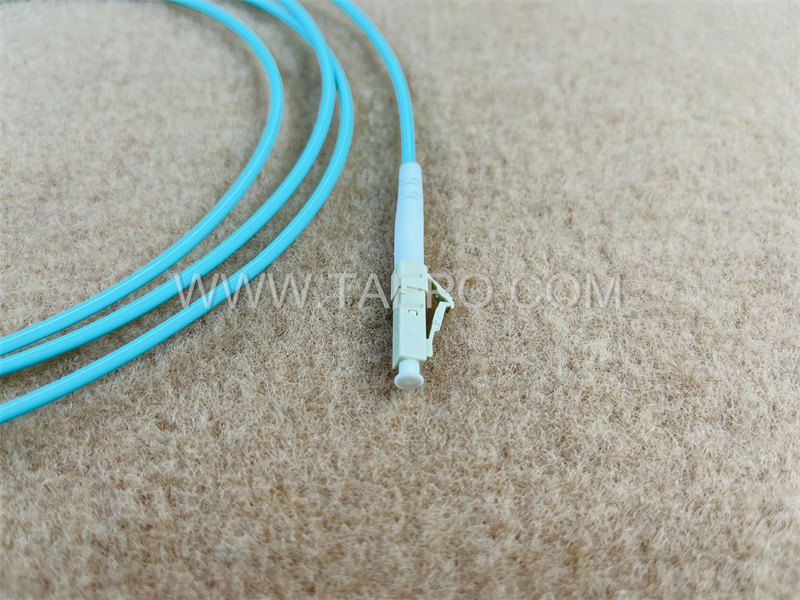

Multimode 50/125um OM3 sm LC UPC fiber optic patch cable

    Descriptions

A multimode 50/125µm OM3 simplex LC UPC fiber optic patch cable is a specialized type of fiber optic cable designed for high-speed data transmission.

Here’s a breakdown of its Key Components:

Multimode: This type of fiber allows multiple light modes to travel simultaneously, making it suitable for short-distance applications.

50/125µm: Refers to the fiber's specifications: a 50µm core diameter, which allows multiple light paths, and a 125µm cladding diameter that surrounds the core.

OM3: This designation indicates that the fiber is optimized for high-speed data transmission, supporting 10 Gigabit Ethernet up to 300 meters. OM3 fibers are laser-optimized for better performance.

Simplex: This means the cable has a single fiber strand for one-way data transmission. For bidirectional communication, two simplex cables or a duplex cable would be needed.

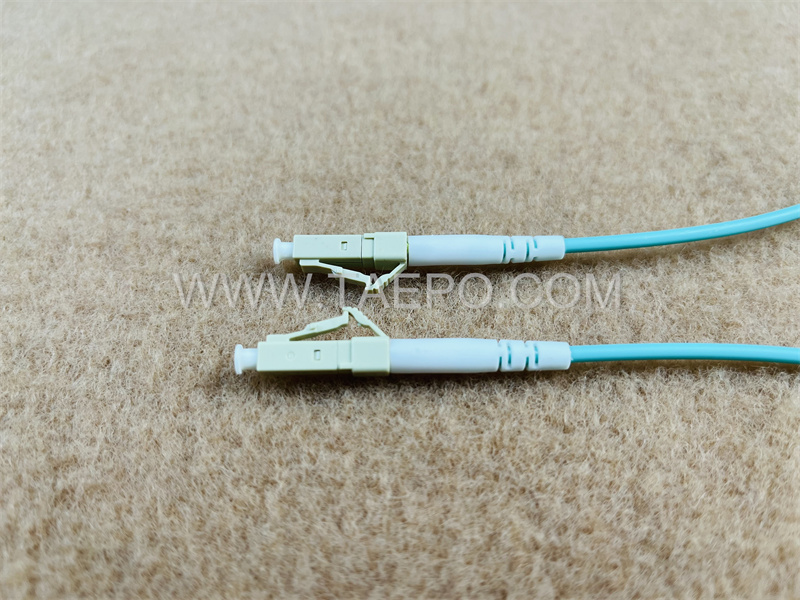

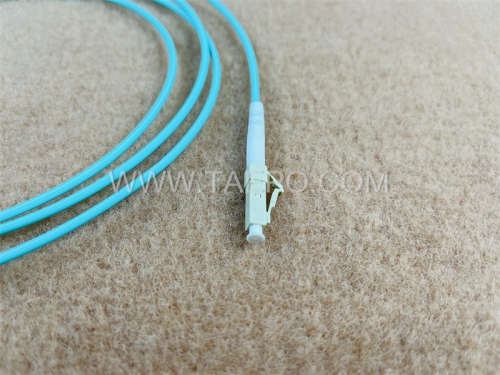

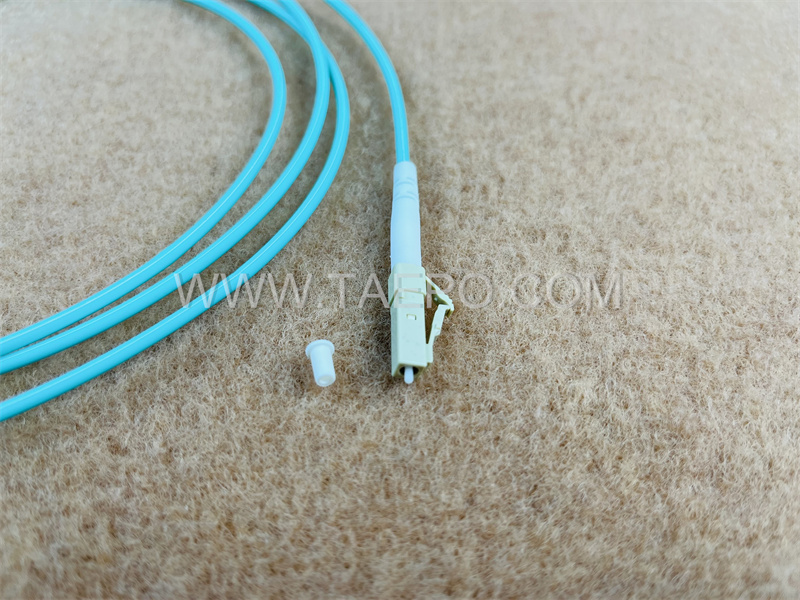

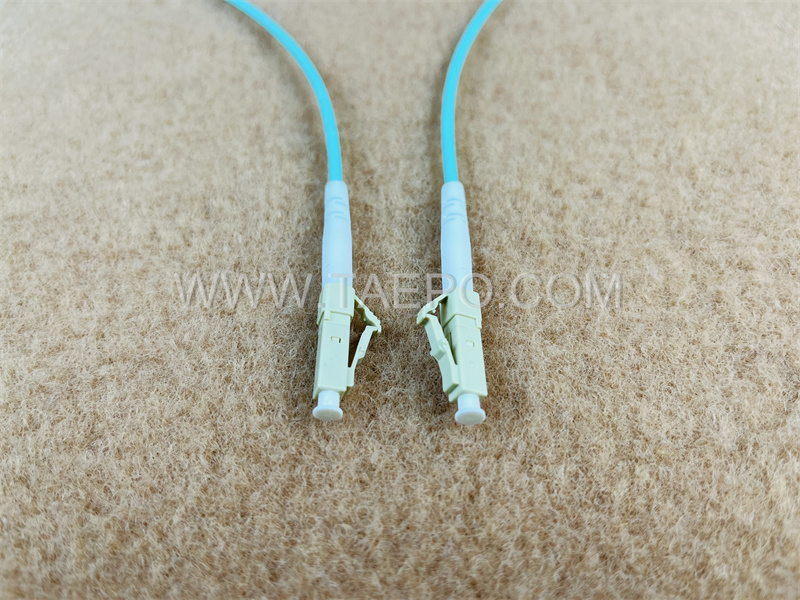

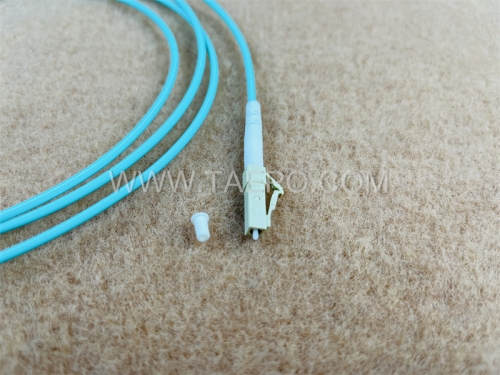

LC Connector: A small form-factor connector known for its compact design and secure locking mechanism, widely used in networking environments.

UPC (Ultra Physical Contact): Refers to the type of polish on the connector's end face, which minimizes signal loss and reflection, ensuring optimal performance.

In summary, a multimode 50/125µm OM3 simplex LC UPC fiber optic patch cable is designed for efficient, high-speed data transmission in networking applications, providing reliable performance for short-distance connections.

    Main Features

    Schematic Diagrams

    Packing Pictures

    Order Data
