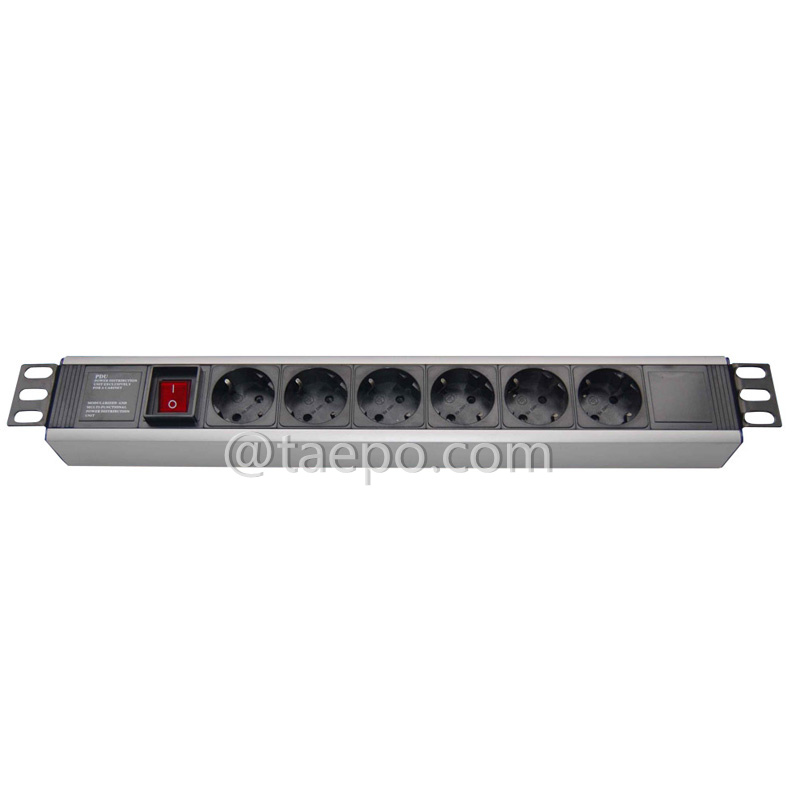

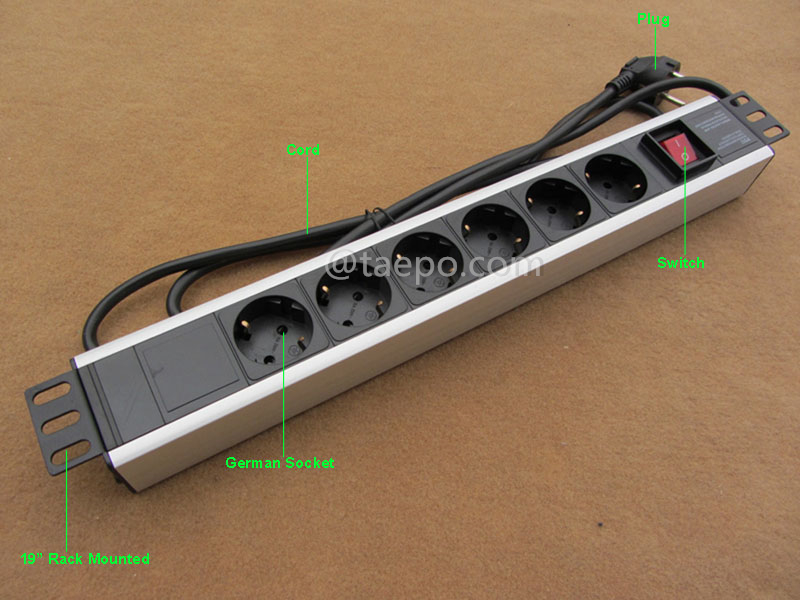

German DIN49440 standard 16A 250VAC 1.5U power distribution unit server rack PDU with master switch

German DIN49440 standard 16A 250VAC 1.5U power distribution unit server rack PDU with master switch

Name: German DIN49440 standard 16A 250VAC 1.5U power distribution unit server rack PDU with master switch
Brand: TAEPO Official Website
SKU: TP-5606-6GER15S
Availability: InStock
Rating: 5 (1 reviews)

Item No.: TP-5606-6GER15S

PDU is designed to efficiently manage and distribute power to server rack equipment while providing a centralized control point for power.

Color: Black or Silver

Brand: Neutral / OEM / TAEPO

Packing: 1pc/box, 10boxes/ctn

MOQ: 100pcs

Delivery: 7-14 days

INQUIRY

Description

Descriptions

A German standard 16A 250VAC 1.5U power distribution unit (PDU) for a server rack with a master switch is a device used to distribute electrical power to multiple pieces of equipment in a server rack.

Here's a breakdown:

German Standard: Indicates that the PDU adheres to electrical and safety standards specific to Germany or European standards.
16A 250VAC: The PDU can handle up to 16 amps of current at a voltage of 250 volts AC. This specification ensures it can supply power to high-demand equipment.
1.5U: The PDU is 1.5 rack units (1U = 1.75 inches), so it takes up less vertical space in the rack, providing a compact solution.
Master Switch: This switch allows for the control of power to all outlets on the PDU from a single point, enabling easy power management and the ability to turn off all connected devices at once.

Main Features

Organization: Helps in organizing and managing power distribution in a server rack, reducing cable clutter.
Safety: Provides protection and control features, including the master switch for emergency power cut-off.
Convenience: Allows easy access to multiple outlets in a single unit, streamlining the power setup within the rack.
Compliance: Adheres to German standards, ensuring it meets specific safety and performance criteria required in that region.

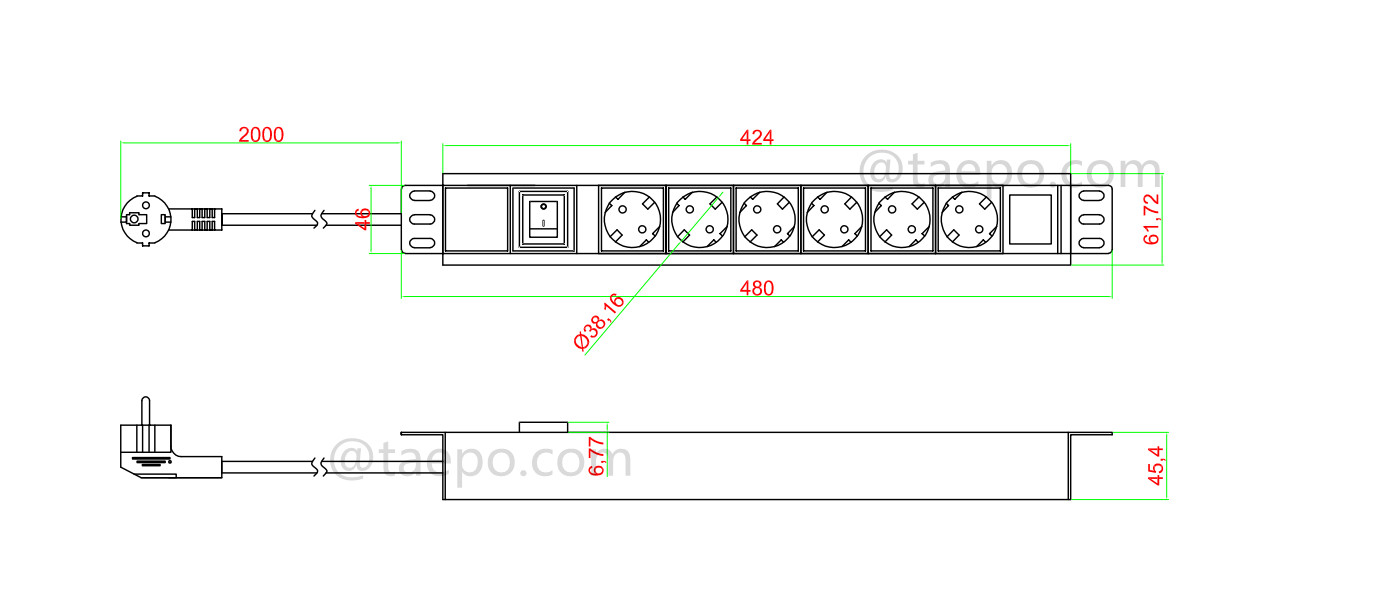

Schematic Diagrams

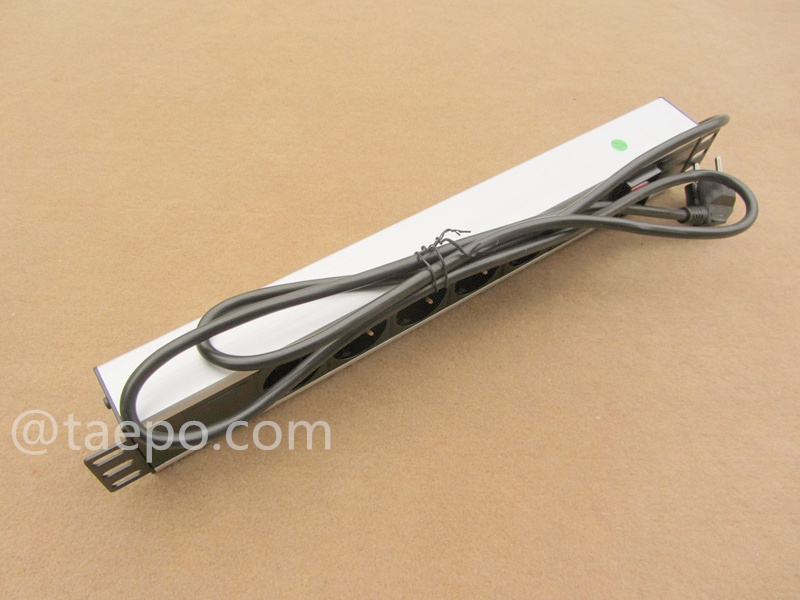

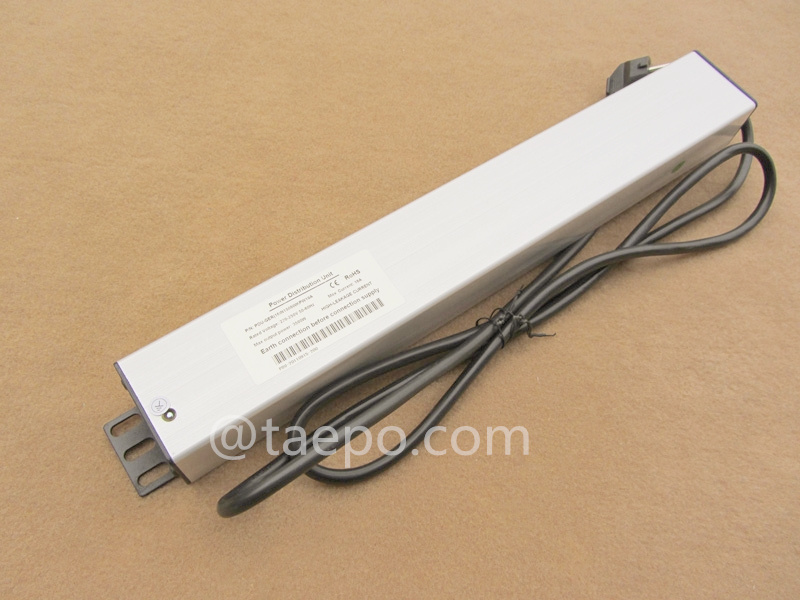

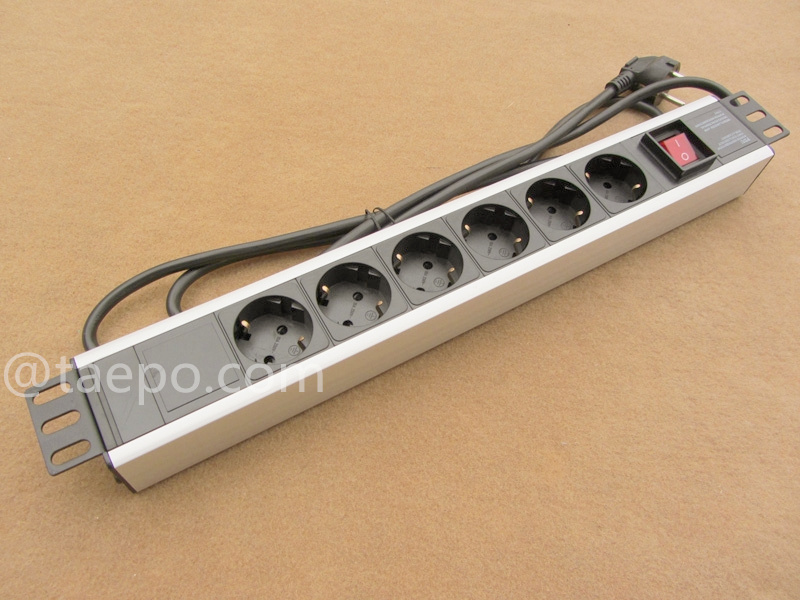

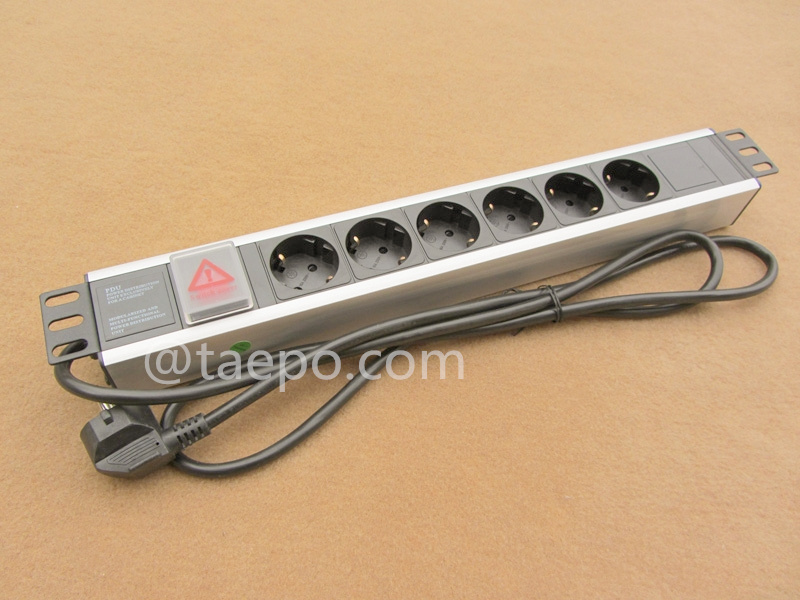

Packing Pictures

Order Data

Item No	Descriptions
TP-5606-6GER15S	PDU, Germany standard, 16A 250VAC, 6 ways, 1.5U, with master switch, 3 cores x 2.5mm2 x 2m cord, German plug, AL alloy housing
