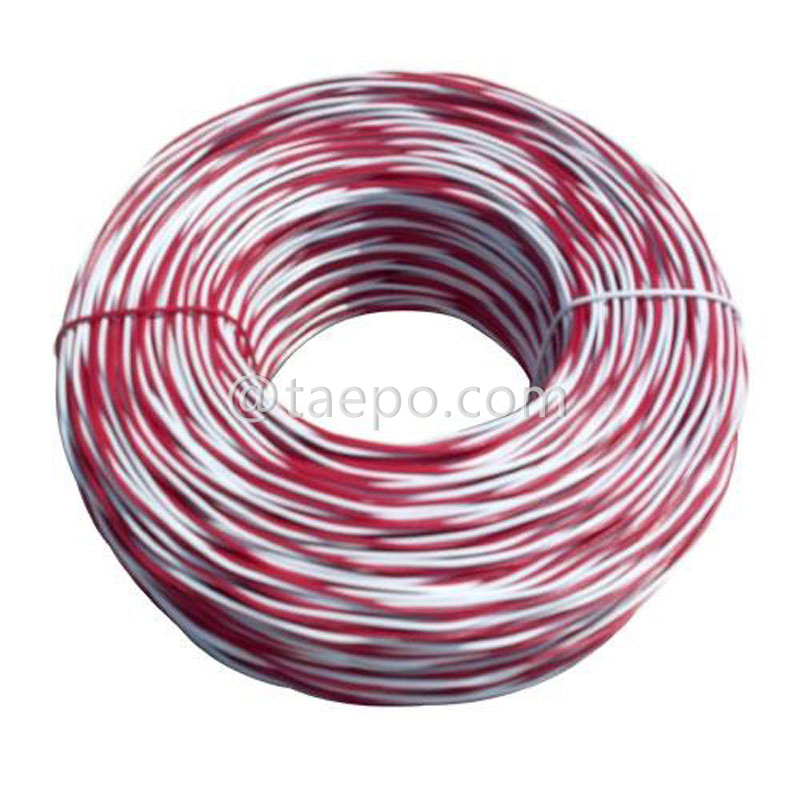

1 pair CAT3 UTP Telephone jumper red and white wire

    Descriptions

A "1 pair CAT3 UTP Telephone jumper red and white wire" refers to a specific type of cabling used for telephone connections.

Here's a breakdown of its features:

1 Pair: This indicates that the cable contains two wires, typically used for a single telephone line—one for the signal and one for the return path.

CAT3: Stands for Category 3, which is a type of twisted pair cable designed for telephone and low-speed data communication. CAT3 can support data rates up to 10 Mbps and is commonly used for traditional telephone lines and older network installations.

UTP: Stands for Unshielded Twisted Pair. This means the wires are twisted together to reduce interference and crosstalk, but there is no additional shielding around the wires.

Red and White Wire: These are the color codes for the two wires in the pair. Typically, in telephone wiring, red is used for the positive or active connection, and white is used for the neutral or return path.

Telephone Jumper: Refers to a short, flexible cable used to connect telephone equipment or for patching in telecommunications panels or distribution frames.

    Main Features

The main feature of a "1 pair CAT3 UTP Telephone jumper red and white wire" is its use for connecting and transmitting telephone signals over a single line with minimal interference. Here’s a concise summary of its features:


Signal Transmission: Designed for clear transmission of telephone signals and low-speed data.

Twisted Pair Construction: Reduces electromagnetic interference and crosstalk by twisting the two wires together.

Category 3 (CAT3) Rating: Supports telephone and basic data communication with a maximum data rate of 10 Mbps, suitable for standard telephone services.

Color Coding: Red and white wires help in easy identification and proper connection of the telephone line.

Jumper Function: Acts as a short, flexible cable used for patching or connecting telephone equipment in telecommunications setups.



    Schematic Diagrams

    Packing Pictures

    Order Data
