Descriptions

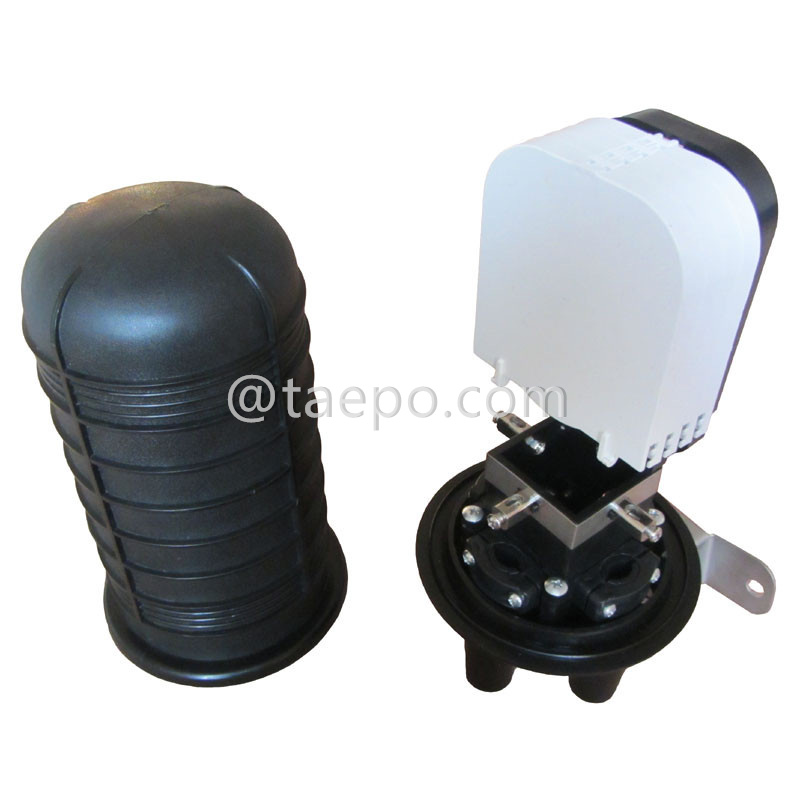

The "48 fibers 2 inlets 2 outlets vertical type FOSC dome Fiber Optic Splice Closure" is a specific type of fiber optic splice closure designed to protect and manage fiber optic splices in a variety of installations.
Here's a breakdown of what each part of the description typically means:
48 fibers: This indicates the splice closure can accommodate up to 48 fiber optic cables. This number represents the maximum number of fiber splices that can be made within the closure.
2 inlets: The closure has two entry points for incoming fiber optic cables. This means you can route fiber cables into the closure from two separate directions or lines.
2 outlets: The closure also has two exit points where fibers can be routed out to other parts of the network or equipment.
Vertical type: This specifies the orientation of the splice closure. A vertical type is designed to be mounted in a vertical position, which can be useful in certain installations or space constraints.
Dome: The "dome" refers to the shape of the splice closure. A dome-shaped closure typically provides a rounded, robust enclosure that can help with stress distribution and protection.
In summary, this device is a robust, dome-shaped fiber optic splice closure that can handle up to 48 fiber connections, with two entry and two exit points, designed for vertical mounting. It’s used to organize and protect fiber optic splices in various network settings, including telecommunications and data networks.
Main Features
The main features of a fiber optic splice closure like the "48 fibers 2 inlets 2 outlets vertical type FOSC dome" are:
Protection: The closure provides a sealed environment that protects fiber splices from environmental factors such as moisture, dust, and mechanical impacts. This is crucial for maintaining the performance and longevity of the fiber optic cables.
Capacity: It can accommodate up to 48 fiber optic splices, making it suitable for medium to large-scale installations where a significant number of fiber connections are needed.
Flexibility in Cable Management: With two inlets and two outlets, it allows for flexible cable routing and management, enabling connections from different directions and providing options for future expansion or changes.
Durability: The dome shape and robust construction are designed to withstand harsh environmental conditions and physical stress, ensuring reliable performance over time.
Ease of Installation: The vertical design may offer advantages in terms of space-saving and ease of installation, particularly in environments where vertical mounting is preferred or required.
Organizational Features: The closure typically includes features for organizing and securing fiber splices, such as splice trays, routing guides, and cable clamps. This helps in maintaining an orderly and efficient fiber management system.
Overall, the main feature of this splice closure is its ability to protect and manage a relatively high number of fiber optic connections while providing flexibility and durability in various installation environments.

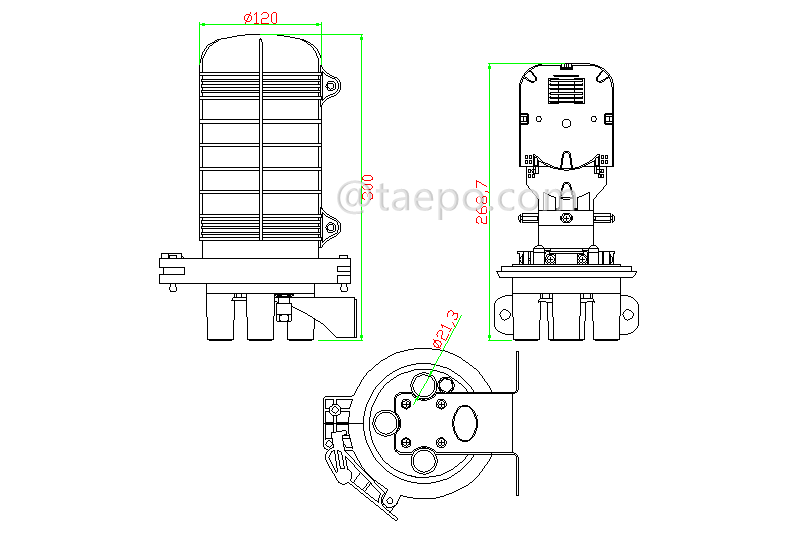

Schematic Diagrams

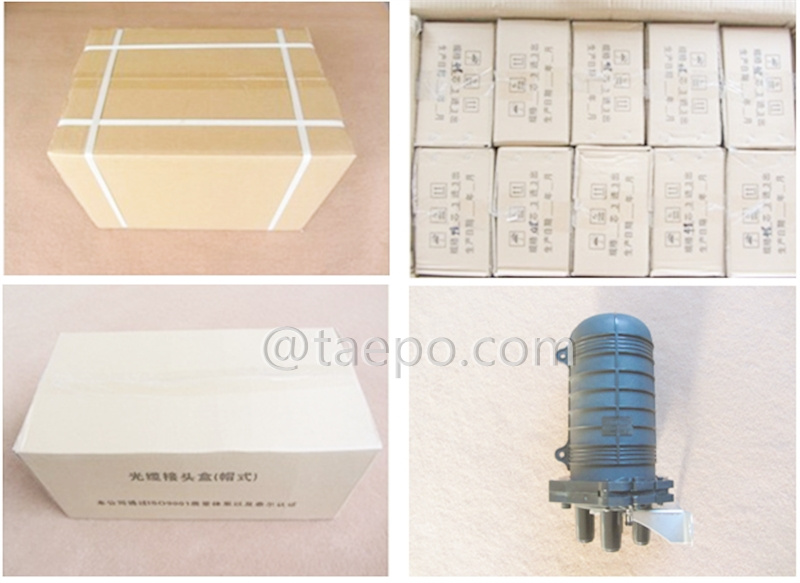

Packing Pictures
Order Data
| Item No |
Descriptions |
| TP-3532-48B |
Fiber optic splice closure (FOSC), vertical type, heat shrink sealing , 48 fibers, max 48 bunchy fibers, 300(H) x Φ120mm, 2 inlets 2 outlets, max cable dia 21mm |
