Descriptions
A 4-pair CAT 7A STP FTP bare copper network LAN Ethernet cable is a high-performance network cable with specific features designed to provide superior data transmission and protection.
Here's a breakdown of its components:
4-pair: The cable contains four twisted pairs of wires, which are essential for transmitting data over Ethernet networks. Each pair is twisted to reduce interference and improve signal quality.
CAT 7A: This stands for Category 7A, an enhanced version of CAT 7. CAT 7A cables support data transmission speeds up to 10 Gbps over a distance of 100 meters and can operate at frequencies up to 1,000 MHz. They offer better performance compared to lower-category cables and are suitable for high-bandwidth applications.
STP (Shielded Twisted Pair): This indicates that each twisted pair of wires is individually shielded to protect against electromagnetic interference (EMI) and crosstalk. STP cables have shielding around each pair, which improves signal integrity and reduces noise.
FTP (Foiled Twisted Pair): In addition to the individual shielding of the pairs, the entire cable also has an overall foil shield. This provides additional protection against external interference and ensures a more stable signal.
Bare Copper: The conductors inside the cable are made of pure copper, rather than copper-coated aluminum. Bare copper offers better electrical conductivity, leading to improved performance and reduced signal loss.
Main Features
High Performance: CAT 7A cables offer very high-speed data transmission up to 10 Gbps and support high frequencies up to 1,000 MHz, making them ideal for demanding network applications.
Enhanced Shielding: The combination of STP and FTP shielding provides superior protection against both internal and external interference, resulting in cleaner, more reliable signals.
Bare Copper Conductors: The use of pure copper conductors ensures excellent conductivity and minimizes signal attenuation and loss.
Future-Proofing: With its high performance and advanced shielding, CAT 7A cables are suitable for future-proofing network installations, supporting emerging technologies and high-bandwidth applications.
Reduced Crosstalk and Interference: The shielding and twisted pair configuration help minimize crosstalk between pairs and protect against external interference, ensuring stable and reliable network performance.

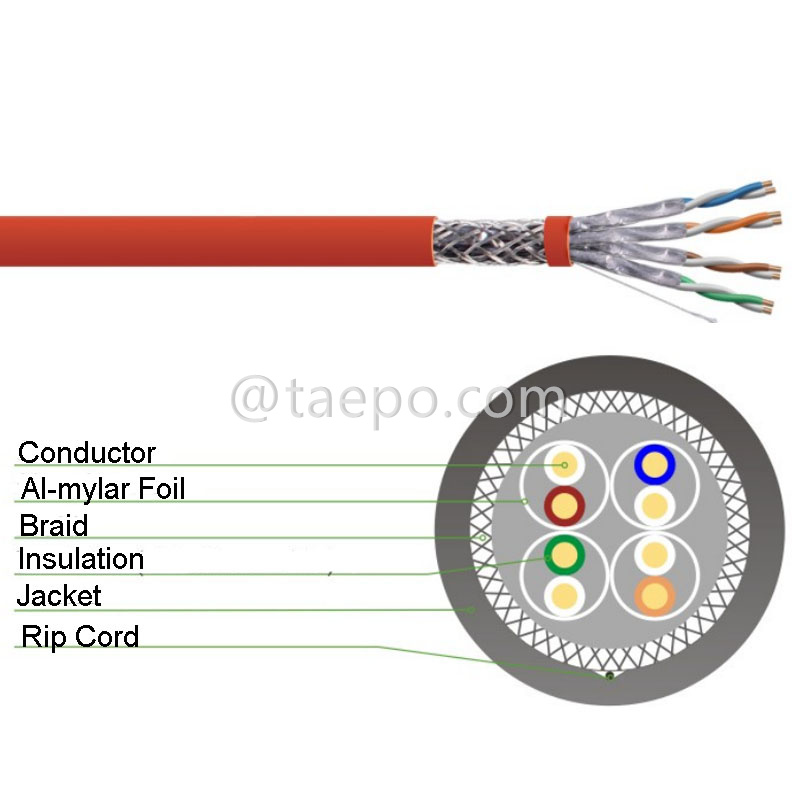

Schematic Diagrams
Packing Pictures
Order Data
| Item No |
Descriptions |
| TP-LAN-C7ASF4 |
LAN cable, CAT7A, S/FTP, 4 pairs, bare copper, AWG23, solid coductor, 305m/roll |
