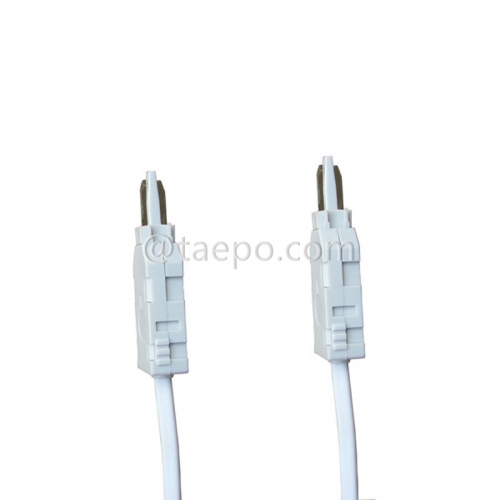

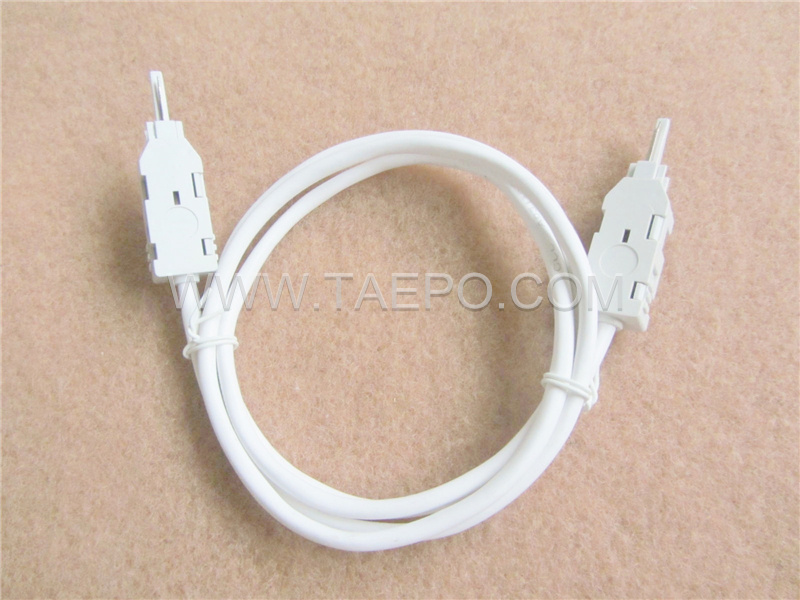

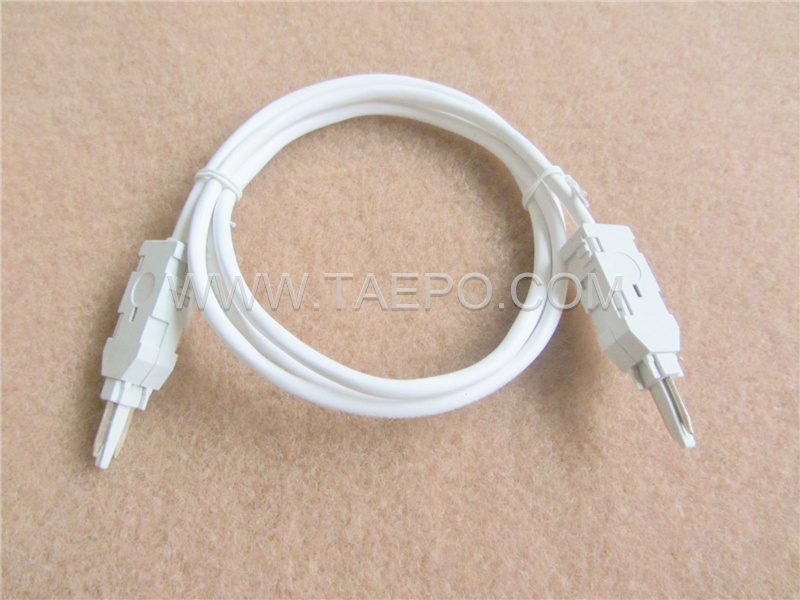

2-pole LSA test plug connection Test cord

    Descriptions

A "2-pole LSA test plug connection test cord" is a cable used in the telecommunications industry for testing and maintaining connections in LSA (Löt Schraub Anschluss, or IDC - Insulation Displacement Connection) modules.


Here's a breakdown of its components and function:

1. 2-Pole: Indicates that the test cord has two conductors or poles. This suggests it's suitable for testing connections involving two-wire circuits, which are common in telecommunications and networking applications.

2. LSA Test Plug Connection: Refers to the type of connection used in telecommunications infrastructure, particularly in the termination blocks like LSA-PLUS. These blocks often use IDC technology for quick and reliable wire termination.

3. Test Cord: It's a cord or cable with connectors at both ends, typically used to establish temporary connections for testing purposes. In this context, the test cord is specifically designed for testing connections in LSA modules.


The purpose of this test cord is to provide a means for technicians to test the continuity, integrity, and quality of connections made in LSA modules without having to permanently terminate cables. It allows for quick and efficient testing and troubleshooting of telecommunications connections, ensuring proper functionality and performance of the network infrastructure.

    Main Features

The main features of a "2-pole LSA test plug connection test cord" typically include:


1. 2-Pole Design: Designed with two conductors or poles, suitable for testing two-wire circuits commonly found in telecommunications and networking applications.

2. LSA Compatibility: Specifically engineered to be compatible with LSA modules, which are commonly used in telecommunication termination blocks. This ensures proper fit and functionality when testing connections in these modules.

3. Insulation Displacement Connection (IDC) Compatibility: The test cord is compatible with IDC technology, which is often used in LSA modules for quick and reliable wire termination. This ensures reliable electrical contact during testing.

4. Durable Construction: Constructed with high-quality materials to withstand repeated use and handling in testing and maintenance scenarios. This includes robust insulation to protect the conductors and connectors from damage.

5. Connector Compatibility: Equipped with connectors at both ends that are compatible with the sockets or ports found on LSA modules, ensuring a secure and reliable connection during testing.

6. Easy Identification: May feature color-coded or labeled connectors for easy identification and differentiation, reducing the risk of errors during testing.

7. Flexible Length: Available in various lengths to accommodate different testing scenarios and provide flexibility in reaching connections within telecommunication enclosures or cabinets.

8. Safe Testing: Designed to ensure safe testing practices, such as proper insulation to prevent electrical hazards and ergonomic design for comfortable handling during testing procedures.


Overall, these features combine to provide technicians with a reliable and efficient tool for testing connections in LSA modules, helping to ensure the integrity and performance of telecommunications networks.

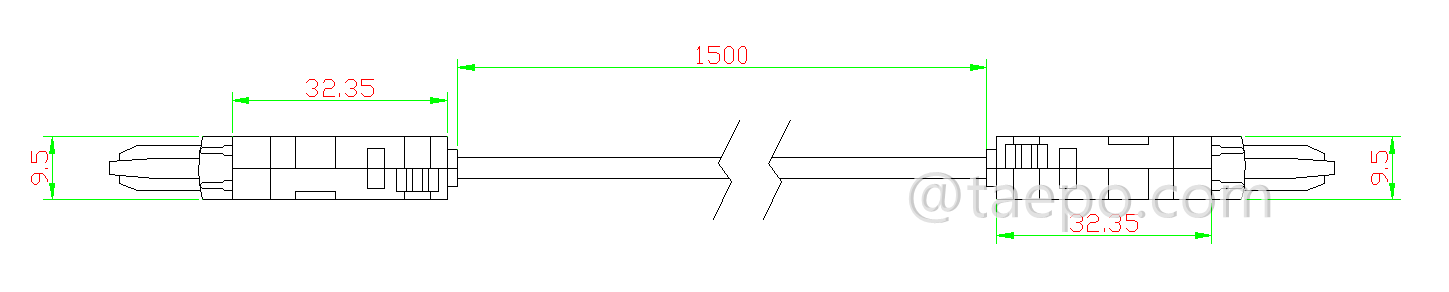

    Schematic Diagrams

    Packing Pictures

    Order Data
