2 pole krone test plug to banana plug krone test cord

2 pole krone test plug to banana plug krone test cord

Name: 2 pole krone test plug to banana plug krone test cord
Brand: TAEPO Official Website
SKU: TP-1220-2TB xiajia2
Availability: InStock
Rating: 5 (1 reviews)

Item No.: TP-1220-2TB xiajia2

Used for testing the telephone line | used for inserting into the krone module | connecting to the telephone testing kit.

Color: Grey

Brand: Neutral / OEM / TAEPO

Packing: 2pcs/polybag, 100bags/ctn, 54*25*29cm/ctn, gw14.5kg/ctn

MOQ: 500pcs

Delivery: 2-4 weeks

INQUIRY

Description

Descriptions

2 pole krone test plug to banana plug krone test cord (TP-1220-2TB) is used for testing the telephone line. The LSA plug is used for inserting into the LSA module, and the banana plug for connecting to the telephone testing kit.

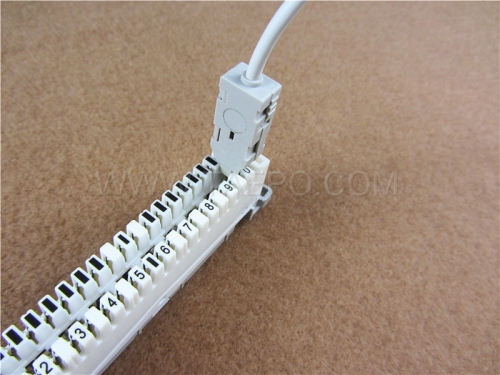

The grey 2-pole cord permits parallel connection (monitor function) when it is used in the connection or disconnection module. The contacts of the cord bridge the centre contacts of the module which permit monitoring of the line (connection line). 2-pole cords cannot be used in switching modules. The metal contacts would not make a positive contact in this case.

Main Features

Reliable connections
Robust long-term environmental stability
Optinal different length

Schematic Diagrams

Technical Parameters

General
Storage Temperature:	-40°C ~ +80°C
Operating Temperature:	-20°C~+60°C
Relative Humidity:	≤93% non-condensing

Apperance:	Uniform color, W/O crusting and cracks

Materials
Plastic:	Thermoplastic ABS
Flame Retardant:	Not Flame-retardant
Contact:	Special bronze
Coating:	0.5μm silver

Specifications
Insulation Resistance:	> 50 GΩ @ 500 V
Conductor Reistance:	400mΩ/m
Dielectric Strength:	1.05KVrms
Current:	2.5A
Impulse Current Capacity:	2.5kA
Strain relief :	<50N
Life Cycles:	> 1000 connections

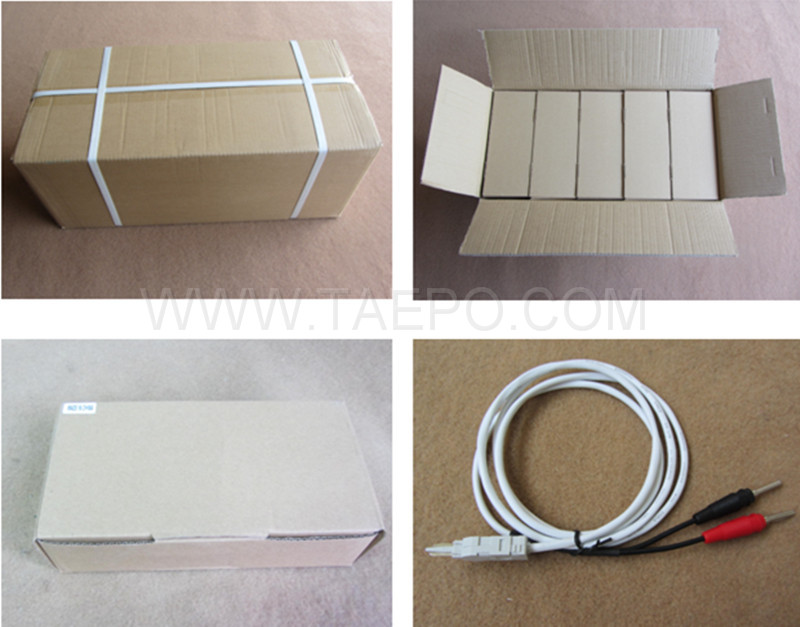

Packing Pictures

Order Data

Item No	Descriptions
TP-1220-2TB	2-pole test cord, LSA test plug to banana plug, 1.5m
