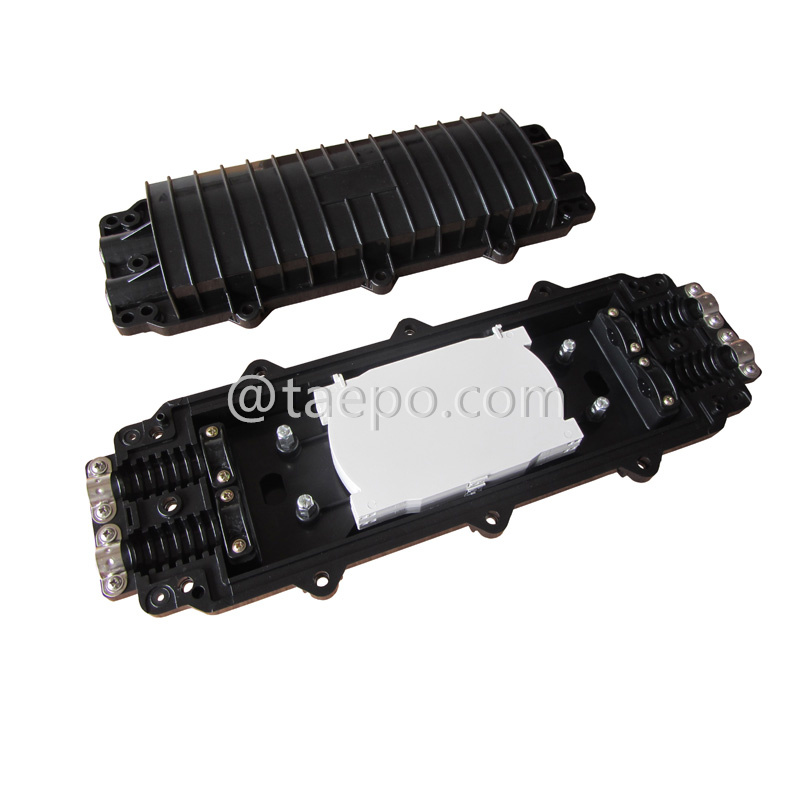

Fiber optic splice closure (FOSC), horizontal type, mechanical sealing, 48 fibers

TAEPO - Specialized in Fiber Optic Splice Closure, Professional Chinese Manufacturer for Versatile Network Solutions !
What does Fiber Optic Splice Closure stand for?


    DESCRIPTIONS

The fiber optic splice closure (TP-3509-48), horizontal type, is a reliable and durable enclosure designed to protect and organize fiber optic splices in a variety of environments, including outdoor, underground, and aerial installations. With its mechanical sealingsystem, this closure provides strong protection against water, dust, and mechanical impact, ensuring long-lasting performance without the need for heat shrink or adhesives. It supports up to 48 fibersand accommodates up to 96 bunchy fibers, making it an ideal choice for medium-capacity fiber networks in telecommunications and data transmission applications.

The FOSC has dimensions of 458mm x 160mm x 100mm, offering a compact and efficient design for fiber management. The horizontal layout allows for organized fiber routing while minimizing the footprint in installations. It features 2 inlets and 2 outlets, providing flexibility for fiber optic cable entry and exit, and supports cables with a maximum diameter of 18mm, making it compatible with a wide range of cable types. Designed to be durable and easy to re-enter, this FOSC is perfect for projects where reliable protection and flexibility are essential.

    MAIN FEATURES

• Mechanical Sealing: Ensures reliable sealing against water and dust without requiring heat shrink or adhesives.
• Horizontal Design: Provides space-efficient fiber management, suitable for aerial, underground, and wall-mounted installations.
• 48-Fiber Capacity: Accommodates up to 48 fibers, ideal for medium-sized networks.
• Supports Bunchy Fibers: Can manage up to 96 bunchy fibers, ensuring versatile fiber organization.
• 2 Inlets and 2 Outlets: Flexible cable routing options for different network configurations.
• Max Cable Diameter of 18mm: Compatible with a wide range of cables, supporting up to 18mm in diameter.
• Compact Size - 458mm x 160mm x 100mm: Efficient use of space while providing sufficient room for fiber splicing and management.
• Durable Construction: Built to withstand harsh environments, including water, dust, and mechanical stress.
• UV Resistant: Suitable for outdoor use, protected against long-term UV exposure.
• Corrosion-Resistant Materials: Ensures durability even in chemically aggressive environments.
• High Impact Resistance: Protects internal splices from external mechanical forces.
• Tensile Strength: Designed to withstand high tensile loads, protecting fibers from strain.
• Cable Strength Member Fixation: Ensures secure fixation of the cable strength members, providing effective strain relief.
• Single-Mode and Multi-Mode Fiber Compatibility: Versatile for various fiber optic network types.
• Expandable Fiber Trays: Integrated fiber trays allow for organized splicing and easy future expansion.
• Easy Re-entry: Can be reopened for maintenance or upgrades without damaging the sealing.
• Suitable for Harsh Environments: Designed for use in underground, aerial, and wall-mounted installations.
• Wide Operating Temperature Range: Operates effectively in extreme temperature conditions.

    SCHEMATIC DIAGRAMS

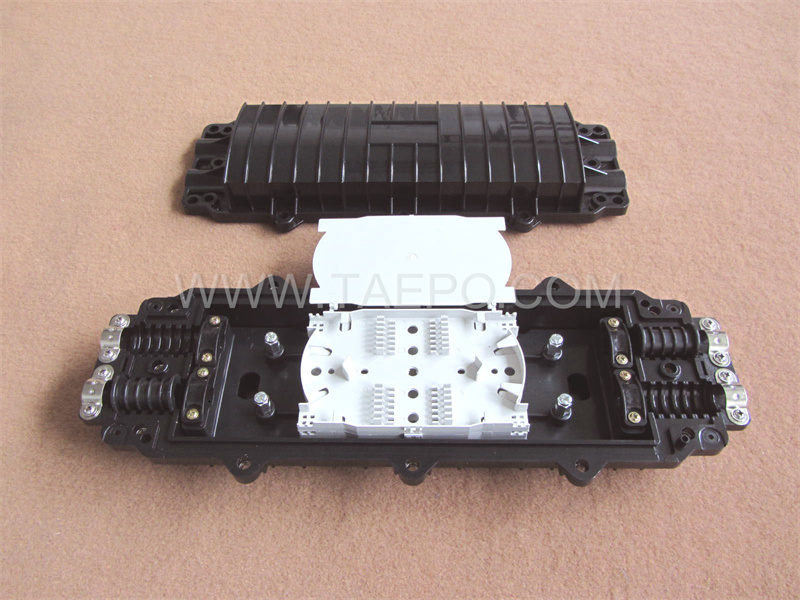

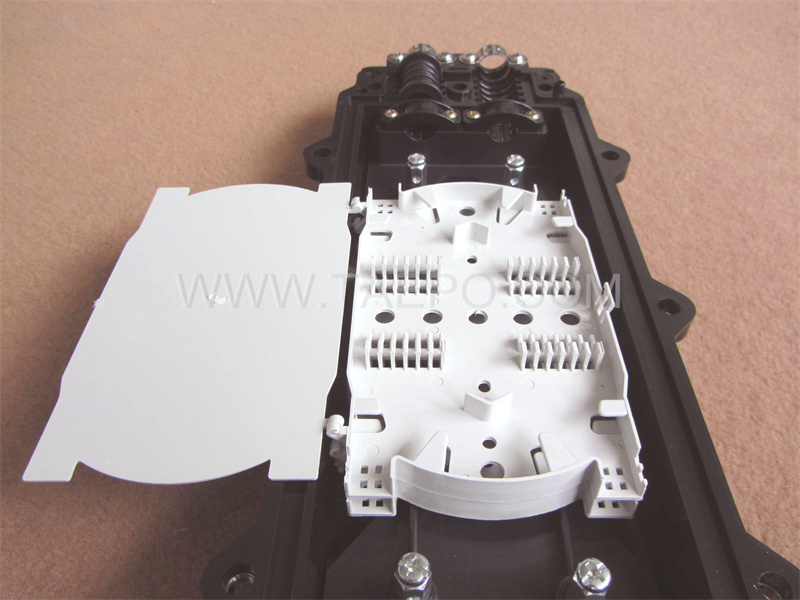

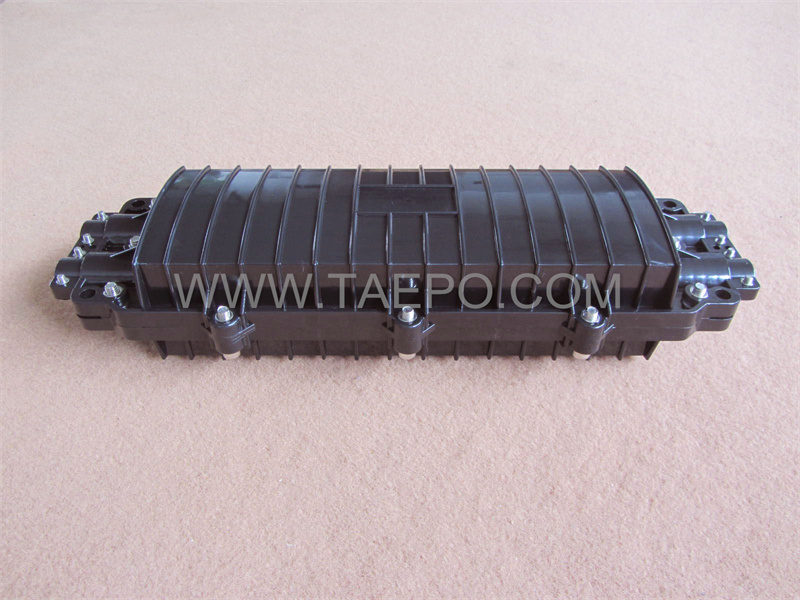

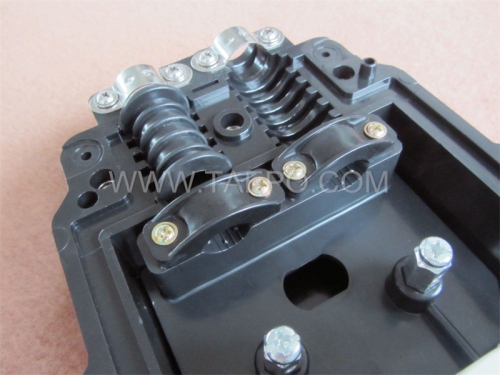

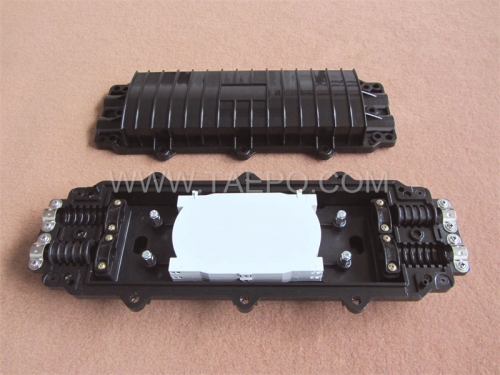

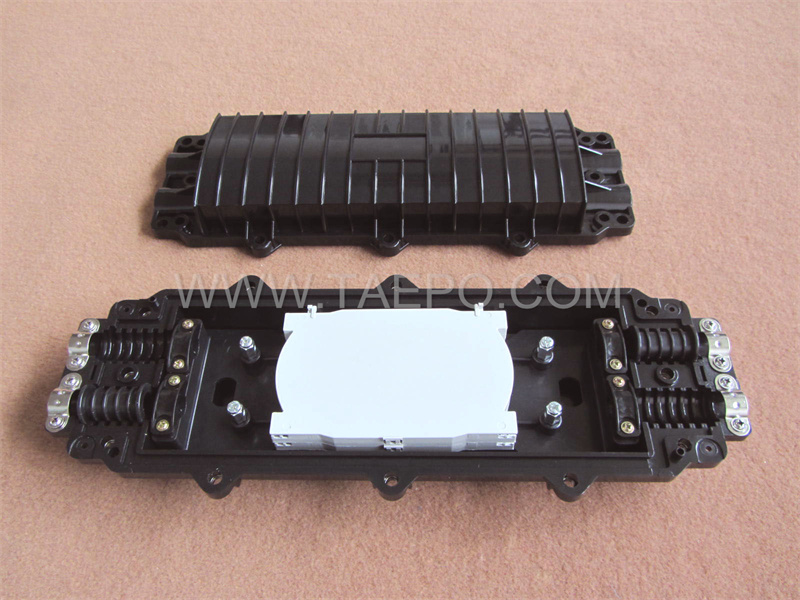

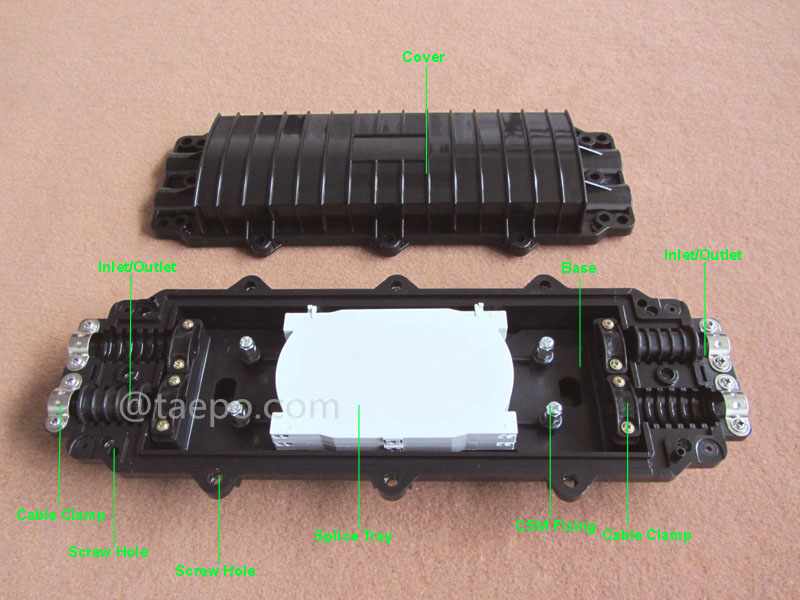

    ILLUSTRATION PICTURES

    PACKING PICTURES

   ORDER DATA
