What is a 3m 314 self-stripping electrical connector ?

Update time : 2024-10-16 17:52:00

What is a 3m 314 self-stripping electrical connector?

1) To answer this question, First, let's show you 314 Connector's Description in details.

314 self-stripping electrical connector (Our item TP-1310-314, you can click here

), often referred to as a "314 box" or "tap connector" or "self-tapping connector," is a device used in electrical applications to create a secure and reliable connection between two or more wires without the need for stripping insulation from the wires beforehand.
These 314 connectors are commonly used in automotive, electrical, and electronic applications where quick and efficient wire connections are required.

314 connector is grease filled, protecting against corrosion in damp conditions. Handles 22-14 AWG solid or stranded wire. Self-stripping U contacts for mechanical strength and electrical conductivity.
It is recommended to use the crimping tool (Our item TP-5940-998, you can click here ).

Overall, 314 self-stripping electrical connectors offer a convenient and efficient solution for making electrical connections, especially in situations where traditional wire stripping methods may be cumbersome or impractical. They contribute to improved installation efficiency and reduced labor costs in various electrical and electronic applications.

2) Second, let's learn 314 Connector's Main Features.

Self-Stripping Capability: These 314 connectors can automatically strip the insulation from wires when crimped or secured, eliminating the need for manual wire stripping.
Crimping Mechanism: Self-stripping connectors include a built-in spring crimping mechanism to secure the wire and maintain a strong electrical connection.
Compatibility: Designed to work with various wire gauges and insulation types, making them versatile for different electrical applications.
Quick Installation: They are designed for quick and efficient installation, which is crucial in applications where time is a critical factor.
Tight Seal: Many self-stripping connectors offer a tight seal to protect the connection from moisture, dust, and other environmental factors, ensuring long-term reliability.
Cost-Efficiency: They are often cost-effective solutions for making electrical connections, saving both time and labor costs.

3) And then, you should to know how to use this connector?

To use a 3M 314 self-stripping electrical connector, follow these steps:

Preparation: Ensure the wires to be connected are clean and free of damage.
Insert Wires: Push the stripped ends of the wires into the connector until they reach the stop.
Crimp: Squeeze the connector firmly with your fingers or a tool, if necessary. This will strip the insulation and create a connection.
Check Connection: Gently pull on the wires to ensure a secure fit.
Insulate: If needed, cover the connector with electrical tape or a heat shrink tube for added protection.

Always follow manufacturer instructions for best results. You can check our Installation Video Below

4) What is the connector's Applications?

The 314 self-stripping electrical connector is used in various applications, including:
Telecommunications: Connecting wires in communication devices and networks.
Industrial Equipment: Facilitating connections in machinery and control systems.
Automotive Wiring: Connecting various electrical components in vehicles.
Home Appliances: Making quick connections in appliances for efficient assembly.
Consumer Electronics: Used in devices like computers, audio systems, and other electronic equipment.

Its quick and reliable connection method makes it ideal for situations where speed and efficiency are critical.

5) Which tools can be used for this 314 connector?
TAEPO has a tool (TP-5940-998: Crimping tool for big wire connectors ) which is very suitable for this 314 connetors.you can visit here for details:  https://taepo.com/products/crimping-tool-for-wire-connectors-801

6) And then, Let's learn 314 Connector's Schematic Diagrams
Schematic Diagrams for 3m 314 self-stripping electrical connector

Schematic Diagrams for 3m 314 self-stripping electrical connector

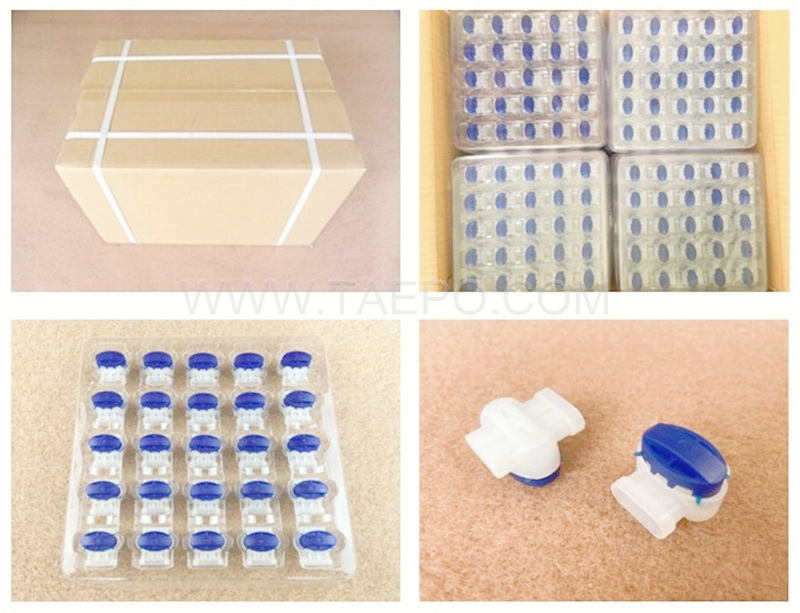

7) At last, let's See 314 Connector's Packing Picture.
Packing Picture for 3m 314 self-stripping electrical connector

Now, we believe you have basically understood what is a 3m 314 self-stripping electrical connector.
If you have any furter questions, pls contact us freely （sales@taepo.com）.
We are convinced we can supply you suitable solutions in Telecommunications Industry.
