What Is 10 Pairs Super Compact Profile Connection Module Used for?
DESCRIPTIONS
10 pairs super compact profile connection module (TP-1319-10P), also called the M10 SC terminal block, is used throughout the distribution level, in the main distribution frame (MDF), in the cross connection cabinet (CCC) and in the distribution point (DP) boxes. It is highly reliable and cost-effective wire connection system for modern telecommunications and data networks.
It adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.
LSA connection modules use a normally one-piece contact, thus only having the function of connection instead of disconnection performances. With its wire guide structure, improved housing design, and compatibility with profile bar installations, this Super Compact module provides an optimal balance between compactness, usability, and reliability. It is suitable for both voice and data transmission systems and can be integrated seamlessly into high-capacity copper cabling networks.
MAIN FEATURES
- Insulation Displacement Contact (IDC): it is designed to make electrical connections without the need for stripping wires or using separate connectors, by using a sharp blade or wedge to penetrate the insulation of the wire and make contact with the conductor.
- Super Compact Housing Design: Built with minimized width and depth to maximize capacity on profile rods or frame assemblies without compromising functionality or stability.
- 10-Pair Termination Capacity: Supports connection for 10 twisted pairs (20 wires) of copper cable, ideal for structured voice/data installations.
- Wire Guide Included: Integrated wire guide ensures orderly cable alignment and prevents wire crossover, reducing termination errors and enhancing installation clarity.
- Space-Saving Design: Compact profile enables efficient use of space in telecommunications and networking installations.
- Reliable Connectivity: Ensures secure and stable connections, minimizing signal loss and downtime.
- Durable Construction: Constructed with high-quality materials for long-lasting performance in demanding environments.
- Optimized Efficiency: Enhances efficiency and productivity in network installations by maximizing space utilization and streamlining connectivity solutions.

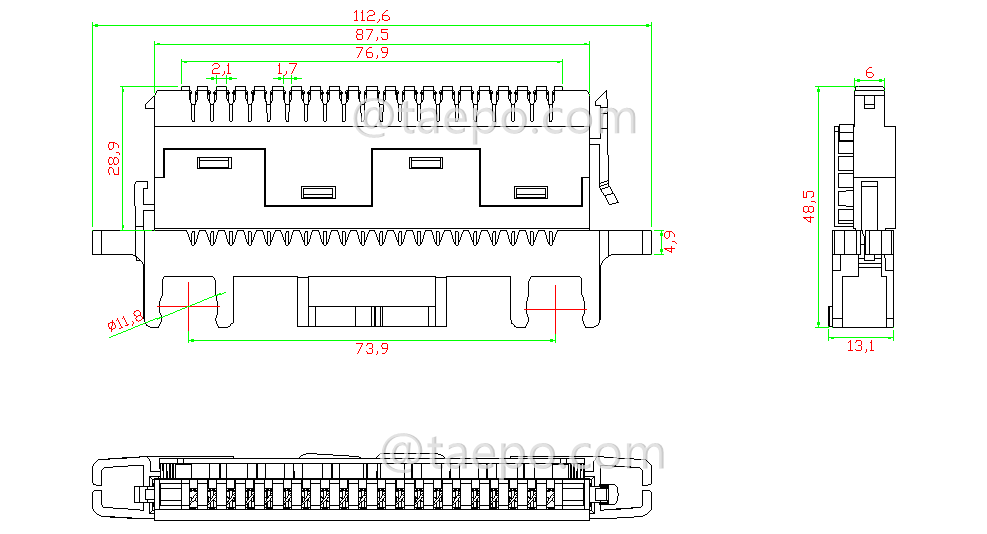

SCHEMATIC DIAGRAMS
ILLUSTRATION PICTURES
PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-1319-10P |
10 pairs super compact profile connection module, with wire guide |
