DESCRIPTIONS

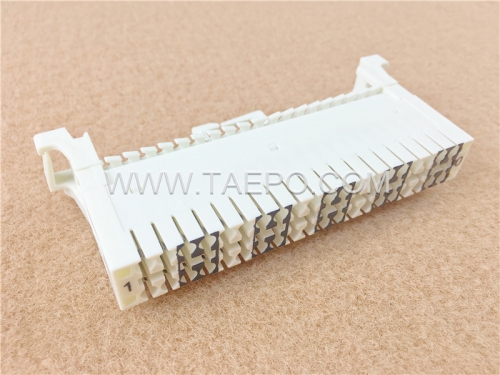

10 pairs LSA disconnection module (TP-1322-10D), also called QDF termination magazine or BTDG block, is developed to in the main distribution frames (MDF). It is highly reliable and cost-effective wire connection system for modern telecommunications and data networks.
It adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.

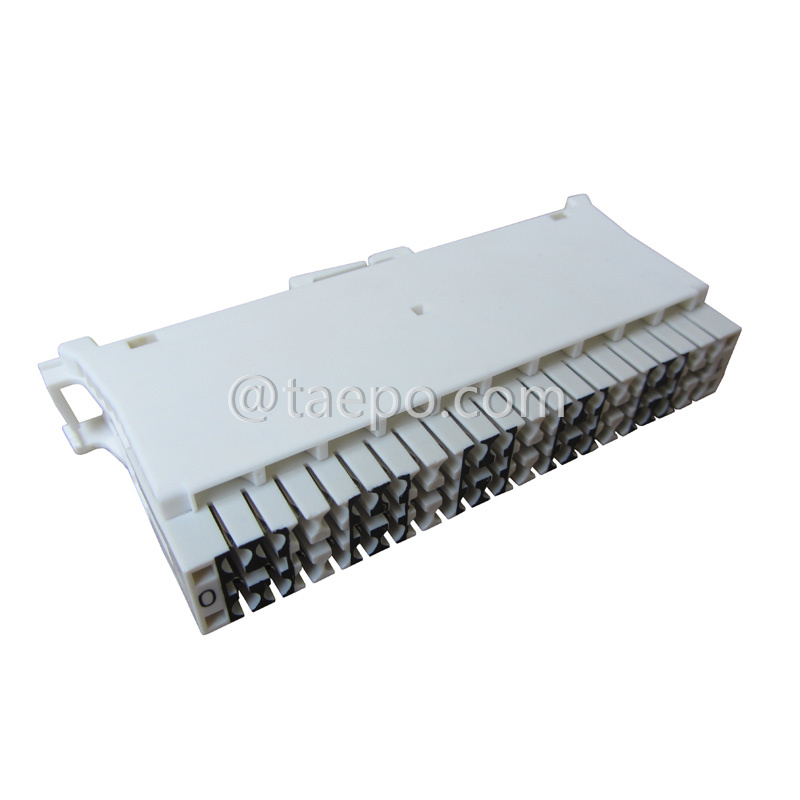

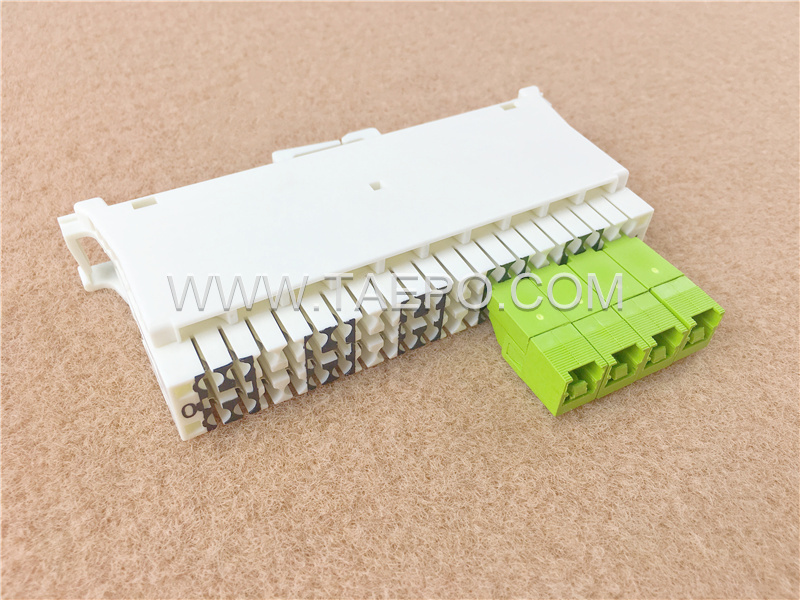

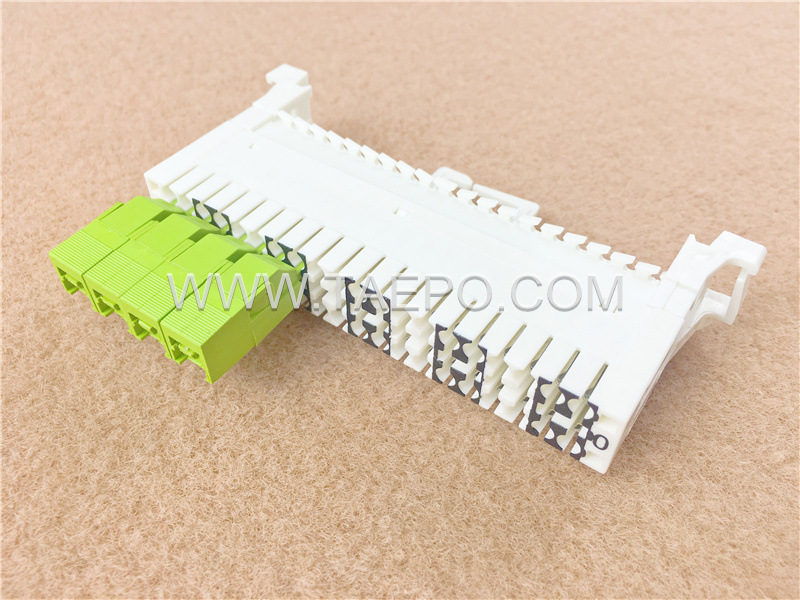

10 pairs LSA disconnection modules use a normally closed two piece contact, with a convenient disconnection feature. By inserting a disconnect plug into a wire pair, you can temporarily or permanently disconnect the circuit. A test cord can be inserted into a pair to test each side of the circuit independently. This greatly accelerates fault identification. The center contact point can also be used for overvoltage or current protection.
MAIN FEATURES

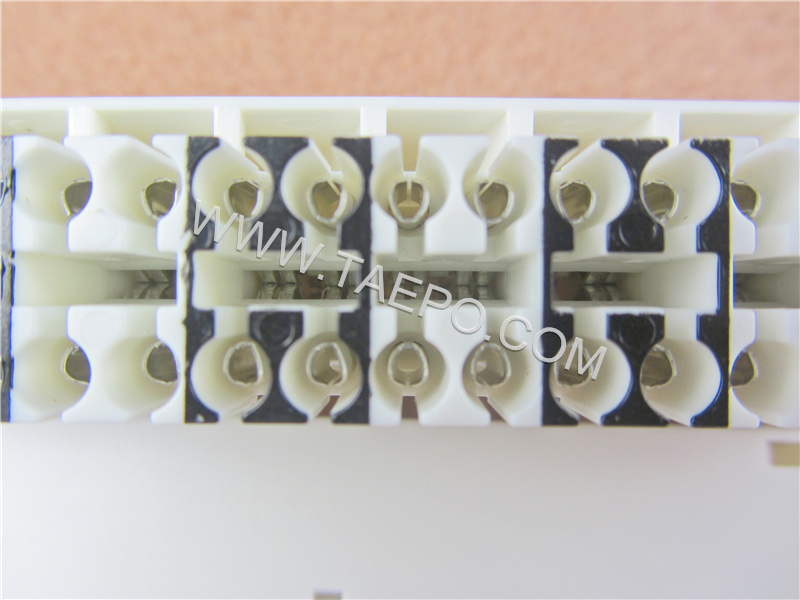

- Insulation Displacement Contact (IDC): it is designed to make electrical connections without the need for stripping wires or using separate connectors, by using a sharp blade or wedge to penetrate the insulation of the wire and make contact with the conductor.
- Compact size: The module is designed to be small and space-saving, making it ideal for use in crowded telecommunications cabinets or enclosures.
- High-density connection: The 10 pairs LSA disconnection module allows for the connection of multiple cables in a single location, making it easier to manage and maintain the telecommunications infrastructure.
- Disconnection capability: The module has a disconnection function, which allows individual cables to be disconnected without affecting other cables connected to the module.
- Easy installation: The module can be quickly and easily installed using insetion tool by one-push and and back mount frame for modular installations.
- Excellent conductivity: The module features a high-quality copper alloy construction that provides excellent conductivity, ensuring a strong and reliable connection.
- Built-in Earth Bar: A factory-mounted earth bar is integrated into the base of the module, providing a reliable, low-impedance grounding point for overvoltage protection devices. This ensures safe discharge of transient voltages caused by lightning or power surges and offers enhanced network protection.

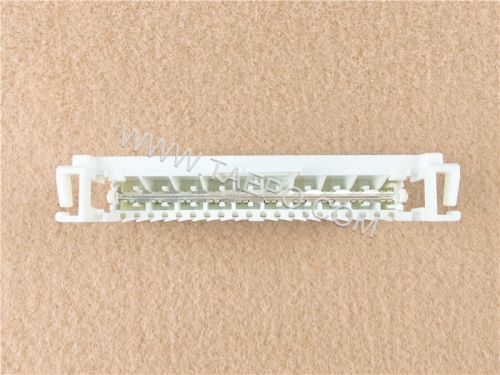

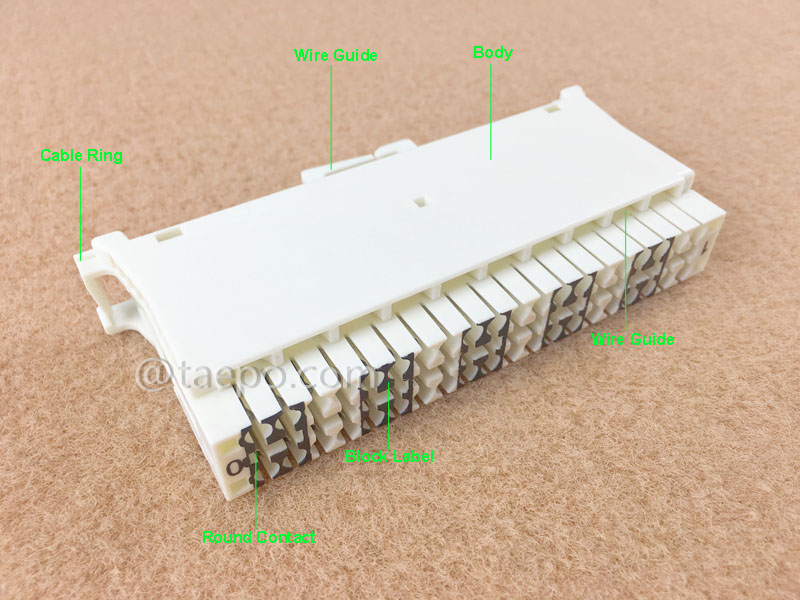

- Wire Guide System: A specially designed internal and external wire guide structure channels incoming and outgoing wires into proper paths. This minimizes stress on terminations, prevents cable tangling, and organizes jumper wires efficiently to maintain a clean and serviceable appearance.

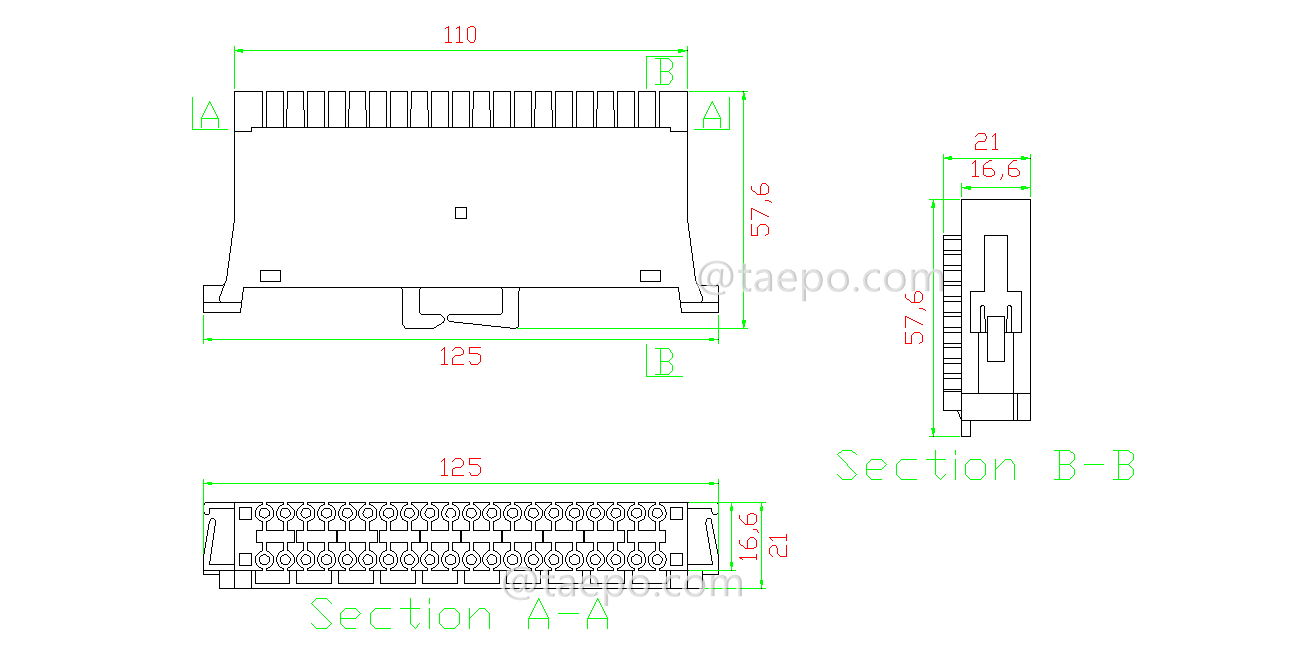

SCHEMATIC DIAGRAMS

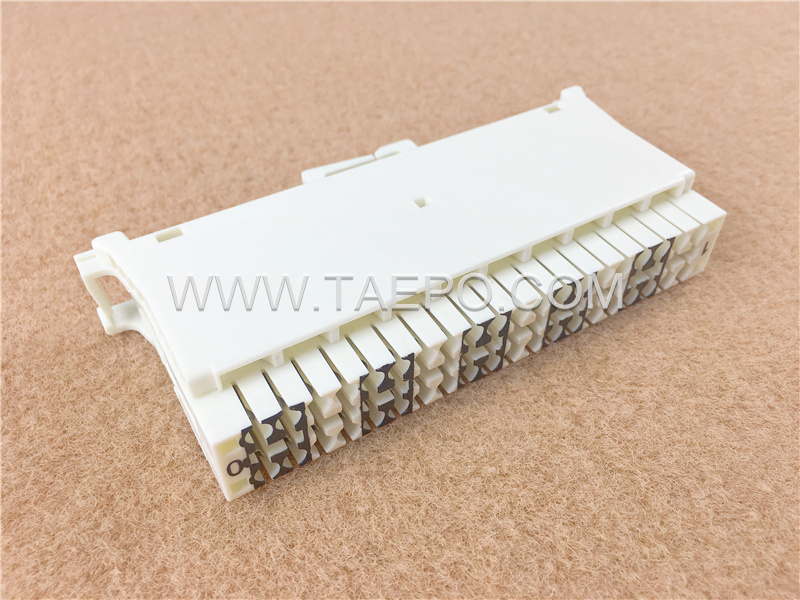

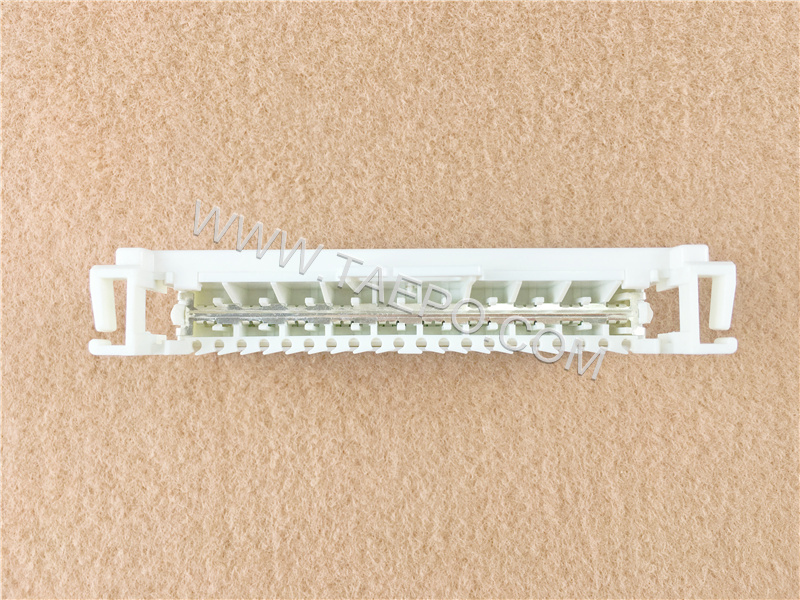

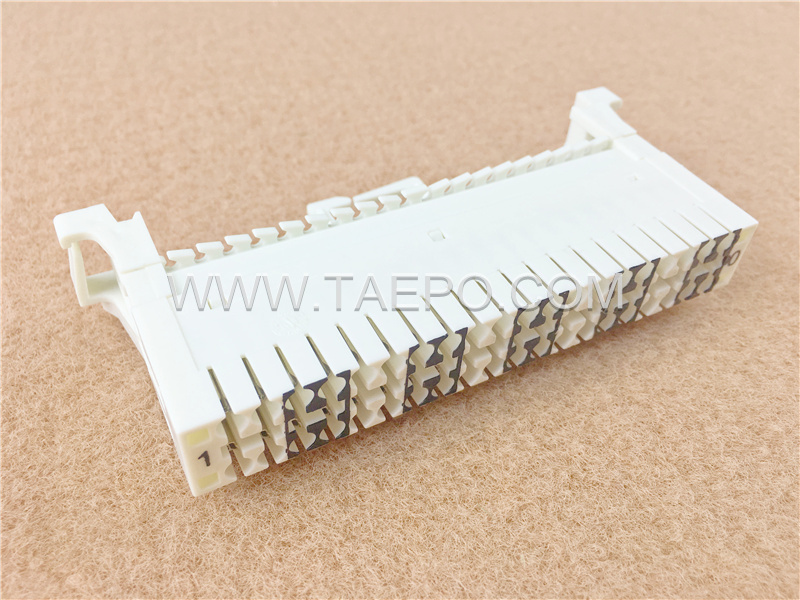

ILLUSTRATION PICTURES
PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-1322-10D |
10 pairs disconnection module with wire guide, with earth bar |
RELATED PRODUCTS
TP-5954-A Installation tool, long version
TP-1518-1B 1 pair MDF protector, against over-voltage protection
TP-1612-1AD2P MDF splitter ADSL2+ over POTS
