What Is PCB Connection Module?
DESCRIPTIONS

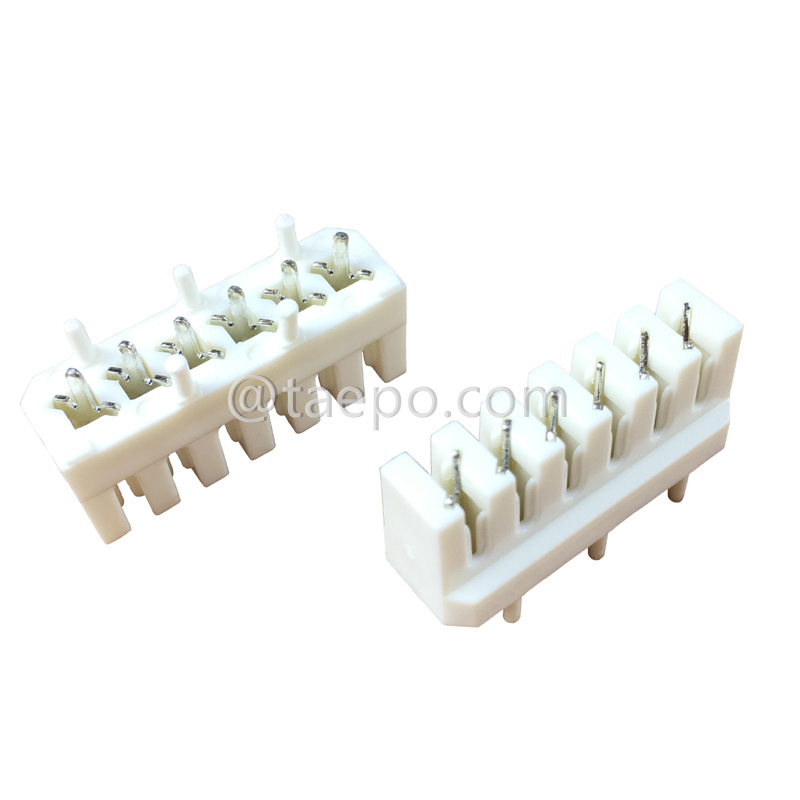

6 pins PCB connection modules (TP-1305-6), also known as a PCB terminal block or PCB connector, is an electronic component used to establish electrical connections between a PCB and external wires or components. These modules are commonly used in various electronic devices, control panels, and industrial equipment. Wire diameter: 0.40 ~ 0.63mm, Insulation diameter: 0.70 ~ 1.70mm.
It adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.
PCB connection modules play a crucial role in providing a reliable and organized means of making electrical connections between PCBs and external components or wiring, making them an integral part of modern electronic devices and systems.
MAIN FEATURES
- Wire Termination: Modules provide a means for terminating wires or pins. Common termination method are insulation-displacement connectors (IDCs).
- Compact Design: PCB connection modules are typically compact and space-efficient, allowing for efficient use of PCB real estate.
- Durable Materials: They are often constructed from durable and high-quality materials to withstand mechanical stress and environmental factors.
- Versatility: PCB connection modules can accommodate a variety of wire types, including stranded, solid, or flexible conductors.
- Modularity: Many modules offer modularity, allowing for easy expansion or reconfiguration of connections as needed.
- Mechanical Stability: Designed to withstand mechanical vibrations, shocks, and other stresses, ensuring long-term reliability in demanding environments.
- 6-Pin IDC to PCB Interface: Provides a direct transition between two IDC terminals and two PCB pins for integrating telecom signals with electronic circuit boards.
- Board-Solderable Pins: Features rigid metallic pins on the underside designed for through-hole or surface mounting to PCBs during production or servicing.
- Strong IDC Pressure Contacts: Spring-metal IDC contacts ensure reliable and long-term pressure on conductors, even under thermal cycling.
- High Mechanical Strength: Designed to endure wire pull tests and insertion/removal cycles without loss of performance.
INSTALLATION VIDEOS

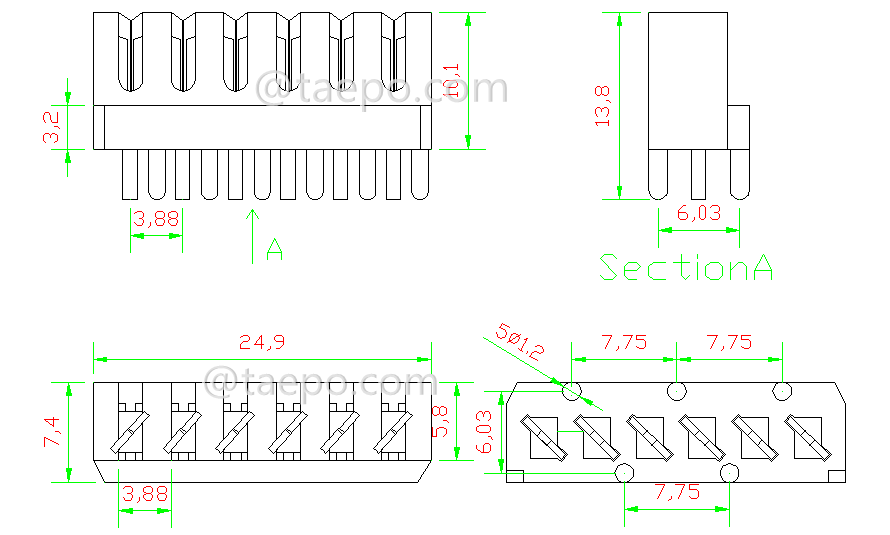

SCHEMATIC DIAGRAMS

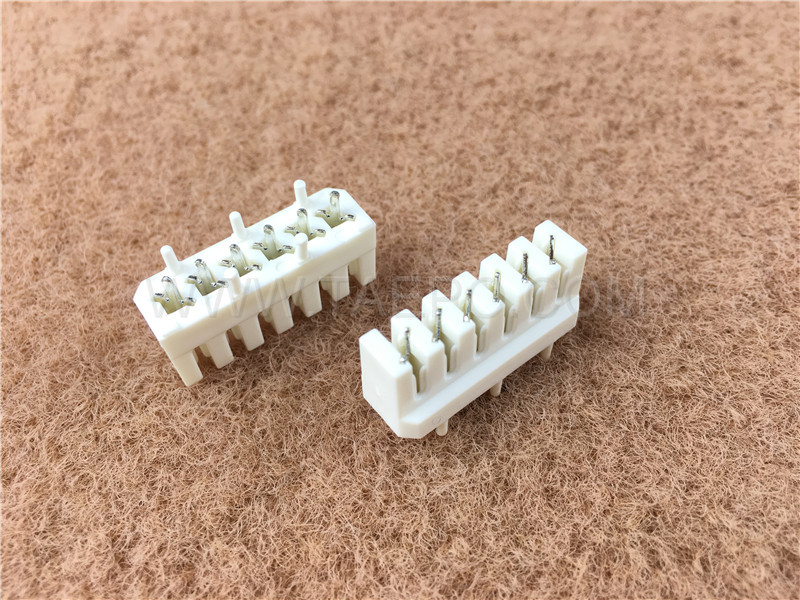

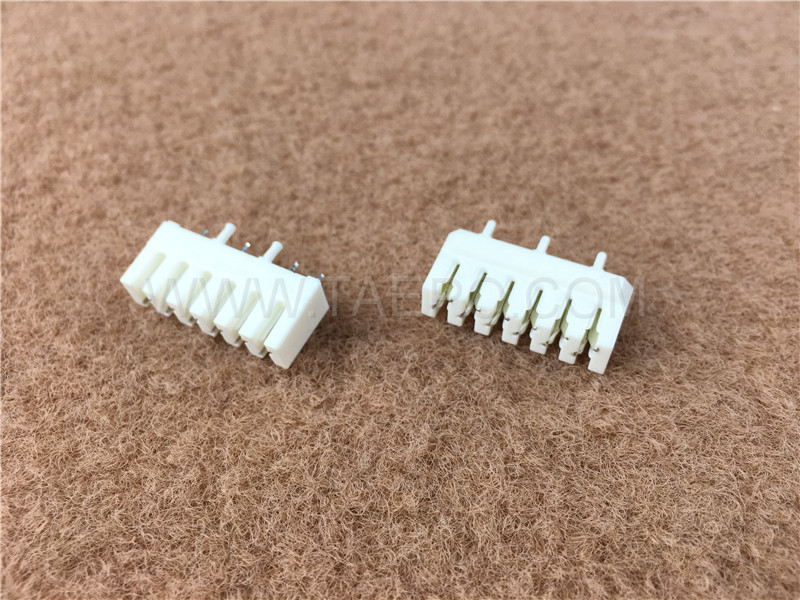

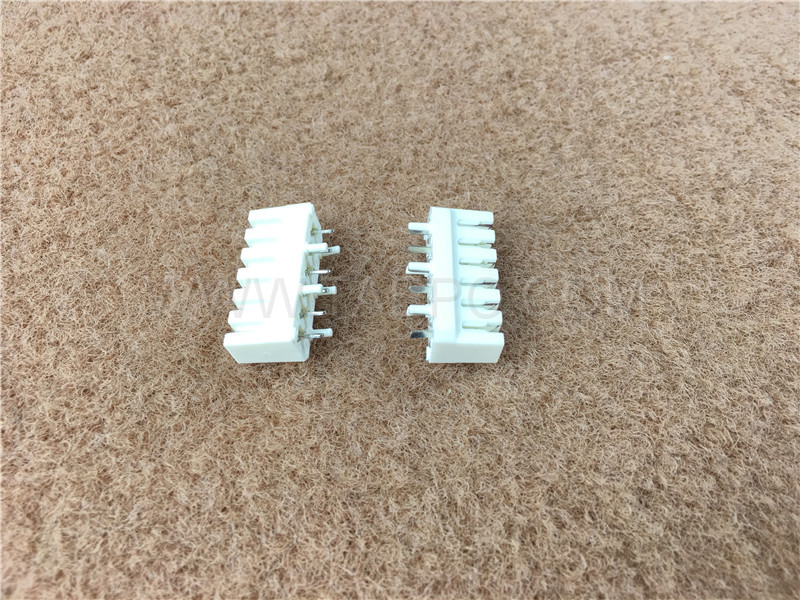

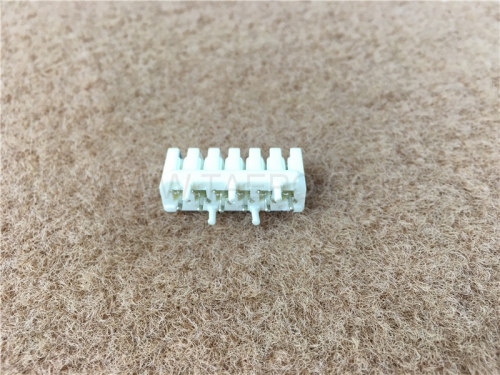

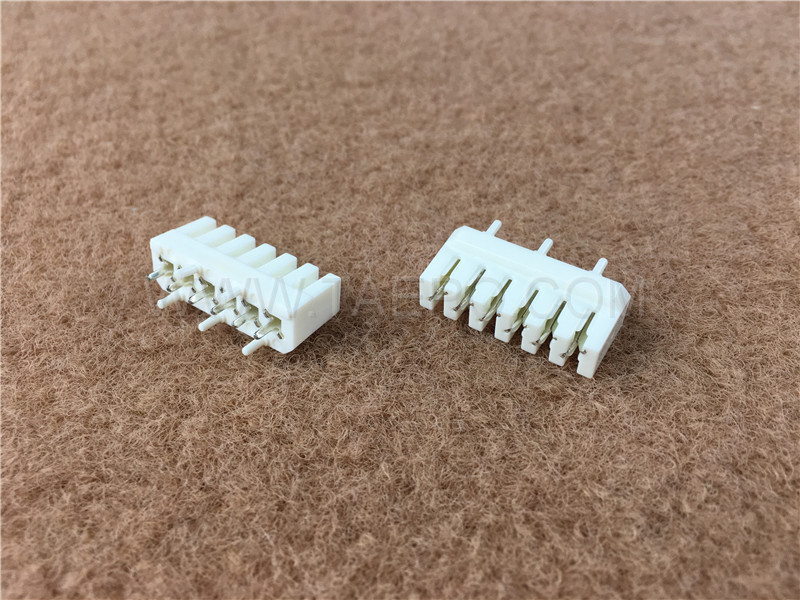

ILLUSTRATION PICTURES

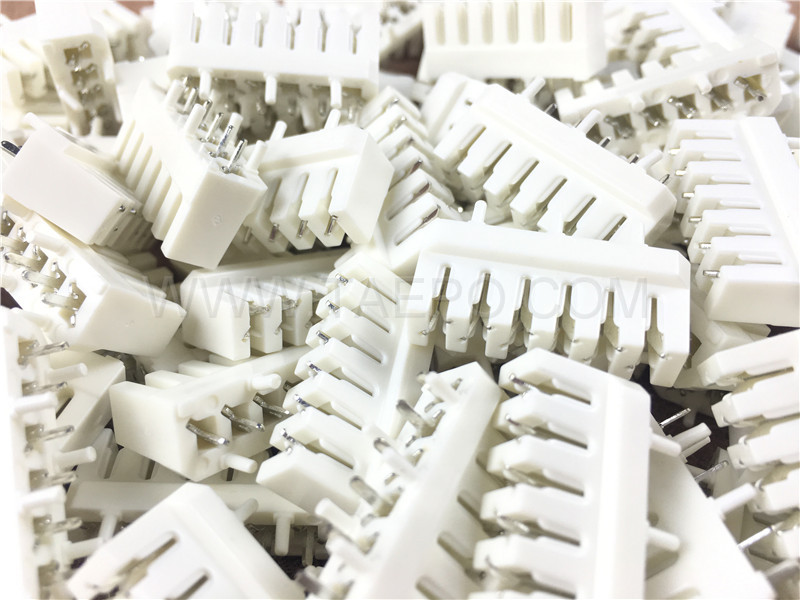

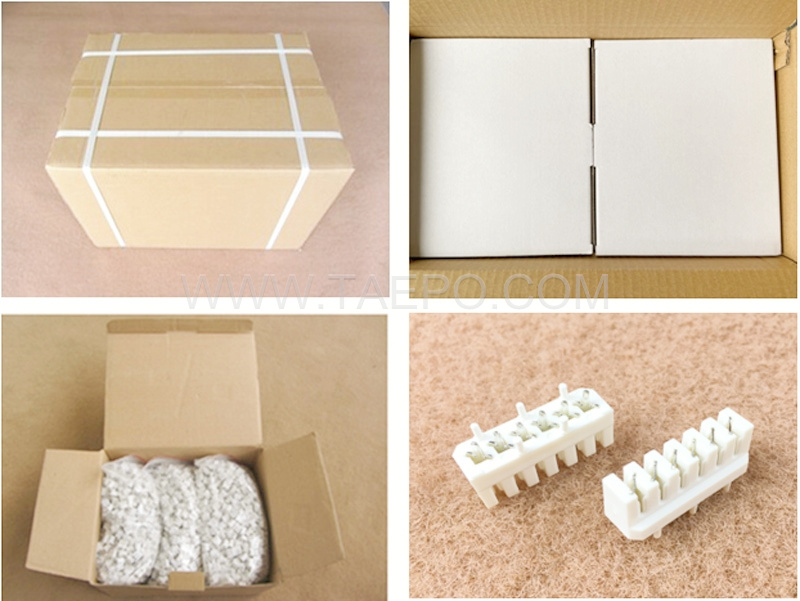

PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-1305-6 |
6 pins PCB connection module |
