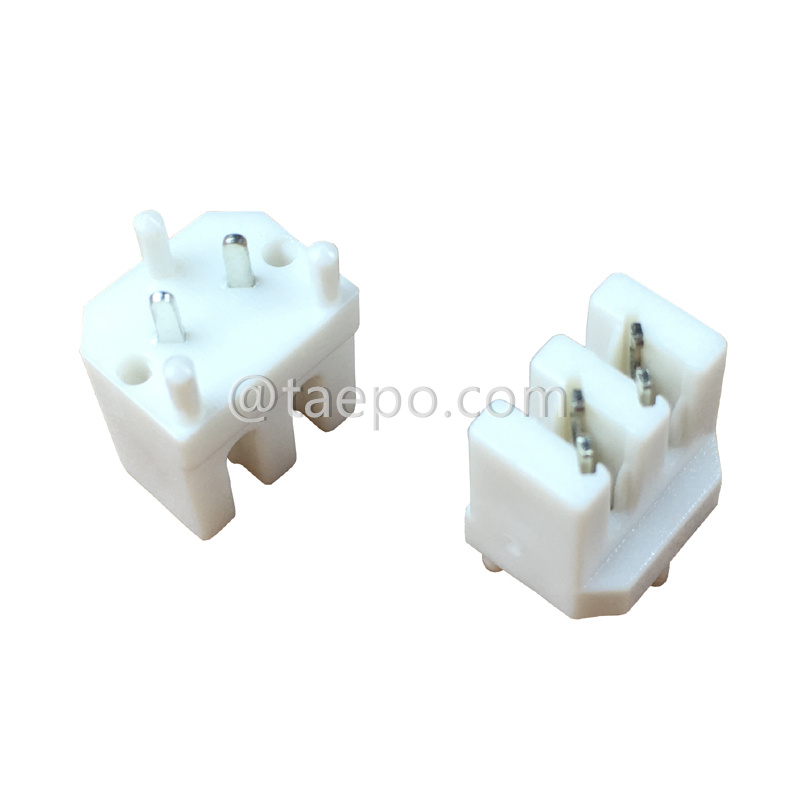

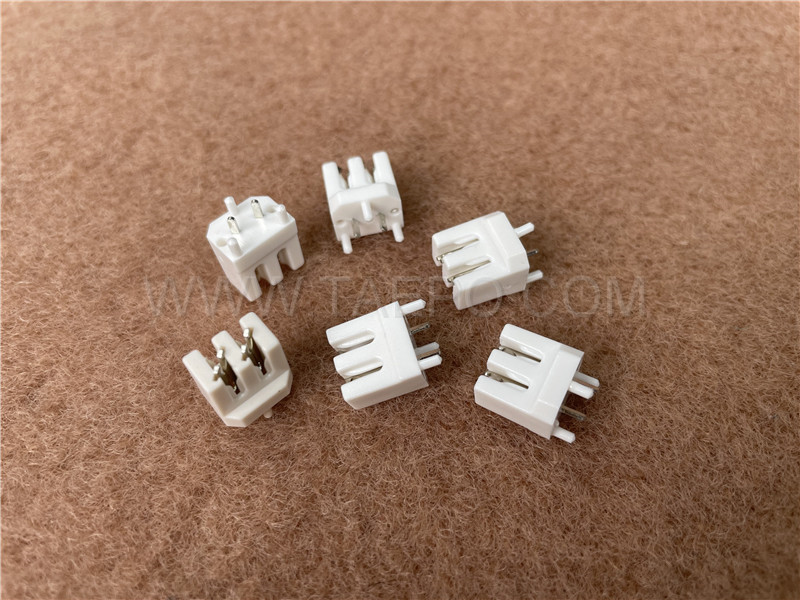

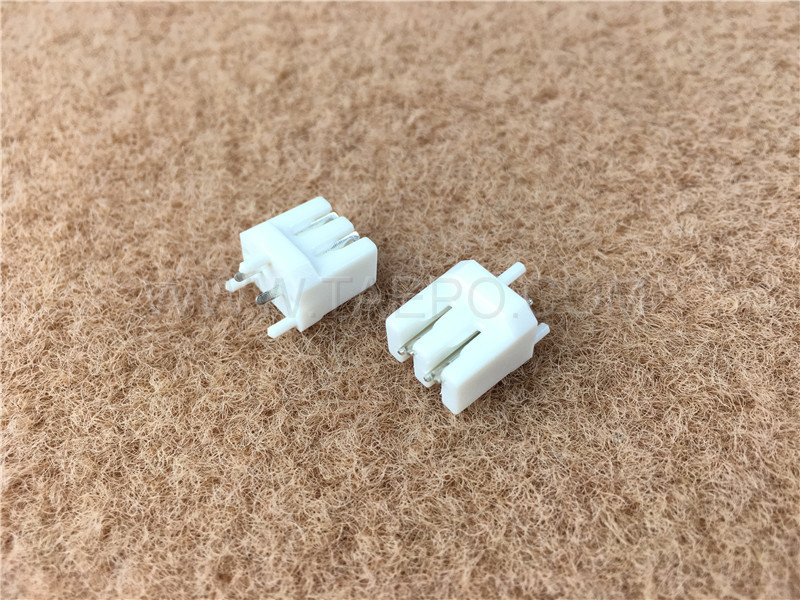

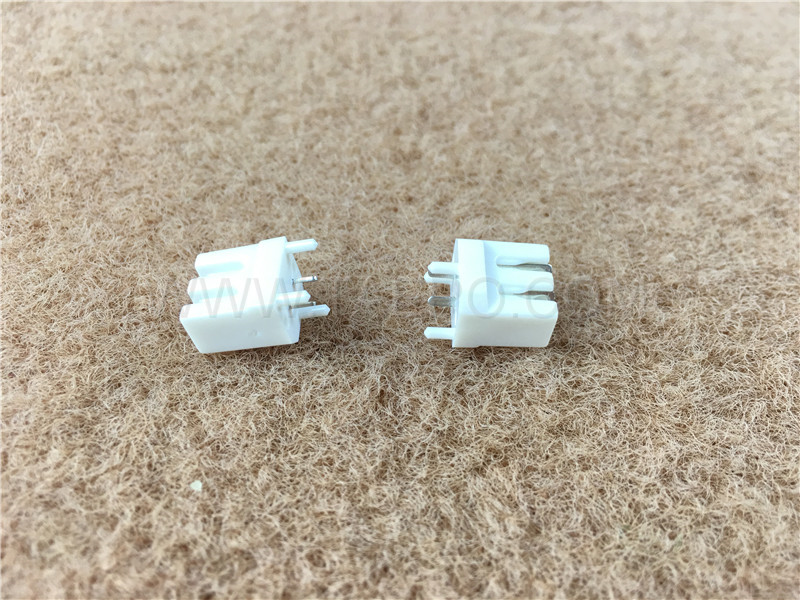

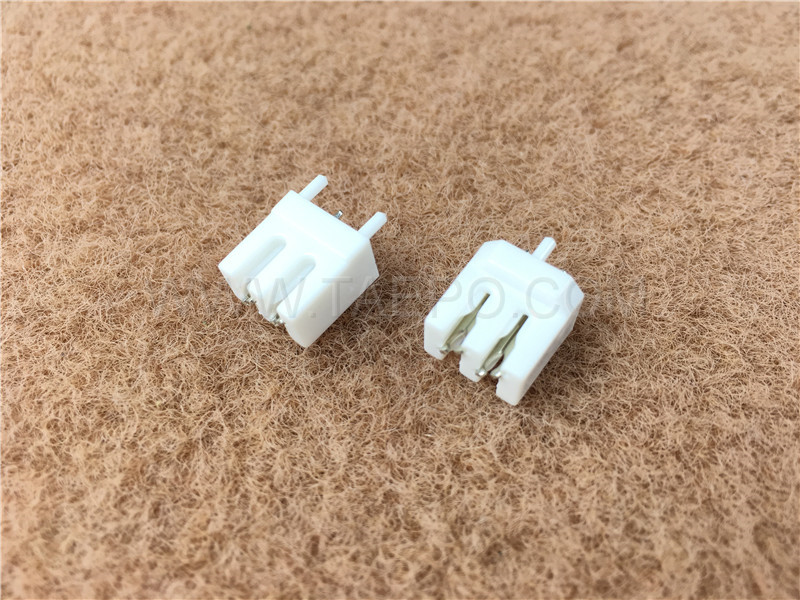

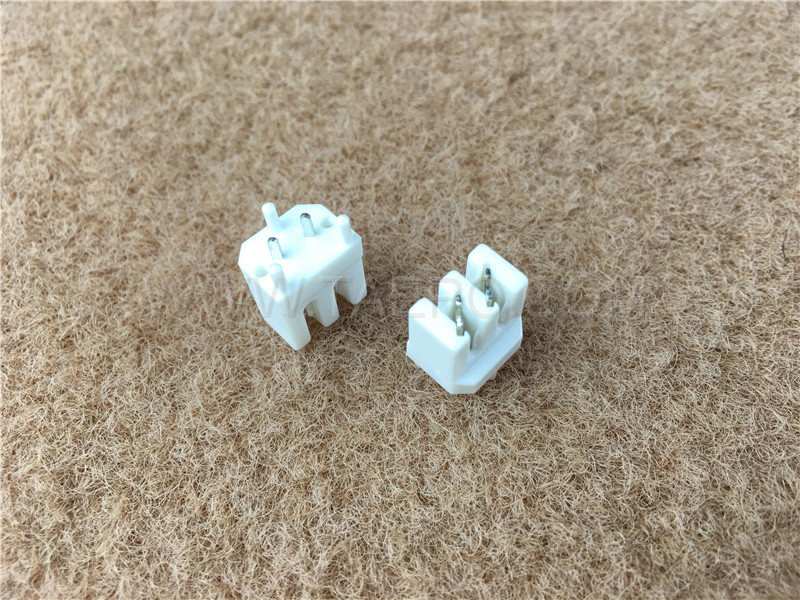

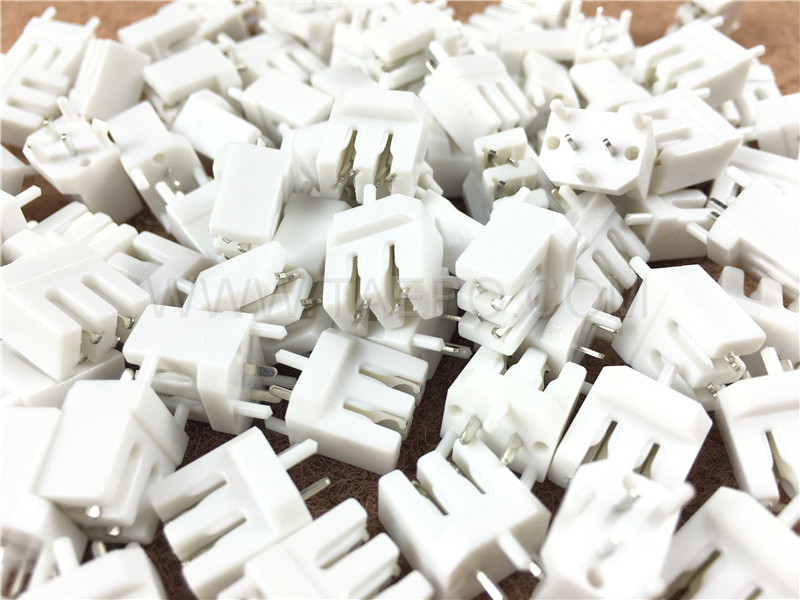

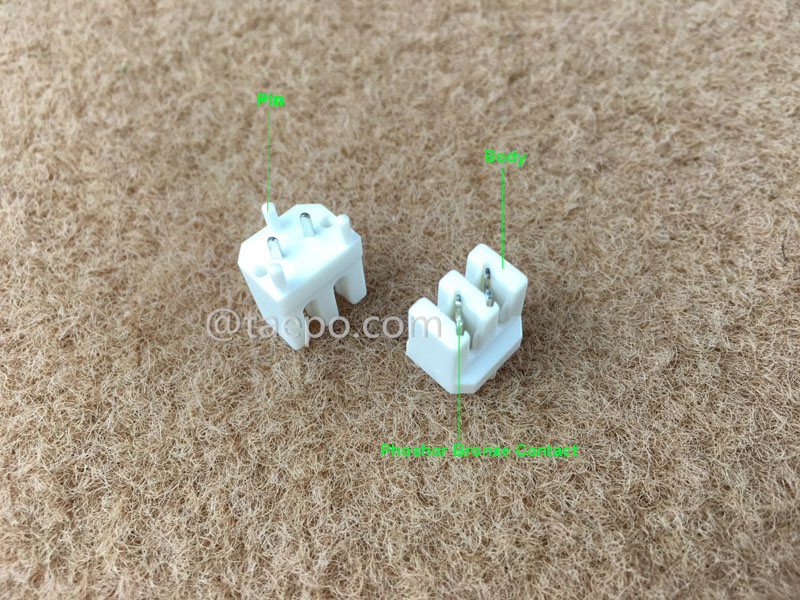

2 pins LSA plus PCB connection module for RJ11 connection box

Item No.: TP-1305-2
Used on RJ11 connection boxes | for the connection of telephone wires | Insulation Displacement Connection | One push wire insertion
  • Color: Ivory or White
  • Brand: Neutral / OEM / TAEPO
  • Packing: 2000pcs/polybag, 10bags/ctn, 48*26*27cm/ctn, 16kg/ctn
  • MOQ: 20000pcs
  • Delivery: 2-4 weeks
  • Description

    TAEPO - Your Professional 2 pins Connection Module Manufacturer In China !


        Descriptions



    What is 2 pins PCB connection module?
    2 pins PCB connection modules (TP-1305-2) are used on RJ11 connection boxes, for the connection of telephone wires. For soldering on printed circuit boards. For terminating CAT 3 cables on LSA-PLUS contacts. Wire diameter: 0.40 ~ 0.63mm, Insulation diameter: 0.70 ~ 1.70mm

    It adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.





        Main Features


    • Insulation Displacement Connection
    • No wire-stripping, screw and solder free
    • Reliable connections
    • Modular design and installations
    • Gas tight connection
    • One push wire insertion
    • Robust long-term environmental stability

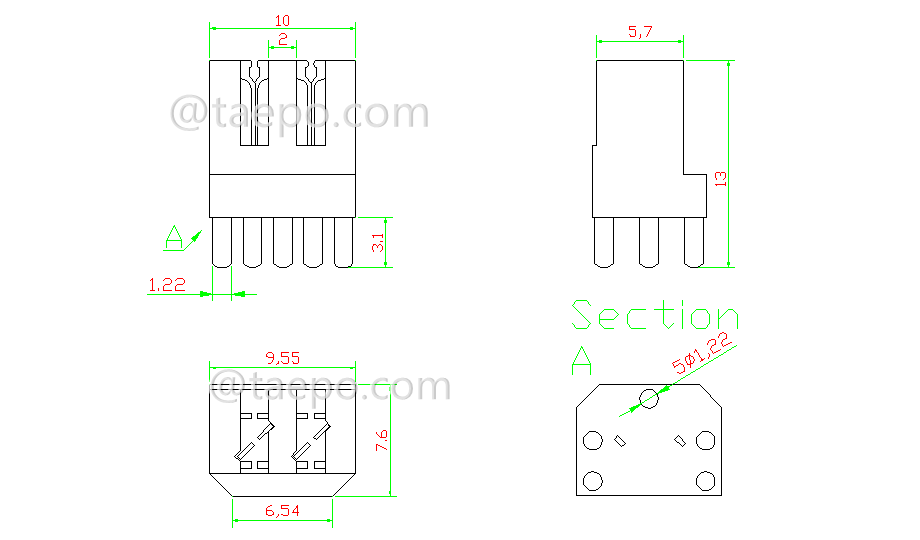

        Schematic Diagrams


    Schemetic Diagrams for 2 pins LSA plus PCB connection module


        Packing Pictures

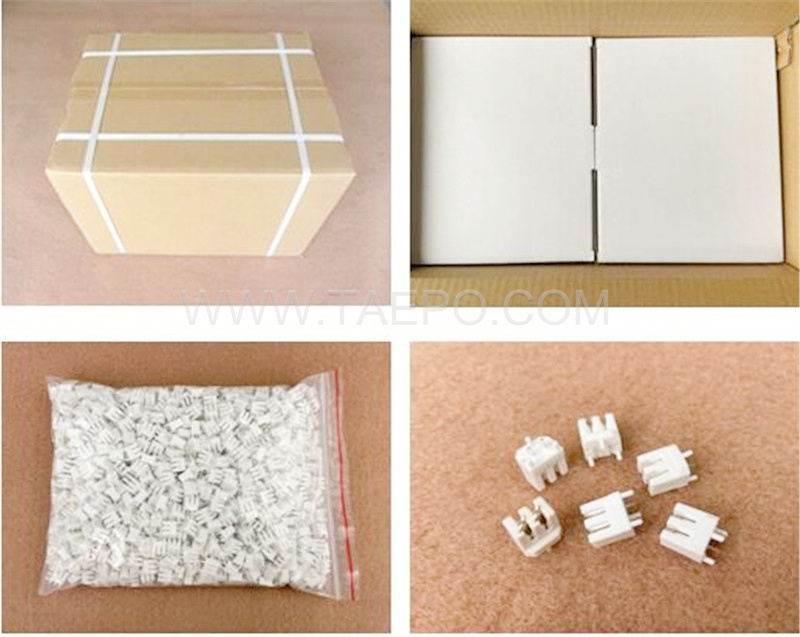

    Packing Picture for 2 pins LSA plus PCB connection module




        Order Data



    Item No Descriptions
    TP-1305-2 2 pins PCB connection module
