What Does Test Cord Mean?
DESCRIPTIONS
2-pole HW test cord, test plug to alligator clip (TP-1317-2TA) is used for testing the telephone line. The HW plug is used for inserting into the HW disconection module, and the alligator clip for connecting to the telephone testing kit.
The grey 2-pole cord permits parallel connection (monitor function) when it is used in the connection or disconnection module. The contacts of the cord bridge the centre contacts of the module which permit monitoring of the line (connection line). 2-pole cords cannot be used in switching modules. The metal contacts would not make a positive contact in this case.
This test cord serves as a bridge between the testing equipment and the device or circuit being tested. It allows technicians or engineers to establish a secure connection between the testing apparatus and specific points on the device for diagnostic, maintenance, or troubleshooting purposes.
MAIN FEATURES
- Flexible Cable Length: The cord often comes in various lengths, providing flexibility in reaching different test points within a system or equipment setup.
- Color-Coded Identification: Some models might feature color-coded plugs or clips, aiding in easy identification and quick setup during testing procedures.
- High-Quality Materials: Constructed with high-quality, insulated wires and robust connectors to ensure reliable connections and durability in diverse testing environments.
- Compatibility Assurance: Designed specifically for testing equipment and interfaces, ensuring seamless compatibility and accurate readings during testing.
- Safe and Secure Connection: Offers a secure grip and stable connection between the test plug and the device's testing ports, minimizing signal loss or interference during testing procedures.
- Insulated Alligator Clip: The alligator clip typically comes with insulation, preventing accidental short circuits and ensuring safe and controlled testing practices.
- Versatility in Applications: Suitable for a wide range of testing scenarios in telecommunications, electronics, electrical systems, and network diagnostics.
- Test Point Accessibility: Facilitates access to specific test points or terminals within the equipment without the need for complex setup or modifications.
- Dual-Pole Configuration: The test cord uses two independent conductors, allowing technicians to perform differential or line-pair testing without interference between paths.
- Flexible Copper Conductors: Inside the cord, stranded copper wire provides a low-resistance signal path while maintaining physical flexibility, reducing strain on the internal connections during repeated use.

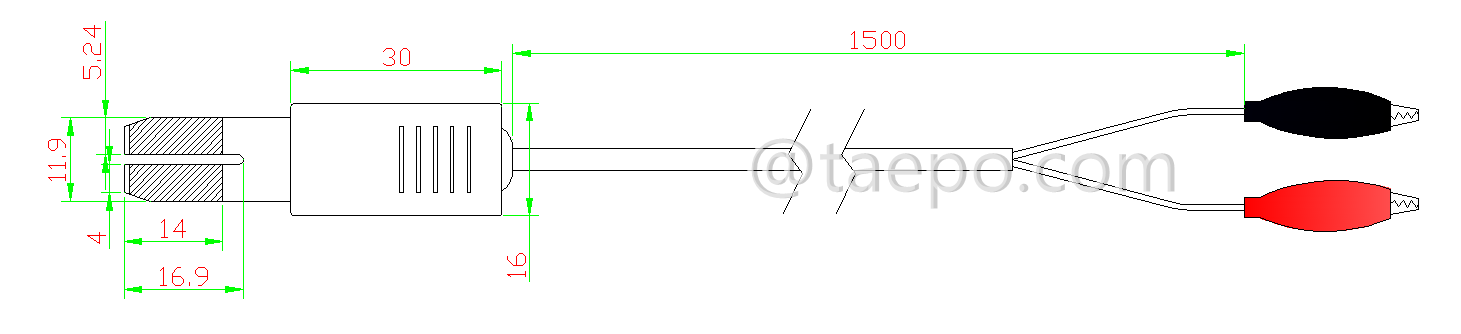

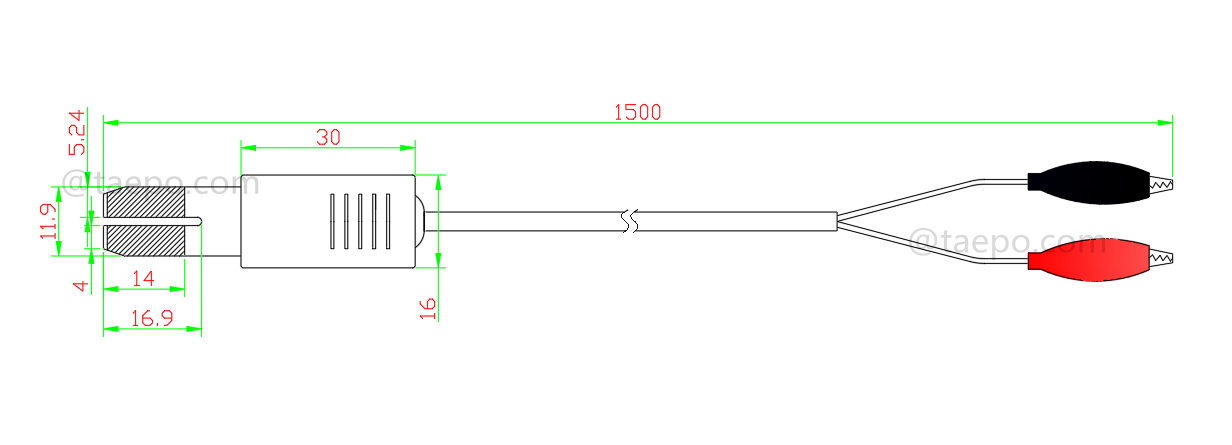

SCHEMATIC DIAGRAMS

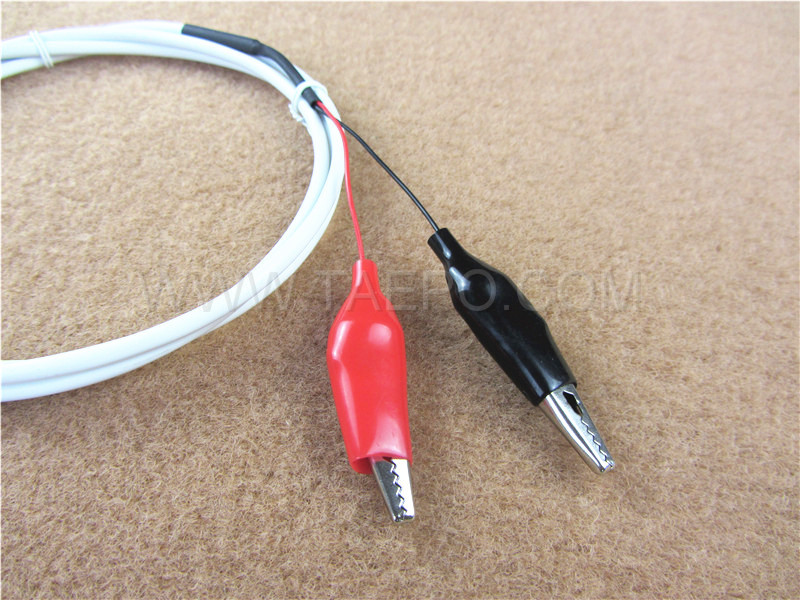

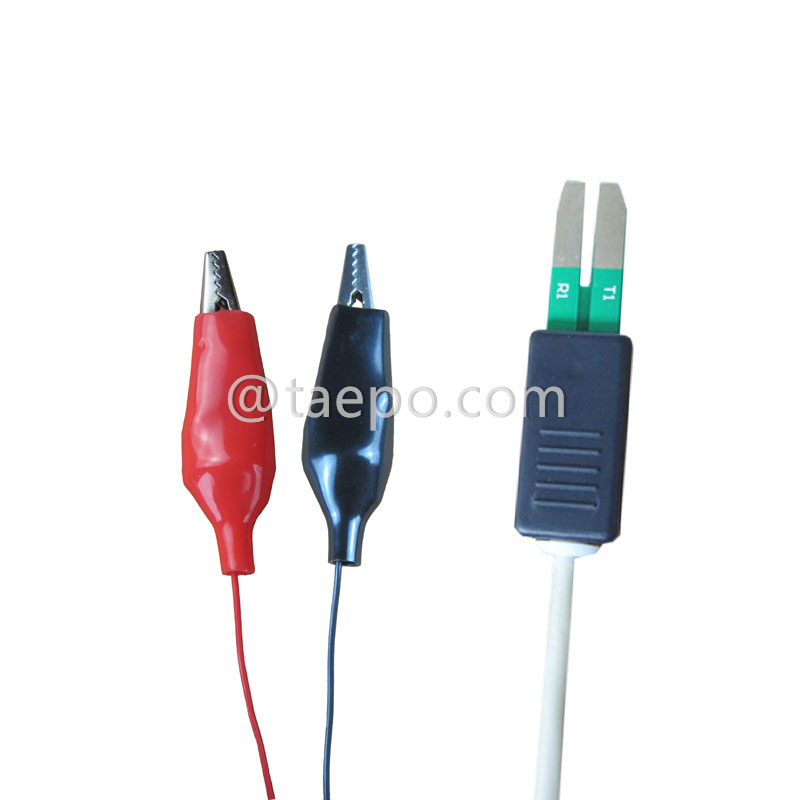

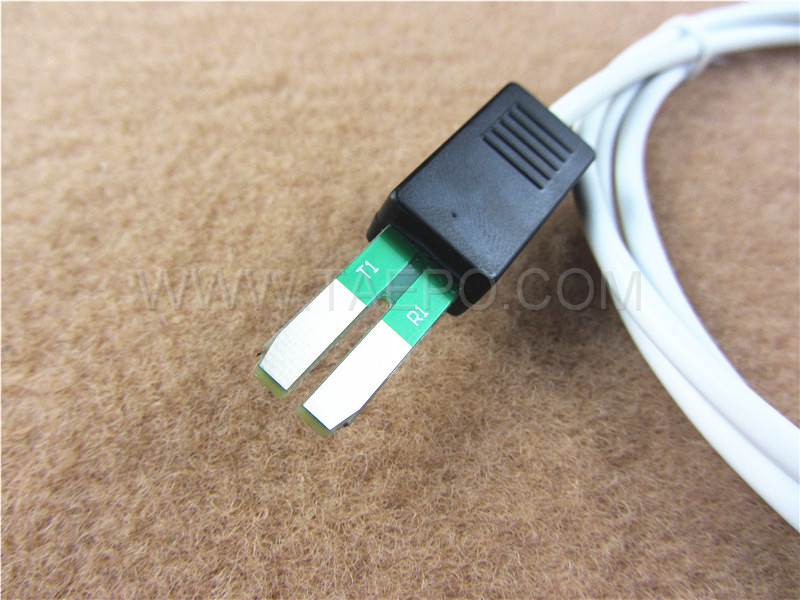

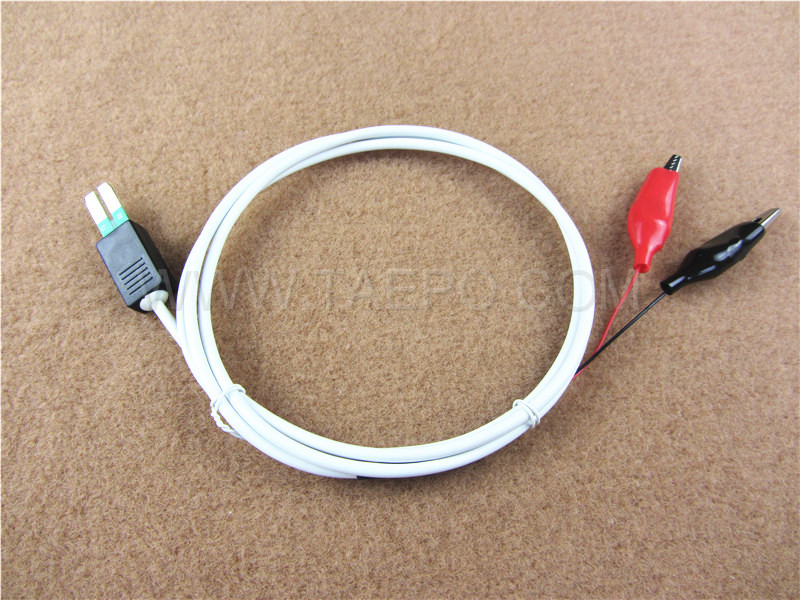

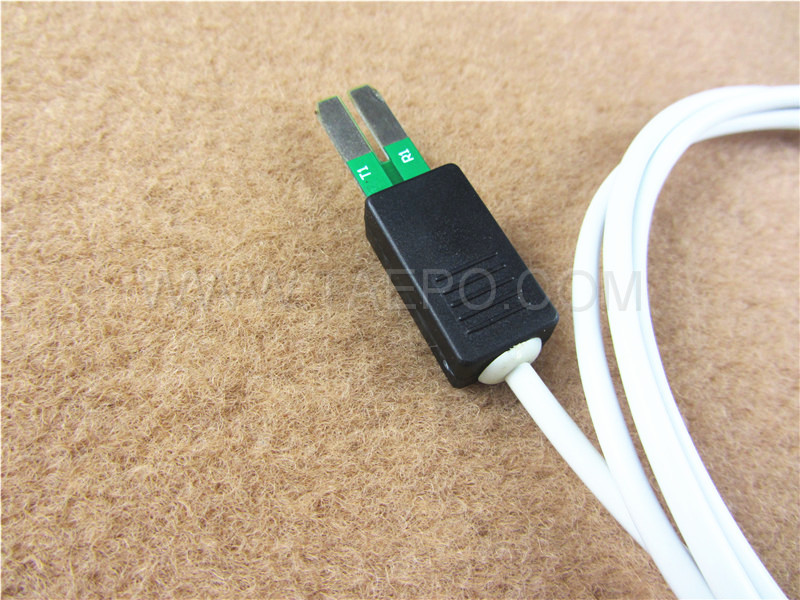

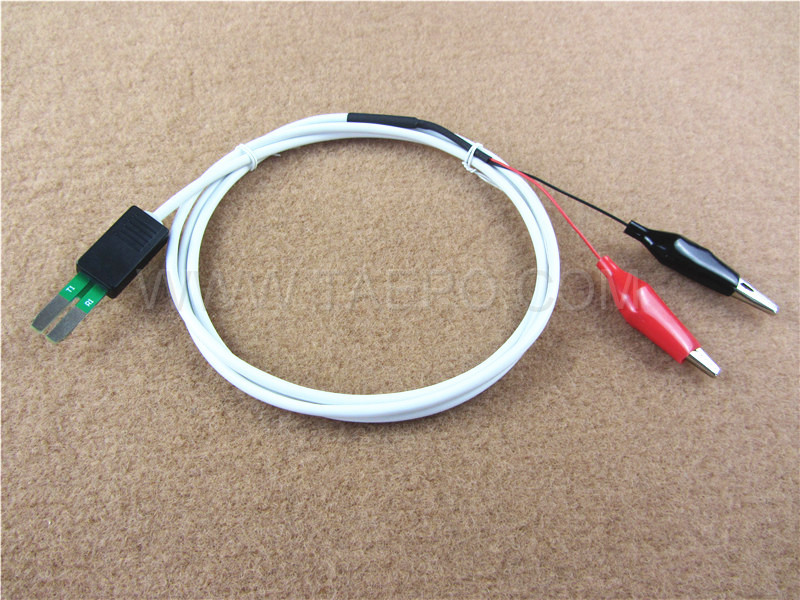

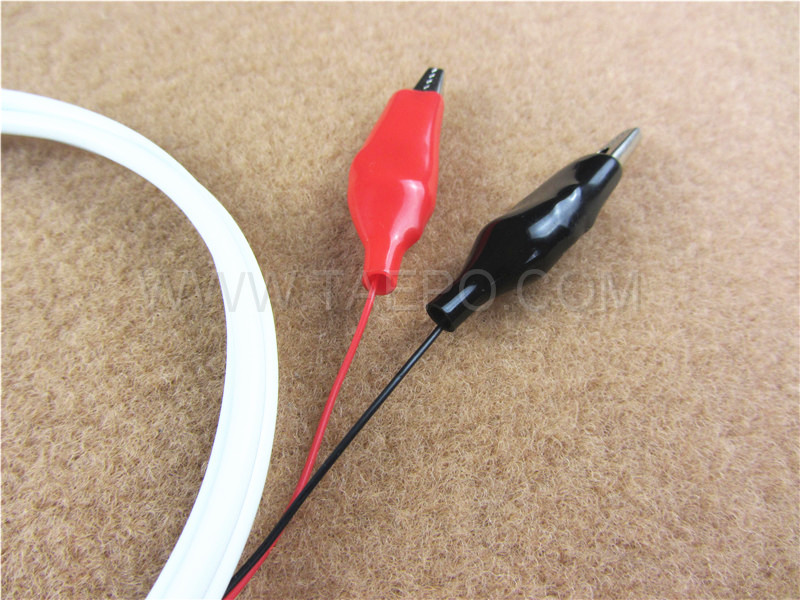

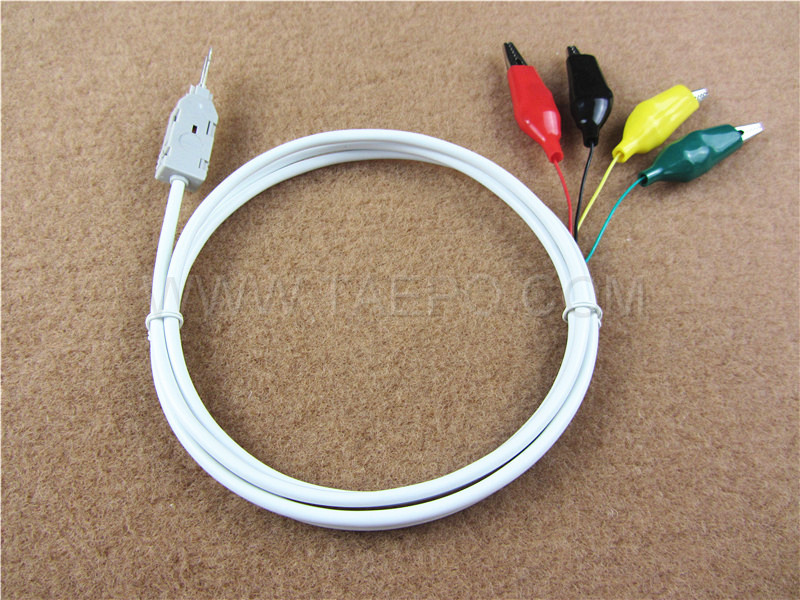

ILLUSTRATION PICTURES
PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-1317-2TA |
2-pole HW test cord, test plug to alligator clip, 1.5m |
