What Does Connection Cord Mean?
DESCRIPTIONS

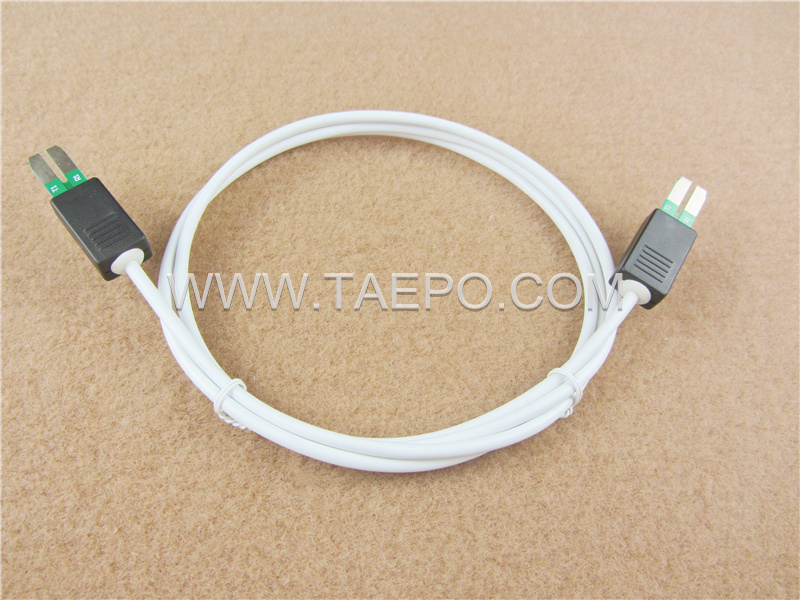

2-pole HW connection cord, test plug to test plug (TP-1317-2TT) is used for connecting between two HW disconnection modules for parallel connection. The test plug is used for inserting into the HW module. It is 2-pole configuration.
This cord is primarily used for creating and testing connections in HW terminal blocks and related equipment, such as distribution frames, patch panels, and cross-connect systems.The cable is constructed with durable and high-quality materials to ensure longevity and reliable performance. The cable’s outer jacket is constructed of flexible, flame-retardant PVC material to resist wear, tangle, and heat exposure, making it suitable for professional field use.
Its plug-to-plug design supports various line continuity checks and test bypass procedures by allowing easy bridging between circuits or test modules. Used worldwide by telecom carriers, data centers, and maintenance teams, this HW connection cord is an essential test tool for voice and data signal routing and validation tasks.
MAIN FEATURES
- Cable Length: The cable is available in various lengths to suit different testing and connection needs.
- Flexible and Insulated: The cable is flexible and well-insulated to ensure safety and ease of use.

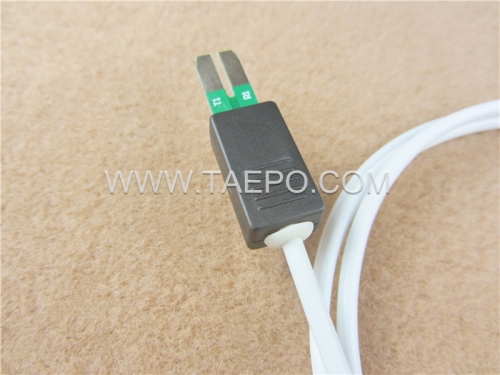

- HW Test Plug: One end is equipped with an HW test plug designed for secure connections to HW terminal blocks commonly used in telecommunications and networking.
- Durability: Designed to withstand repeated use, with durable materials and insulating coatings on alligator clips.
- Flexible Copper Conductors: Internally, the use of stranded copper wires ensures optimal signal transmission while maintaining cable flexibility under repetitive handling.
- Reinforced Plug Bodies: Each HW plug is encased in molded plastic housing with precise pin alignment to maintain stable and secure contact with corresponding sockets.
- Dual-Pole Configuration: The test cord uses two independent conductors, allowing technicians to perform differential or line-pair testing without interference between paths.
- Excellent Insertion Stability: HW plugs are precisely machined and molded to insert snugly into test ports without lateral movement or accidental disconnection.
- Safe and Secure Connection: Offers a secure grip and stable connection between the test plug and the device's testing ports, minimizing signal loss or interference during testing procedures.

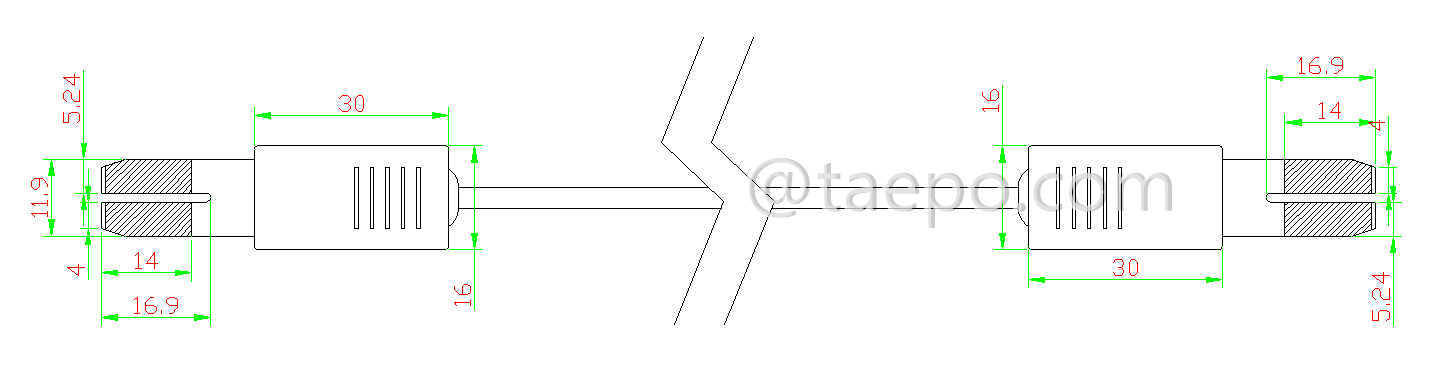

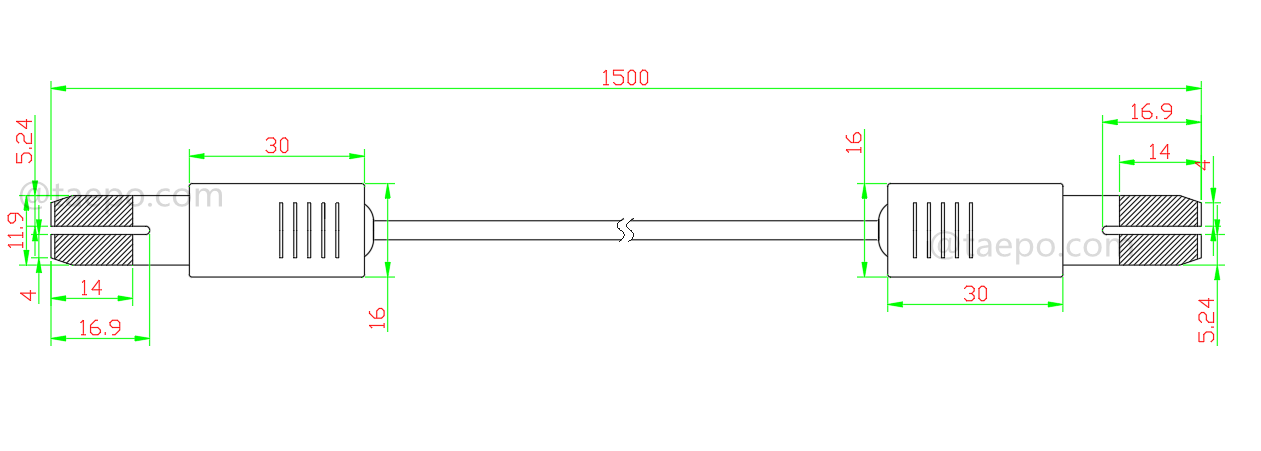

SCHEMATIC DIAGRAMS

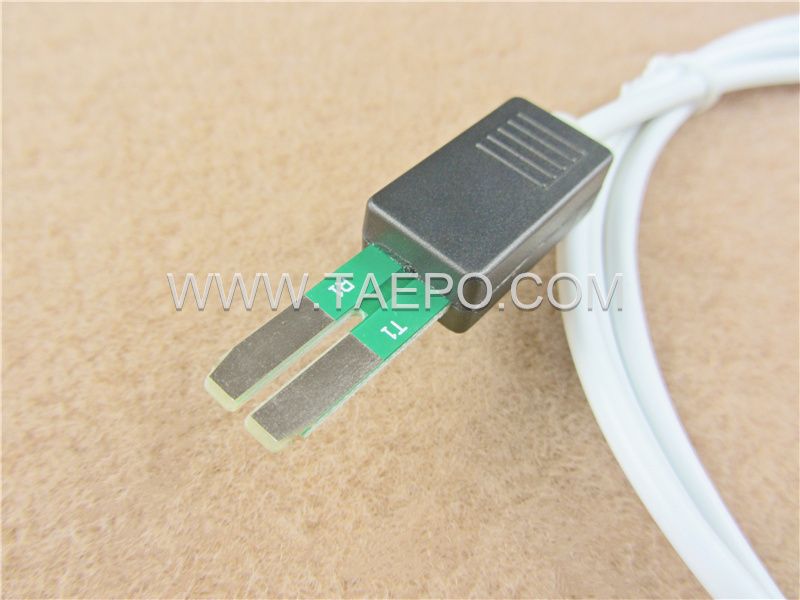

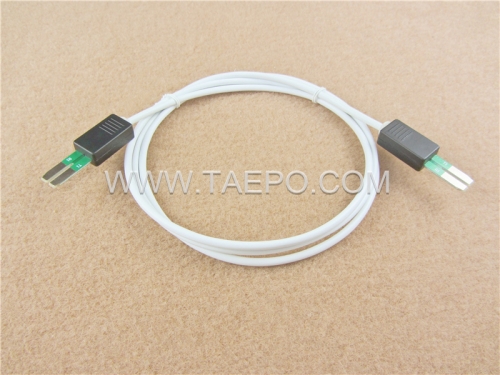

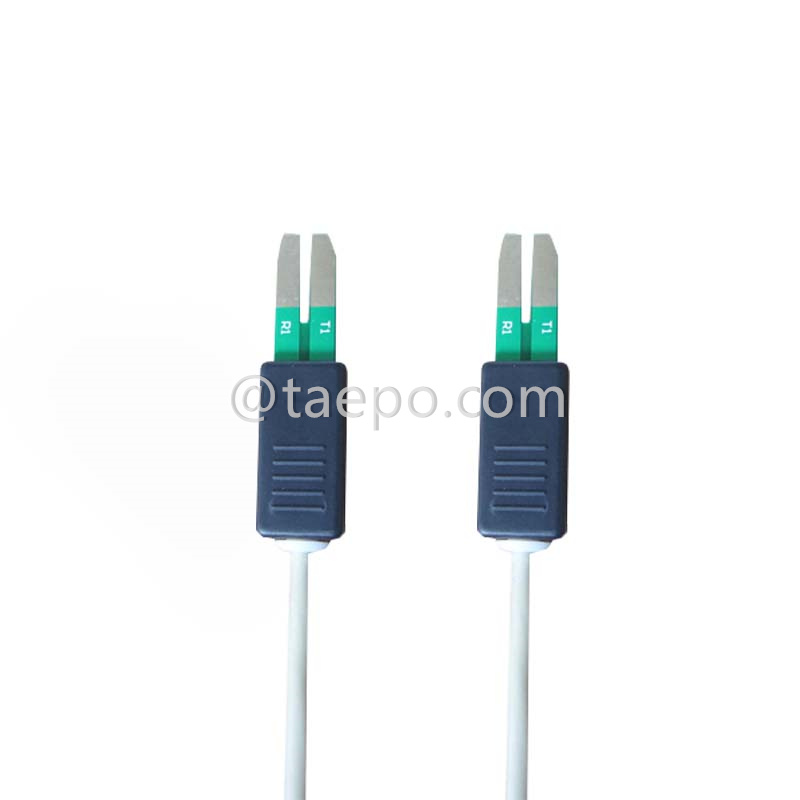

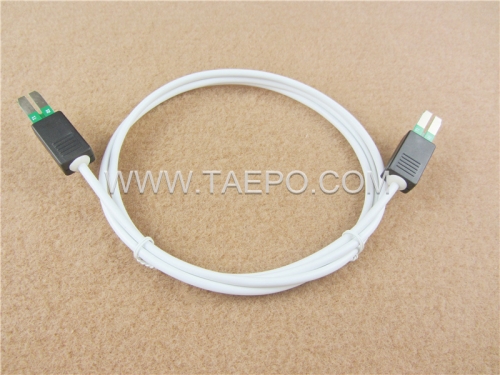

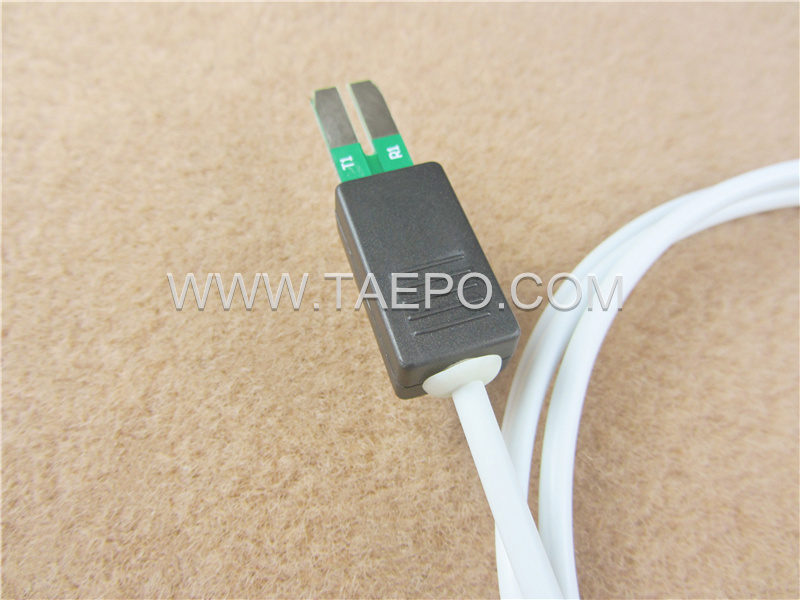

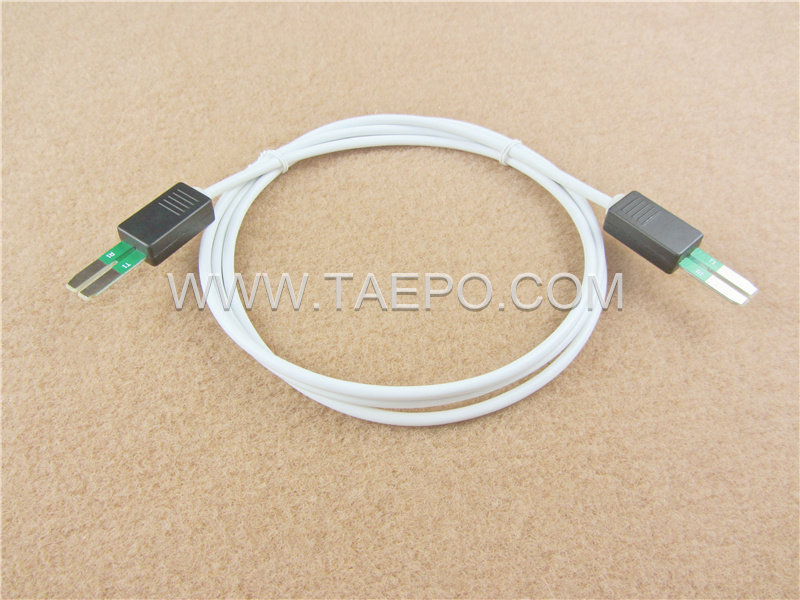

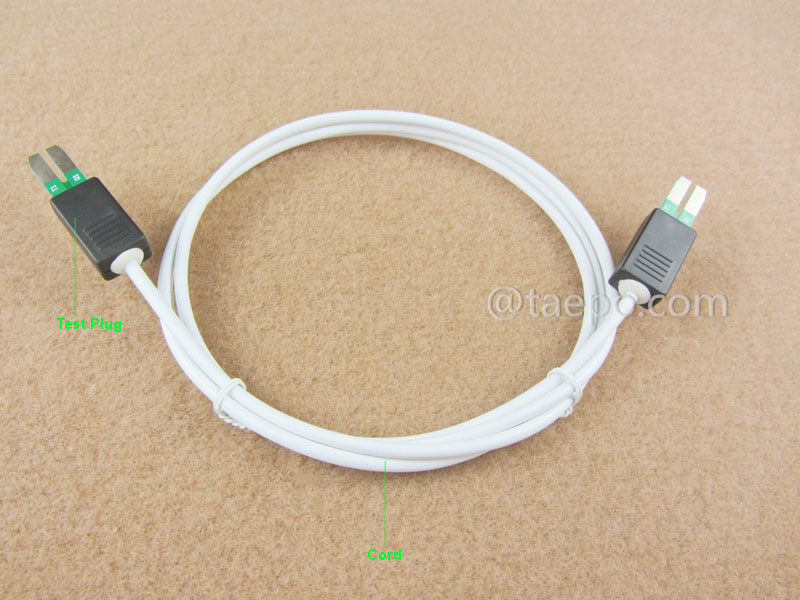

ILLUSTRATION PICTURES
PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-1317-2TT |
2-pole HW connection cord, test plug to test plug, 1.5m |
RELATED PRODUCTS
TP-1220-2TA 2-pole test cord, LSA test plug to alligator clip, 1.5m

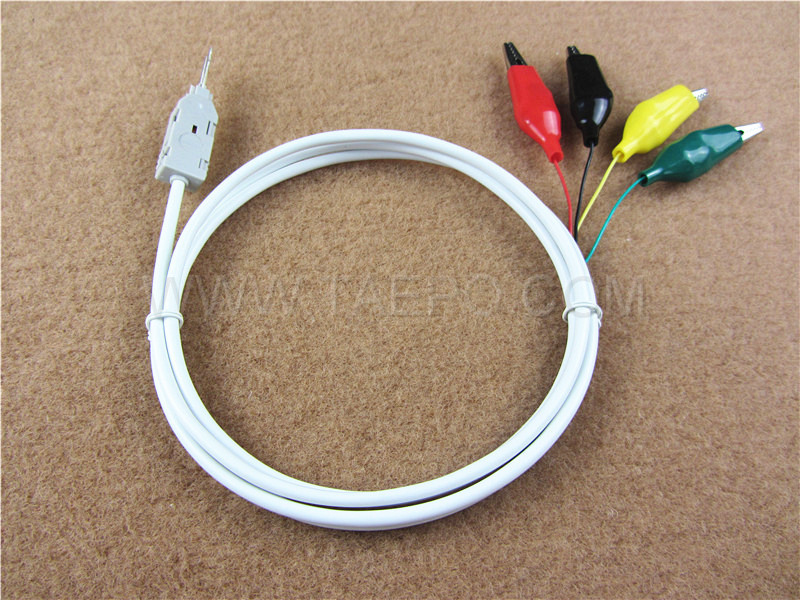

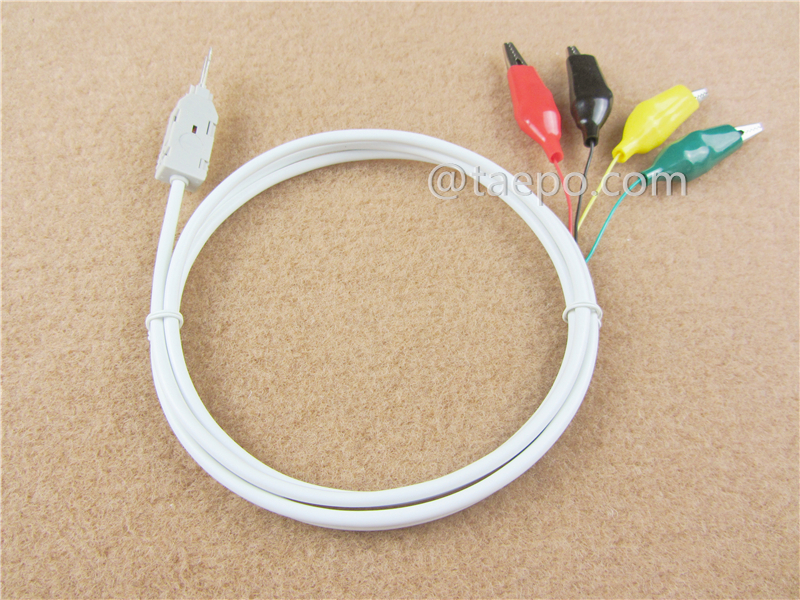

TP-1220-4TA 4-pole test cord, LSA test plug to alligator clip, 1.5m
