10 pairs super compact profile connection module
DESCRIPTIONS

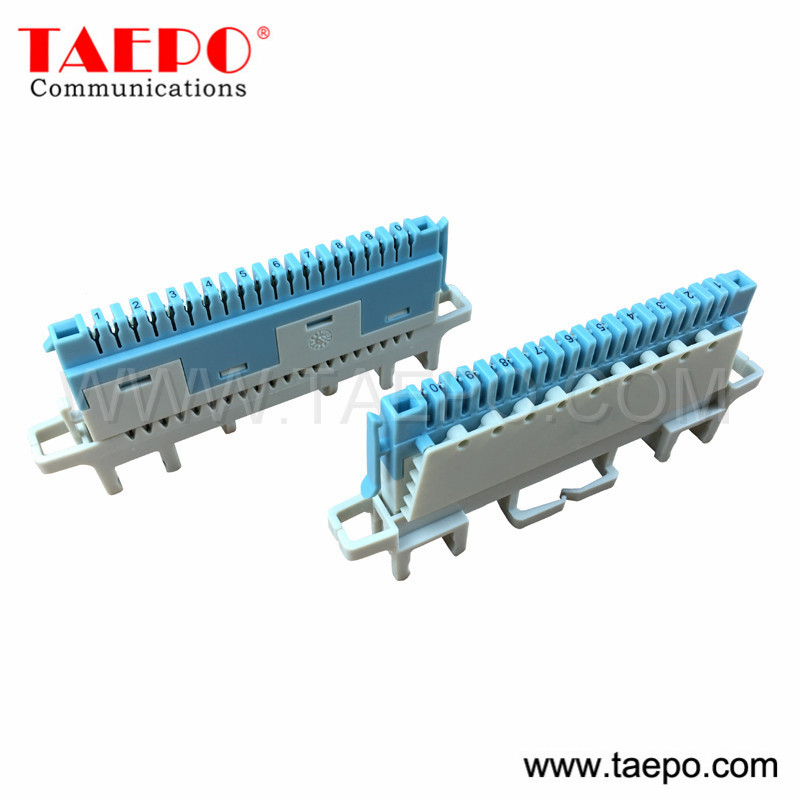

10 pairs super compact profile connection module (TP-1319-10P), also called the M10 SC terminal block, is used throughout the distribution level, in the main distribution frame (MDF), in the cross connection cabinet (CCC) and in the distribution point (DP) boxes. It is highly reliable and cost-effective wire connection system for modern telecommunications and data networks.
It adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.
LSA connection modules use a normally one-piece contact, thus only having the function of connection instead of disconnection performances.
MAIN FEATURES
- Insulation Displacement Connection
- No wire-stripping, screw and solder free
- Reliable connections
- Clear labeling
-
- Modular design and installations
- Gas-tight connection
- One push wire insertion
- Robust long-term environmental stability
- Flexible indoor and outdoor use
TECHNICAL PARAMETERS
General |
|
Storage Temperature: |
-40°C ~ +80°C |
Operating Temperature: |
-20°C~+60°C |
Relative Humidity: |
≤93% non-condensing |
|
|
Appearance: |
Uniform color, W/O crusting, and cracks |
|
|
Materials |
|
Plastic: |
Polycarbonate |
Flame Retardant: |
UL 94V-0 |
Contact: |
Special brass |
Coating: |
0.5μm silver |
|
|
Specifications |
|
Insulation Resistance: |
> 50 GΩ @ 500 V |
Dielectric Strength: |
> 2000Vrms |
Contact Resistance: |
1 mΩ (Typical) |
Conductor Diameter: |
0.4mm-0.8mm |
Insulation Diameter: |
0.7mm-1.60mm |
Gas Tight Performance: |
> 50% @ Each side |
Pulling Strength: |
> 25N @ Vertical side |
Life Cycles: |
> 200 Times |
PACKING PICTURES
Order Data
TP-1319-10P
10 pairs super compact profile connection module, with wire guide
