What's the Meaning Behind 10 Pairs QCS Cross Connection Terminal Block?
DESCRIPTIONS
10 pairs QCS cross connection terminal block gel filled (TP-1323-10G) also known as QCS strip is an insulation displacement connection (IDC) termination system. The QCS system is a simple-to-use, tool-less copper block, an ideal solution for outside plant applications. Whether in cross-connect cabinets, distribution point boxes or at the edge of the network, the gel-filled QCS is the solution.
It provides a secure, gas-tight, and gel-sealed environment to maintain long-term electrical integrity for cross-connection of copper wire pairs. Designed specifically for harsh environments, this terminal block is fully filled with insulating gel that prevents moisture ingress and ensures robust protection against corrosion and contamination.
Contact integrity is critical, not only at the time of installation but over the life of the connector. The QCS system can be re-opened without breaking the circuit for visual validation of the IDC connection. High-integrity gel encapsulation protects against moisture and corrosion, and is designed to remain in place even after multiple wire insertions.
MAIN FEATURES
- Insulation Displacement Connection: IDC allows for the termination of wires without the need to strip off the insulation. The connection is made by displacing the insulation and making direct contact with the conductor within the wire.
- Modular design and installations: Modular design and installations offer numerous advantages, including flexibility, scalability, simplified assembly, ease of maintenance, interchangeability, standardization, reduced failure risk, efficient testing, and cost savings.
- Streamlined Termination: Simplified termination process for quick and efficient installation.
- Reliable Connectivity: Ensures secure and stable connections, minimizing signal loss and downtime.
- Ergonomic Design: User-friendly design facilitates easy installation and maintenance, reducing downtime during servicing.
- Durable Construction: Constructed with high-quality materials for long-lasting performance in demanding environments.
- Precision Engineering: Engineered with precision for optimal performance and reliability.
- Hassle-Free Deployment: Quick and hassle-free deployment process, saving time and resources during installation.
- Optimized Efficiency: Enhances efficiency and productivity in network installations by maximizing space utilization and streamlining connectivity solutions.
- Weatherproofing: It provides a barrier against moisture, preventing water ingress and protecting the internal connections from corrosion.

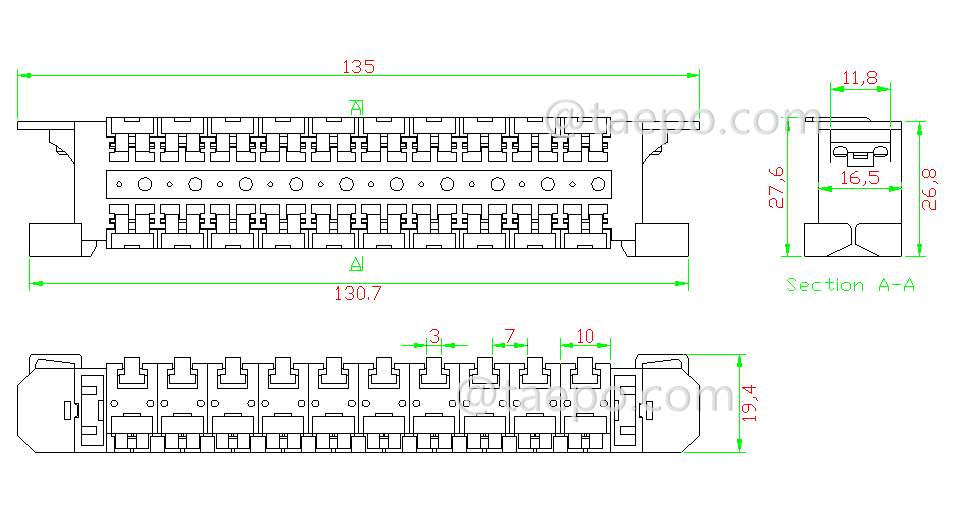

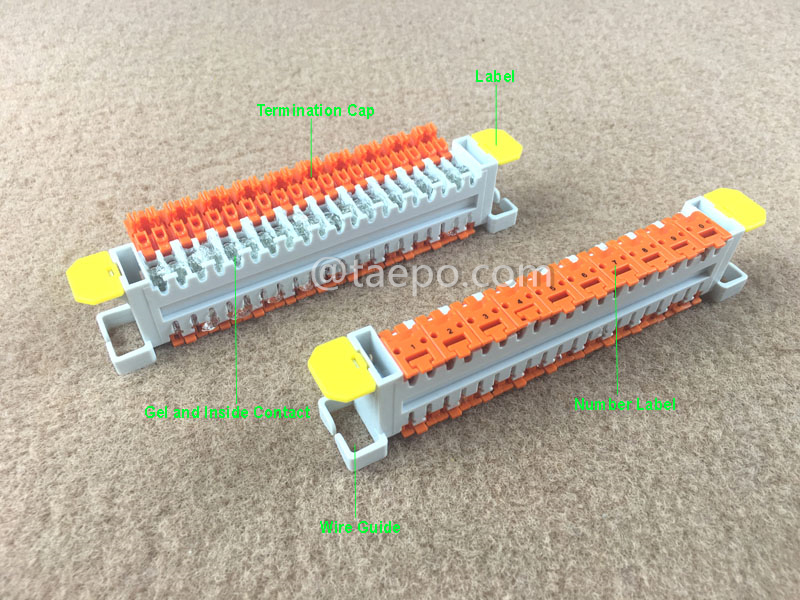

SCHEMATIC DIAGRAMS

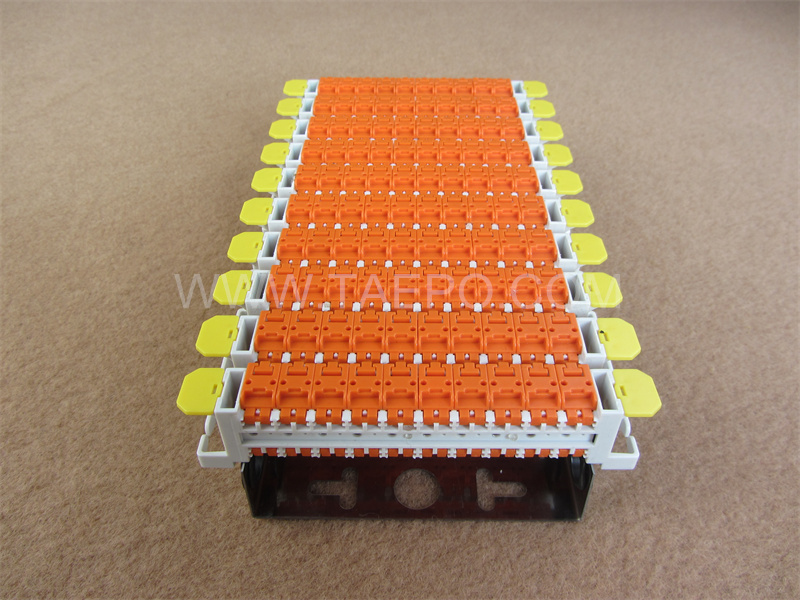

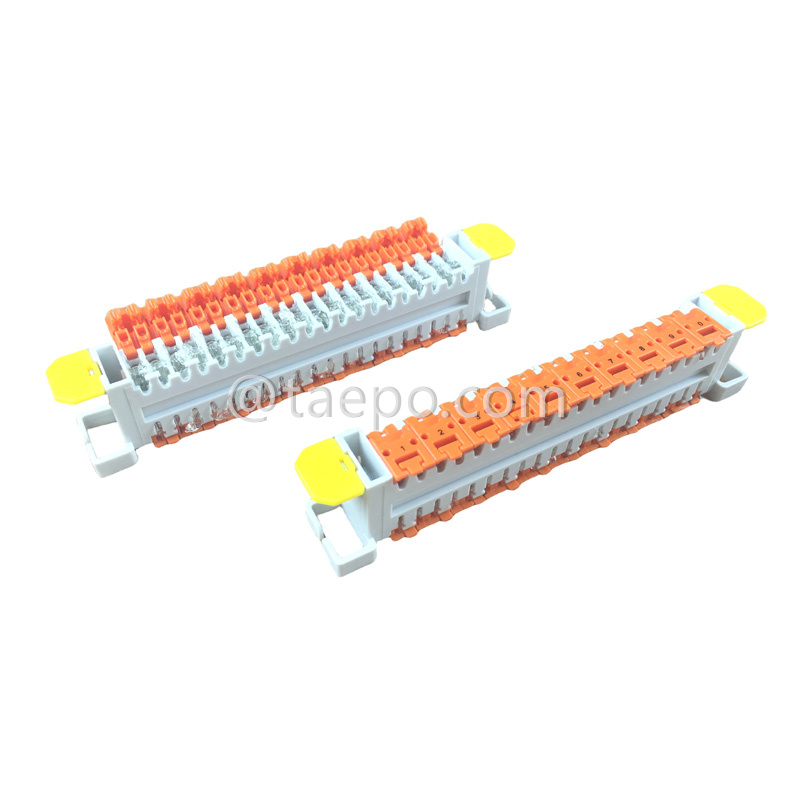

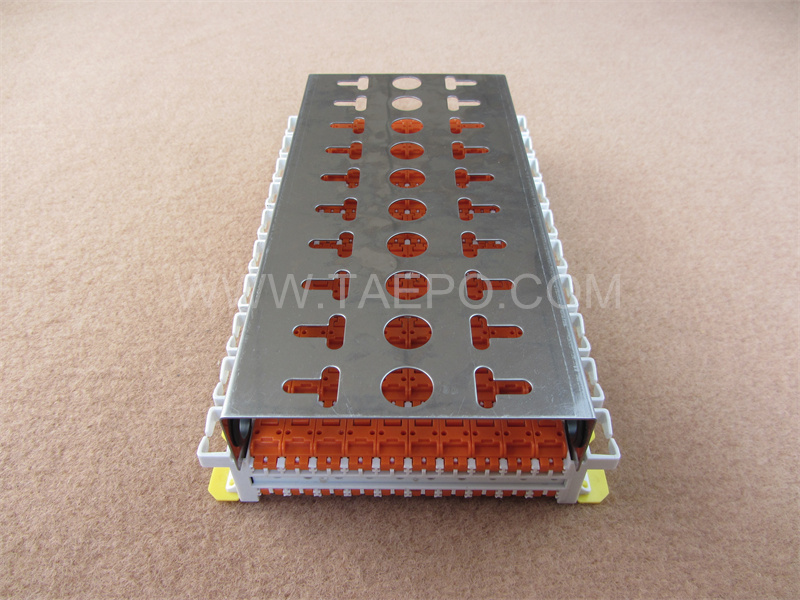

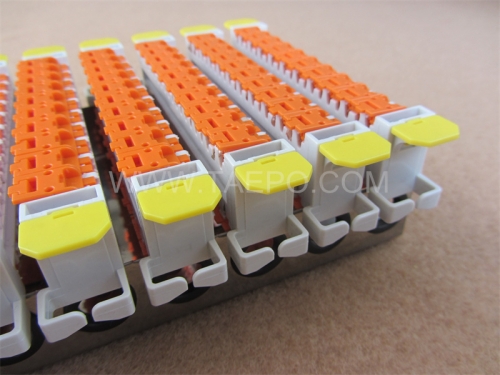

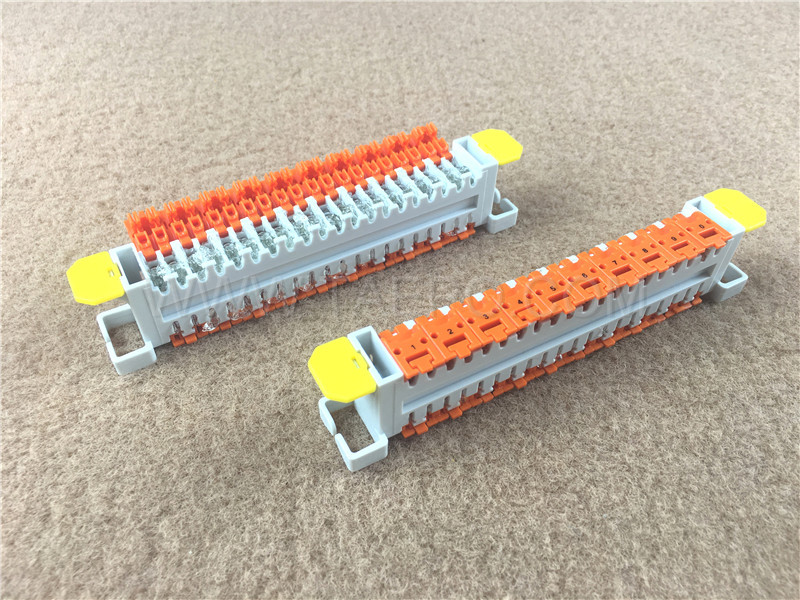

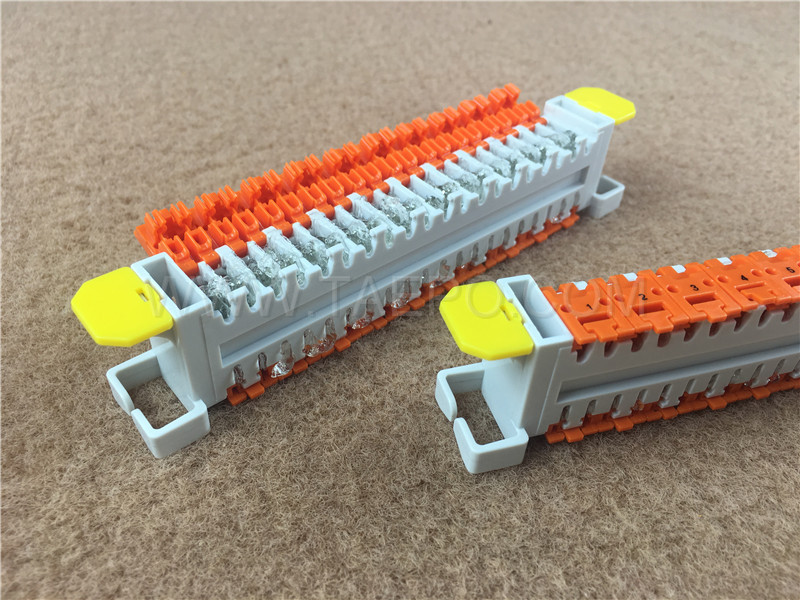

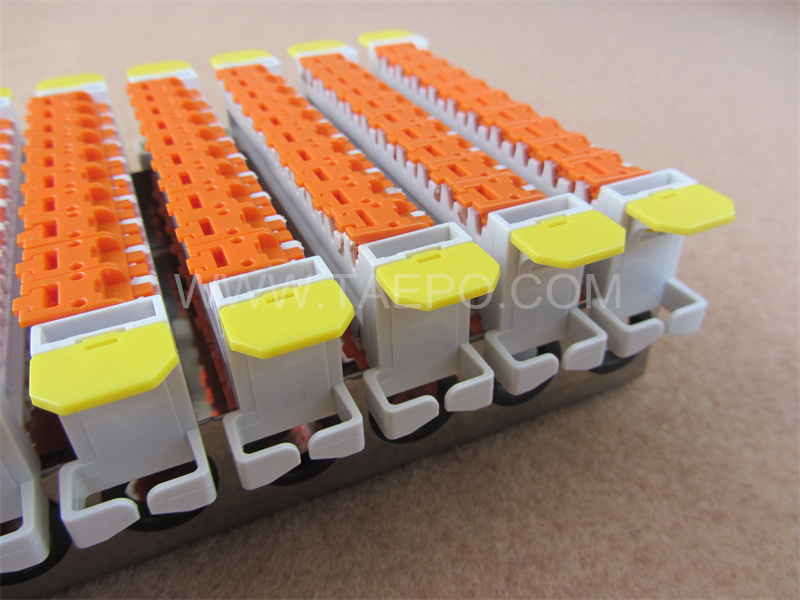

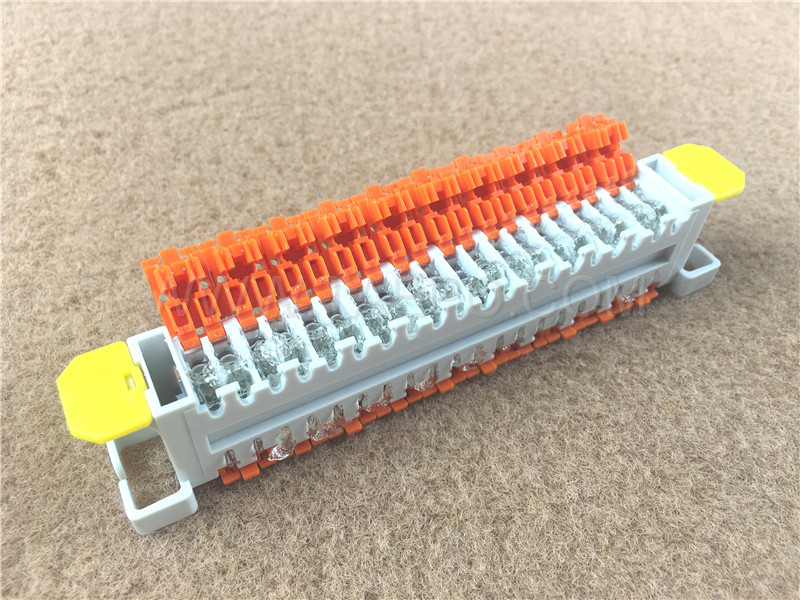

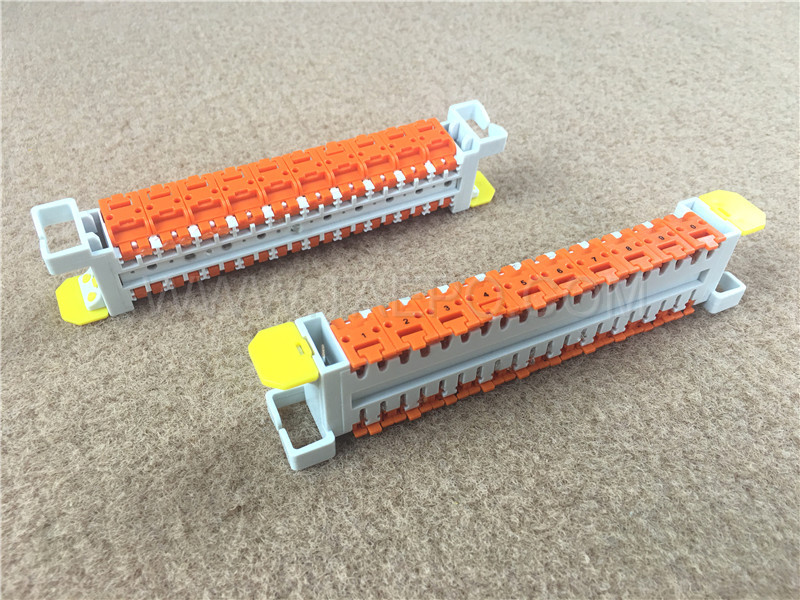

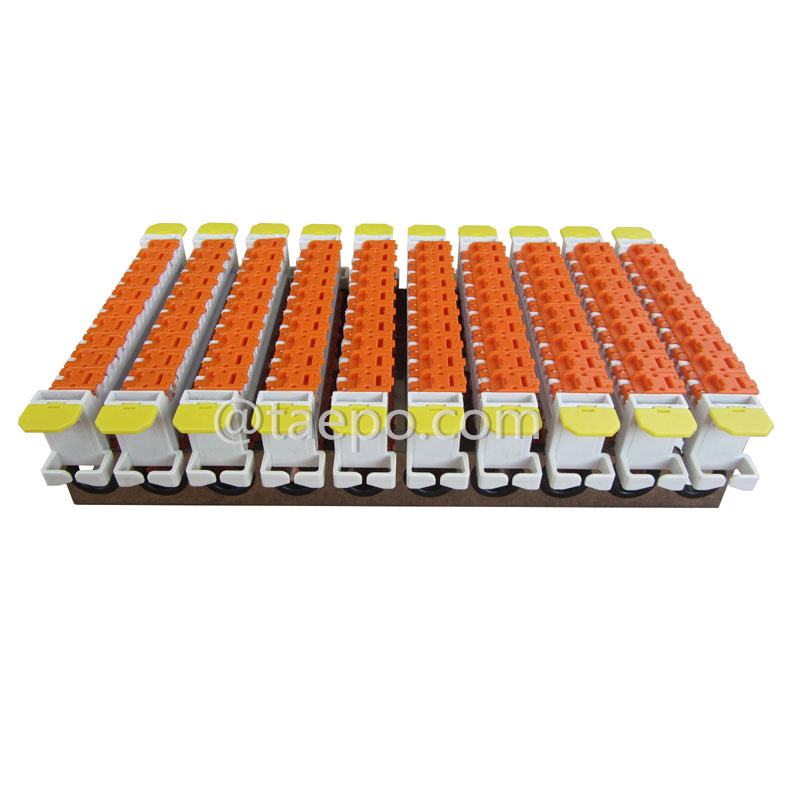

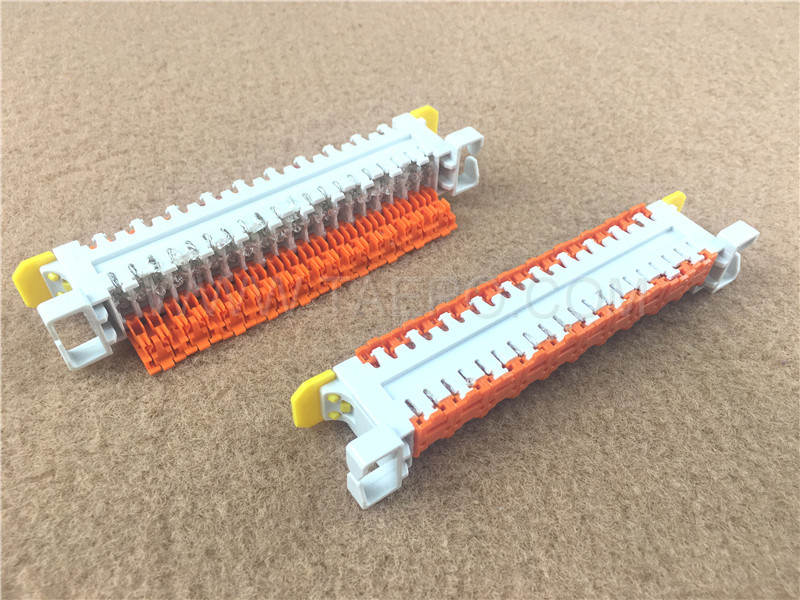

ILLUSTRATION PICTURES

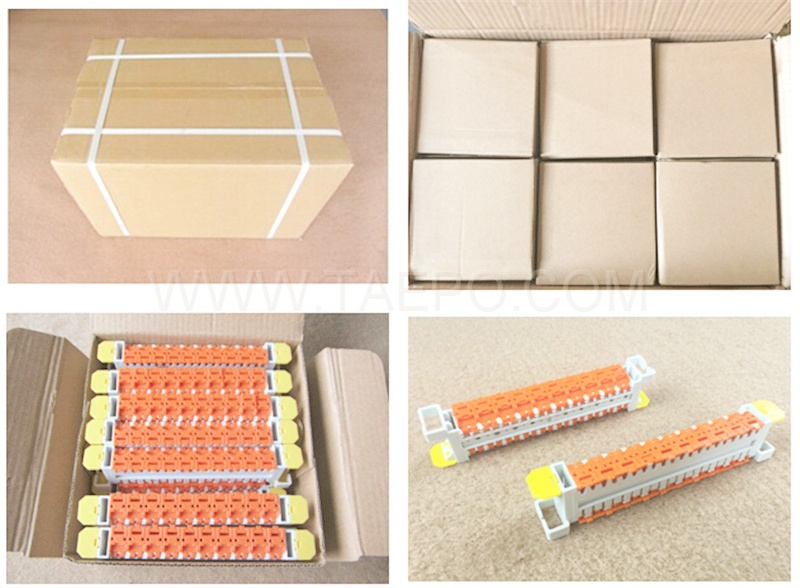

PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-1323-10G |
10 pairs QCS cross connection terminal block, gel filled |
