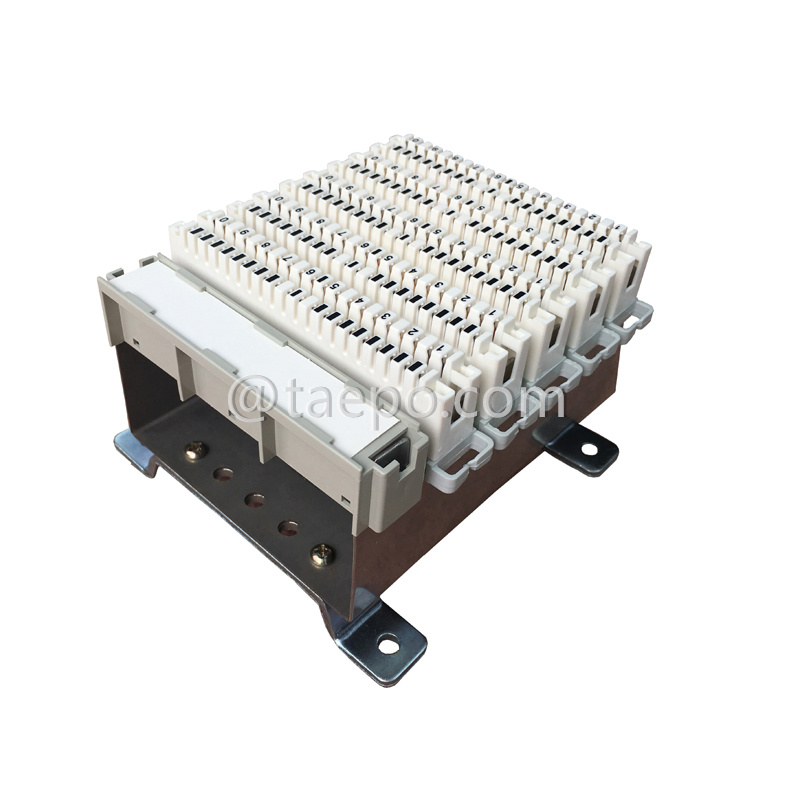

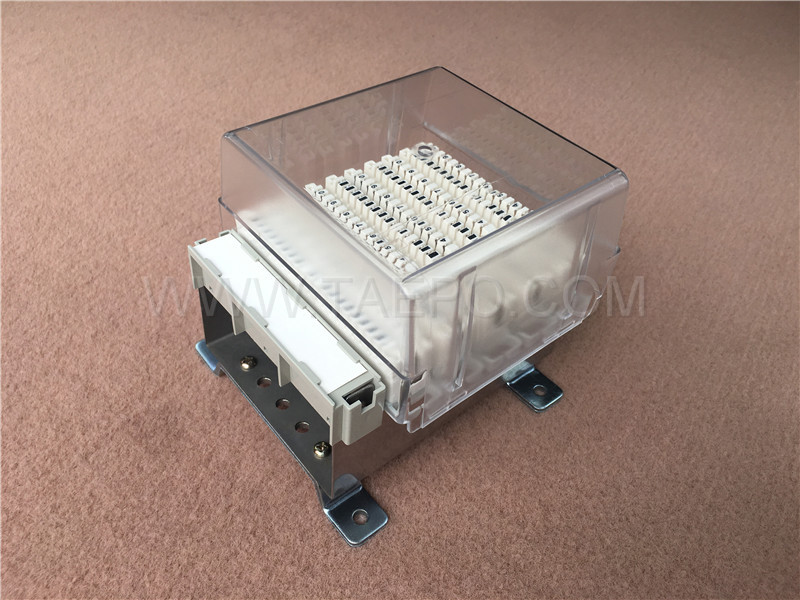

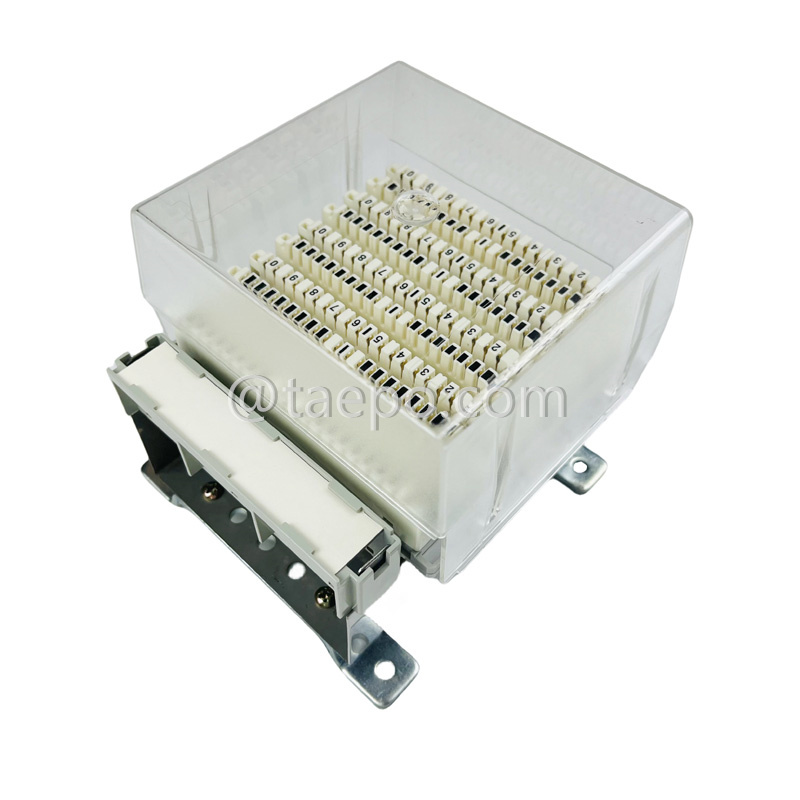

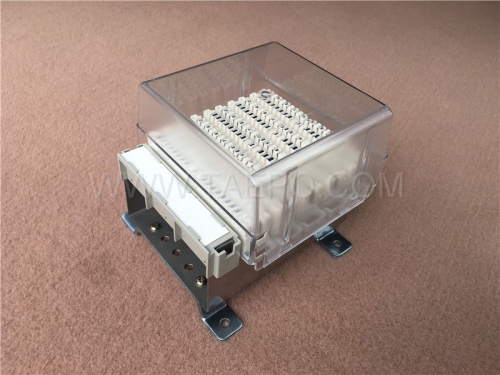

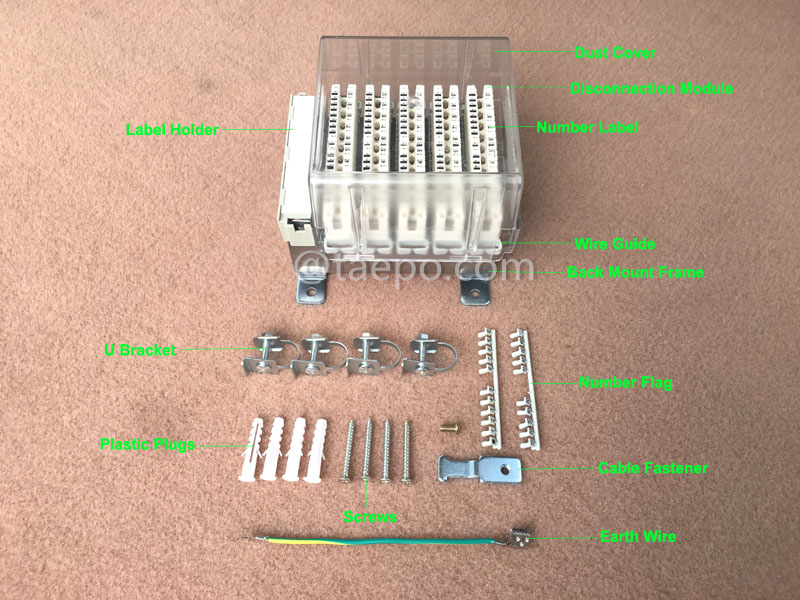

50 pairs LSA disconnection block, with label holder, earth wire, mounting accessories

TAEPO - Your Trusted Chinese Manufacturer of LSA Disconnection Block with Professional Expertise!
What is a 50 pairs LSA disconnection block ?

    DESCRIPTIONS

50 pairs LSA disconnection block (TP-1418-50A) are used for both voice and data networks in the central office, cabinets and in private networks applications. With their reliable IDC (Insulation Displacement Connection) contacts they are the interface between the truck cable and drop cables. In addition to protection of personnel and equipment against over-voltage disturbances, the terminal blocks support quality inspection and diagnostic processes.

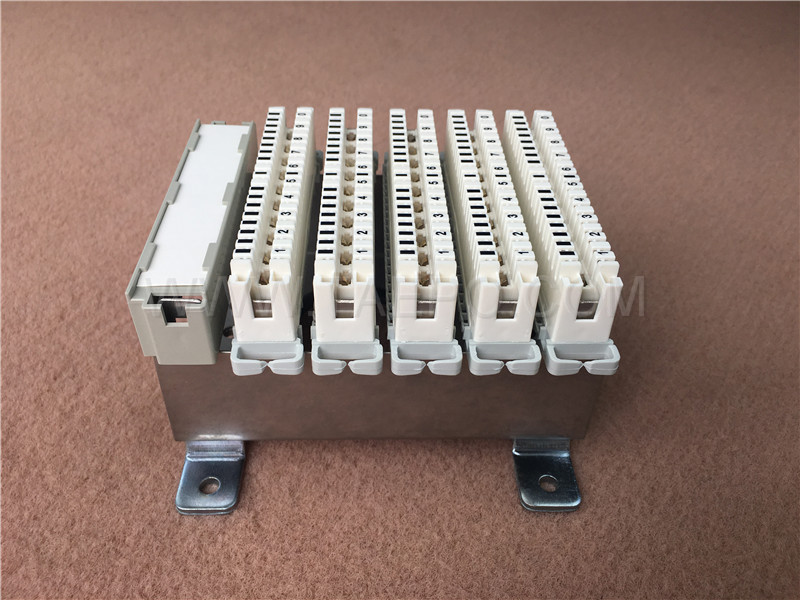

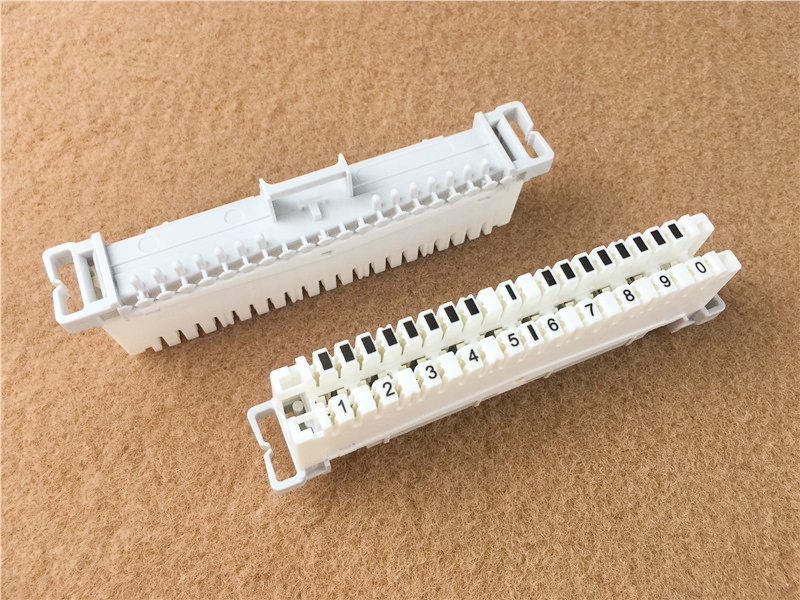

Normally the 50 pairs disconnection blocks are used on the vertical side of the Main Distribution Frame (MDF), which is used for the termination between external lines and jumper wires. It consists of  5 pieces 10-pair disconnection modules. The block is suitable for xDSL circuit. Also the blocks are used in Cross Connection Cabinets (CCC), Distribution Point (DP) boxes.

Our 1 pair MDF protector (TP-1501-1EGP) and 10 pairs over-voltage protection magazine (TP-1502-10P3G) can be inserted into the block, with the function of protecting personnel and equipment against over voltage and over-current. The disconnection block also known as terminal block, tag block or distribution block.

    MAIN FEATURES

• High-capacity Termination: Supports up to 50 pairs of copper conductors, allowing compact and efficient management of multiple lines in one block.
• LSA Connection Technology: Utilizes insulation displacement contacts (IDC) for fast, tool-assisted termination without the need for wire stripping.
• Disconnection Functionality: Enables easy circuit isolation for testing and troubleshooting without disturbing other lines.

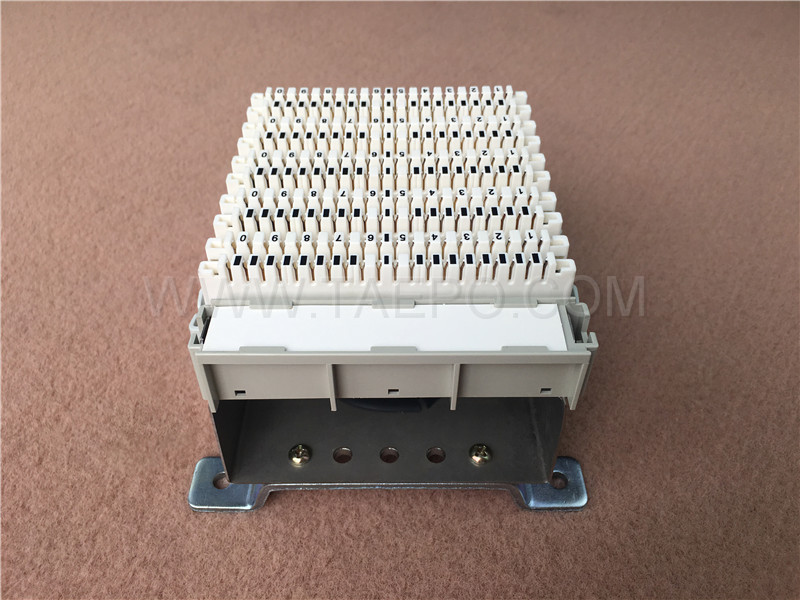

• Integrated Label Holder: Provides dedicated space for clear and visible pair identification, aiding in systematic network management.
• Earth Wire Connection: Enhances safety by ensuring proper grounding and protection against electrical surges and interference.

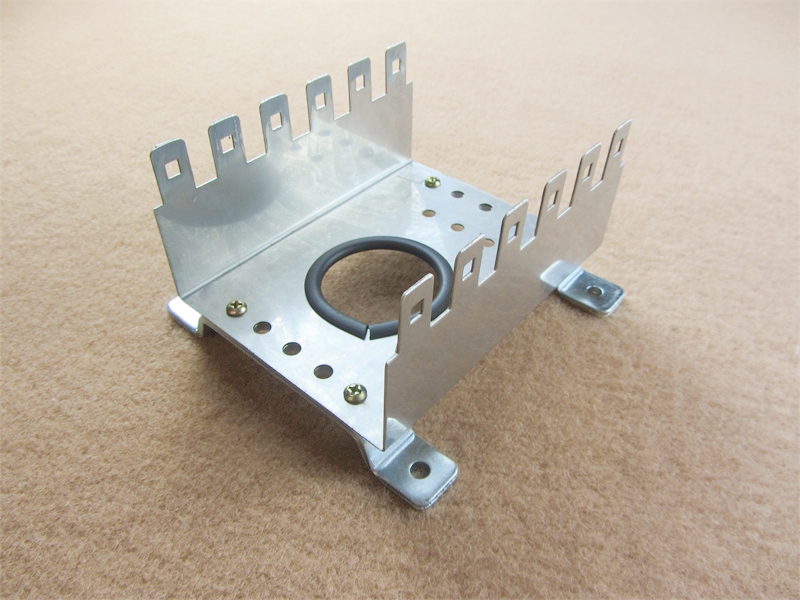

• Mounting Accessories Included: Comes with brackets and screws for immediate, secure installation on standard back mount or rack frames.
• Durable Insulation Material: Built with flame-retardant and high-strength thermoplastic, resistant to heat, impact, and aging.
• Corrosion-resistant Contacts: Tin-plated or silver-plated IDC contacts provide excellent conductivity and long-lasting performance.
• Compact Modular Design: Saves space in distribution frames, allowing more capacity within limited enclosures.
• Vibration-resistant Construction: Ensures stability in environments with movement or minor mechanical stress.

    INSTALLATION VIDEOS

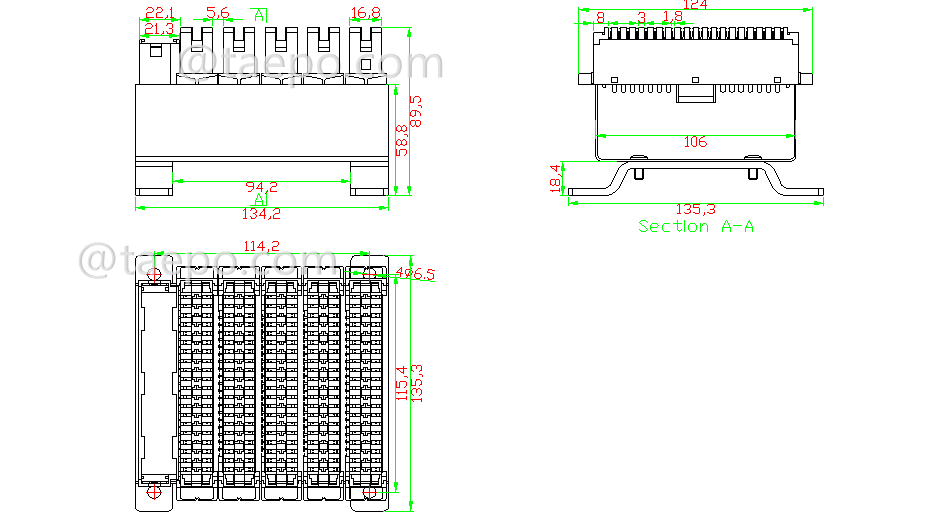

    SCHEMATIC DIAGRAMS

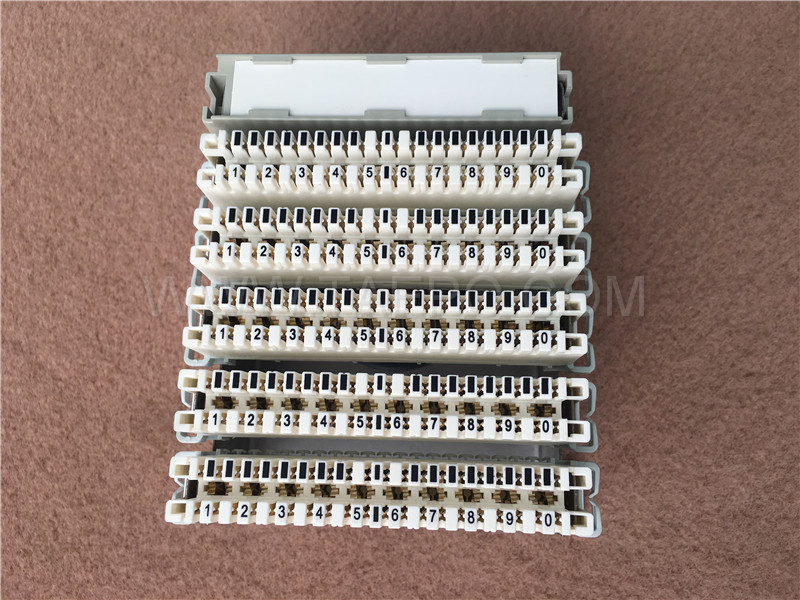

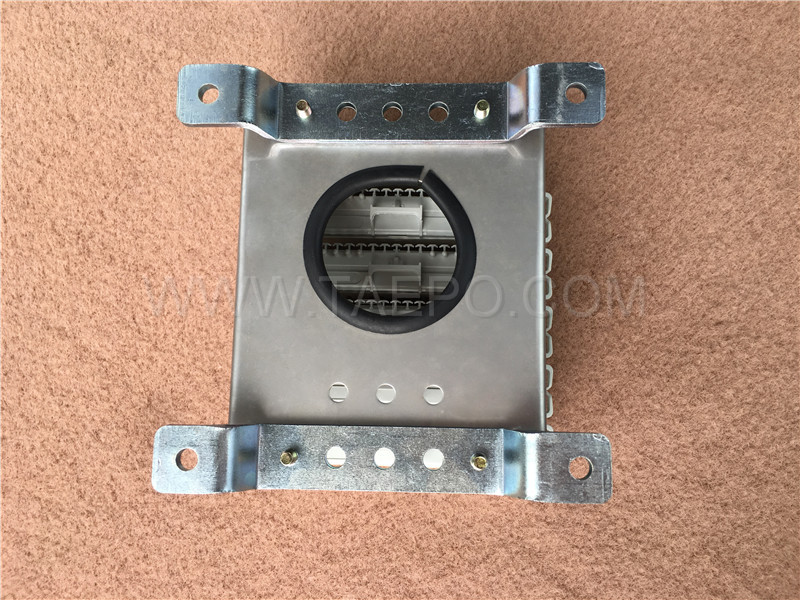

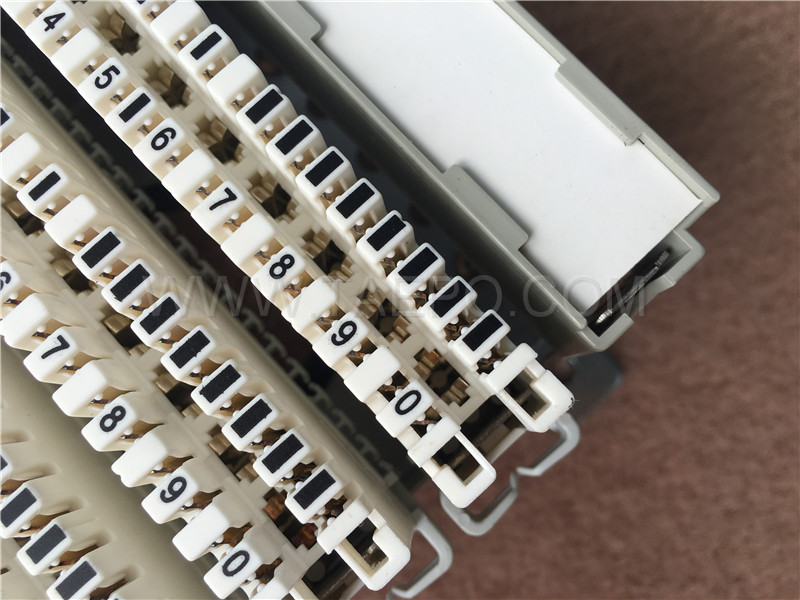

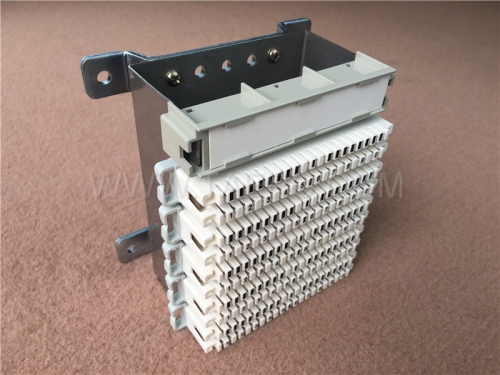

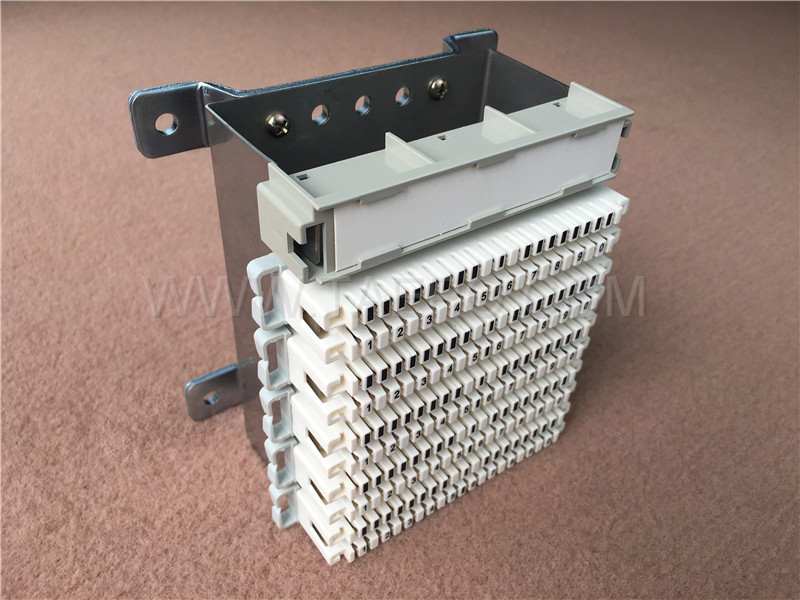

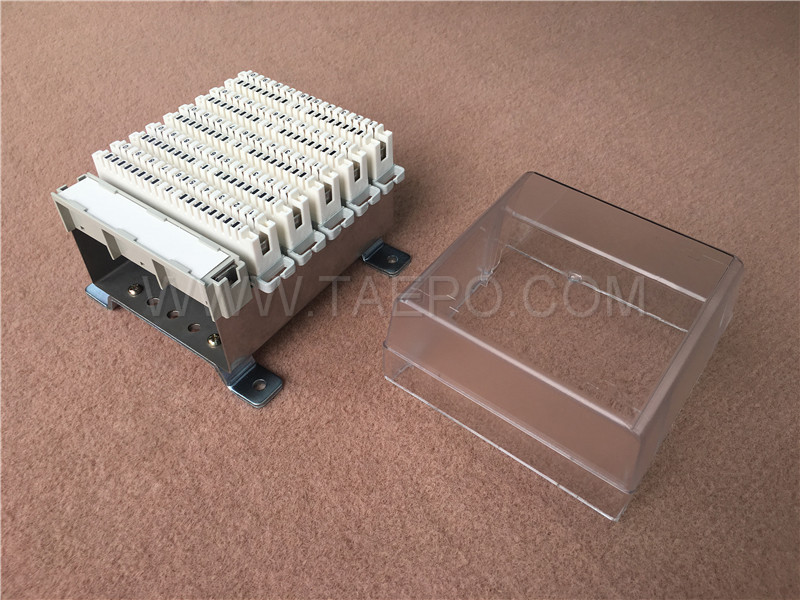

    ILLUSTRATION PICTURES

    PACKING PICTURES

    ORDER DATA
