100 pairs MDF disconnection block 71

Item No.: TP-1401-100
used for both voice and data networks in the central office, cabinets and in private networks applications | IDC connection |  On vertical side | consists of 20 pieces 5-pair modules
  • Color: Grey
  • Brand: Neutral / OEM / TAEPO
  • Packing: 1pc/box, 6boxes/ctn=6pcs/ctn, 38.5*33.5*38cm/ctn, 17kg/ctn
  • MOQ: 1000pcs
  • Delivery: 15-30 days
  • Description

    TAEPO - Your Professional 100 Pairs MDF Disconnection Block 71 Manufacturer in China !
    What is a 100 Pairs MDF Disconnection Block 71?


        DESCRIPTIONS


    100 pairs MDF disconnection blocks 71 (TP-1401-100) are used for both voice and data networks in the central office, cabinets and in private networks applications. With their reliable IDC (Insulation Displacement Connection) contacts they are the interface between the truck cable and drop cables. In addition to protection of personnel and equipment against over-voltage disturbances, the distribution blocks support quality inspection and diagnostic processes.

    Normally the 100 pairs disconnection blocks are used on the vertical side of the Main Distribution Frame (MDF), which is used for the termination between external lines and jumper wires. It consists of 20 pieces 5-pair modules. The block is suitable for digital transmission up to 2.048 Mbit.

    Our 5 pairs over-voltage protection magazine (TP-1503-5) can be inserted into the block, with the function of protecting personnel and equipment against over voltage. Disconnection block also known as terminal block, tag block or distribution block.



        MAIN FEATURES


    • High-Capacity Termination: Accommodates up to 100 copper pairs within a single block, allowing for high-density wiring in main distribution frames where efficient use of space is essential.
    • IDC Technology: Employs insulation displacement connection terminals that enable fast, secure, and tool-based termination without stripping insulation, ensuring consistent and reliable performance.
    • Disconnection Functionality: Features normally closed contacts that can be easily opened with test plugs, allowing quick isolation of circuits for troubleshooting while keeping other lines active.
    • Modular Design: Built to a standardized format for use with 71-type frames, the block can be integrated into modular systems, offering scalable installation options that grow with network demands.
    • Flame-Retardant Housing: Constructed from UL 94-V0 flame-resistant thermoplastic, the housing ensures high safety performance by preventing ignition and limiting fire spread.
    • Clear Pair Numbering: Provides clearly marked numbering on each termination position, reducing installation errors and making pair identification straightforward for future maintenance.
    • Robust Mechanical Stability: Designed to resist wear and deformation from repeated insertions and removals, ensuring long-term reliability of terminations.
    • Surge Protection Ready: Supports plug-in over-voltage protection modules, safeguarding telecom circuits from surges, lightning, and transient voltage spikes.

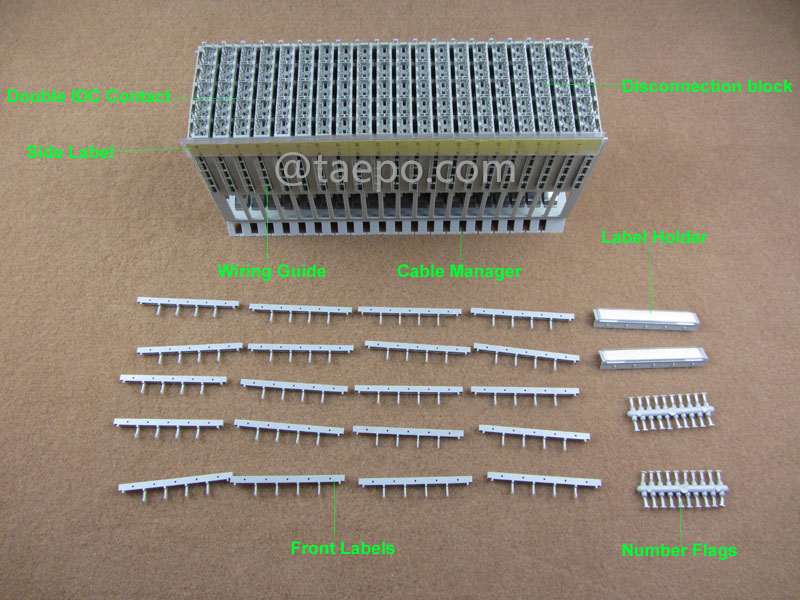

        SCHEMATIC DIAGRAMS

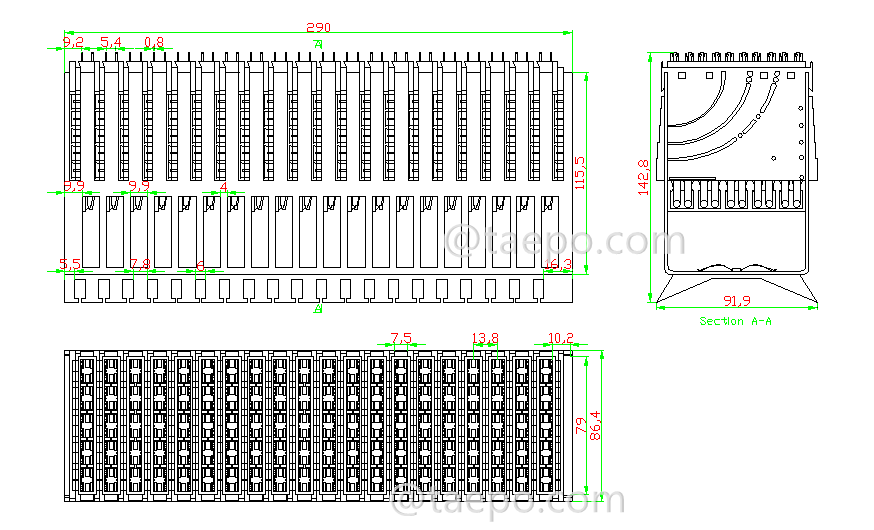

    Drawing for 100 pairs MDF disconnection block 71

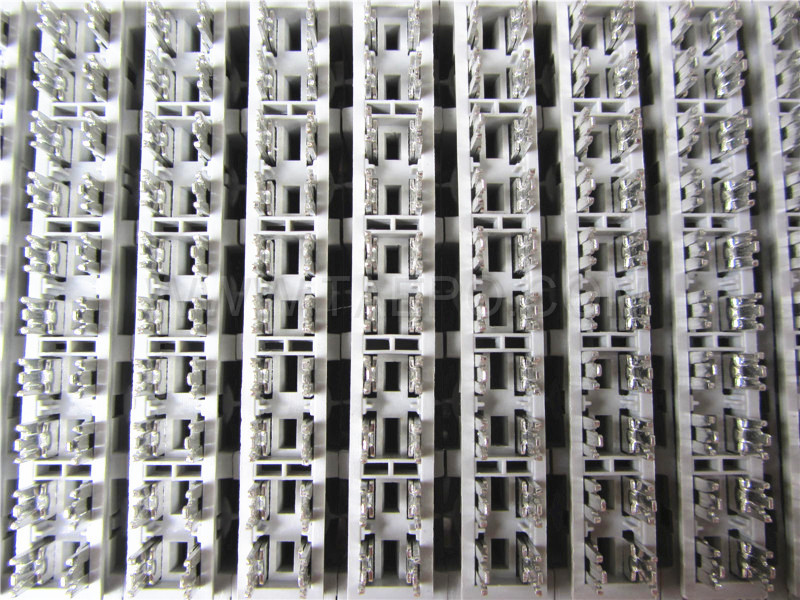

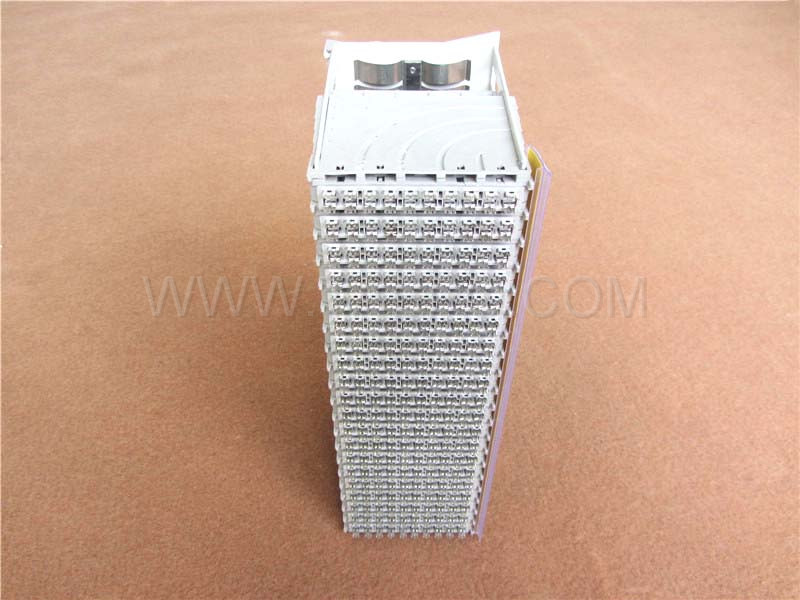

        ILLUSTRATION PICTURES

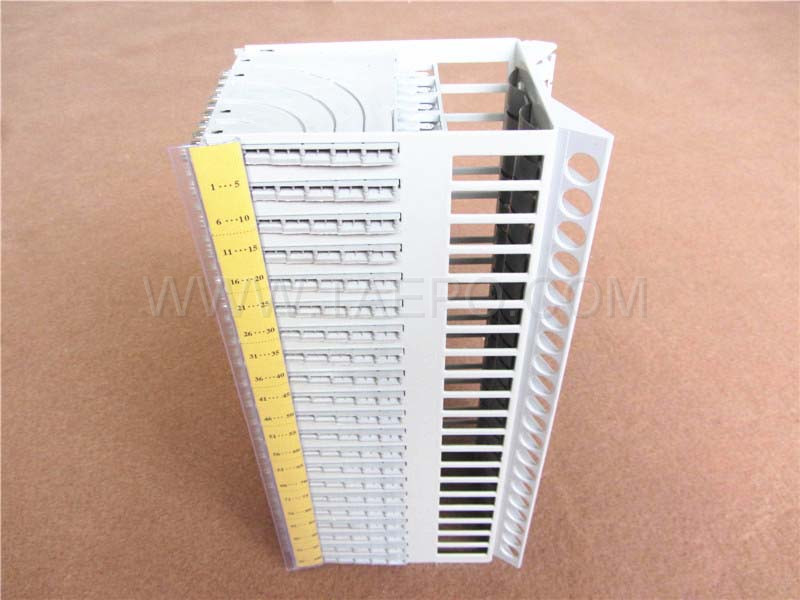

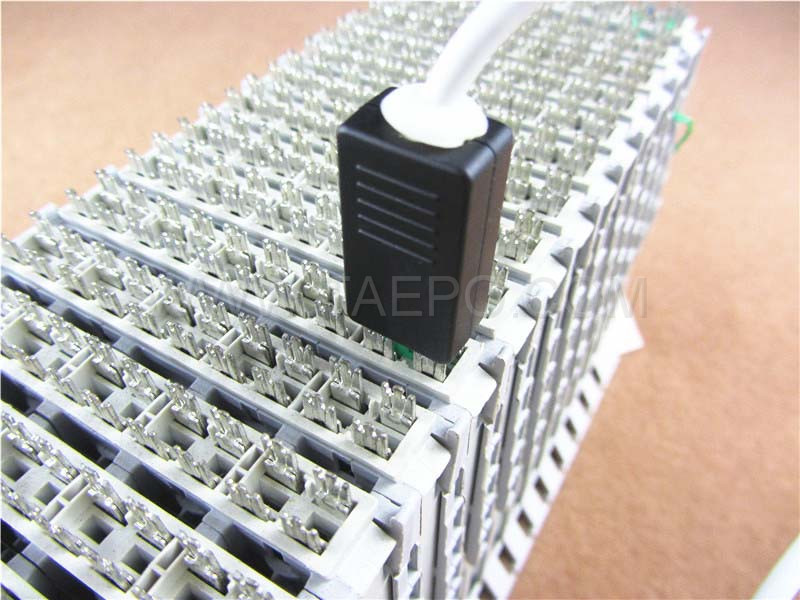

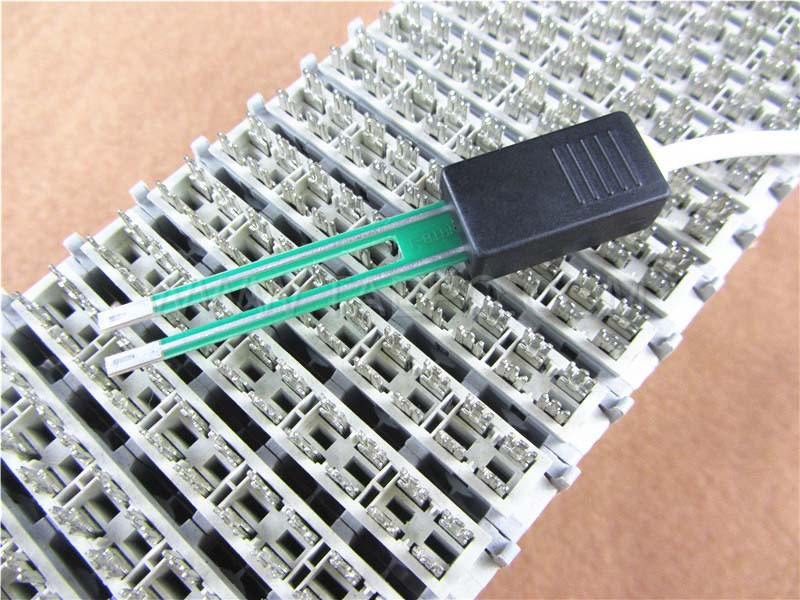

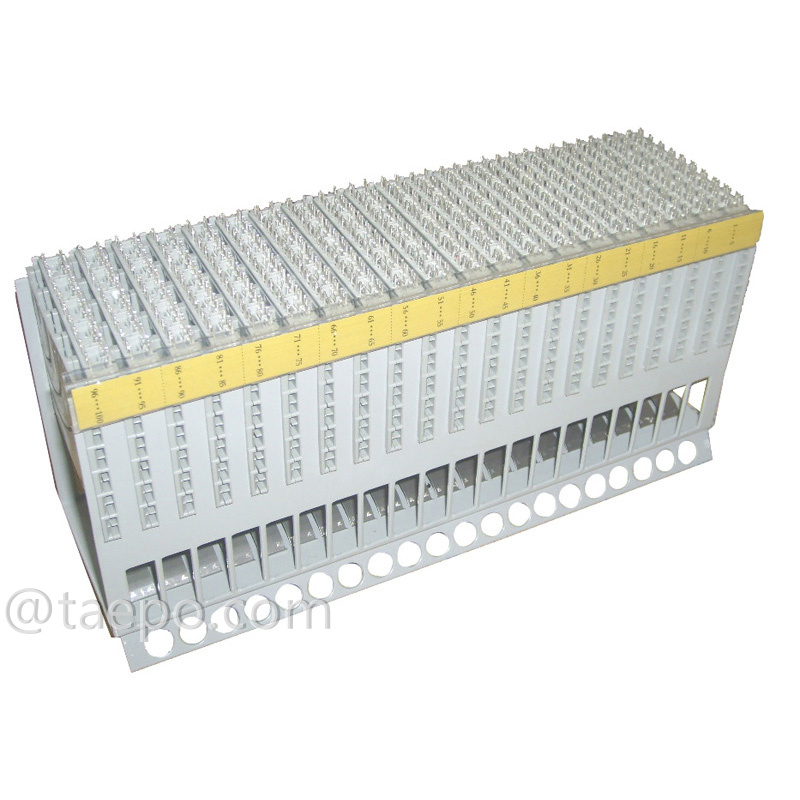

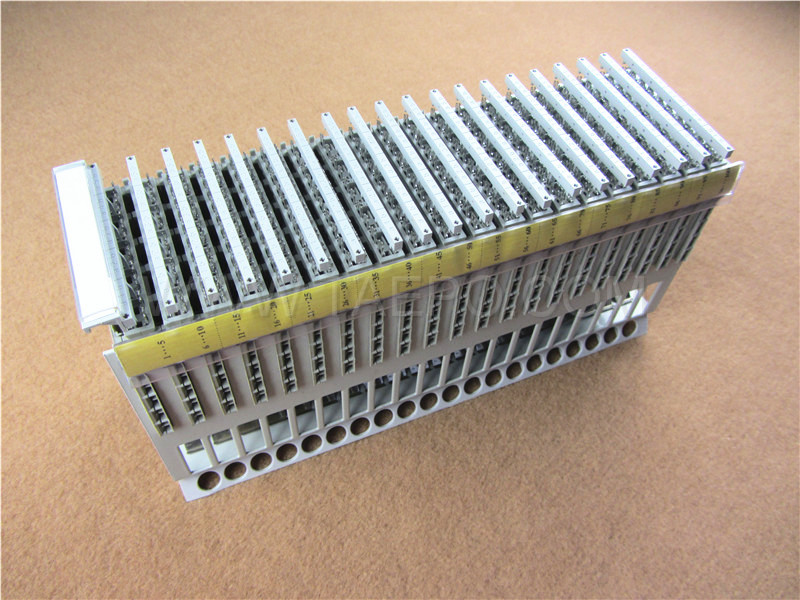

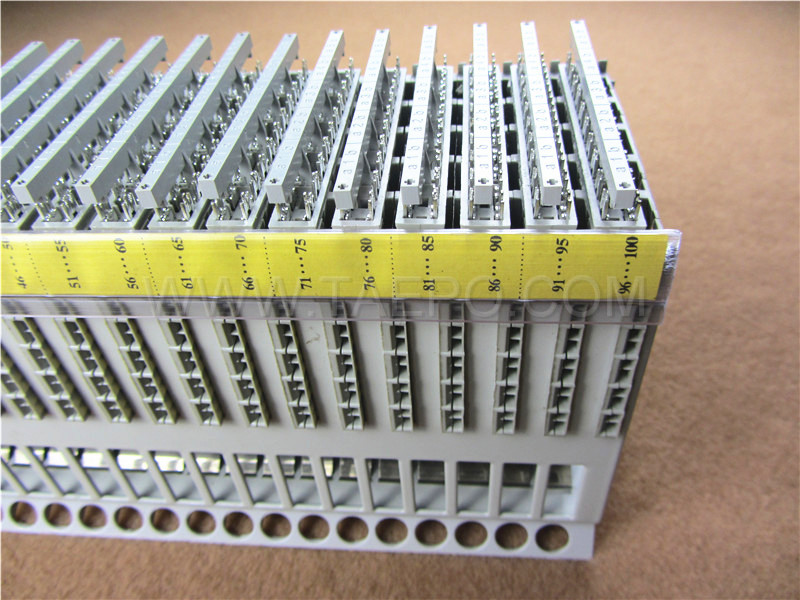

    Illustration pictures for 100 pairs MDF disconnection block 71

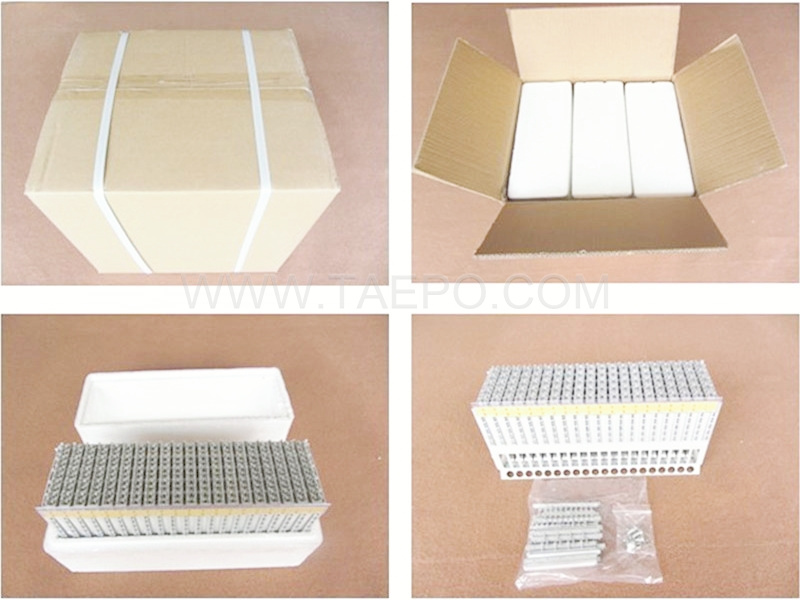

        PACKING PICTURES

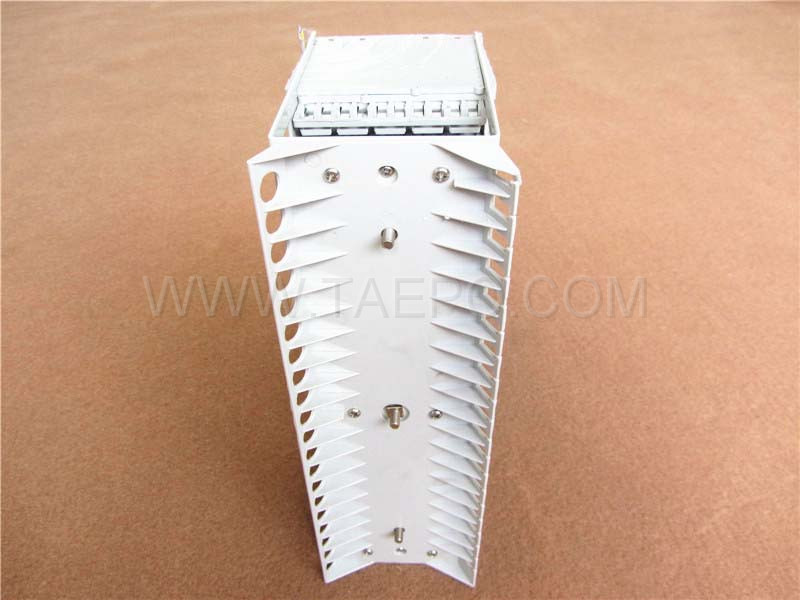

    Packing pictures for 100 pairs MDF disconnection block 71


        ORDER DATA

     Item No  Descriptions
     TP-1401-100  100 pairs MDF disconnection block 71

        RELATED PRODUCTS
    5 pairs over-voltage protection magazine for MDF disconnection block 71Insertion tool for MDF disconnection block 71 #TP-1401-100, red & grey, with plastic chunk2-pole SM test cord, with test plug to alligator clip for MDF disconnection block 71
    4-pole SM test cord, with test plug to alligator clip for MDF disconnection block 712-pole SM connection cord, with test plug test plug for MDF disconnection block 714-pole SM connection cord, with test plug test plug for MDF disconnection block 71
    TP-1503-5   5 pairs over-voltage protection magazine for MDF disconnection block 71
    TP-5905-C  Insertion tool for MDF disconnection block 71 #TP-1401-100, red & grey, with plastic chunk

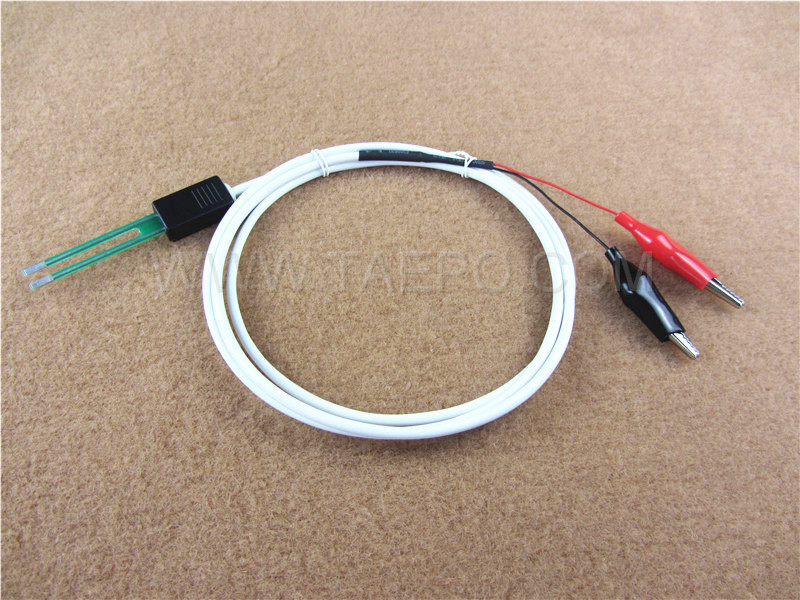

    TP-1401-2TA  2-pole SM test cord, with test plug to alligator clip for MDF disconnection block 71

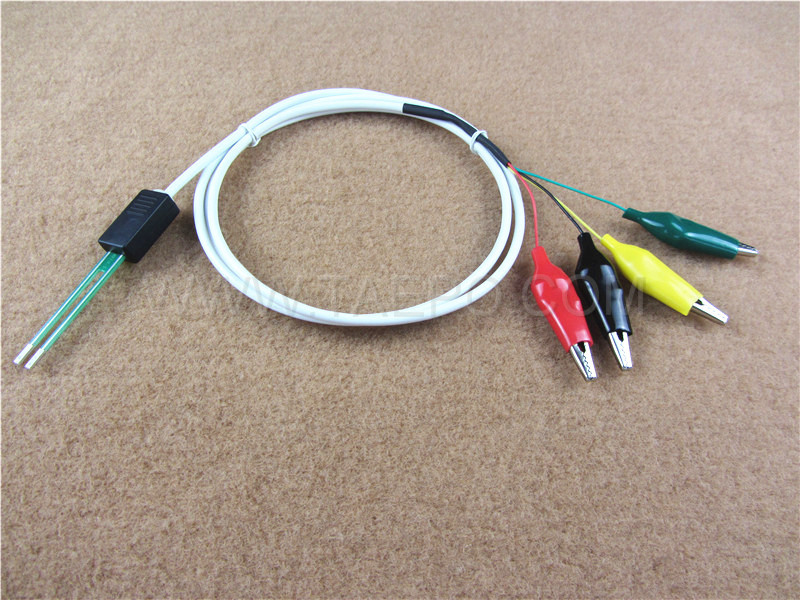

    TP-1401-4TA  4-pole SM test cord, with test plug to alligator clip for MDF disconnection block 71

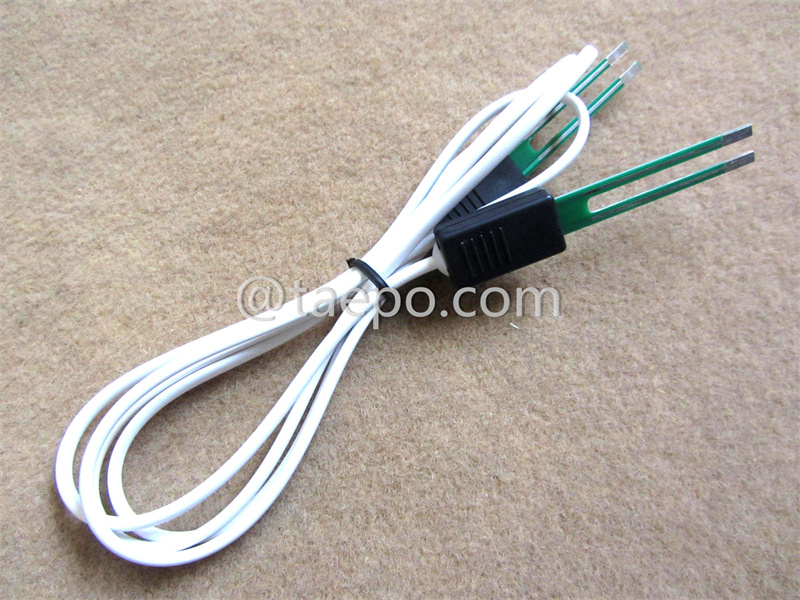

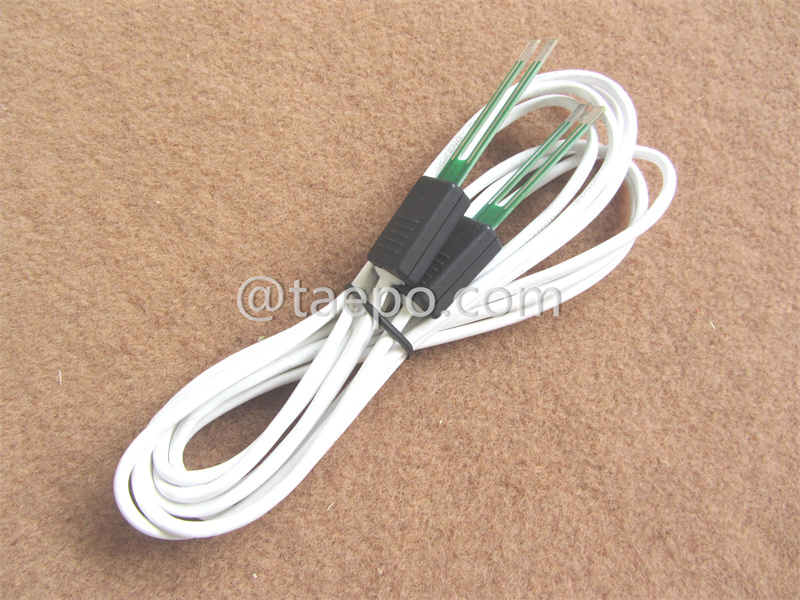

    TP-1401-2TT  2-pole SM connection cord, with test plug test plug for MDF disconnection block 71
    TP-1401-4TT  4-pole SM connection cord, with test plug test plug for MDF disconnection block 71
