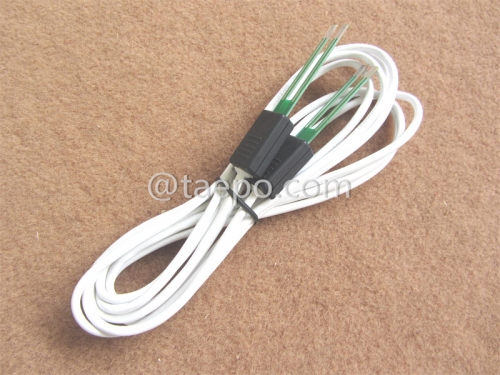

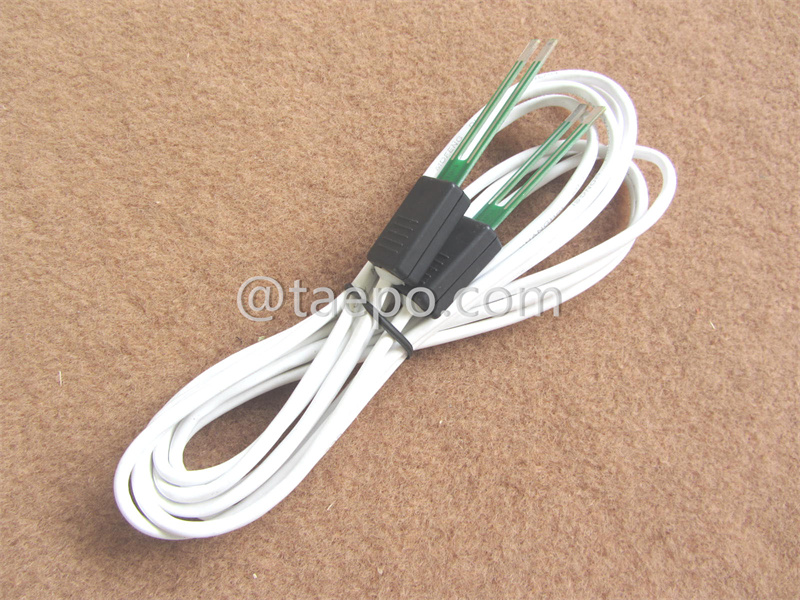

4-pole SM connection cord, with test plug to test plug for MDF disconnection block 71 #TP-1401-100, 1.5m

4-pole SM connection cord, with test plug to test plug for MDF disconnection block 71 #TP-1401-100, 1.5m

Name: 4-pole SM connection cord, with test plug to test plug for MDF disconnection block 71 #TP-1401-100, 1.5m
Brand: TAEPO Official Website
SKU: TP-1401-4TT
Availability: InStock
Rating: 5 (1 reviews)

Item No.: TP-1401-4TT

Color: Grey

Brand: Neutral/OEM/TAEPO

Packing: 2pcs/bag,150bags/carton

MOQ: 500pcs

Delivery: 7-14days

INQUIRY

Description

TAEPO - Your Trusted Chinese Manufacturer of 4-pole SM Connection Cord with Professional Expertise!
What Is a 4-pole SM Connection Cord?

DESCRIPTIONS

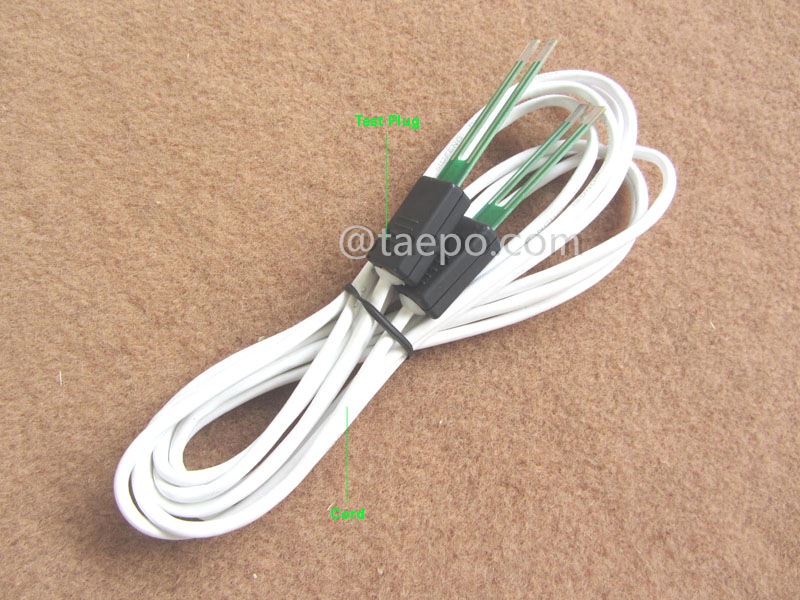

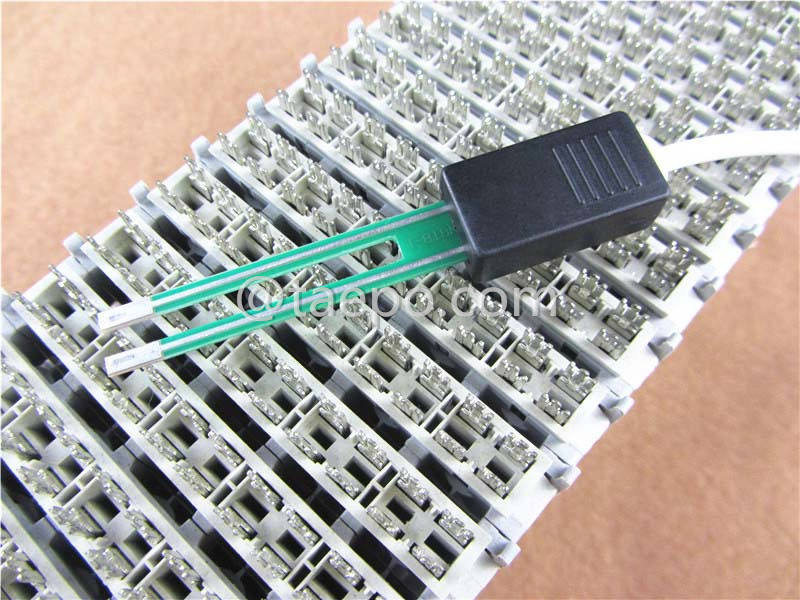

4-pole SM connection cord with test plug to test plug (TP-1401-4TT) is used for connecting between two SM disconnection modules for parallel connection. The SM plug is used for inserting into the SM disconnection module. It is 4-pole configuration.

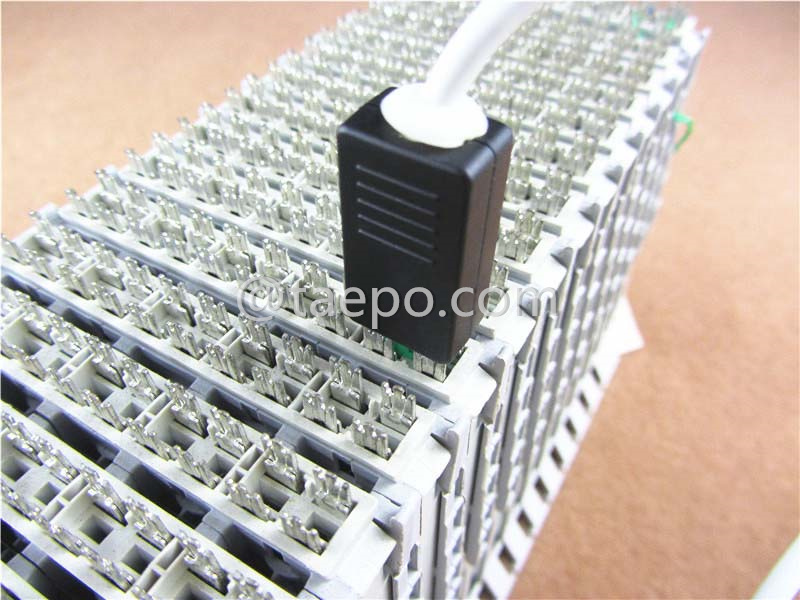

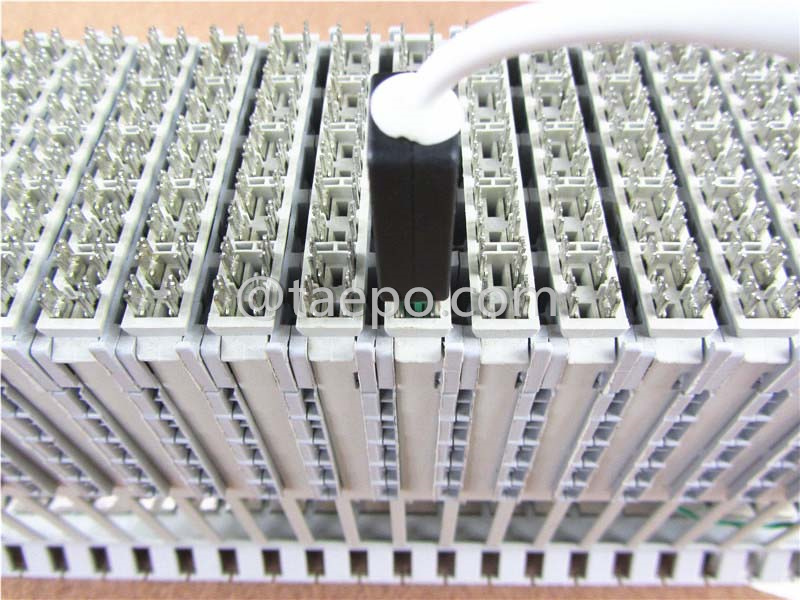

The 4-pole cord permits parallel connection (monitor function) when it is used in the connection or disconnection module. The contacts of the cord bridge the centre contacts of the module which permit monitoring of the line (connection line). 4-pole cords can be used in switching modules. The PCB contacts would make a positive contact in this case.

At a length of 1.5 meters, the cord offers sufficient reach to bridge between termination points within the same frame or adjacent bays, while remaining compact enough to prevent excessive slack. The cable’s flexible multi-strand copper construction, durable PVC jacket, and gold-plated contact pins guarantee consistent electrical performance over thousands of connection cycles. Integrated molded strain reliefs at both ends protect against bending stress, ensuring long service life even under intensive use.

Designed for compatibility with the Block 71 interface, the SM plugs provide an exact fit, applying the correct contact pressure to maintain low-resistance connections without causing wear to the mating contacts. The cord is engineered to preserve signal integrity for both analog and digital transmissions, making it suitable for a wide range of voice and data applications.

MAIN FEATURES

Cable Length: The cable is available in various lengths to suit different testing and connection needs.
Flexible and Insulated: The cable is flexible and well-insulated to ensure safety and ease of use.
Durability: Designed to withstand repeated use, with durable materials.

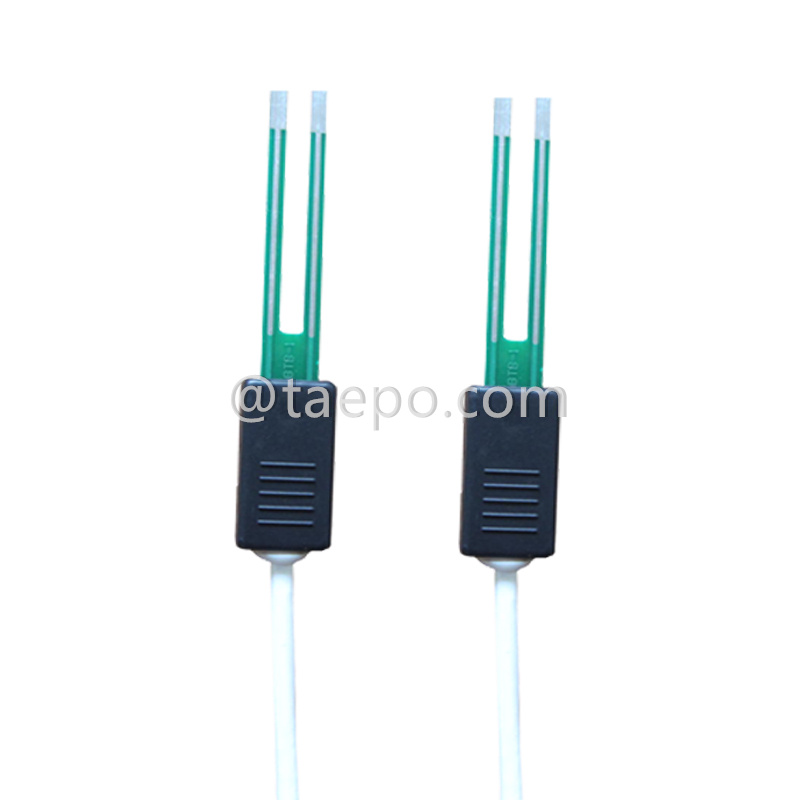

Precision 4-Pole SM Test Plugs: Manufactured to exact dimensions to fit perfectly into MDF Disconnection Block 71 sockets, providing secure contact without damaging the mating terminals.

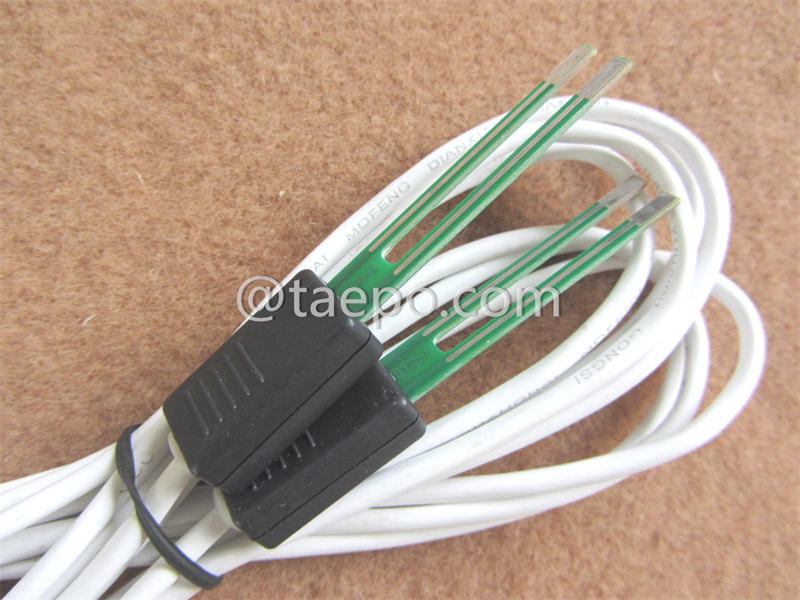

Dual-End Plug Design: SM test plugs at both ends allow direct bridging between two Block 71 points, eliminating the need for adapters or intermediate connectors.

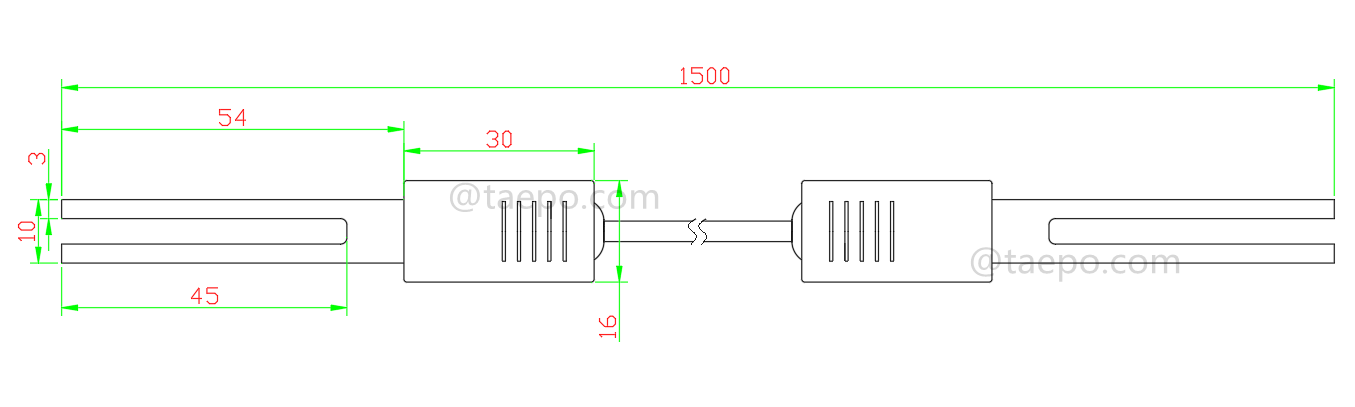

Optimal 1.5-Meter Length: Long enough to connect across typical frame layouts while remaining compact for easy handling and storage.
Flexible Multi-Strand Copper Conductors: High-purity copper strands offer excellent conductivity and flexibility, enabling the cord to bend easily without internal damage.

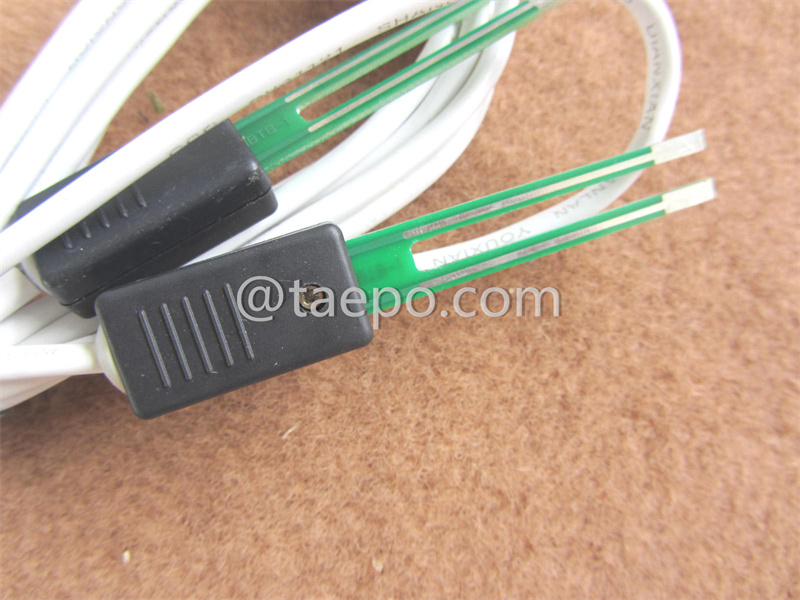

Impact-Resistant Plug Housing: High-impact ABS casing protects internal contacts from damage during drops or heavy handling.
