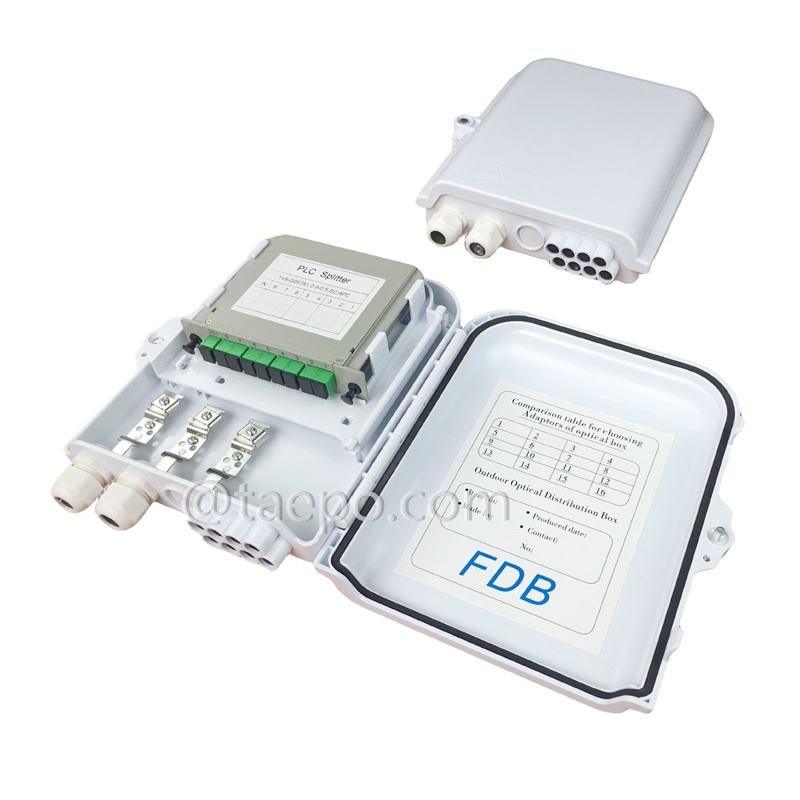

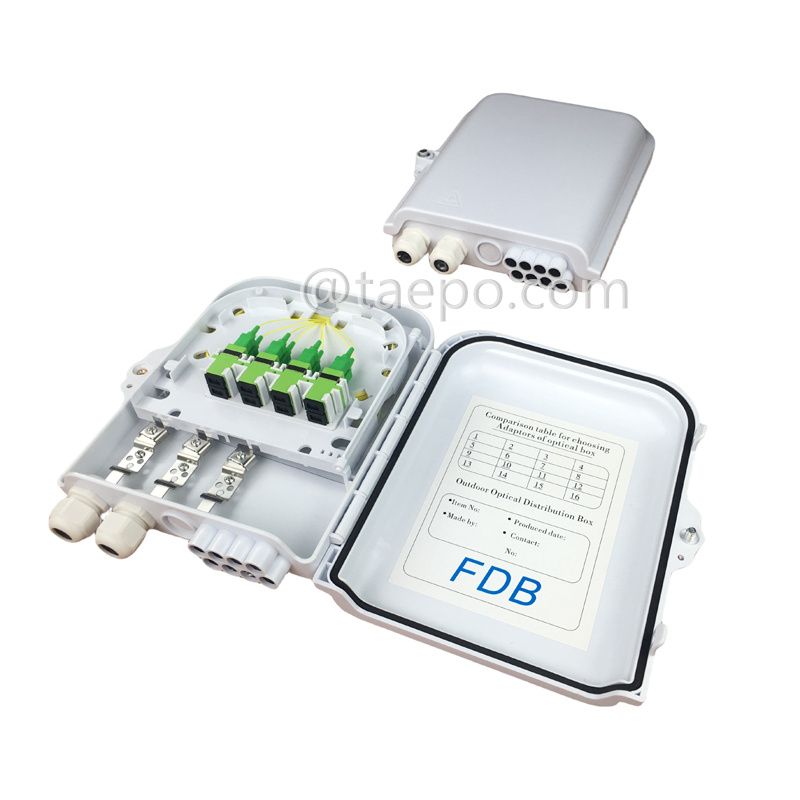

Fiber distribution box (FDB), outdoor, SC, 8 fibers, plastic housing

TAEPO - Specialized in Fiber Optic Distribution Box (FDB) , Professional Chinese Manufacturer for Versatile Network Solutions !
What is Fiber Optic Distribution Box (FDB) used for?


    DESCRIPTIONS

The Fiber Distribution Box (TP-3224-8-C) is designed for outdoor use, providing a compact and reliable solution for distributing and managing up to 8 fibers in fiber optic networks. The box is made from a high-quality, UV-resistant plastic housing that ensures durability and protection from harsh environmental elements such as moisture, dust, and UV exposure. With dimensions of 220x180x50mm, this small yet robust FDB is ideal for outdoor installations, particularly in fiber-to-the-home (FTTH) applications or other telecommunications projects requiring secure fiber management.

This FDB is compatible with SC adapters but is sold without adapters and pigtails, allowing for full customization according to specific network requirements. The internal design features an organized layout for efficient splicing, routing, and cable management, ensuring easy access for installation and maintenance. The hinged cover and lockable design offer additional protection, safeguarding fiber connections from unauthorized access while maintaining ease of operation during fiber maintenance activities.

With its compact form factor, the FDB is easy to install on walls or poles, making it suitable for a variety of outdoor environments. Its weatherproof and dustproof construction ensures long-lasting performance, even in challenging conditions. The unit offers a cost-effective yet durable solution for managing fiber connections in small to medium-sized outdoor network installations, such as residential FTTH, business campuses, or telecom distribution points.


    MAIN FEATURES

• Outdoor Design: Weatherproof, UV-resistant housing for outdoor installations.
• 8 Fiber Capacity: Designed to accommodate up to 8 fibers, suitable for small to medium setups.
• SC Adapter Support: Compatible with SC adapters for easy fiber connections.
• Compact Size: Small footprint with dimensions of 220x180x50mm.
• Plastic Housing: Durable, lightweight, and corrosion-resistant plastic material.
• Without Adapters: Sold without adapters, allowing for custom configuration.
• Without Pigtails: Flexible to choose the type and length of pigtails needed.
• Weatherproof Construction: Resistant to rain, dust, and other outdoor elements.
• UV Resistant: Protected against degradation from sunlight exposure.
• Cable Management: Integrated system to keep fibers neatly organized and protected.
• Hinged Cover: Provides easy access for installation and maintenance tasks.
• Lockable Design: Secured with a lock to prevent unauthorized access.
• Wall or Pole Mountable: Versatile installation options.
• Lightweight: Easy to handle and install due to its plastic construction.

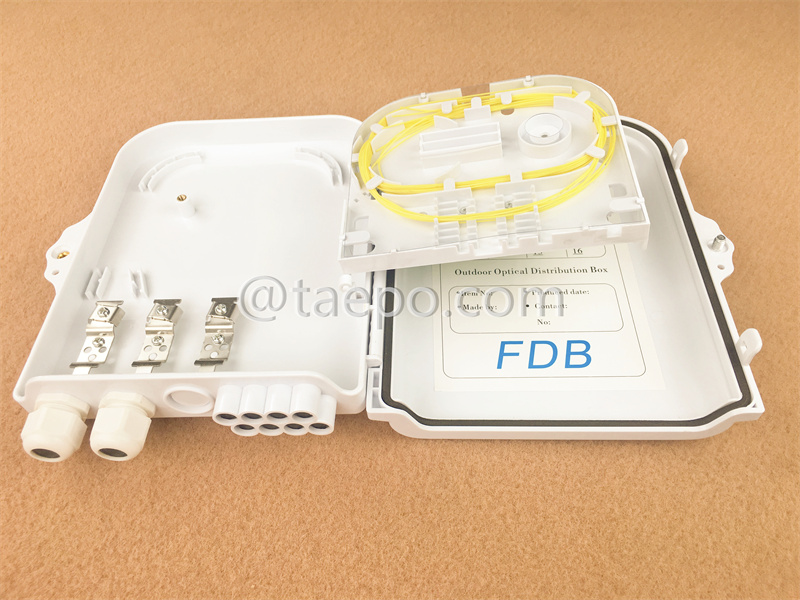

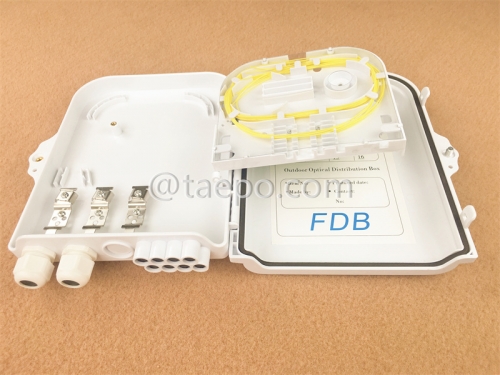

• Splice Tray Included: Internal tray for efficient splicing and fiber management.
• Dustproof: Sealed design protects internal components from dust ingress.
• Cost-Effective: Budget-friendly solution for small-scale fiber optic networks.
• Corrosion Resistant: Plastic construction avoids rust and corrosion, ensuring longevity.
• Grounding Point: Built-in grounding for safety and compliance.
• Ideal for FTTH: Perfect for fiber-to-the-home and other outdoor telecommunications networks.

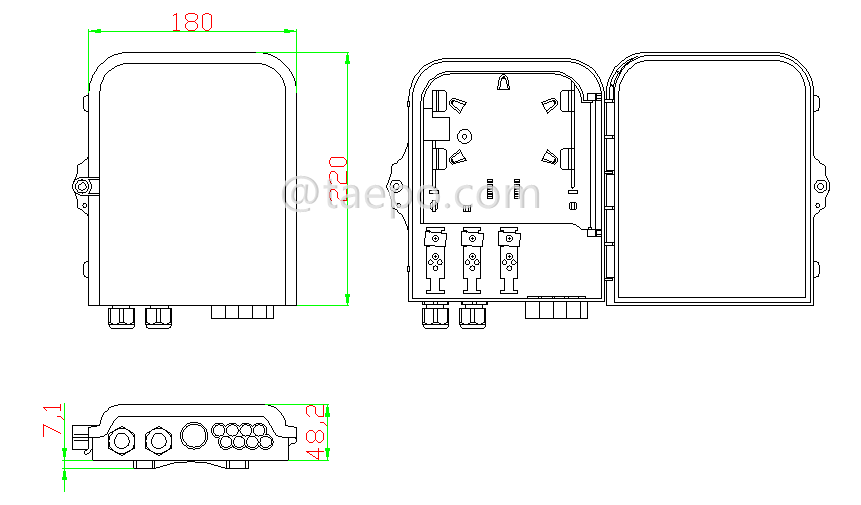

    SCHEMATIC DIAGRAMS

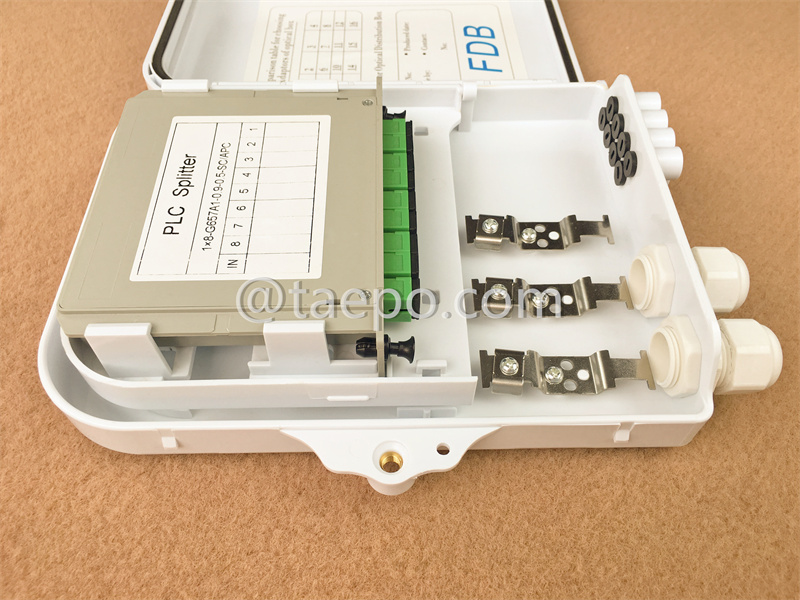

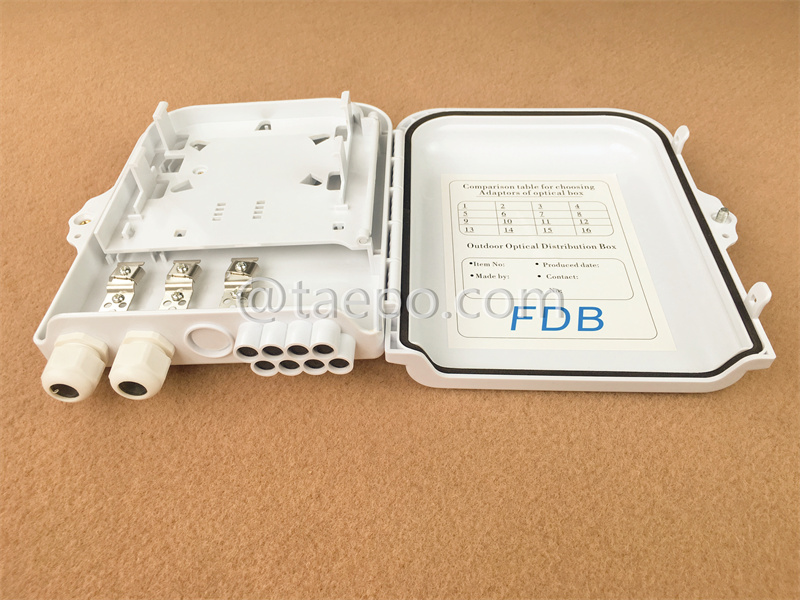

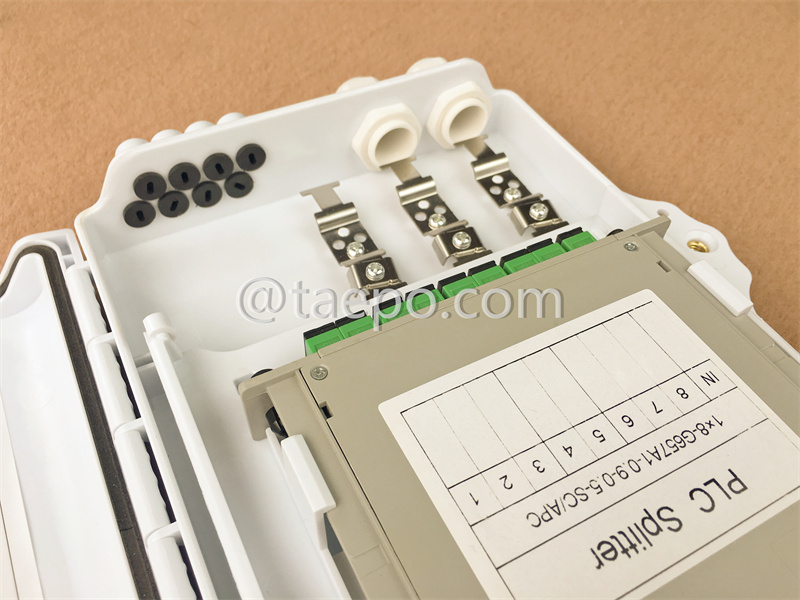

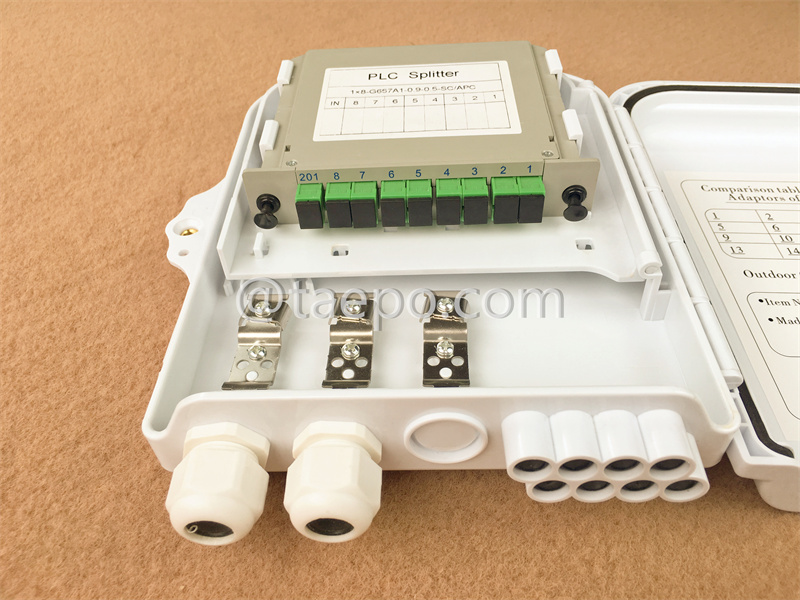

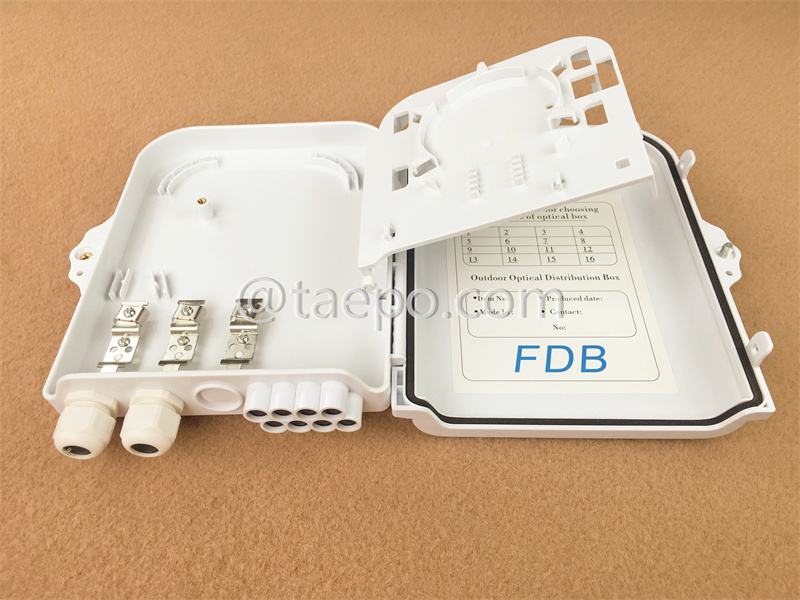

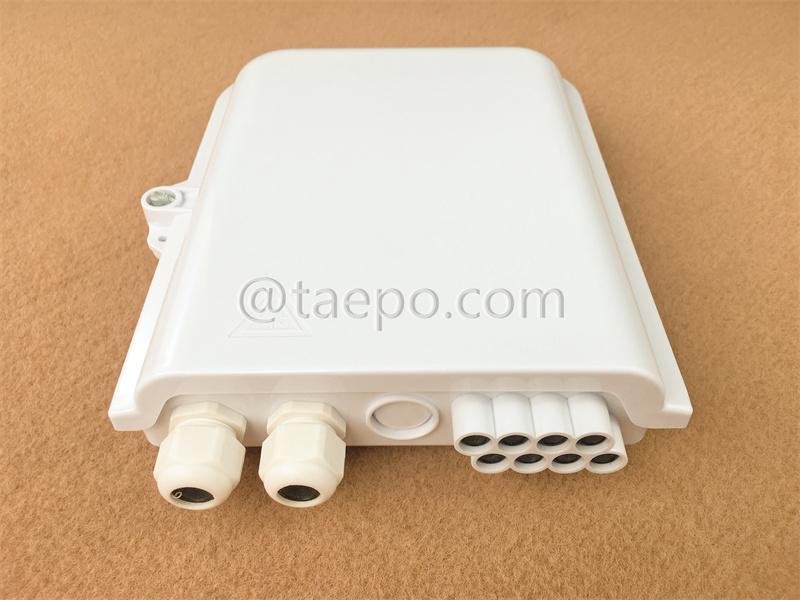

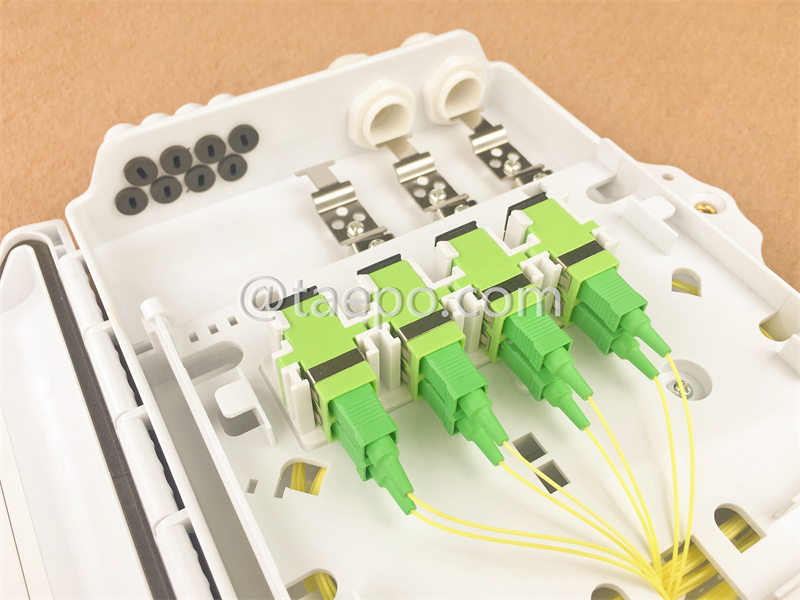

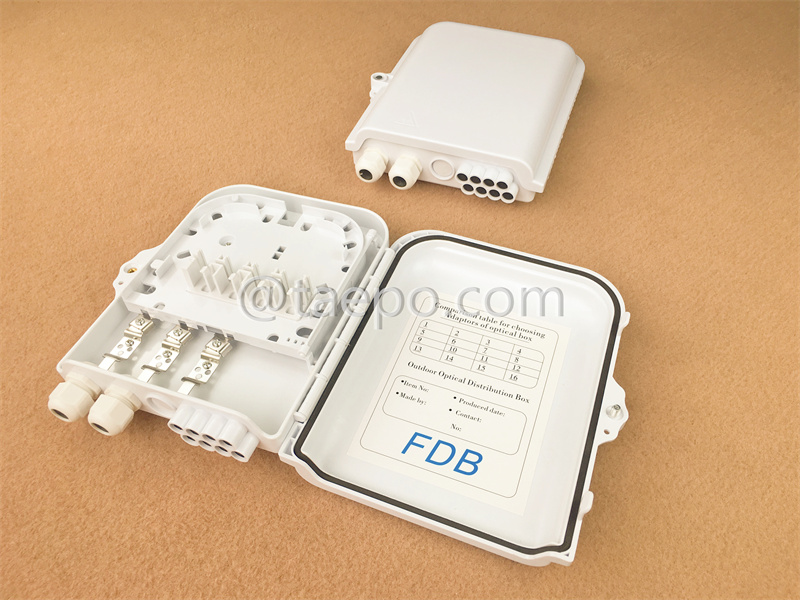

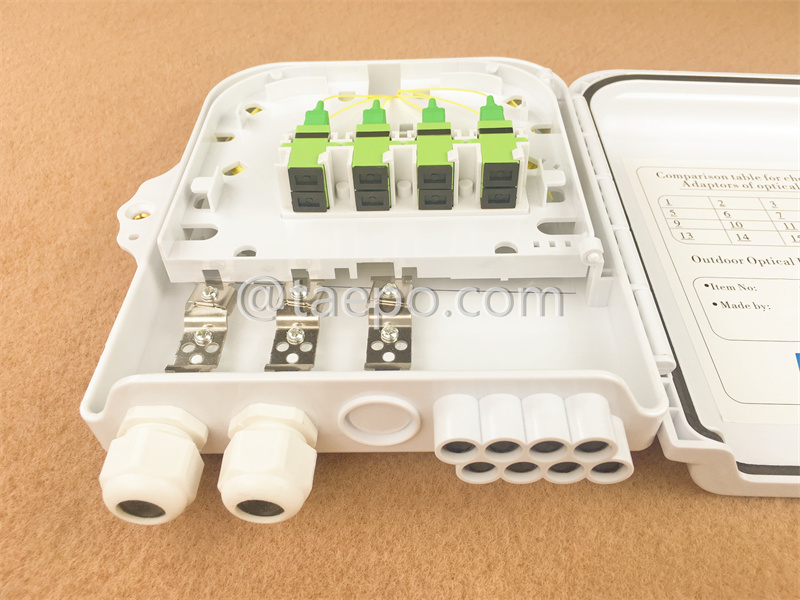

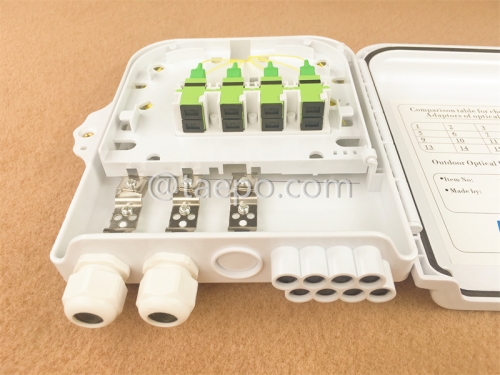

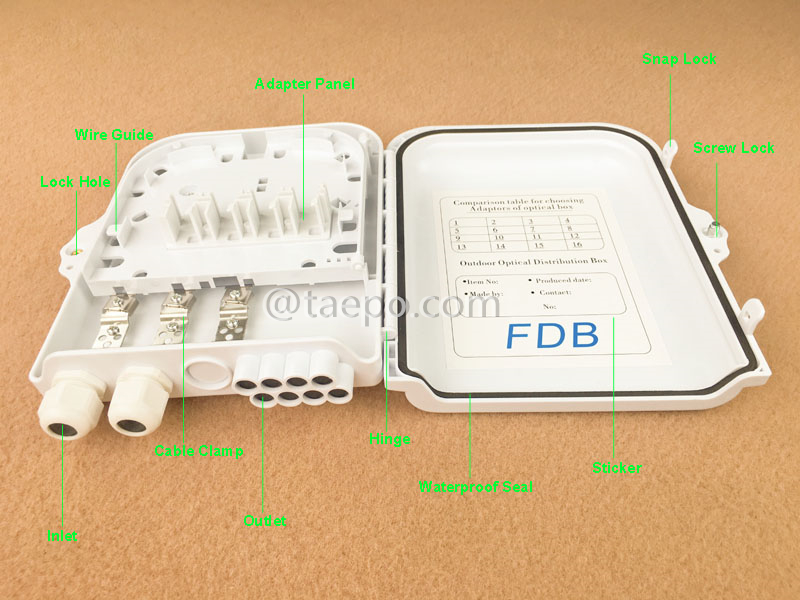

    ILLUSTRATION PICTURES

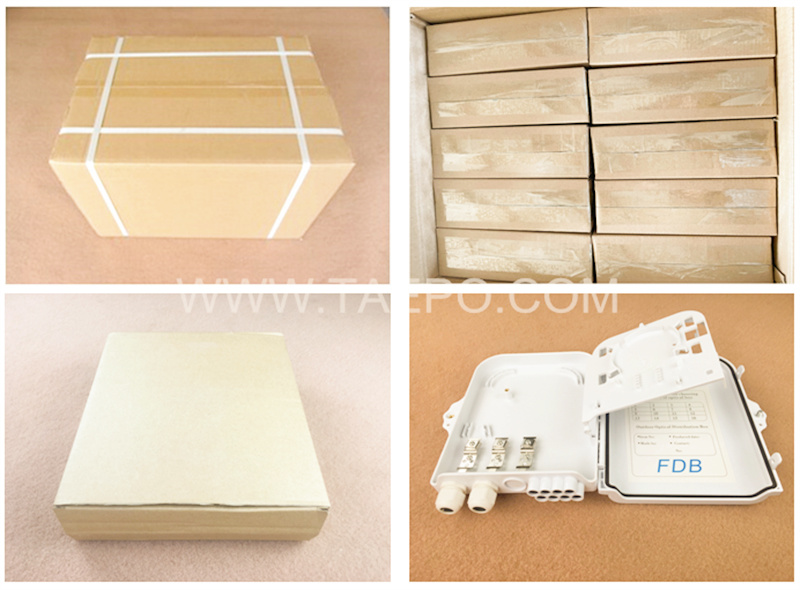

    PACKING PICTURES

    ORDER DATA
