J-Hook

Specialized in J-Hook, Your Professional Chinese Manufacturing Partner !
What does J-Hook do?


    DESCRIPTIONS

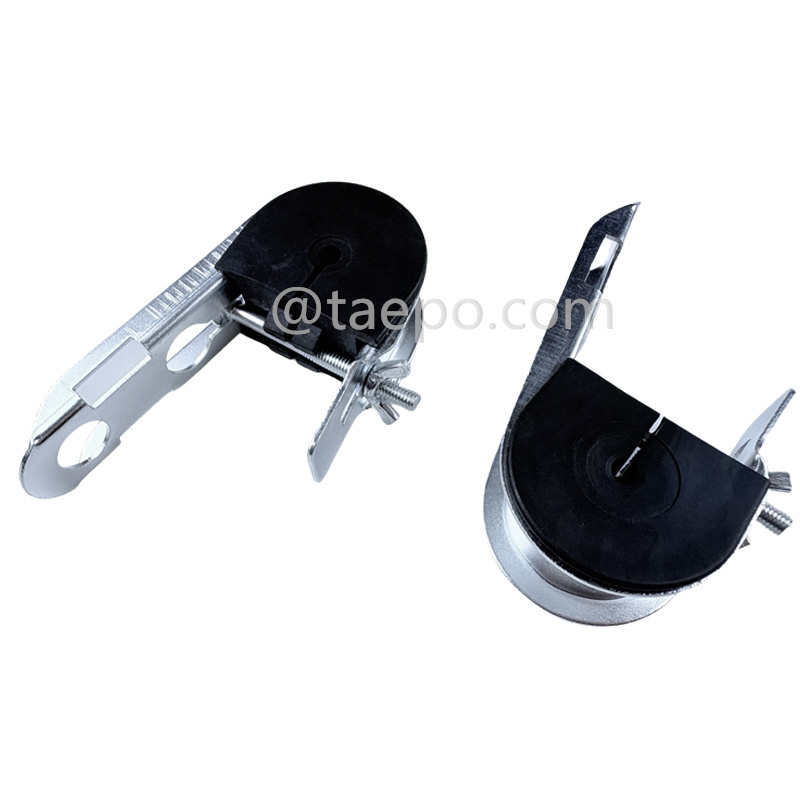

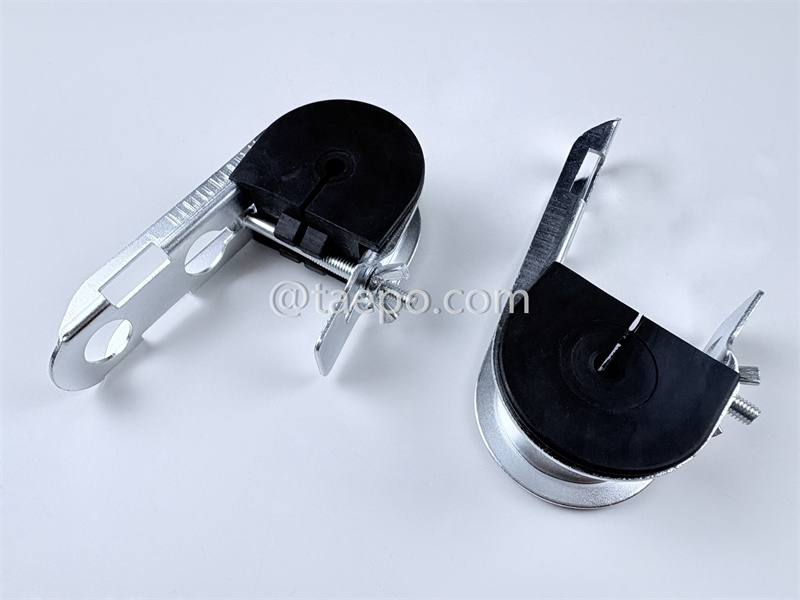

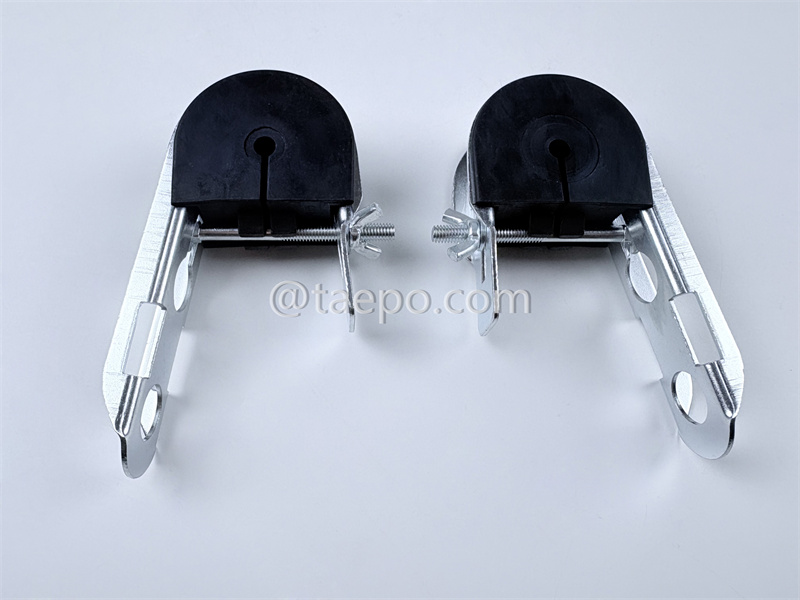

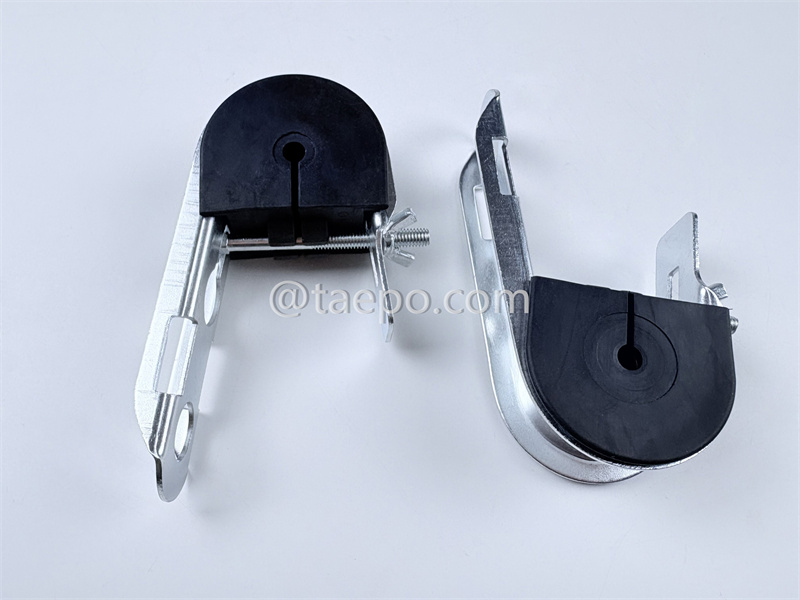

The J-Hook (TP-3616) is a robust and weather-resistant suspension fitting engineered for overhead installation of ADSS (All-Dielectric Self-Supporting) cables in aerial fiber optic networks. Designed to securely hold cables with diameters ranging from 10mm to 15mm, the hook ensures stable cable routing while minimizing mechanical stress. Its classic open-loop J-shape provides efficient cable guidance and strain relief, making it ideal for cable pass-through or intermediate support on utility poles.

Manufactured from cold-rolled steel and protected by a hot-dip galvanized coating, the hook offers long-lasting resistance to rust and corrosion in outdoor environments. It incorporates a molded rubber insert that cushions the cable, preventing slippage and protecting the sheath from abrasion during high wind or load variations. Installation is quick and simple using stainless steel straps, ensuring a firm grip on wood, concrete, or steel poles.

With a break load of 6kN, this J-hook is engineered to support heavy fiber spans, particularly in long-run or environmentally exposed aerial deployments. It is a key component in ADSS suspension systems, where durability, ease of installation, and cable protection are critical.

    MAIN FEATURES

• For ADSS Cable: Supports aerial installations of Ø10–15mm ADSS cables.
• Cold-Rolled Steel Hook: Provides high mechanical strength.
• Hot-Dip Galvanized Finish: Superior corrosion resistance for outdoor use.

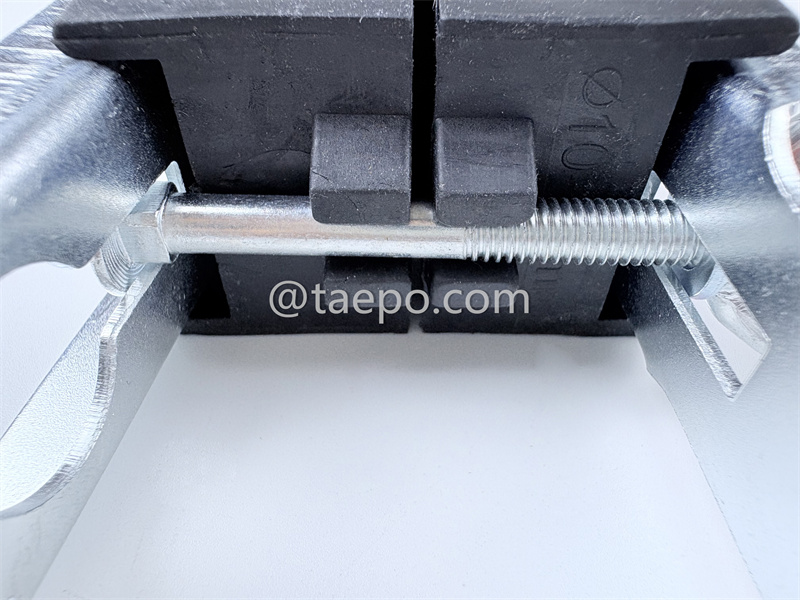

• Rubber Cushion Insert: Protects cable from wear and slippage.
• Open J-Shape Design: Facilitates quick cable drop-in and support.
• High Load Capacity: Withstands up to 6kN tensile force.

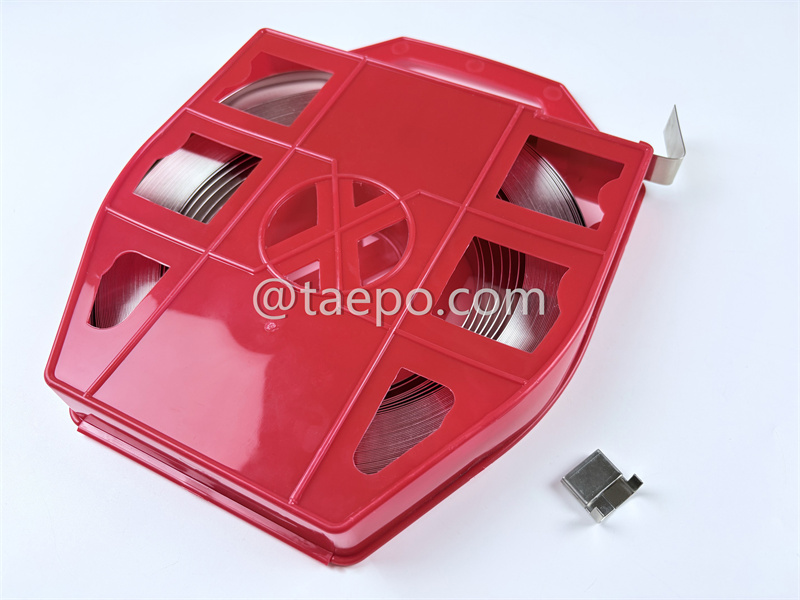

• Stainless Steel Band Fixation: Fastened securely to poles with bands.
• Non-Conductive Insert: Enhances safety for dielectric cable systems.
• Pole Mountable: Easily adaptable to wood, steel, or concrete poles.
• Rust-Proof Coating: Maintains integrity in coastal or industrial areas.
• Weatherproof Design: Reliable in wind, rain, and extreme climates.
• Tool-Free Cable Insertion: No cutting or dismantling required.
• Minimal Sag Deformation: Retains shape under repeated loading.
• Standardized Mounting Profile: Compatible with universal banding systems.
• Quick Field Installation: Ideal for FTTx and long-haul builds.
• Non-Invasive to Cable Sheath: Prevents microbending or sheath damage.
• Reusable Hook Design: Can be relocated or adjusted.
• Wide Span Capability: Supports long-distance suspensions.
• Low Maintenance: Durable materials require no servicing.

    SCHEMATIC DIAGRAMS

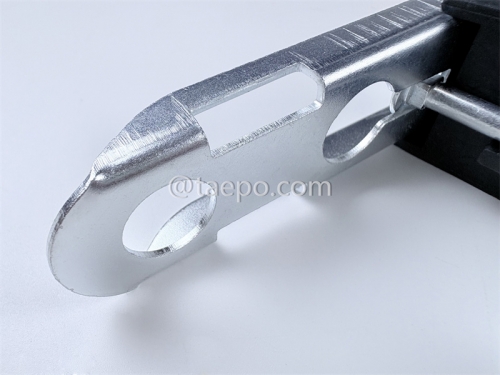

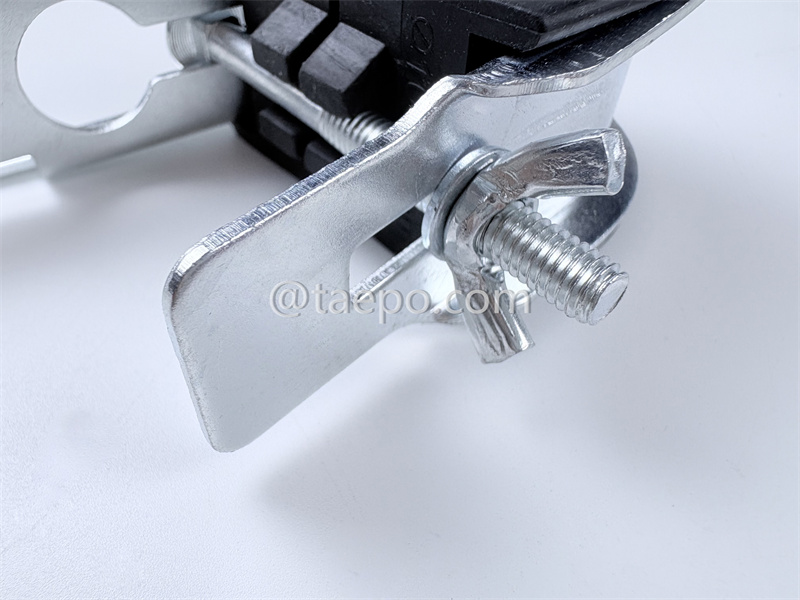

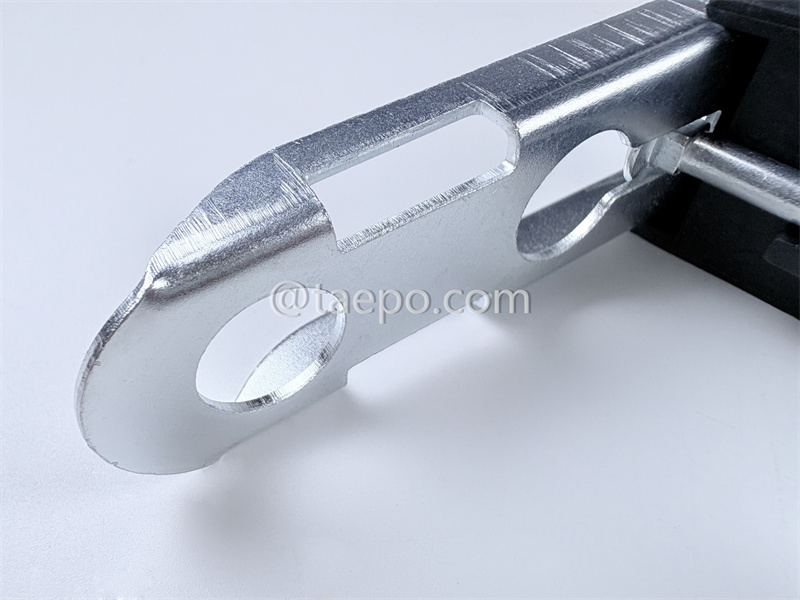

    ILLUSTRATION PICTURES

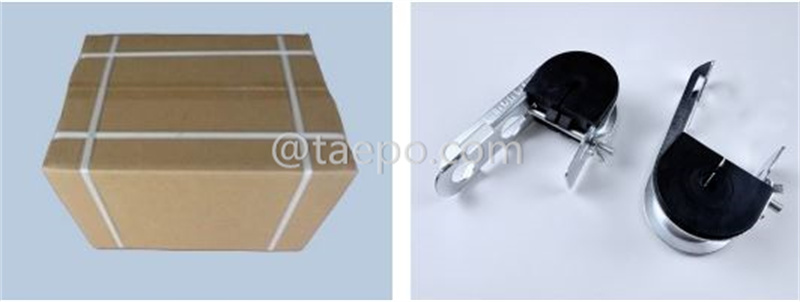

    PACKING PICTURES

   ORDER DATA
