What is a Fiber Optic Anchor Clamp?
DESCRIPTIONS

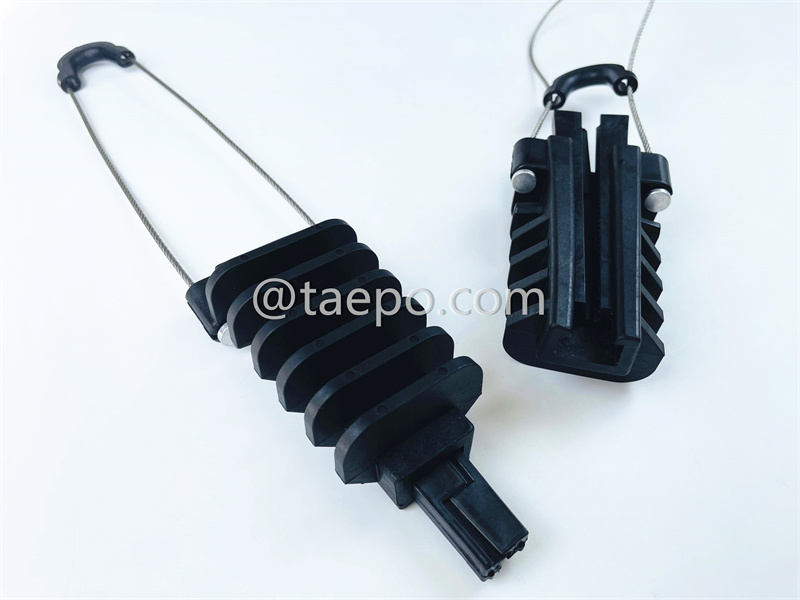

The anchor clamp (TP-3614-A) for ADSS (All-Dielectric Self-Supporting) cables is a heavy-duty tension hardware designed for aerial cable installations in telecommunication networks. With a robust steel body enhanced by nickel plating and a stainless steel hook, the clamp ensures secure cable fixation and long-term corrosion resistance, even in high-humidity or industrial environments. It is tailored for use with cable diameters ranging from 4.5mm to 9mm and supports a breaking load exceeding 4kN, making it ideal for light to medium-span ADSS applications.
The clamp’s body is constructed from high-quality PA66 engineering plastic, delivering excellent mechanical strength, thermal stability, and UV resistance. The internal conical wedge system firmly grips the cable without damaging the sheath, ensuring tension distribution is evenly maintained. The 260mm total length provides enough span for efficient cable anchoring while simplifying overhead installations with poles or suspension points.
Suitable for urban and rural deployments, this anchor clamp is commonly used in FTTx and backbone network segments, particularly in straight routes and angles up to 25°. Its tool-free design and durable components make it a preferred choice for outdoor aerial fiber installations in harsh environments.
MAIN FEATURES
- Designed for ADSS Cables: Optimized for aerial deployment of self-supporting fiber cables.
- Cable Diameter Range: Compatible with Ø4.5–9mm cables.
- High Tensile Strength: Withstands break loads exceeding 4kN.
- Nickel-Plated Steel Body: Provides corrosion protection and mechanical durability.
- PA66 Clamp Body: Strong, weather-resistant thermoplastic for secure cable retention.
- Stainless Steel Hook: Rust-resistant and strong for pole or bracket attachment.
- Tool-Free Installation: Wedge mechanism allows for quick, secure cable grip.
- Total Length 260mm: Provides adequate separation between cable and anchor point.
- Thermal Stability: Maintains performance in varying temperature conditions.
- Conical Wedge Design: Ensures firm grip without cable damage.
- Anti-Slip Grip: Prevents movement under high tension.
- Field-Proven Design: Used widely in telecom aerial networks.
- Cost-Efficient: Reduces installation time and maintenance needs.
- Compatible with Brackets: Fits common pole and wall brackets.
- Reusable Components: Can be dismantled and reapplied.
- No Cable Stripping Required: Simplifies installation.
- Weatherproof: Works in rain, snow, and extreme sunlight.
- Wide Application: Suitable for both urban and rural FTTx rollouts.
SCHEMATIC DIAGRAMS

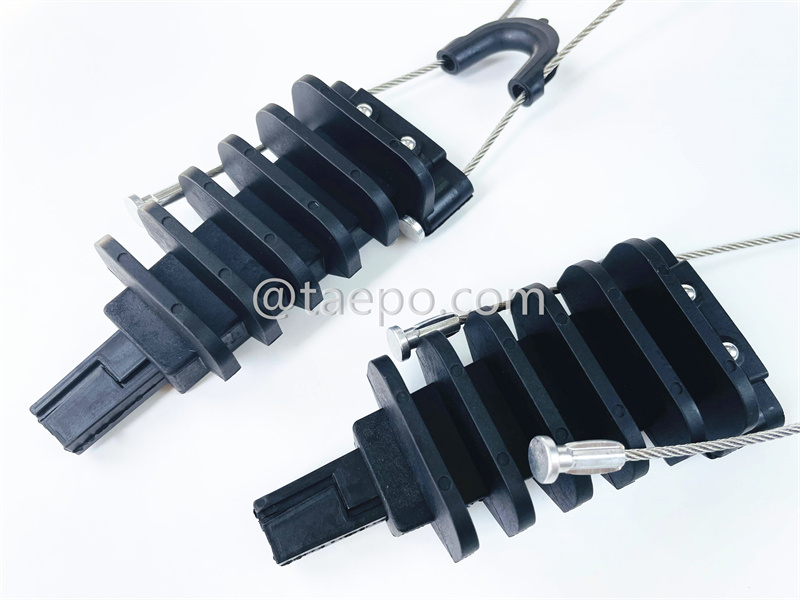

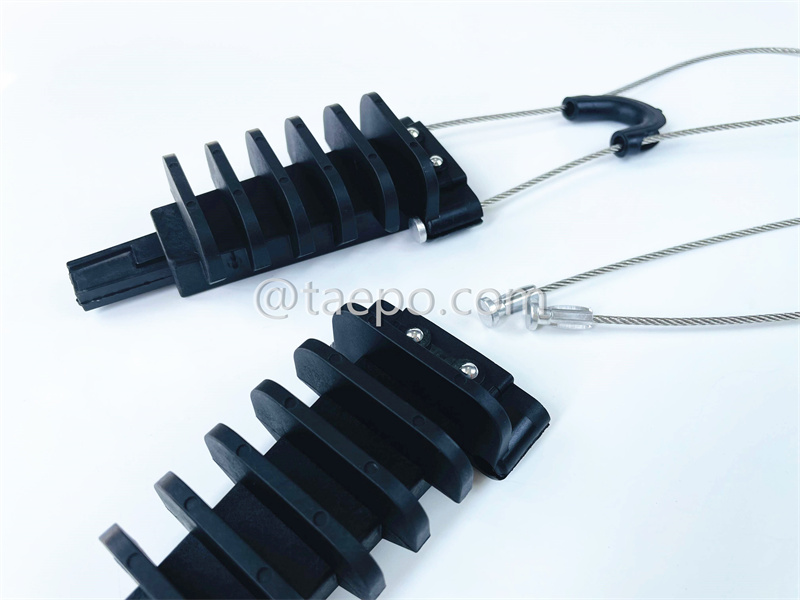

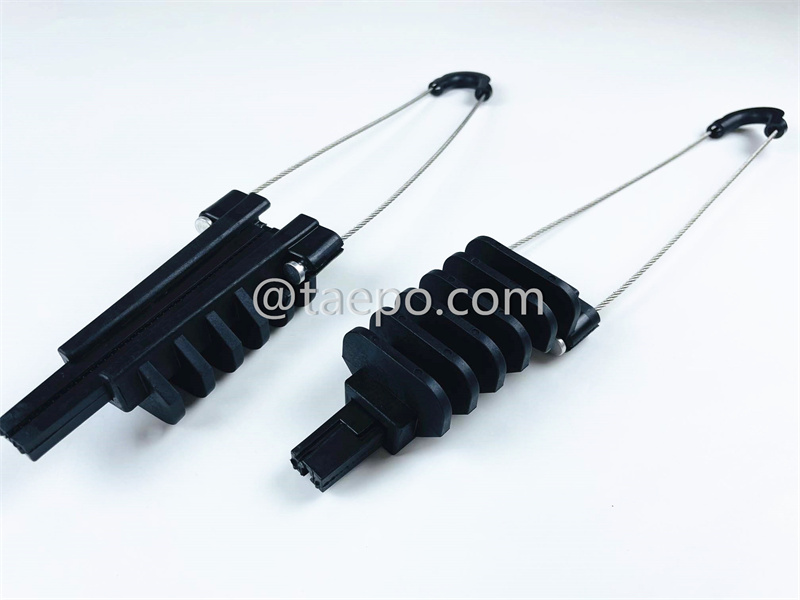

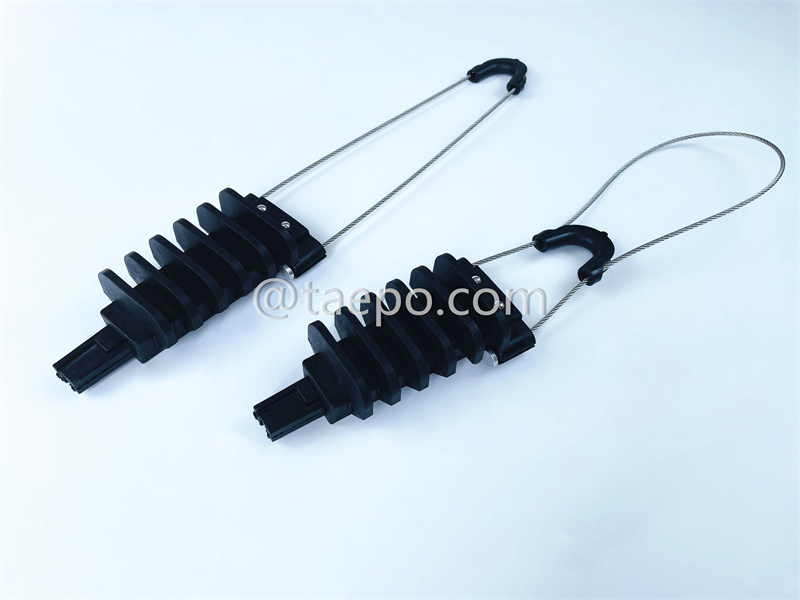

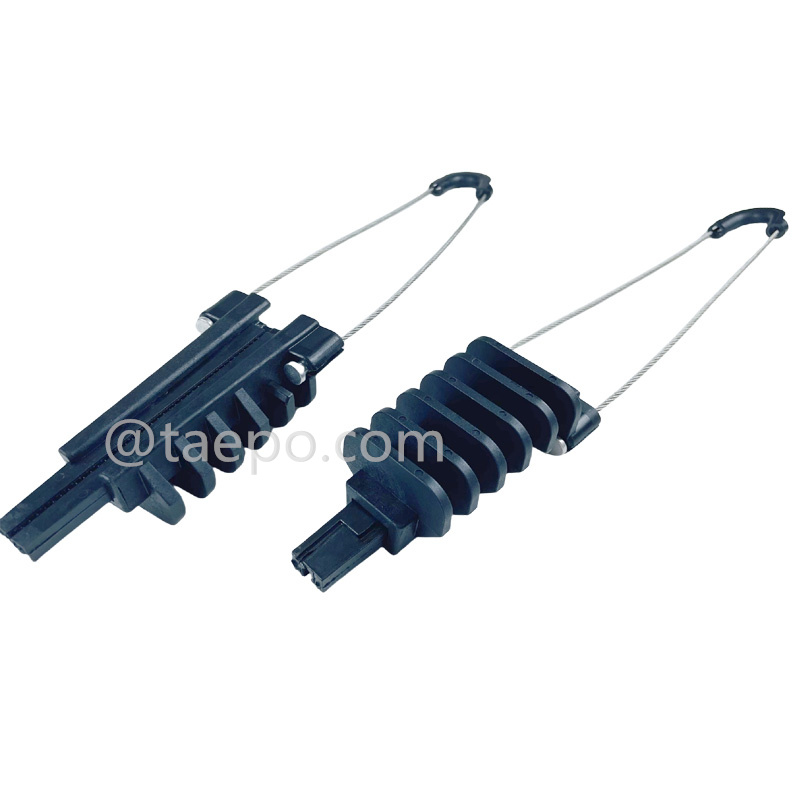

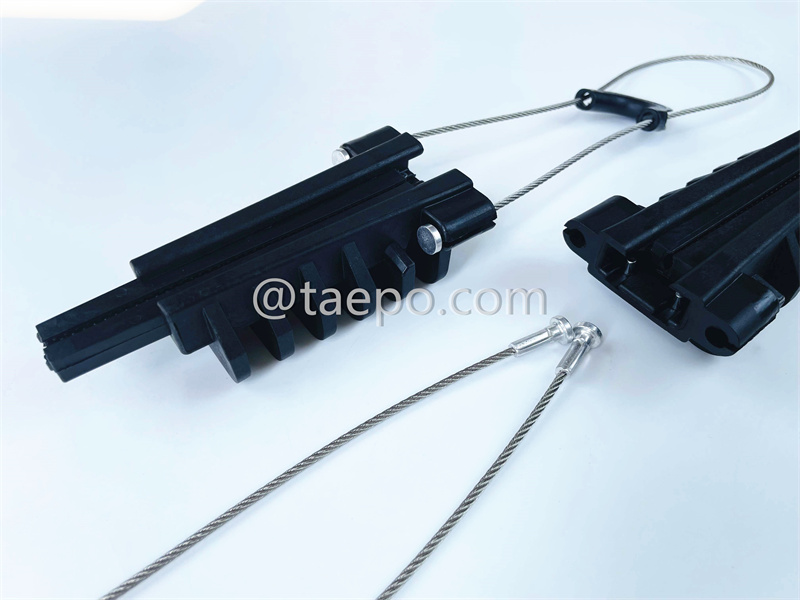

ILLUSTRATION PICTURES

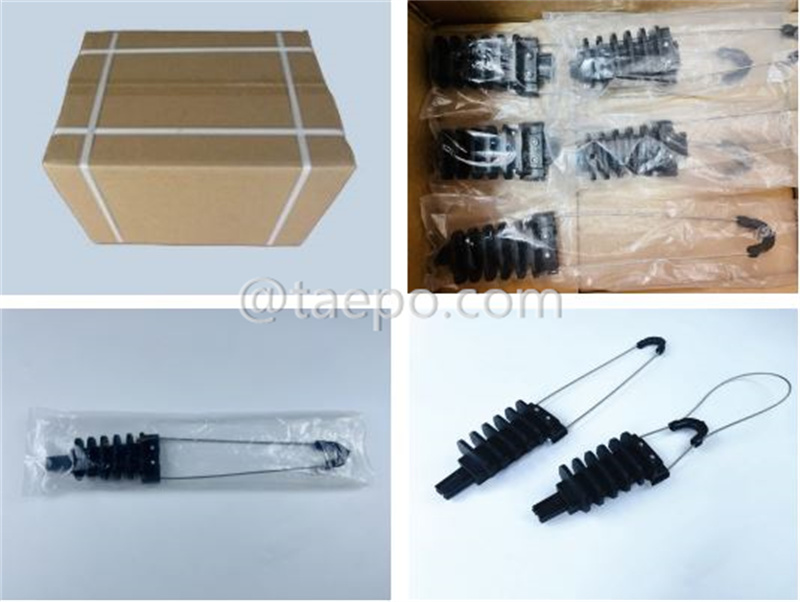

PACKING PICTURES
ORDER DATA
| Item No |
Descripciones |
| TP-3614-A |
Abrazadera de anclaje, diámetro de cable 4.5-9mm, L260mm, acero con recubrimiento de níquel, 4kN |
RELATED PRODUCTS
TP-3617-A Loop holder clamp

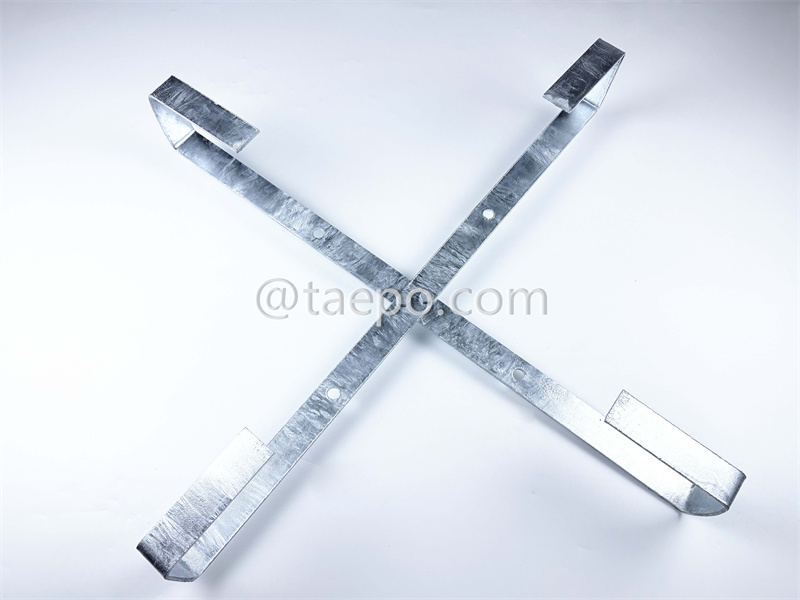

TP-3619 Cable loop holder for poles, 760x38x4mm
