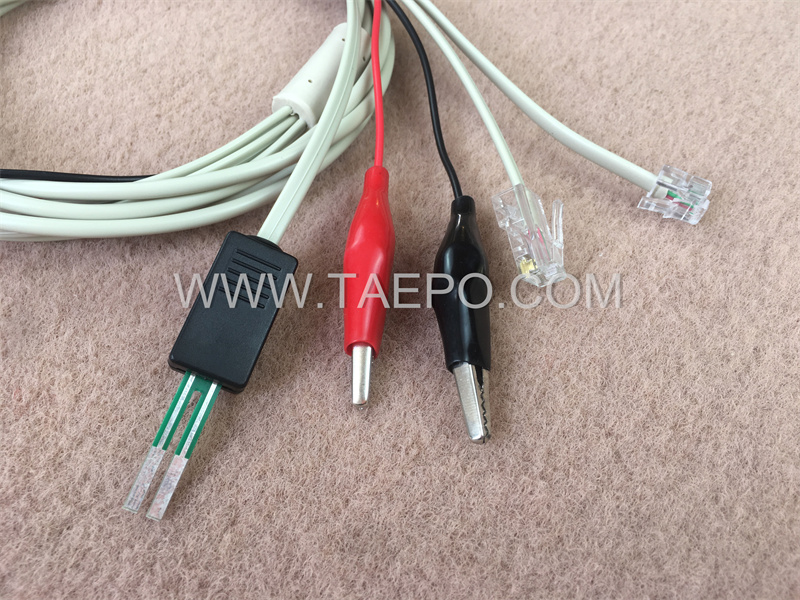

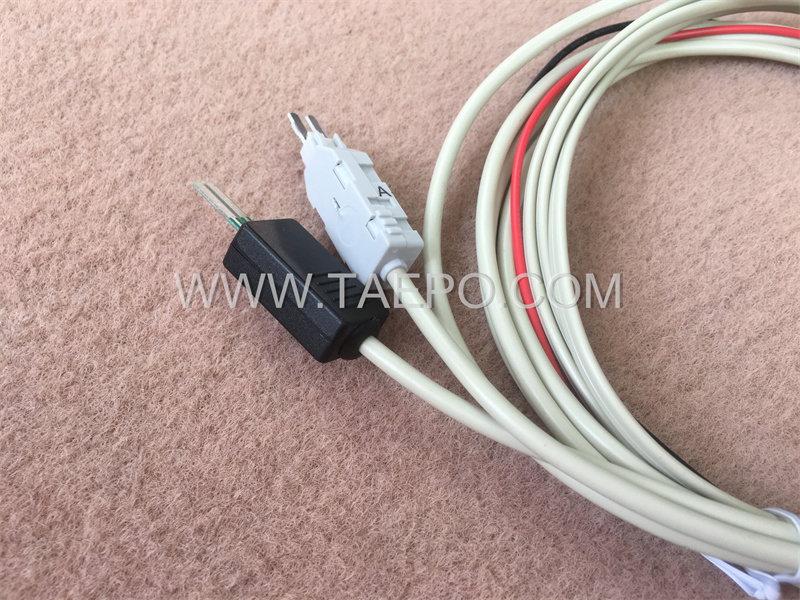

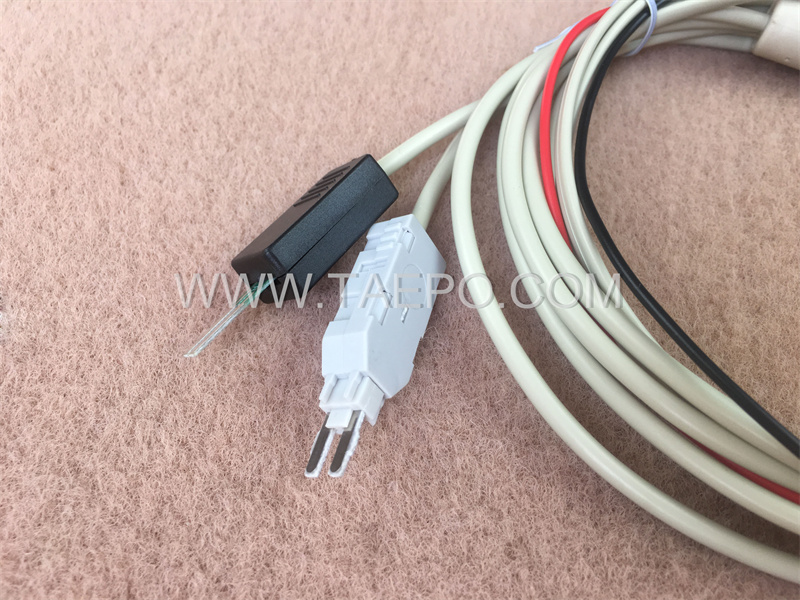

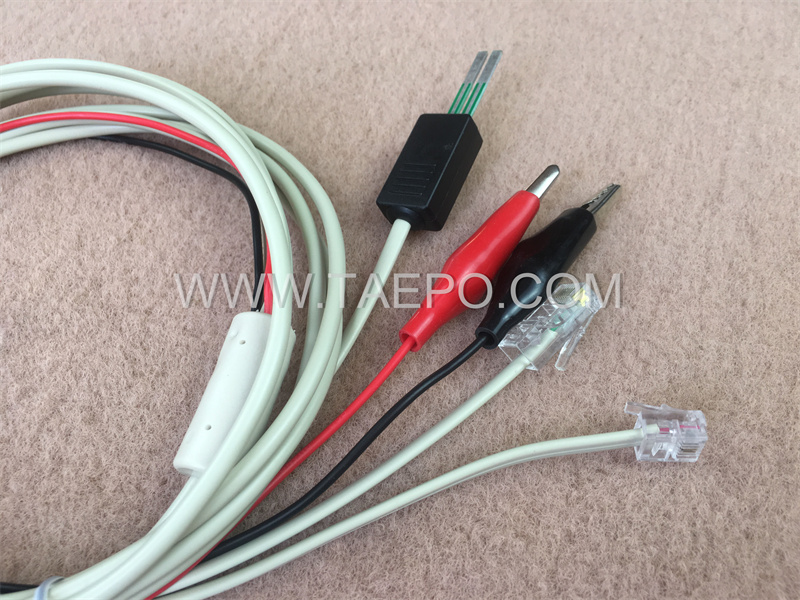

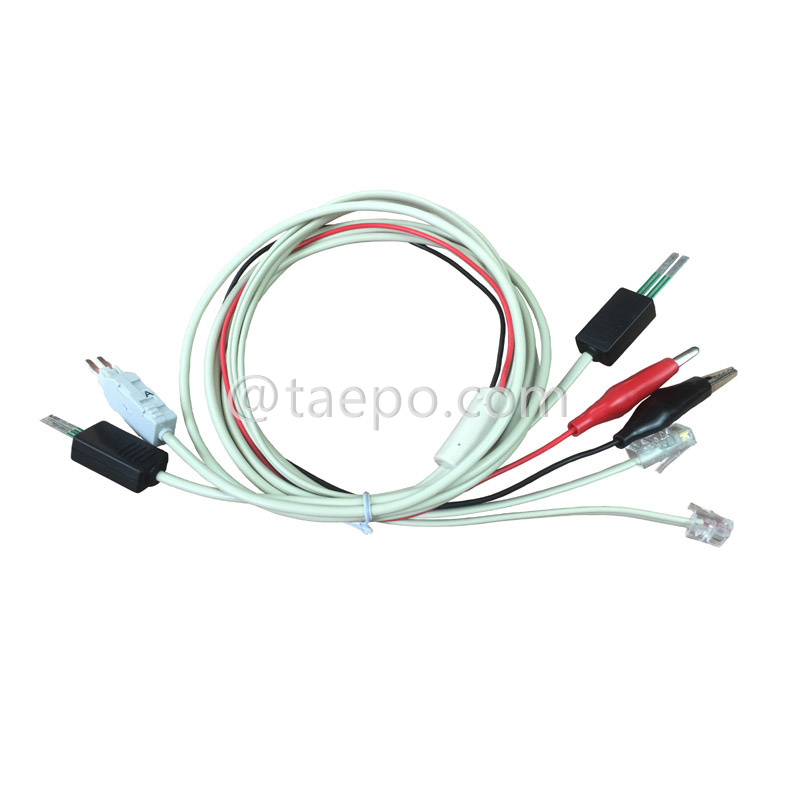

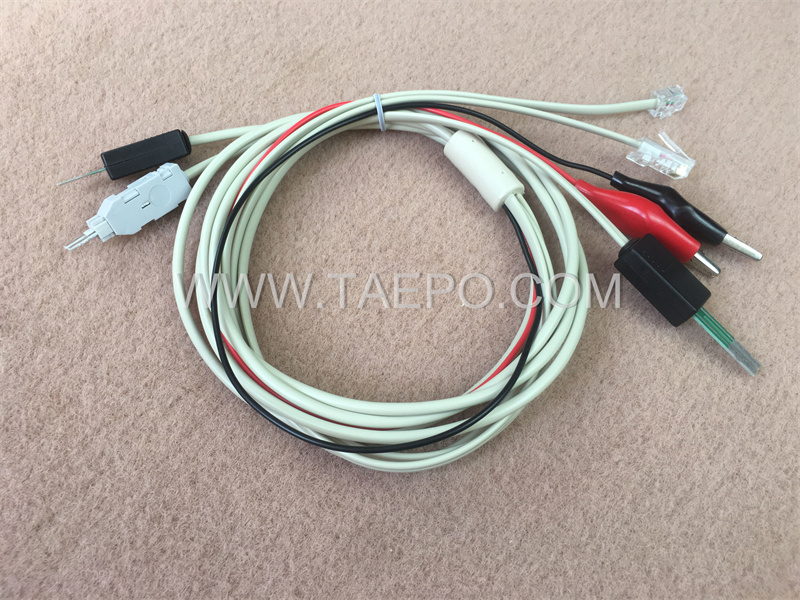

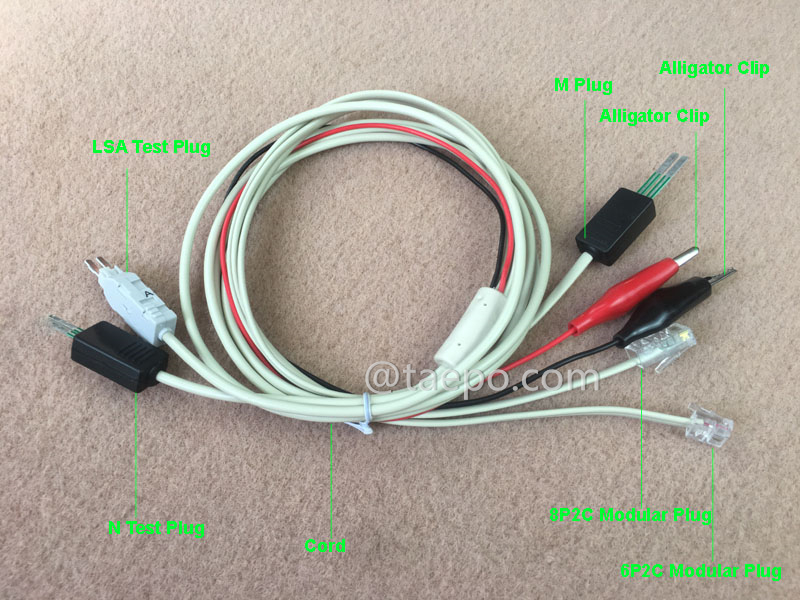

2 pole test cord with 4 pole LSA test plug 4-pole N test plug to alligator clip M plug 8P2C modular plug and 6P2C modular plug

2 pole test cord with 4 pole LSA test plug 4-pole N test plug to alligator clip M plug 8P2C modular plug and 6P2C modular plug

Name: 2 pole test cord with 4 pole LSA test plug 4-pole N test plug to alligator clip M plug 8P2C modular plug and 6P2C modular plug
Brand: TAEPO Official Website
SKU: TP-1220-2LNAM86
Availability: InStock
Rating: 5 (1 reviews)

Item No.: TP-1220-2LNAM86

This test cord setup is quite versatile, allowing for various types of connections and testing in telecommunications and networking environments

Color: Grey

Brand: Neutral / OEM / TAEPO

Packing: 1pc/polybag, 100bags/ctn, 10.5kg/ctn, 59*27*24cm/ctn

MOQ: 100pcs

Delivery: 7-14 days

INQUIRY

Description

Descriptions

2-pole test cord, 4-pole LSA test plug + 4-pole N test plug to alligator clip, M plug, 8P2C modular plug, 6P2C modular plug (TP-1220-2LNAM866) is used for testing the telephone line. The LSA plug is used for inserting into the LSA module, M plug for inserting into the M block, and the alligator clip and modular plug for connecting to the telephone testing kit.

The grey 2-pole cord permits parallel connection (monitor function) when it is used in the connection or disconnection module. The contacts of the cord bridge the centre contacts of the module which permit monitoring of the line (connection line). 2-pole cords cannot be used in switching modules. The metal contacts would not make a positive contact in this case.

The grey 4-pole cord permits parallel connection (monitor function) when it is used in the connection or disconnection module. The contacts of the cord bridge the centre contacts of the module which permit monitoring of the line (connection line). 4-pole cords can be used in switching modules. The PCB contacts would make a positive contact in this case.

Main Features

Cable Length: The cable is available in various lengths to suit different testing and connection needs.
Flexible and Insulated: The cable is flexible and well-insulated to ensure safety and ease of use.
LSA Test Plug: One end is equipped with an LSA test plug designed for secure connections to LSA terminal blocks commonly used in telecommunications and networking.
Alligator Clips: The opposite end features two alligator clips with serrated jaws for secure and temporary electrical connections.
Durability: Designed to withstand repeated use, with durable materials and insulating coatings on alligator clips.
Safety: Alligator clips are coated to prevent accidental short circuits, ensuring safety during testing.
Color Coding: The cords have color-coded insulation or markings to help technicians identify specific connections quickly, enhancing efficiency during testing and maintenance.

Schematic Diagrams

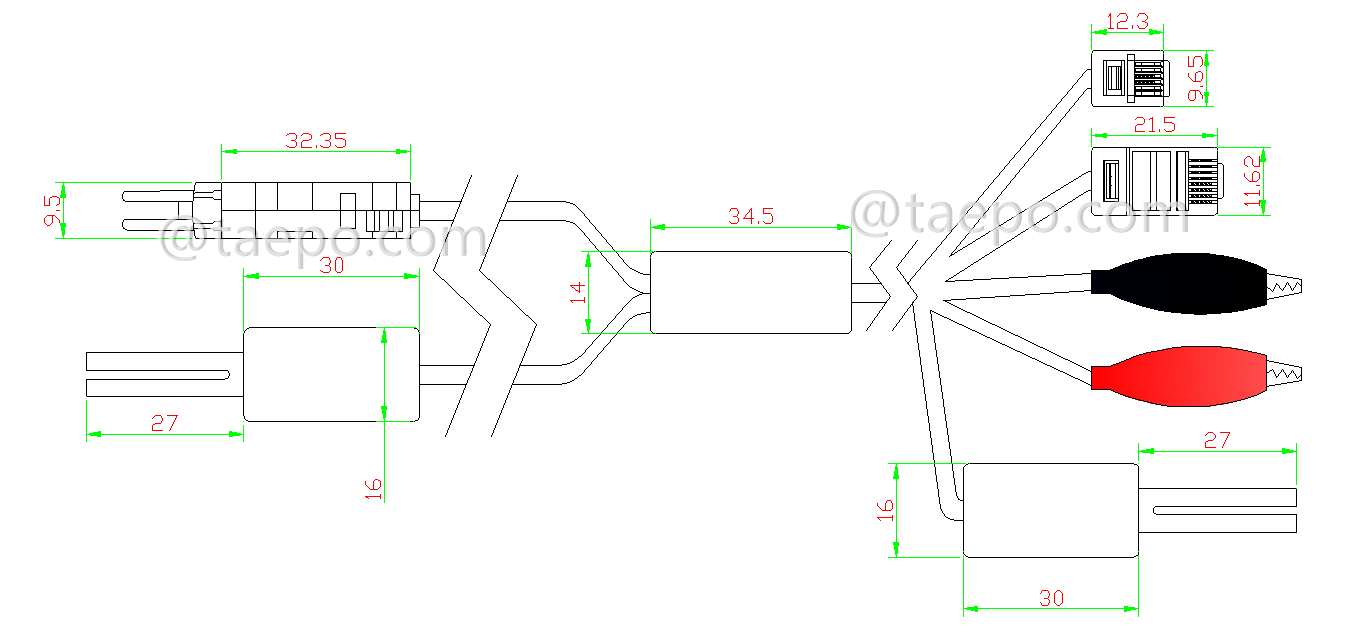

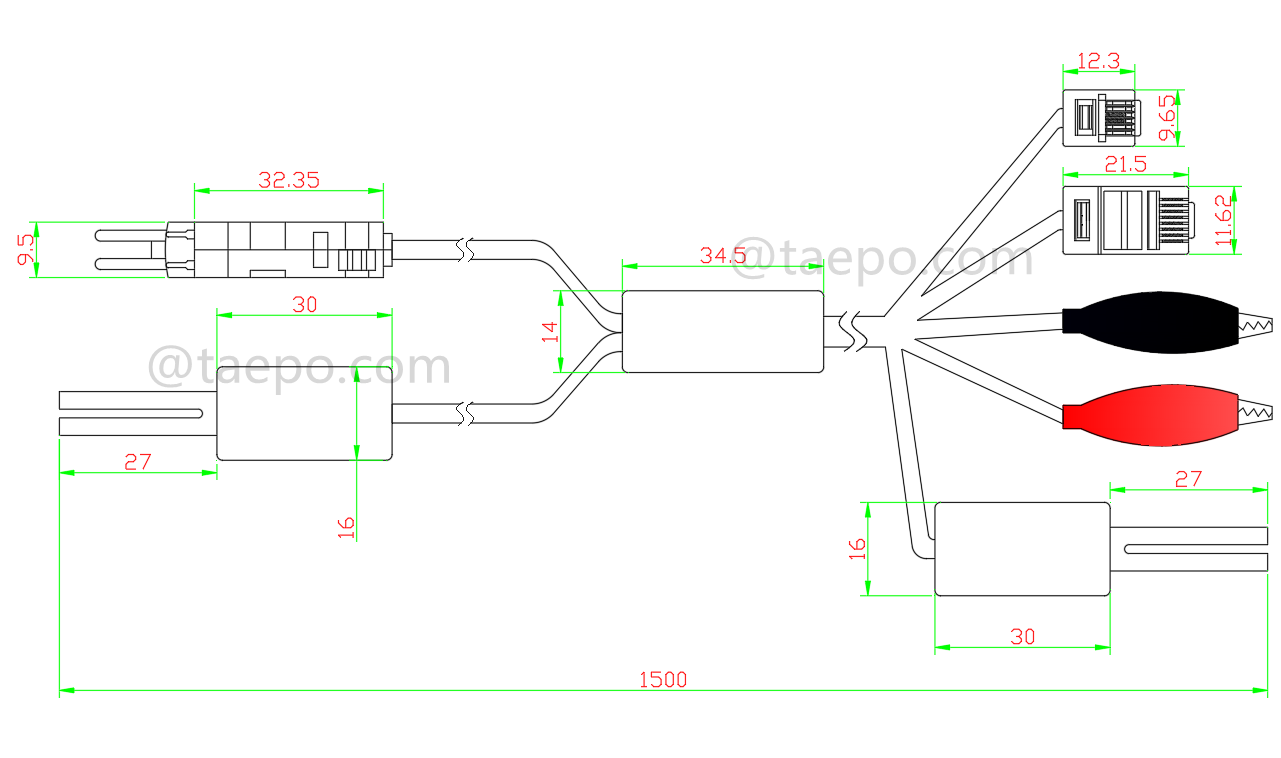

Schematic Diagrams for 2 pole test cord

Packing Pictures

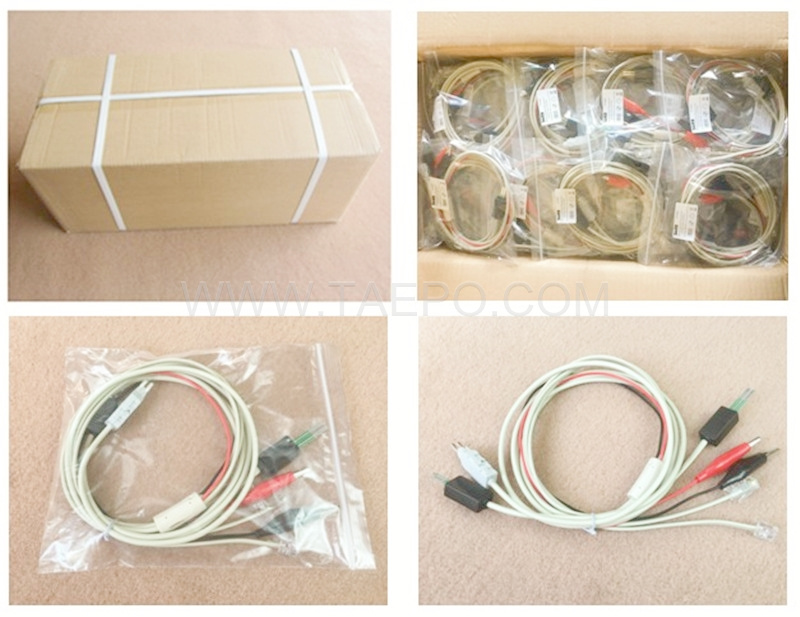

Packing Picture for 2 pole test cord

Order Data

Item No	Descriptions
TP-1220-2LNAM86	2-pole test cord, 4-pole LSA test plug + 4-pole N test plug to alligator clip, M plug, 8P2C modular plug, 6P2C modular plug, 1.5m
