4-pole LSA test plug to 6P4C modular plug krone voice module test cord

    Descriptions

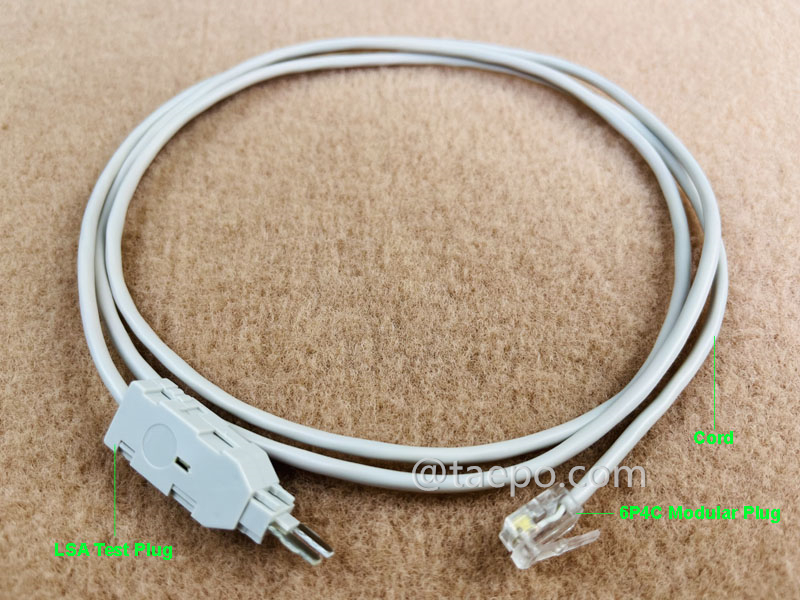

4-pole LSA test plug to 6P4C modular plug krone voice module test cord  (TP-1220-4TM) is used for testing the telephone line. The LSA plug is used for inserting into the LSA module, and the modular plug for connecting to the telephone testing kit.

The grey 4-pole cord permits parallel connection (monitor function) when it is used in the connection or disconnection module. The contacts of the cord bridge the centre contacts of the module which permit monitoring of the line (connection line). 4-pole cords can be used in switching modules. The PCB contacts would make a positive contact in this case.


    Main Features

• Cable Length: The cable is available in various lengths to suit different testing and connection needs.
• Flexible and Insulated: The cable is flexible and well-insulated to ensure safety and ease of use.
• LSA Test Plug: One end is equipped with an LSA test plug designed for secure connections to LSA terminal blocks commonly used in telecommunications and networking.
• 6P4C Modular Plug: The other end features a 6P4C modular plug, commonly used for telephone lines and networking applications, with two conductors for basic connections.
• Durability: Designed to withstand repeated use, with durable materials and insulating coatings on alligator clips.
• Safety: Alligator clips are coated to prevent accidental short circuits, ensuring safety during testing.

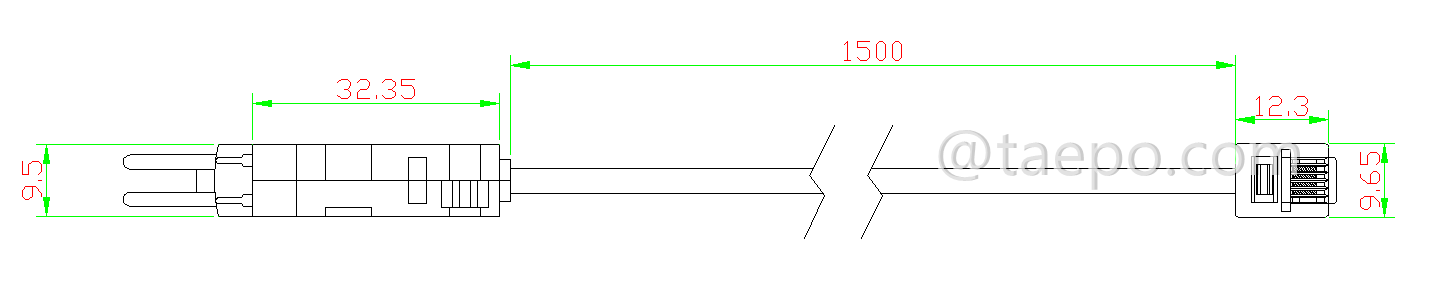

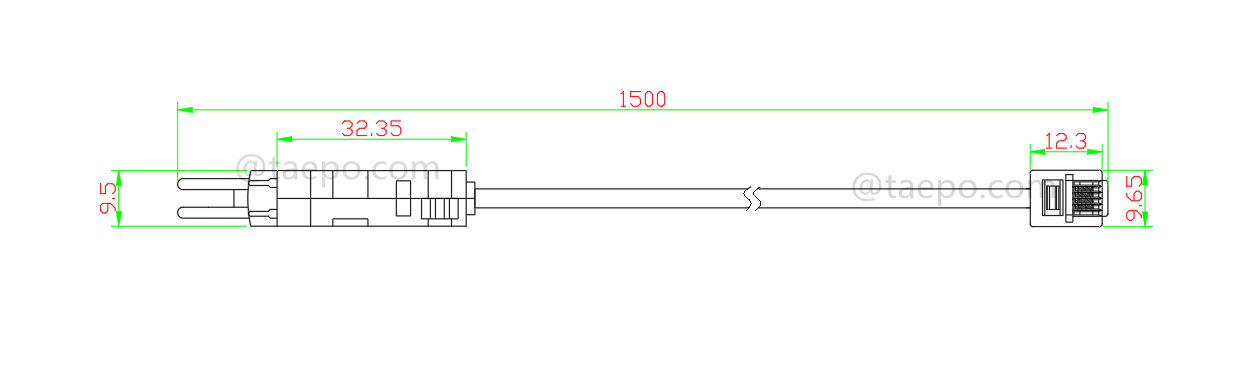

    Schematic Diagrams

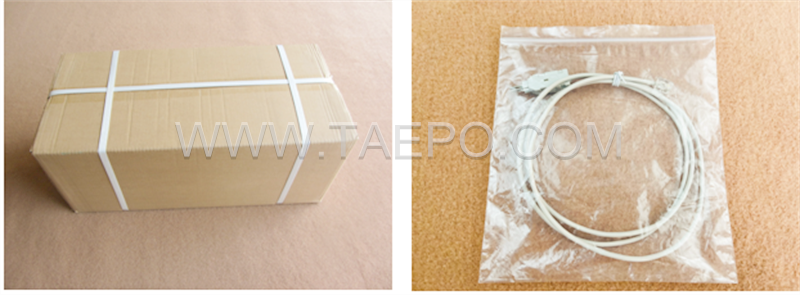

    Packing Pictures

    Order Data
