Rail sliding 1U 19 inch 24 fibers Rack mounted ODF

  Descriptions

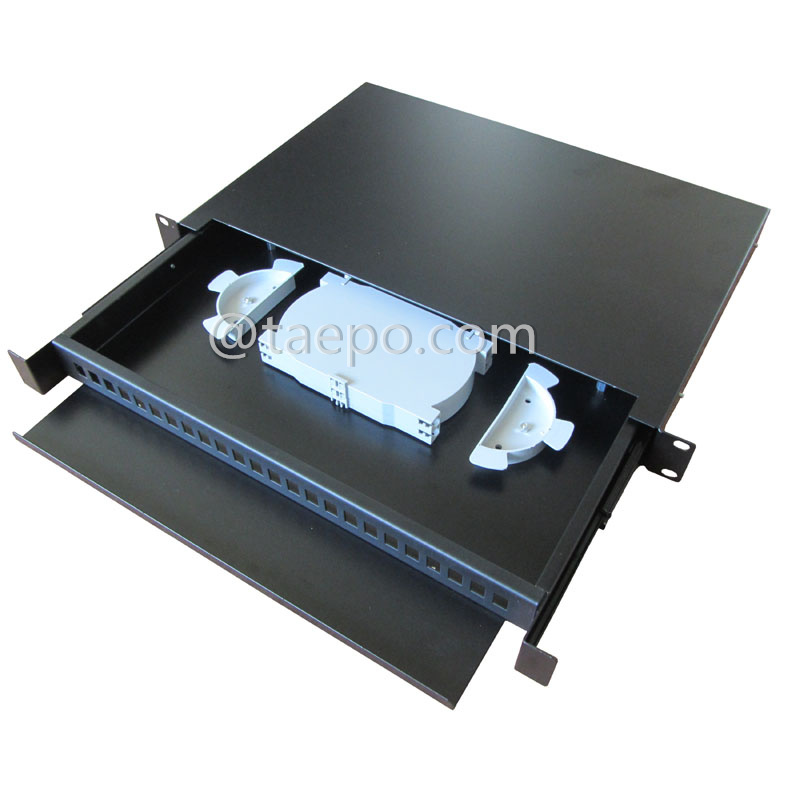

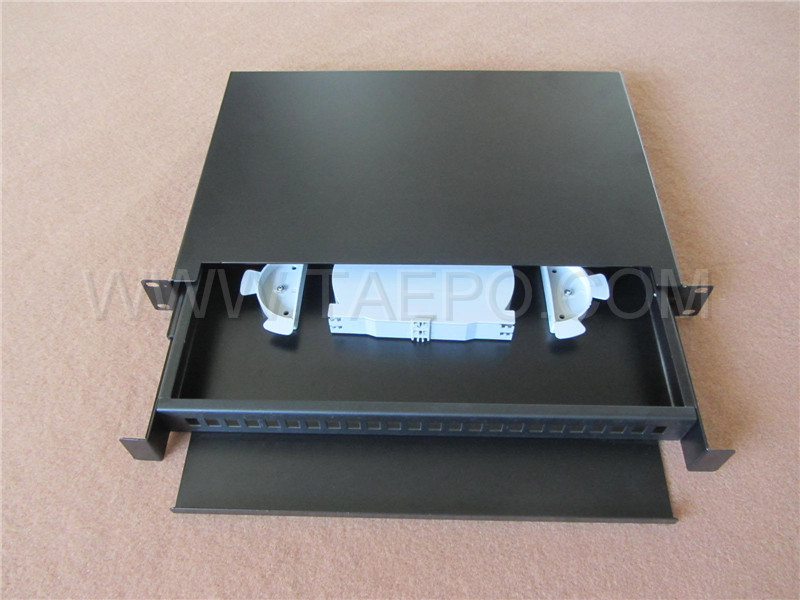

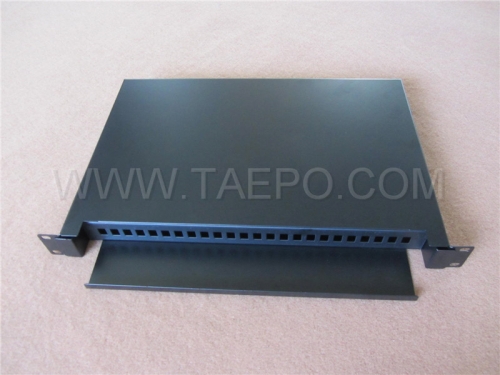

This 24 fibers Rack Mounted ODF (TP-3205-24D) is a frame used to provide cable interconnections between communication facilities, which can integrate fiber splicing, wiring, termination, adapters & connectors, and cable connections together in a single unit. It can also work as a protective device to protect fiber optic connections from damage.

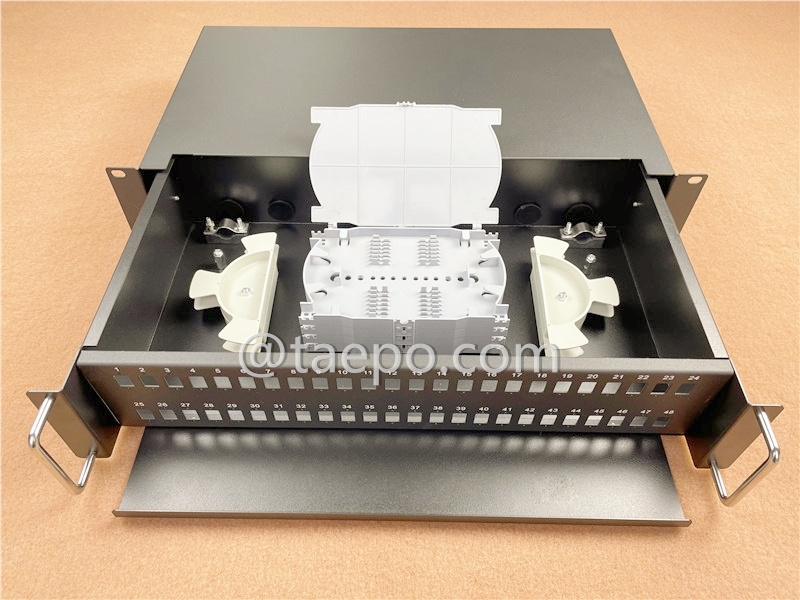

The 3205 ODF is designed to provide a low-profile 1RU compact solution for the termination of 24 simplexes SC or up to 48 dual LC adapters. At less than 44.50 mm (1.75" height), the panel fits easily into one unit of rack space.

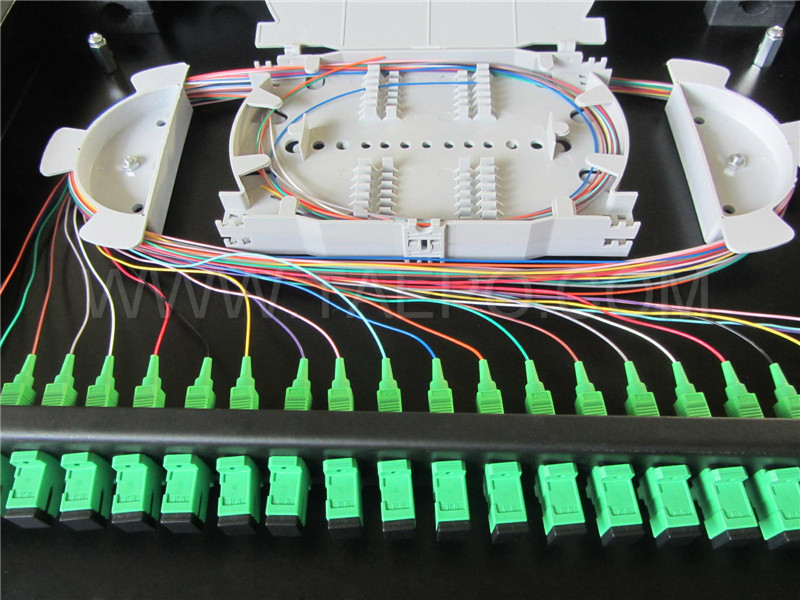

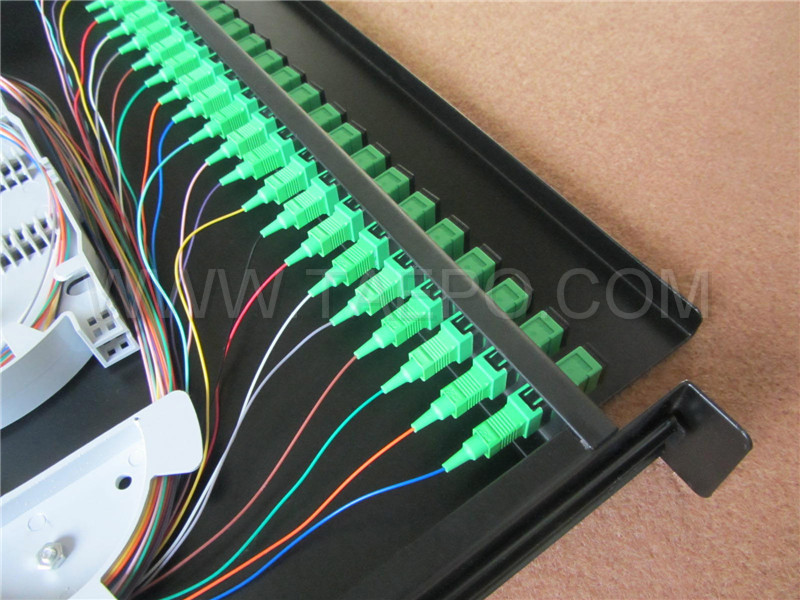

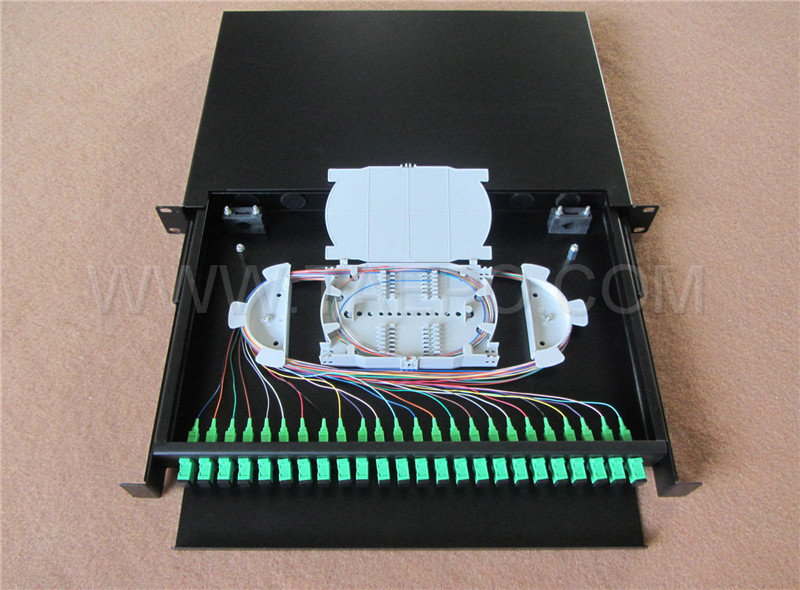

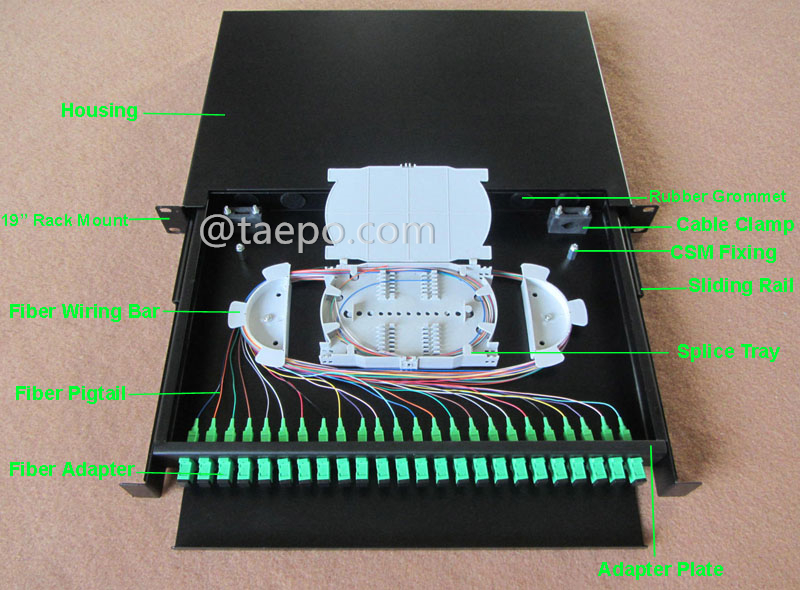

It consists of splice trays, patch panels, adapters, pigtails, and external housing.

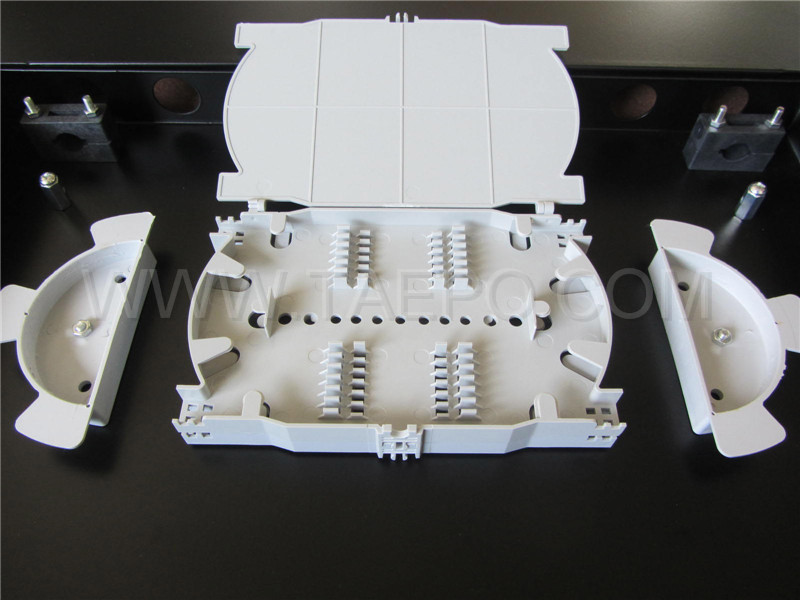

A splice tray is used for the function of splicing of the fiber cables and pigtails. Patch panel for the function of assembling fiber adapters for terminations. The box is made of cold rolling steel, with powder coating.
The ODF is used only for indoor applications.



  Main Features

• Enclosure structure to protect fibers from damage.
• Special fiber routing designs to ensure the bending radii greater than 40mm.
• Adopt static powder coating techniques, rust-proof and beautiful appearance.
• Provide easy front access to rear compartment and jumpers

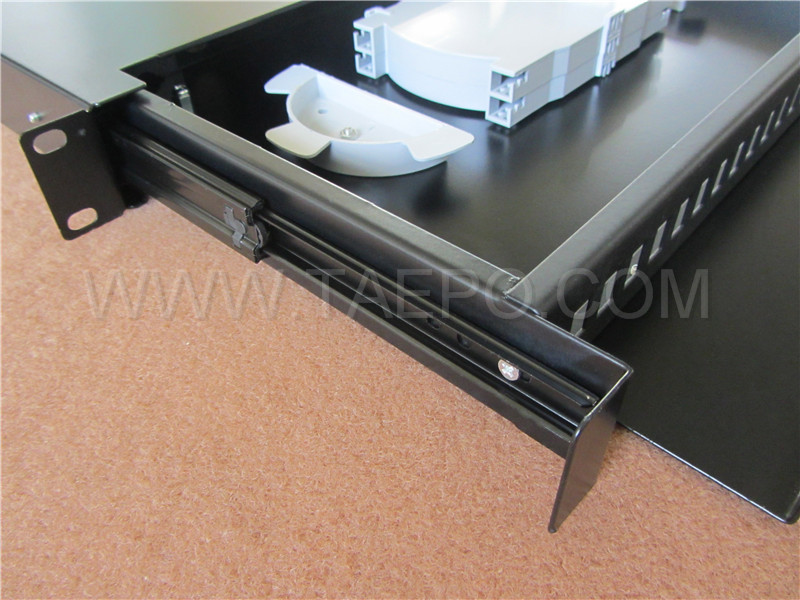

• Ball bearing slid rails with positive stop

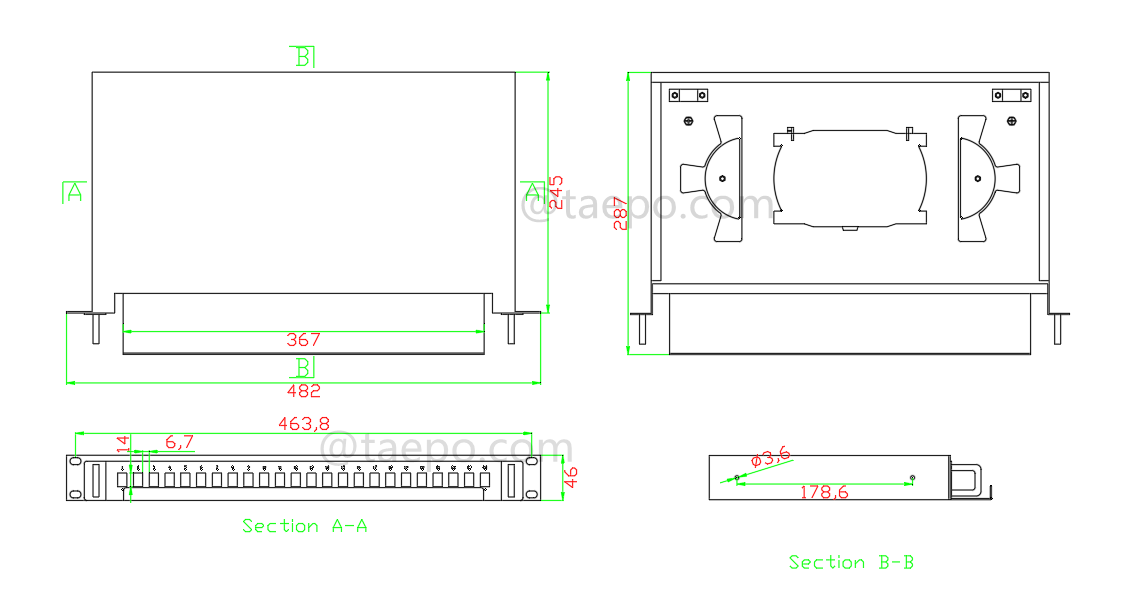

  Schemetic Diagrams
