Fiber optic splice closure (FOSC), vertical type, heat shrink sealing, SC/APC 36 fibers

TAEPO - Specialized in Fiber Optic Splice Closure(FOSC), Professional Chinese Manufacturer for Versatile Network Solutions !
What is Fiber Optic Splice Closure(FOSC) used for?


    DESCRIPTIONS

The fiber optic splice closure (TP-3503-36CA) is a durable and reliable enclosure designed to protect fiber optic splices in harsh outdoor environments. This vertical-type FOSC uses a heat shrink sealing mechanism that ensures optimal protection against environmental factors such as moisture, dust, and impact. With its high-quality construction, it is ideal for both aerial and underground fiber optic cable installations.

The FOSC is designed to support SC/APC connectorsand can accommodate up to 36 fibers within its protective housing. Its size of 420mm (Height) x Φ135mm (Diameter) ensures ample space for fiber management, providing secure storage for splices and connectors. The vertical layout is efficient for high-capacity networks and minimizes the footprint, making it suitable for space-constrained installations.

The closure includes 3 main ports and 2 additional ports (1 big oval port), offering flexibility for fiber routing and expansion. It supports a maximum cable diameter of 17mm, making it versatile enough to accommodate various cable types used in fiber-to-the-home (FTTH), long-haul, and local area networks.

    MAIN FEATURES

• Heat Shrink Sealing: Ensures a watertight and dustproof seal.
• Vertical Design: Efficient space-saving design ideal for various installation environments.
• SC/APC Compatibility: Supports SC/APC connectors, which are widely used in high-precision applications.
• Accommodates up to 36 Fibers: Provides sufficient capacity for medium to large fiber optic networks.
• Size - 420mm x Φ135mm: Compact design with ample room for fiber management.
• 3+2 Port Configuration: Allows for flexible fiber routing and easy future expansion.
• Max Cable Diameter of 17mm: Supports standard and larger cable types used in modern fiber networks.
• Durable Construction: Built to withstand harsh environmental conditions, including water, dust, and mechanical stress.
• UV Resistant: Ensures long-term outdoor durability even under direct sunlight exposure.
• Corrosion-Resistant Materials: Provides longevity in chemically aggressive environments.
• Impact Resistance: Protects fibers from accidental damage during installation and operation.
• Easy Installation: Simplifies the process of splicing and closing, reducing installation time.
• High Tensile Strength: Protects internal fibers even when subjected to external forces.
• Cable Strength Member Integration: Offers secure fixation for cable strength members, ensuring strain relief.
• Suitable for Aerial and Underground Use: Versatile for different types of installations.
• Expandable Fiber Trays: Fiber management trays can be added as needed for additional capacity.
• Easy Re-entry: Can be reopened for maintenance without damaging the seal.
• Wide Temperature Range: Operates reliably in extreme temperatures.
• Adaptable for Multiple Fiber Types: Supports both single-mode and multi-mode fibers.
• Minimal Maintenance Required: Designed for long-term use with minimal upkeep.

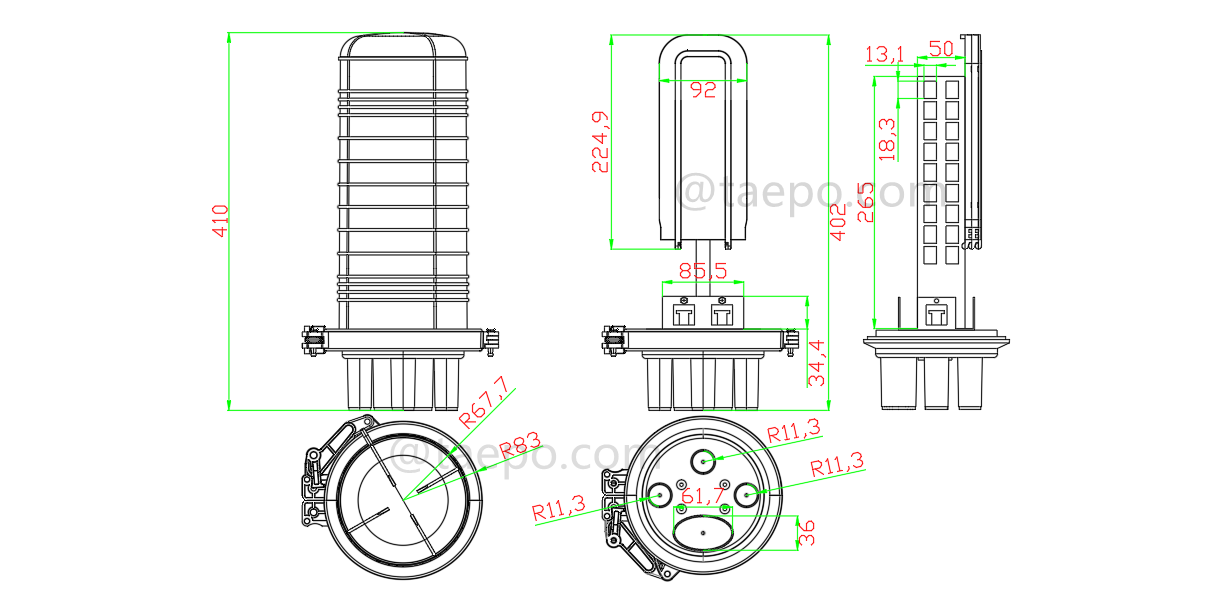

    SCHEMATIC DIAGRAMS

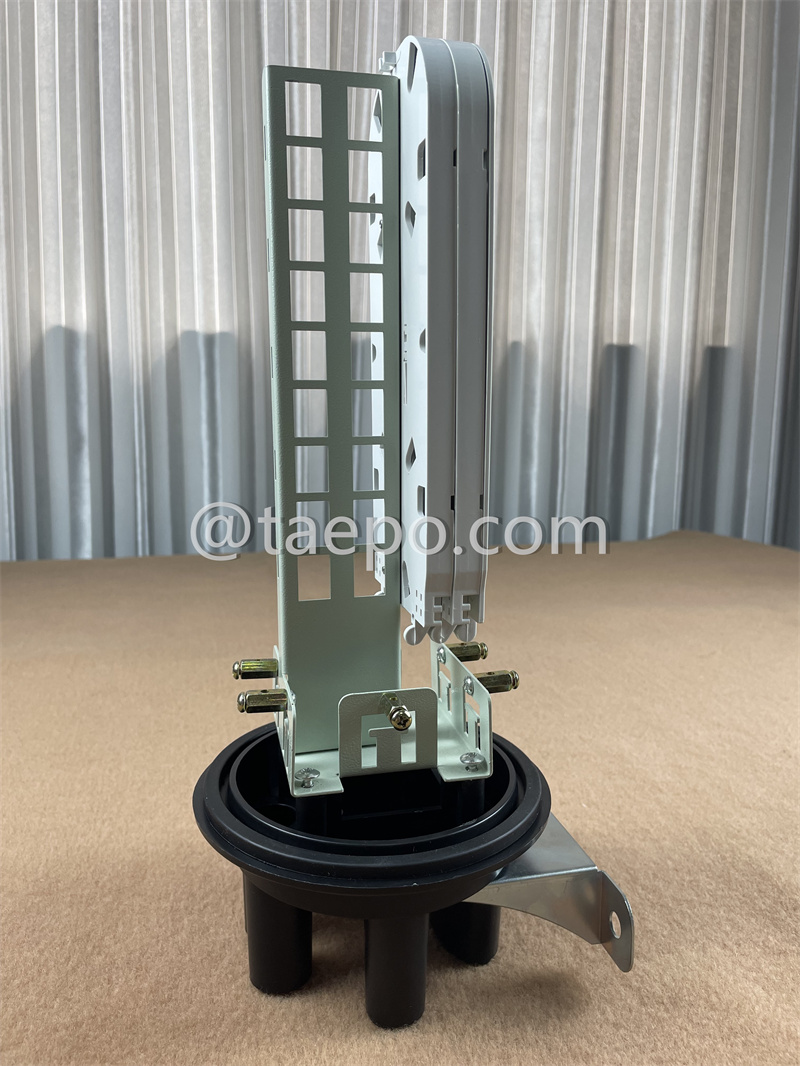

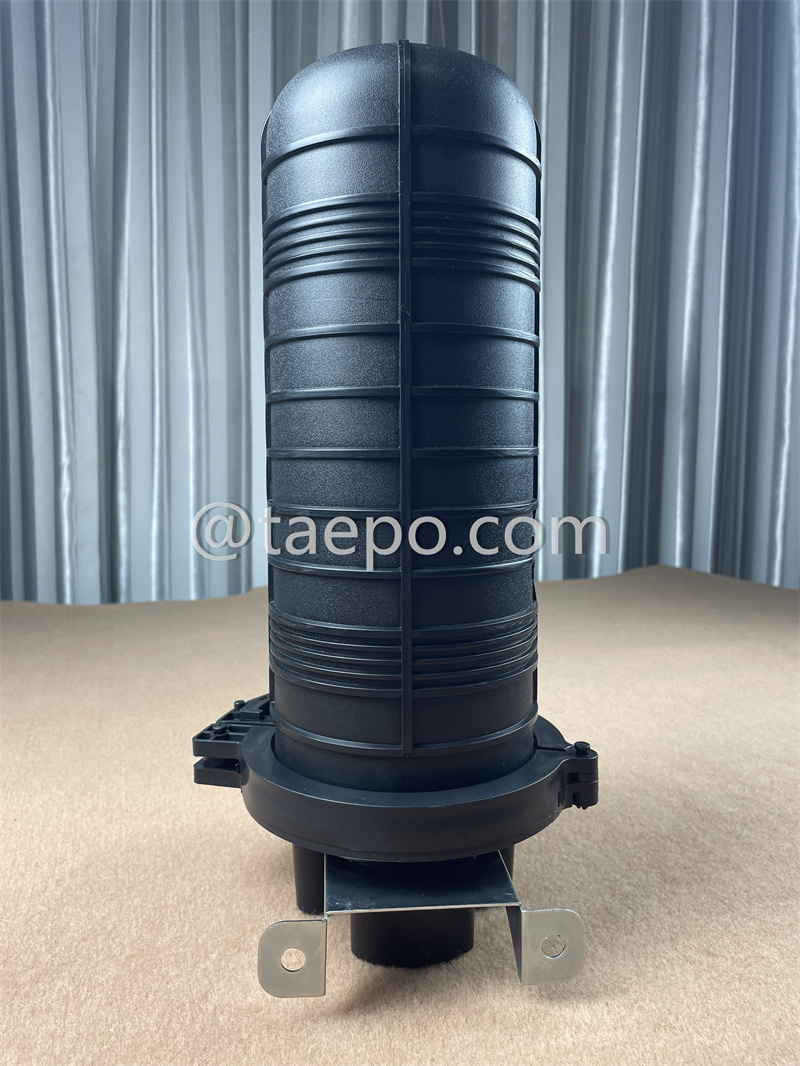

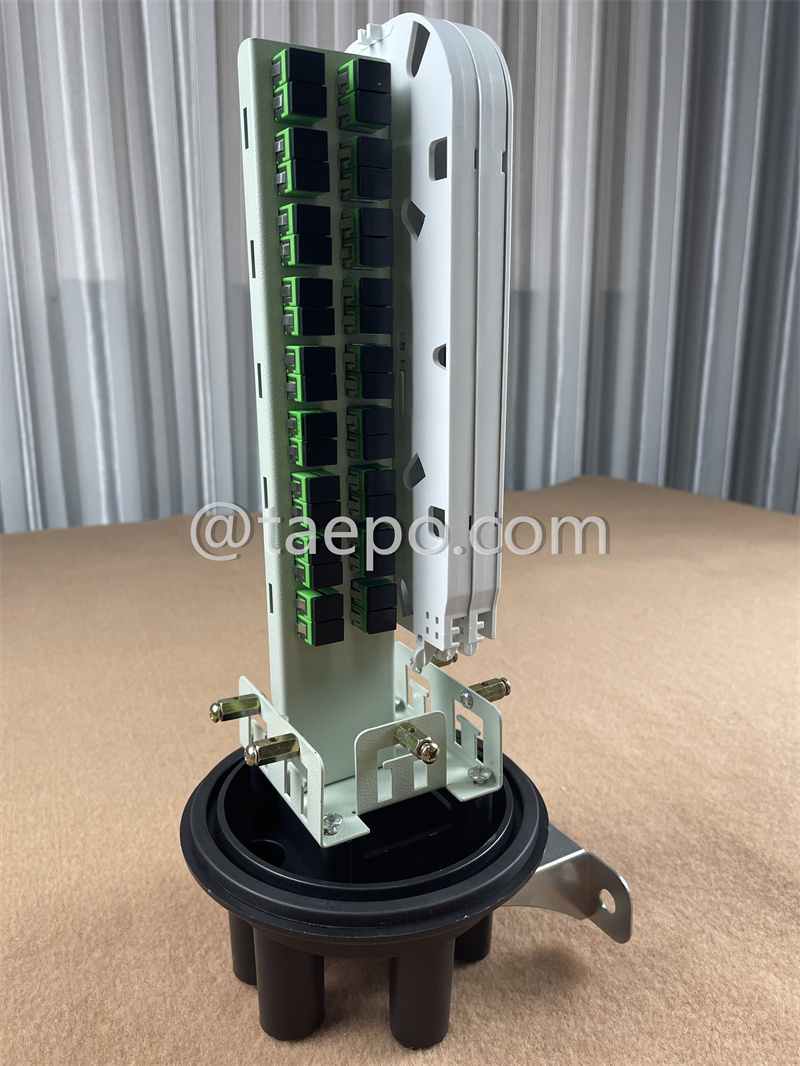

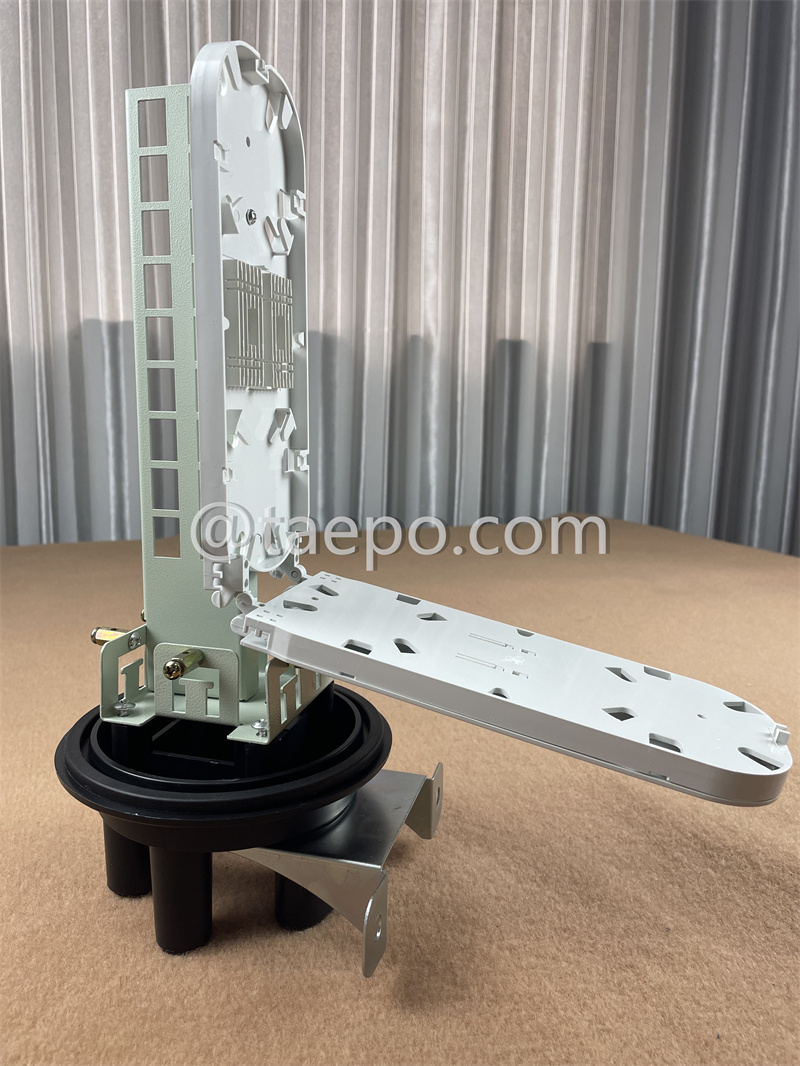

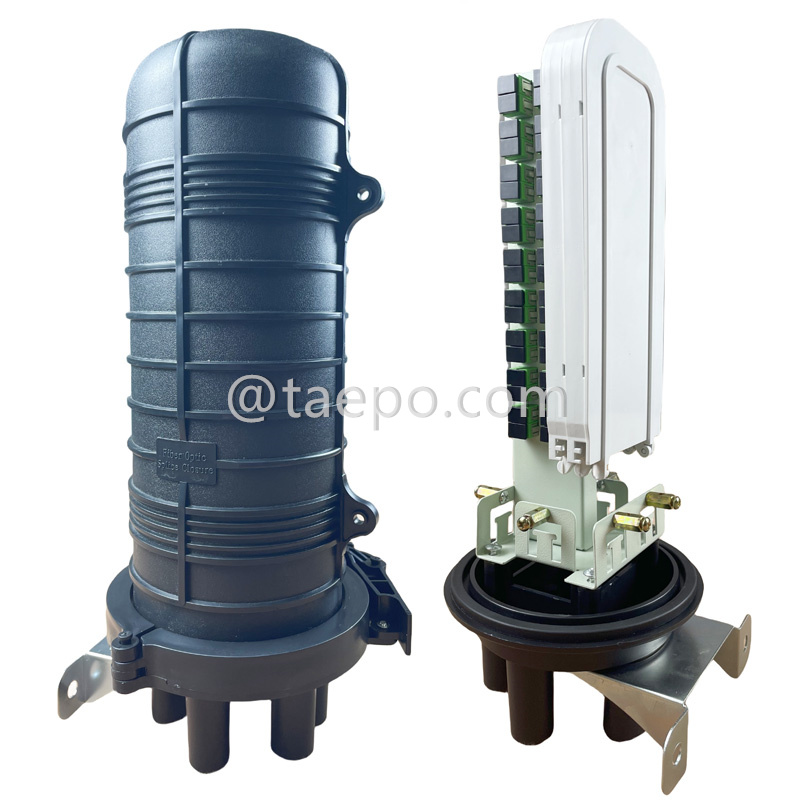

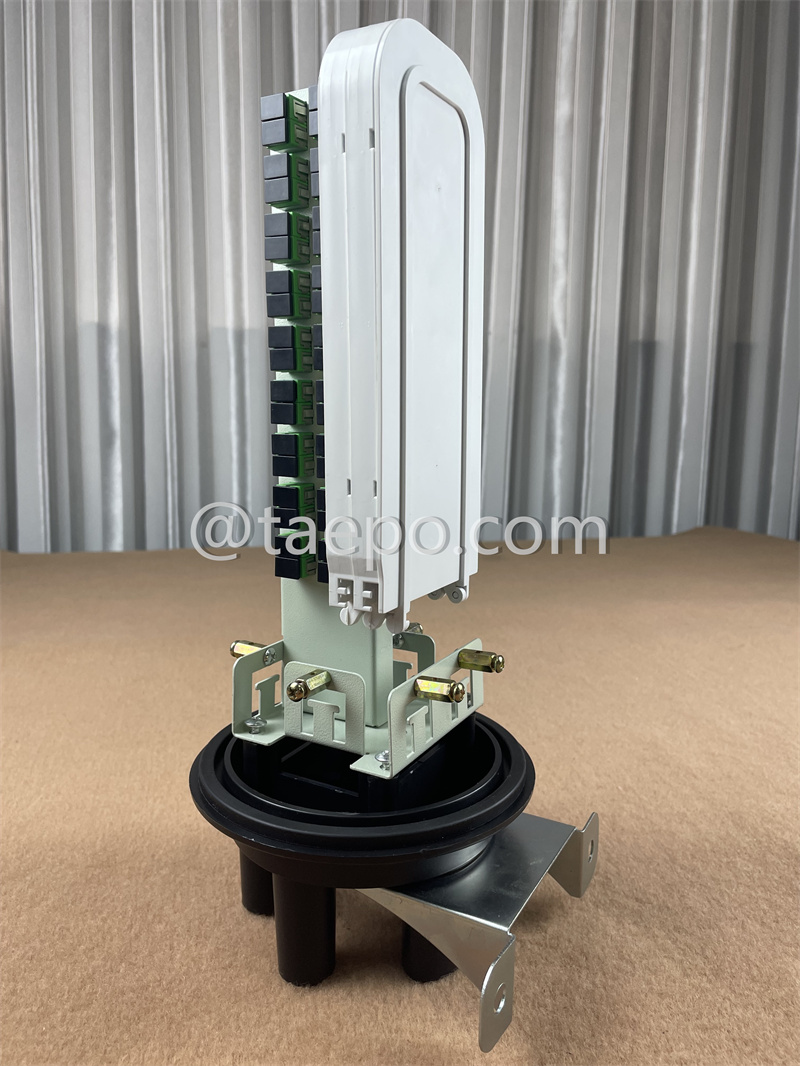

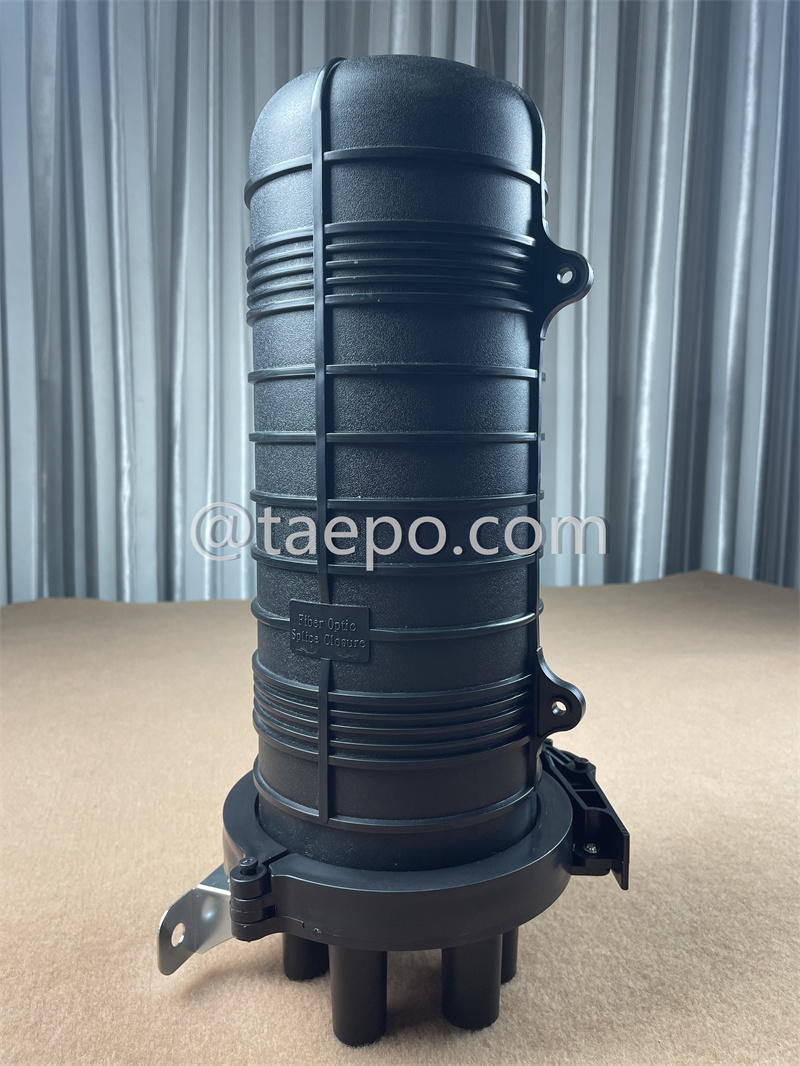

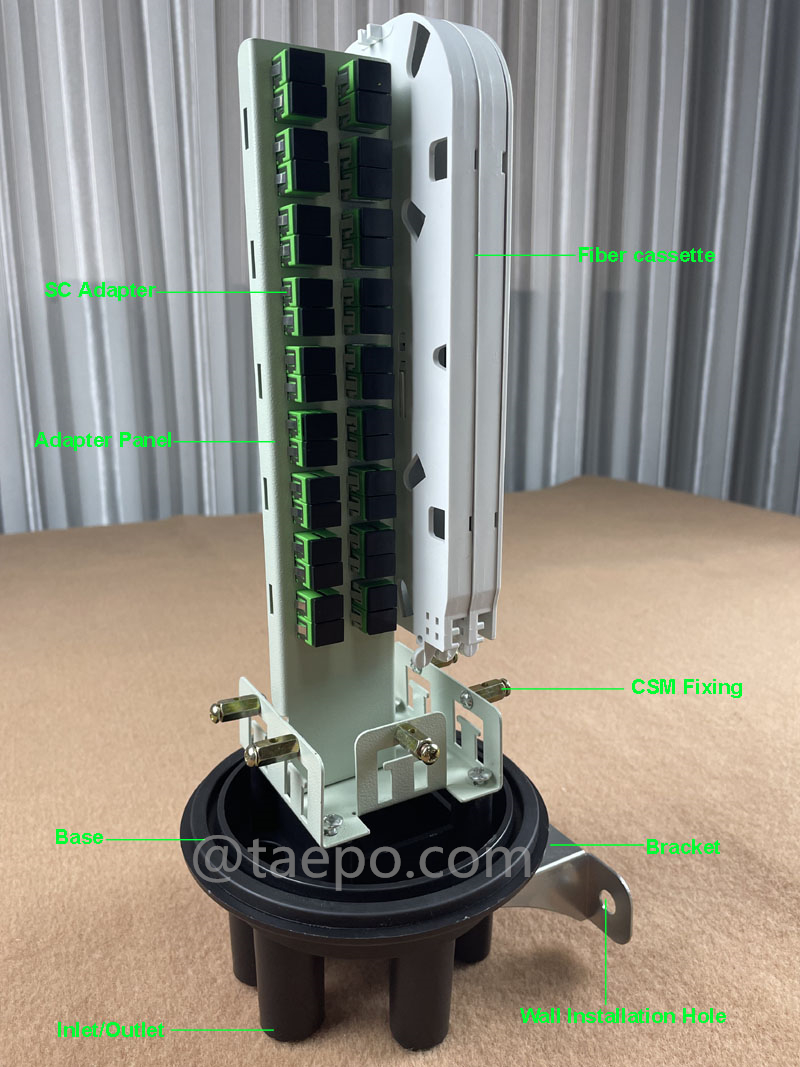

    ILLUSTRATION PICTURES

    PACKING PICTURES

   ORDER DATA
