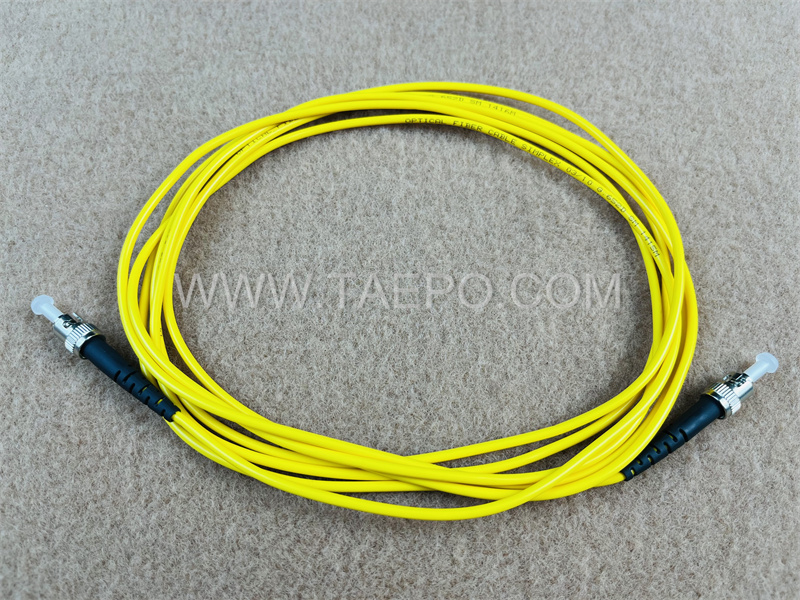

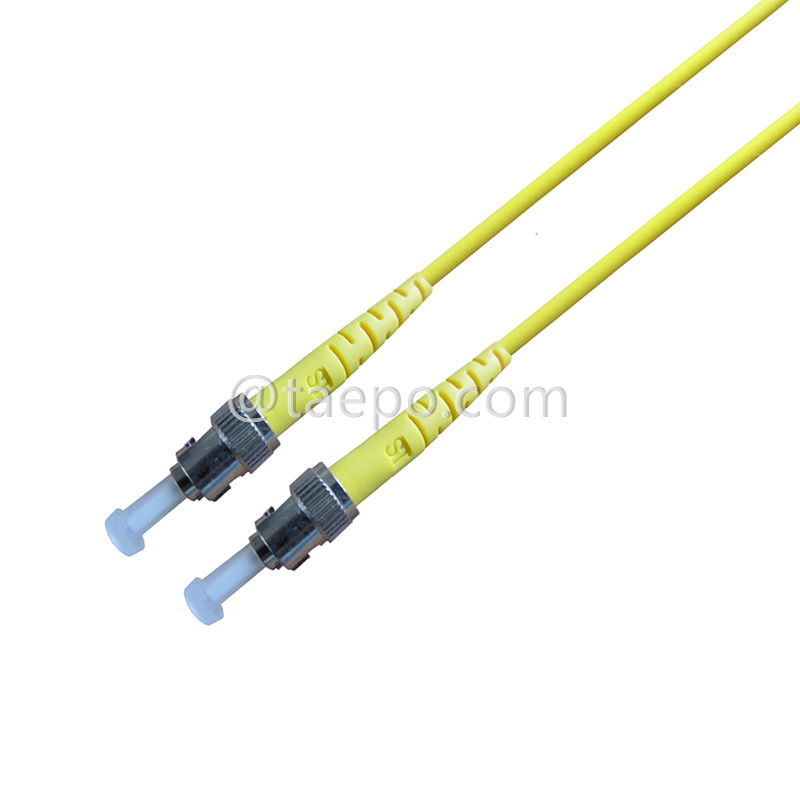

Single mode 9/125um OS1 SM ST UPC fiber optic patch cable

    Descriptions

A single mode 9/125µm OS1 SM ST UPC fiber optic patch cable is designed for efficient, high-speed data transmission in various networking applications. Its combination of single mode fiber, reliable ST connectors, and UPC polish ensures optimal performance and minimal signal loss over long distances.

Here’s a detailed description:

Single Mode: This cable uses single mode fiber, which has a small core diameter (9µm). It allows only one mode of light to propagate, resulting in minimal signal loss and enabling long-distance transmission (often over 40 kilometers).

9/125µm: Refers to the specifications of the fiber:  125µm: The cladding diameter, which surrounds the core and helps confine the light.  9µm: The core diameter, ideal for single mode applications.

OS1: This designation indicates a standard for indoor single mode fiber optimized for low attenuation, making it suitable for long-distance applications in controlled environments.

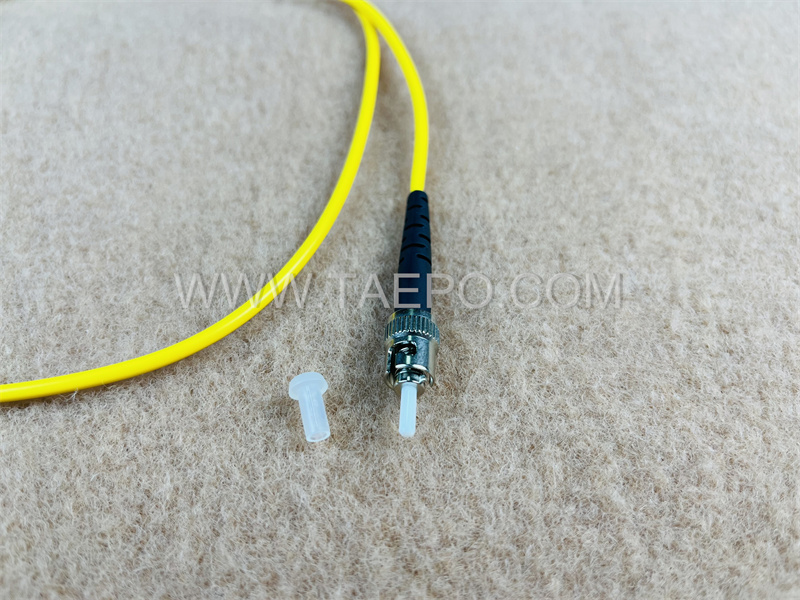

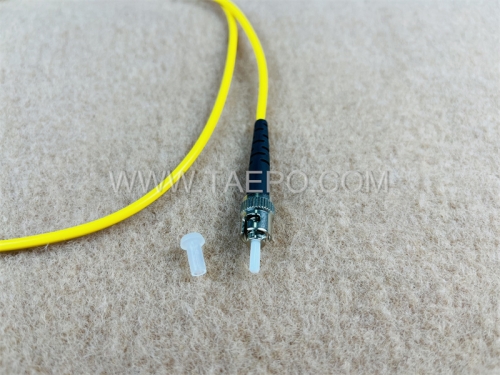

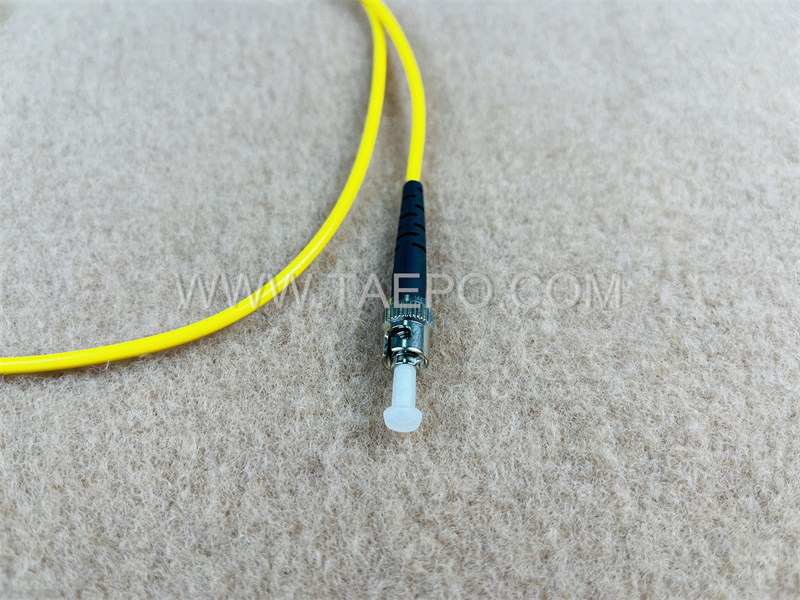

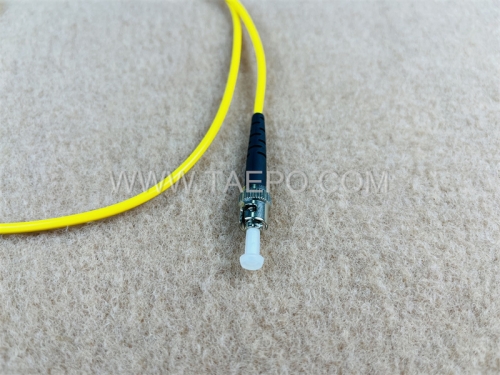

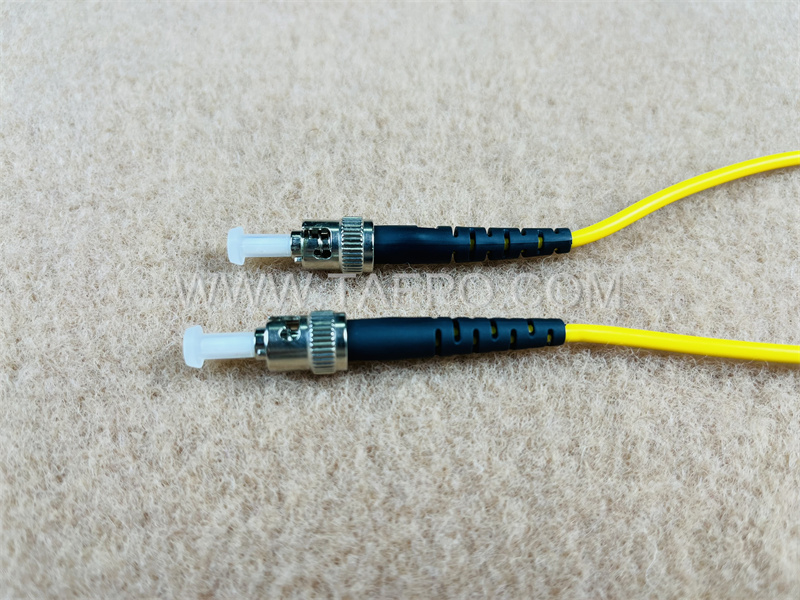

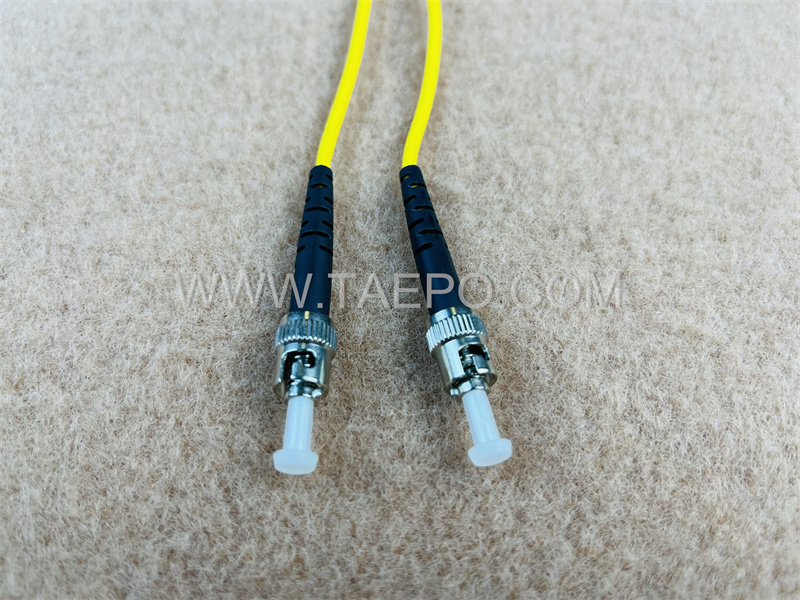

ST Connector: The ST (Straight Tip) connector features a bayonet-style locking mechanism, ensuring a secure and stable connection. It is widely used in networking applications due to its reliability.

UPC (Ultra Physical Contact): Refers to the polish of the connector's end face, designed to reduce signal loss and back reflection, which enhances overall performance in telecommunications.

    Main Features

High Performance: The single mode design allows for efficient data transmission over long distances with minimal attenuation, making it ideal for telecommunications and networking applications.

Reliable Connections: The ST connector provides a secure and robust connection, reducing the likelihood of disconnection or signal degradation.

Low Reflection: The UPC polish minimizes back reflections, maintaining signal integrity and improving overall performance in high-speed applications.

    Schematic Diagrams

    Packing Pictures

    Order Data
