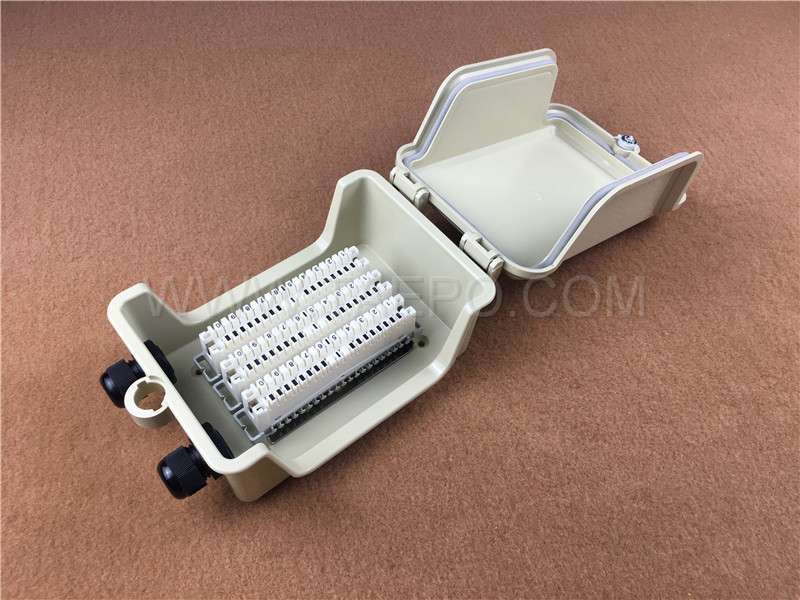

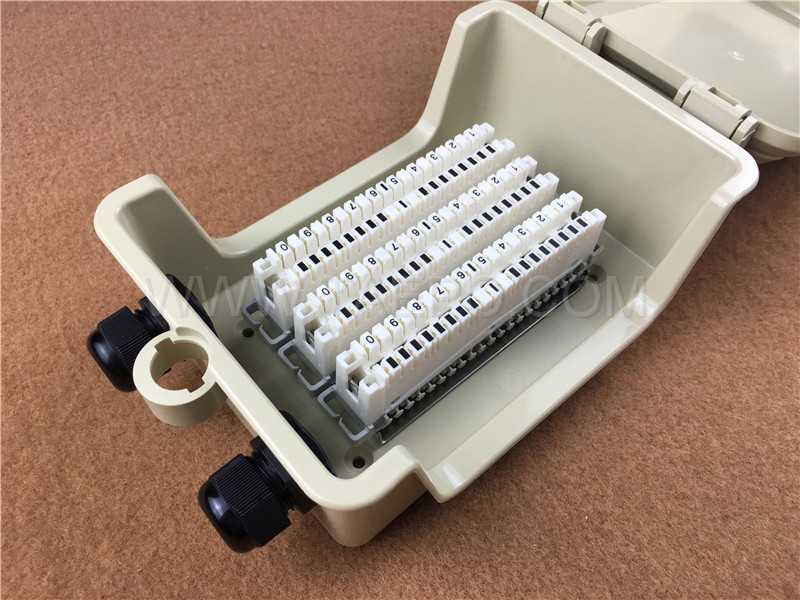

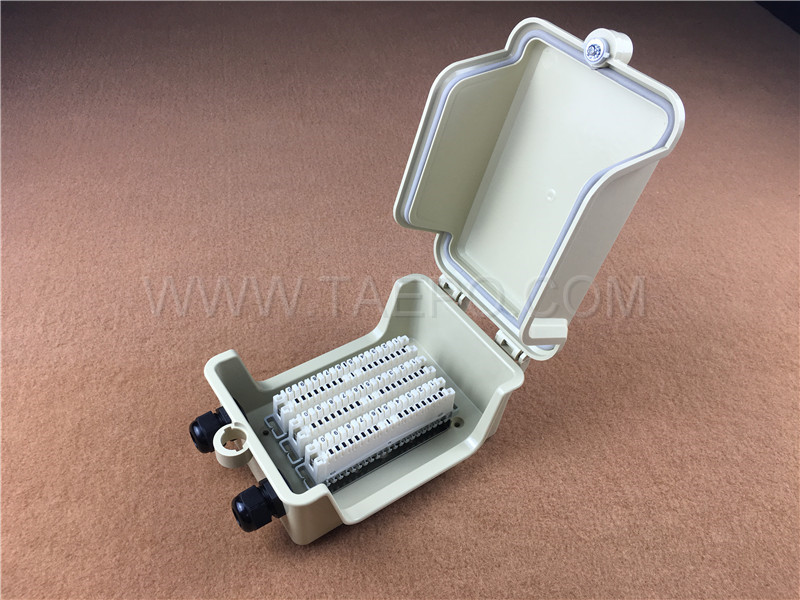

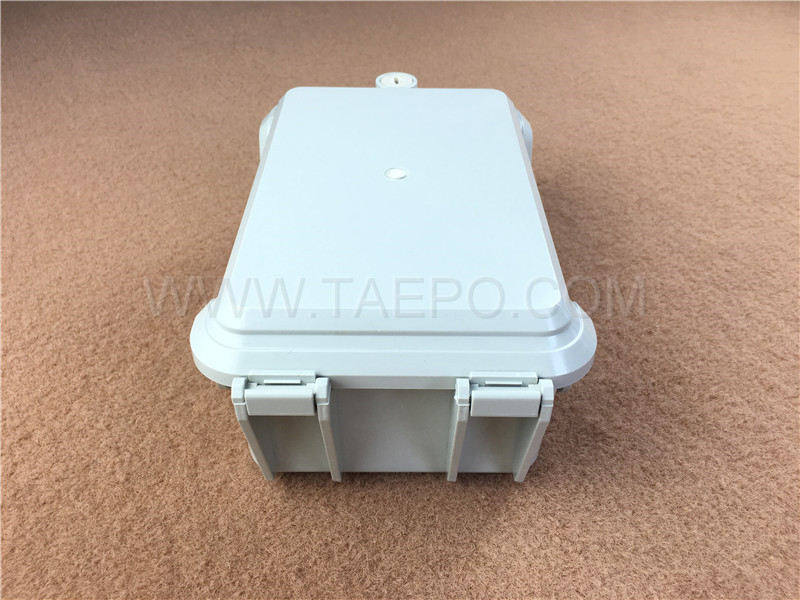

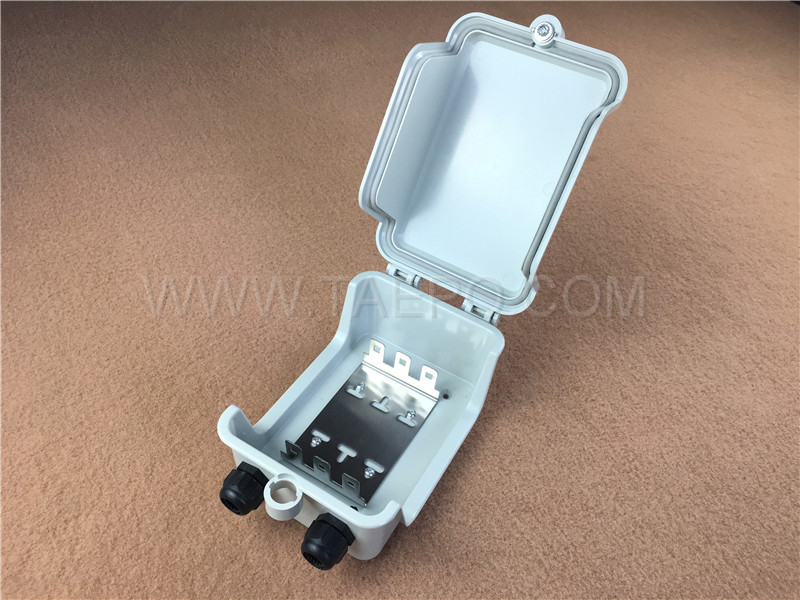

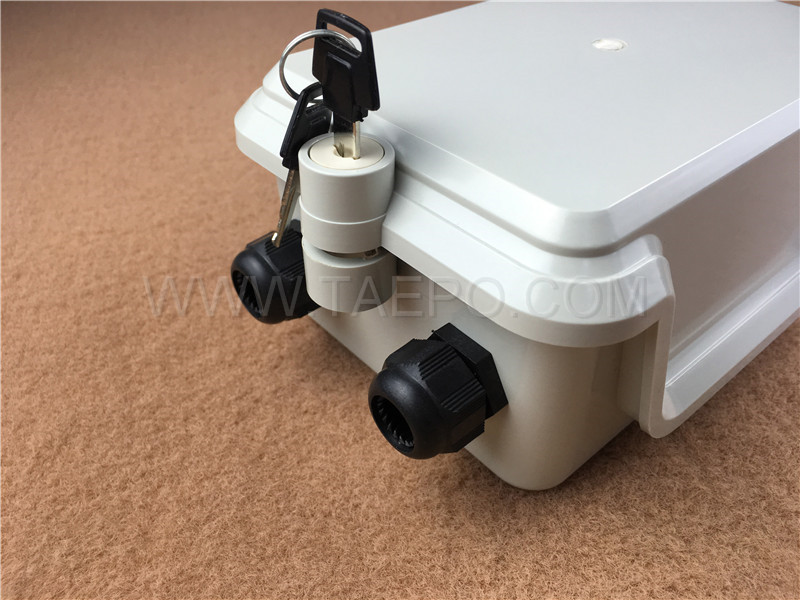

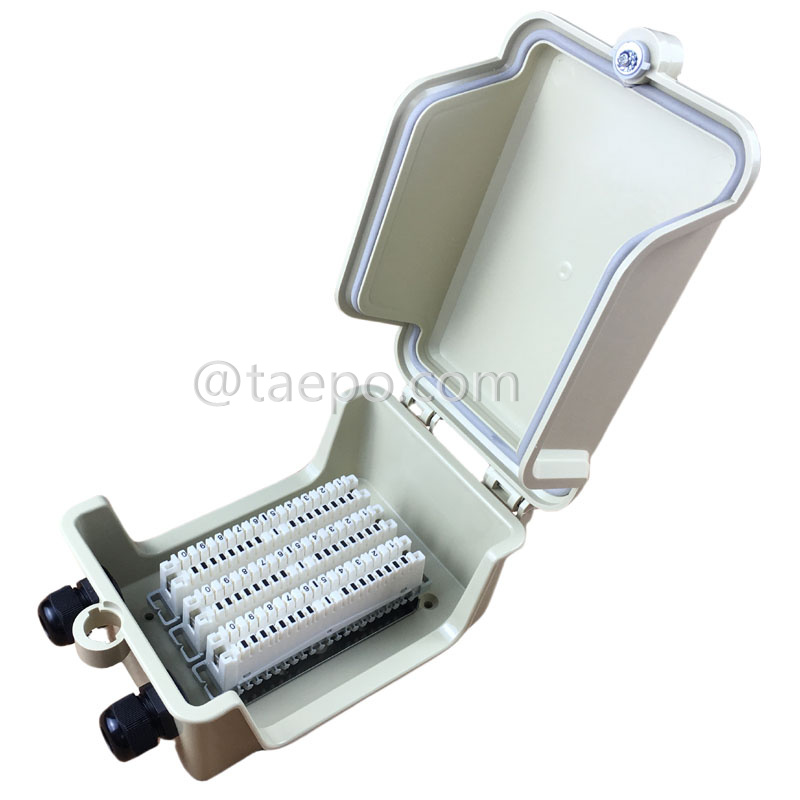

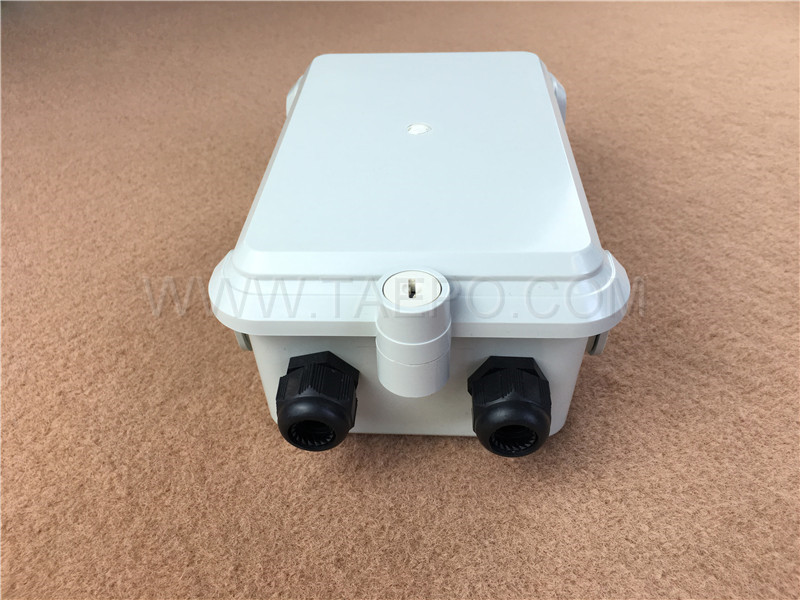

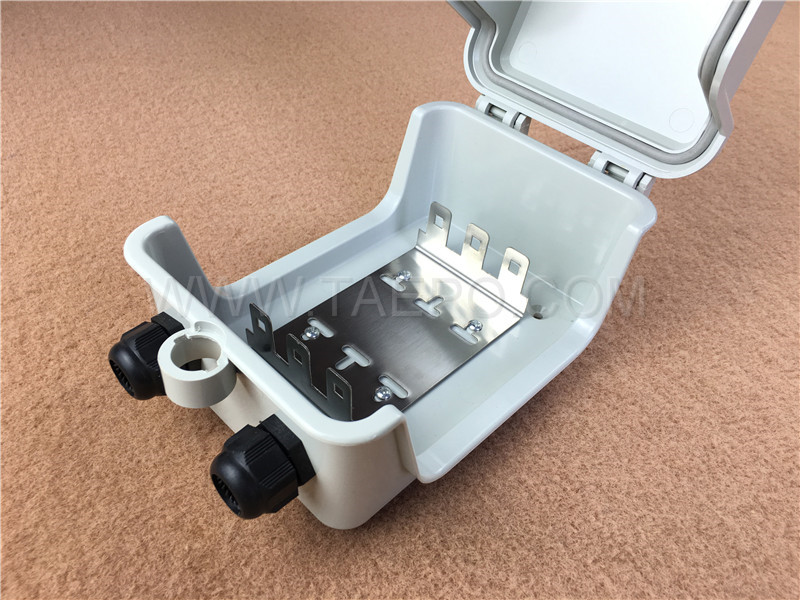

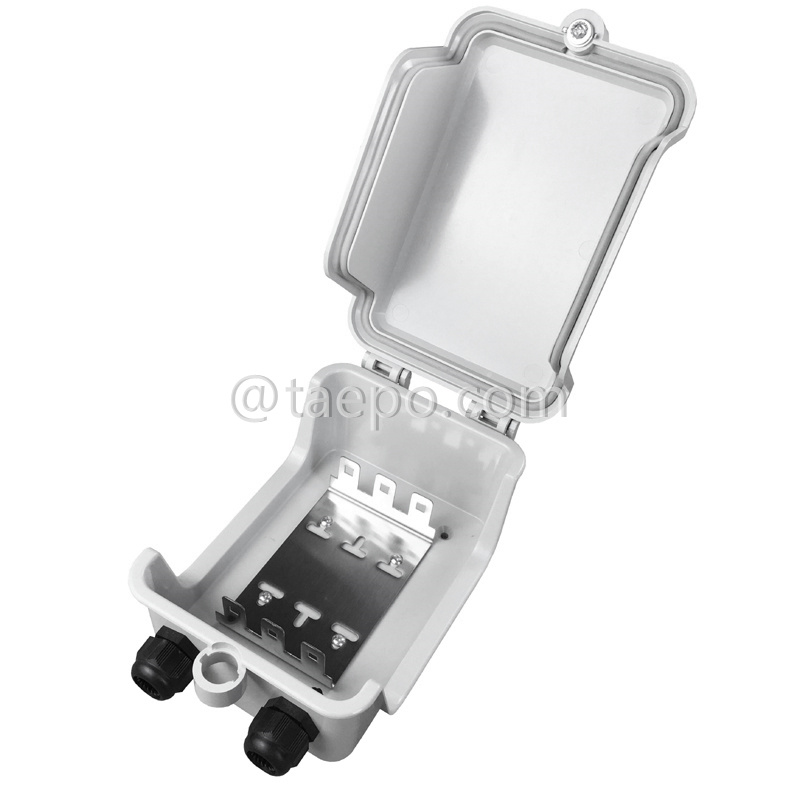

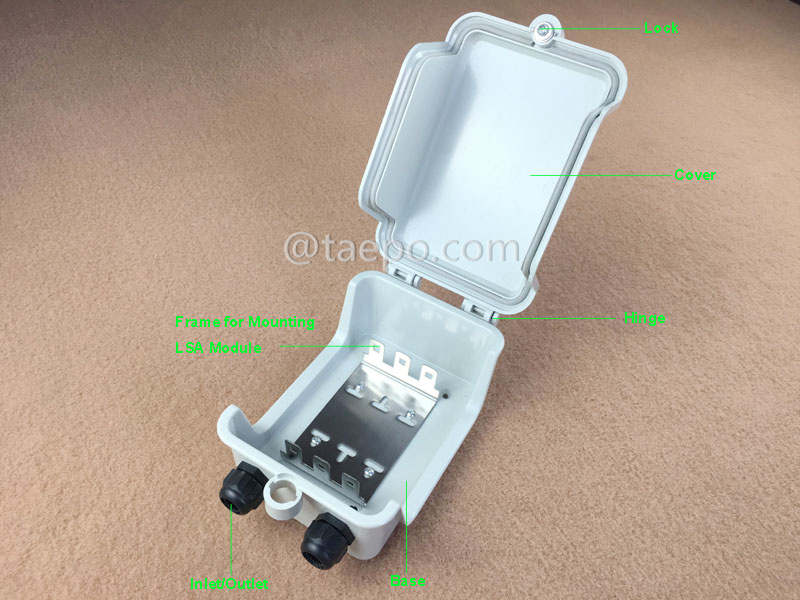

Outdoor waterproof 30 pairs telephone dp box with adc krone module

  Descriptions

 This outdoor 30 pairs DP box (TP-1707-30) is used in terminating cables of secondary telephone networks to the cable pairs of subscriber lines. It is fixed with 10 pair adc krone module.

This module is highly reliable and cost-effective wire connection system for modern telecommunications and data networks. It adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.

  Main Features

• Insulation Displacement Connection
• No wire-stripping, screw and solder free
• Reliable connections
• Clear labeling
• Modular design and installations
• Gas tight connection
• One push wire insertion
• Robust long-term environmental stability
• Flexible indoor and outdoor use
• Wall or pole mountable
• Quick mounting and installation

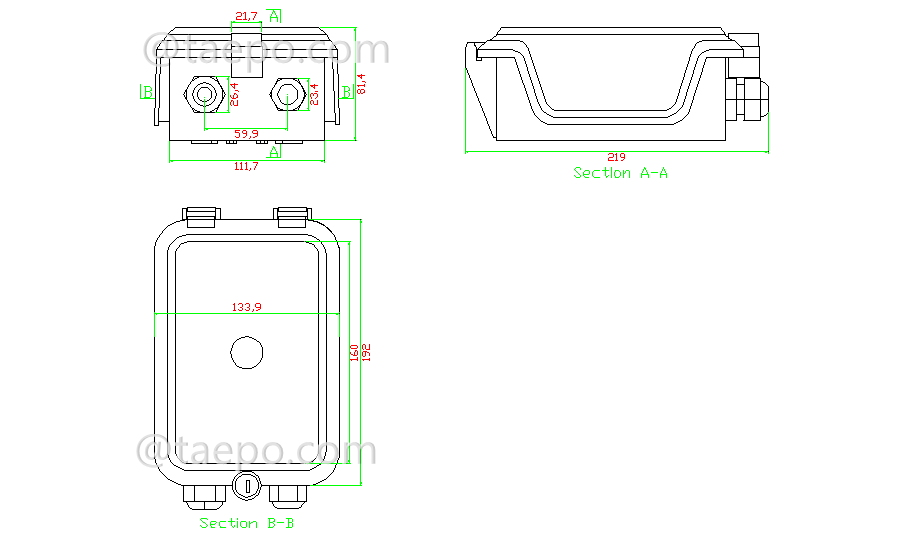

  Schematic Diagrams

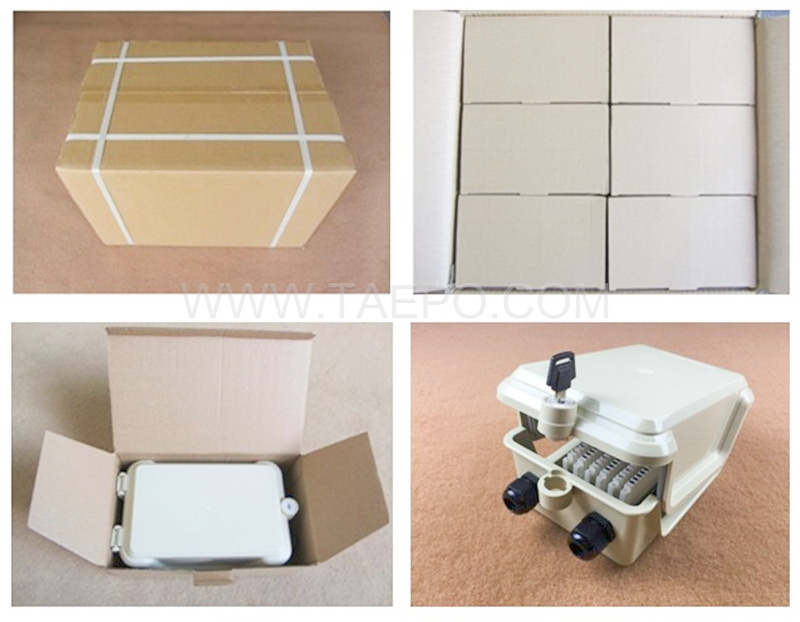

  Packing Pictures

  Order Data
