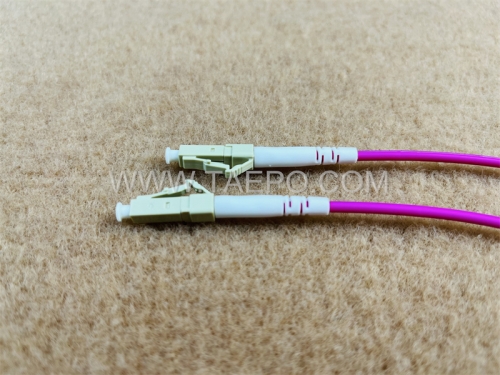

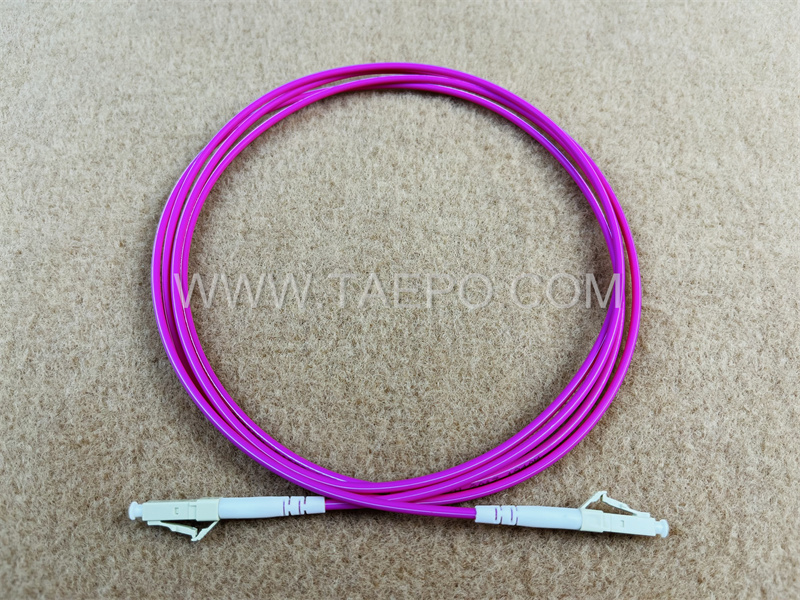

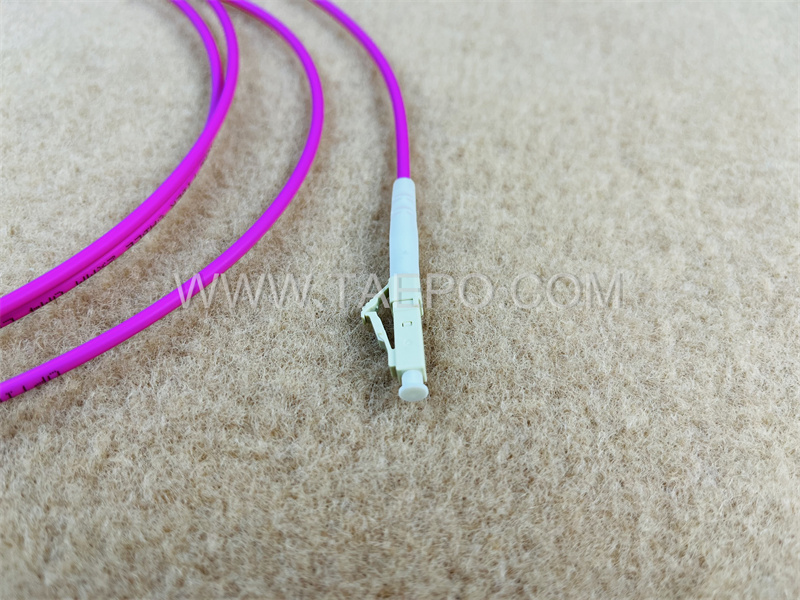

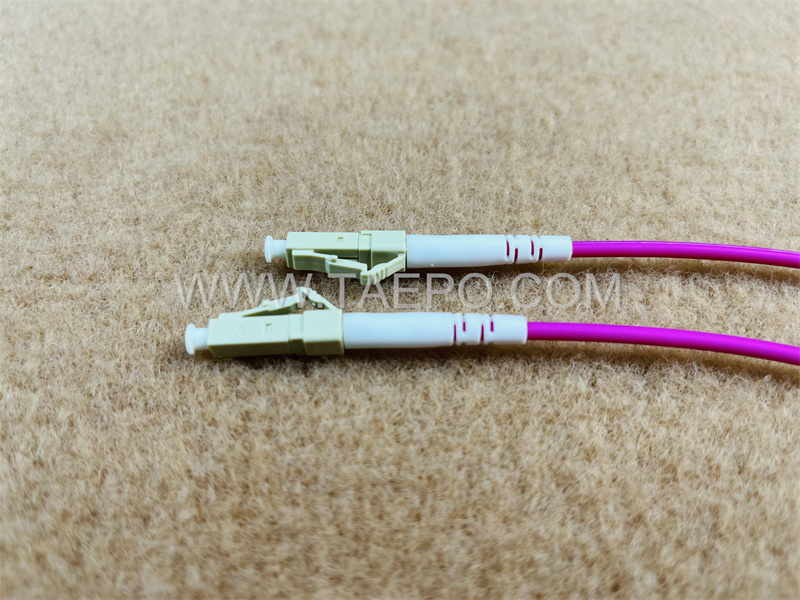

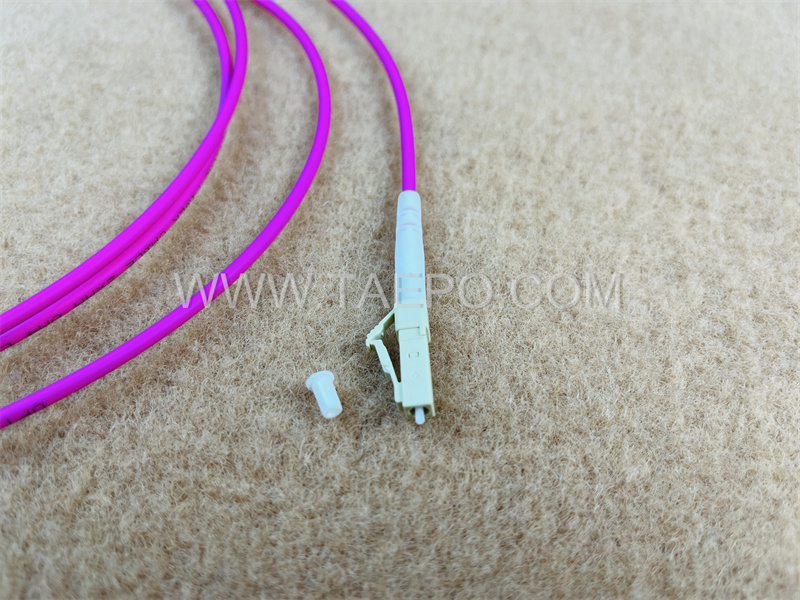

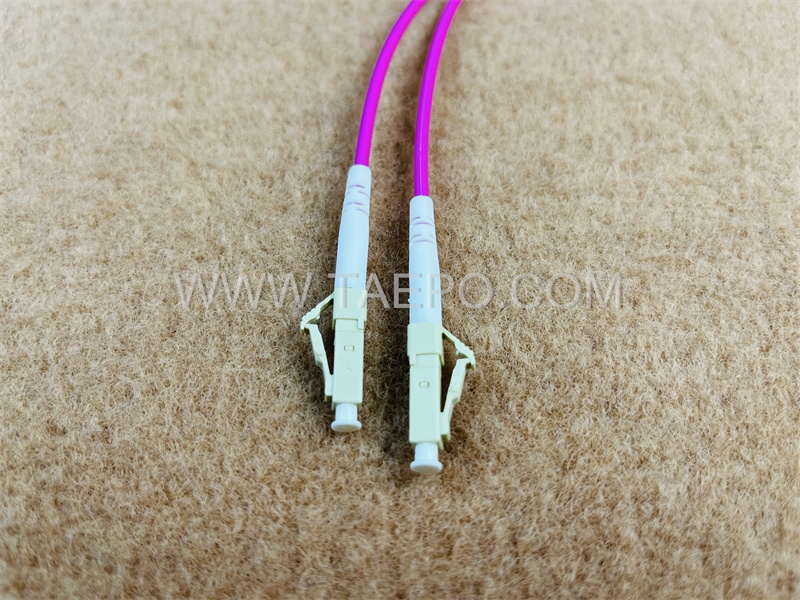

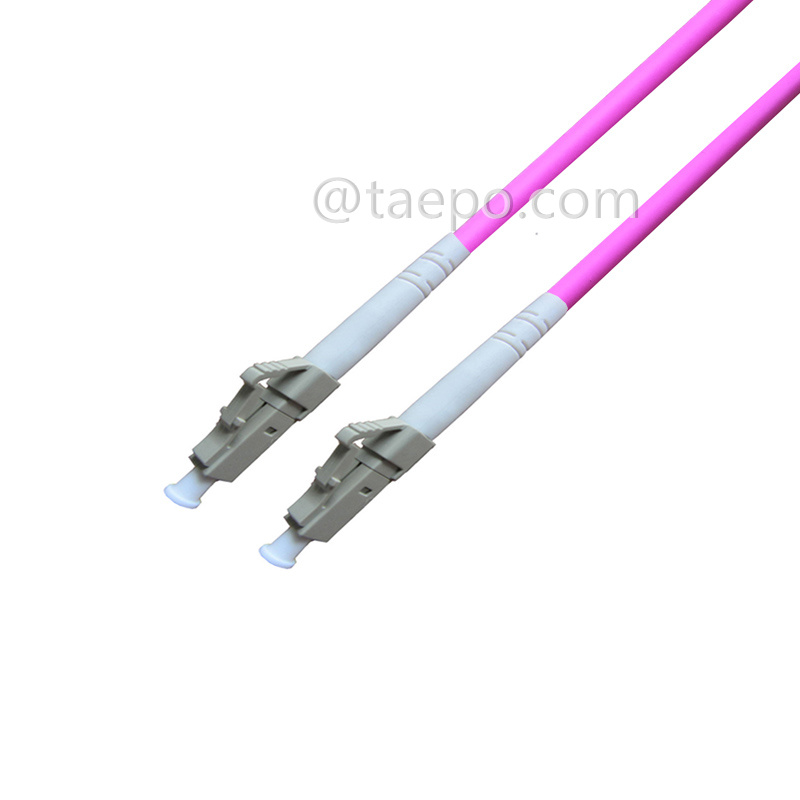

Multimode 50/125um OM4 simplex LC UPC Fiber optic patch cord

    Descriptions

A multimode 50/125µm OM4 simplex LC UPC fiber optic patch cord is a specific type of fiber optic cable designed for high-speed data transmission.

Here’s a breakdown of its features:

Multimode: Allows multiple light modes to propagate simultaneously, suitable for short-distance applications.

50/125µm: Refers to the fiber specifications: a 50µm core diameter for carrying multiple light paths and a 125µm cladding diameter.

OM4: This designation indicates that the fiber is optimized for higher performance than OM3, supporting 10 Gigabit Ethernet up to 400 meters and 40/100 Gigabit Ethernet up to 150 meters.

Simplex: Means the cable contains a single fiber strand, allowing one-way data transmission. For bidirectional communication, two simplex cables or a duplex cable would be needed.

LC Connector: A small form-factor connector known for its compact design and secure connection, commonly used in various networking applications.

UPC (Ultra Physical Contact): Refers to the polish on the connector's end face, which minimizes signal loss and back reflection, enhancing overall performance.

In summary, a multimode 50/125µm OM4 simplex LC UPC fiber optic patch cord is designed for efficient, high-speed data transmission in networking environments, providing reliable performance over short to moderate distances.

    Main Features

    Schematic Diagrams

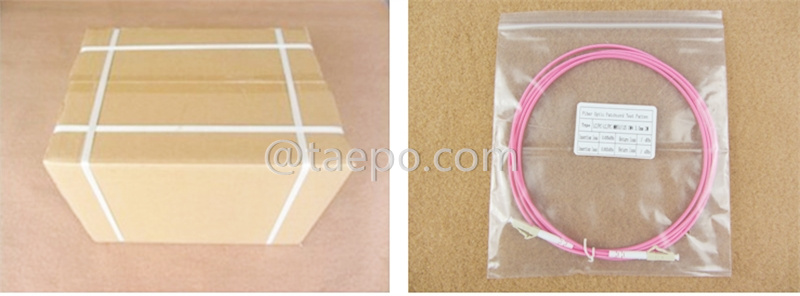

    Packing Pictures

    Order Data
