Installation tool for S66M block

TAEPO - Professional Chinese Manufacturer Delivering Installation Tool for S66M Block with Reliable Performance !
What does Installation Tool for S66M Block do?


    DESCRIPTIONS

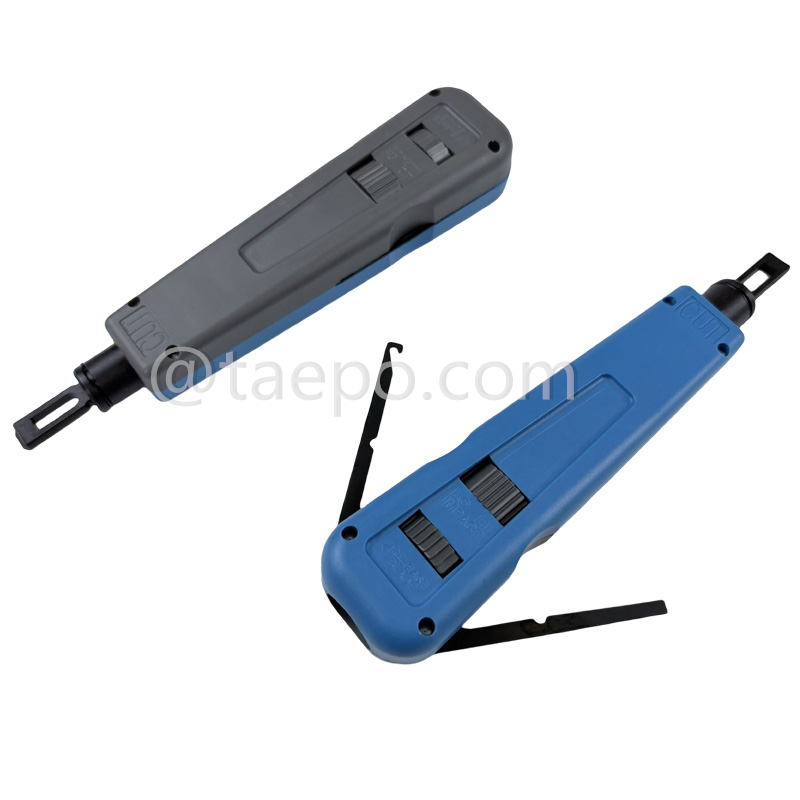

The Installation Tool (TP-5959) for S66M Block is a precision-engineered punch down tool designed specifically for terminating telecommunications wires onto S66M-type connecting blocks. It is ideal for structured cabling systems in telephone, voice, and data communication networks, ensuring fast, accurate, and secure terminations in commercial and enterprise-grade installations.

Crafted with a rugged handle and ergonomic grip, this tool allows technicians to apply consistent force with minimal fatigue, improving both speed and reliability during field deployment. It features a spring-loaded mechanism that precisely seats and trims excess wire in one efficient motion. The replaceable blade is manufactured from hardened steel for long-lasting edge retention and accurate cutting performance.

This tool is suitable for use with 22-26 AWG solid or stranded wires and supports both 2-wire and 4-wire terminations. Commonly used by network installers, telecom professionals, and maintenance teams, it offers a cost-effective and durable solution for high-volume installations of 66M series punchdown blocks.


    MAIN FEATURES

• Compatible with S66M Blocks: Designed for terminating wires on S66M-type punchdown blocks.
• Precision Punch-Down Mechanism:Seats and trims wires in a single step.
• Ergonomic Design: Reduces hand fatigue during extended use.
• Spring-Loaded Handle: Delivers consistent impact for uniform terminations.

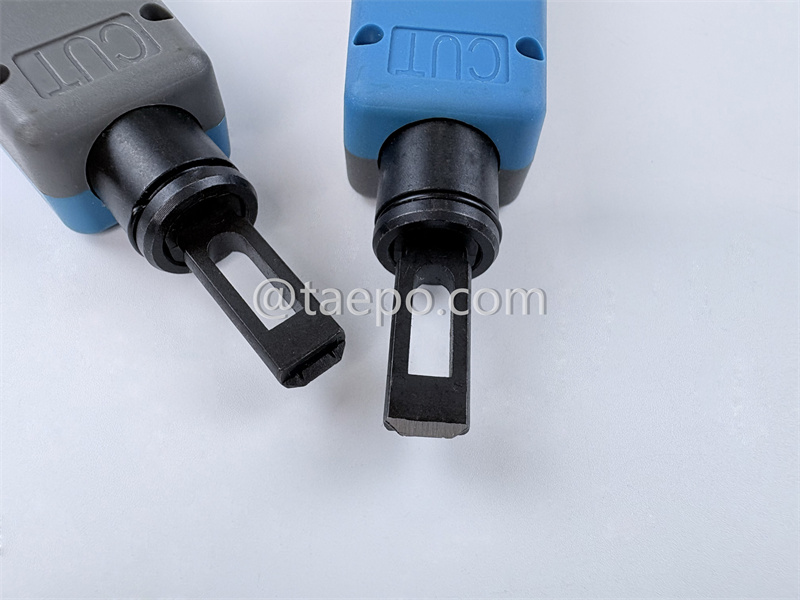

• Replaceable Blade: Interchangeable and easy to maintain.
• Blade Material: Hardened Steel– Offers long-lasting cutting precision.
• Supports 22–26 AWG Wire:Compatible with a wide range of telecom wires.
• Dual-Wire Termination:Enables 2-wire or 4-wire pair seating.
• Non-Slip Grip: Enhances control in various installation environments.
• Compact and Lightweight: Easy to carry in toolkits or belt pouches.
• Integrated Wire Cutter:Trims excess conductor flush to the terminal.
• Professional-Grade Build: Designed for field and bench applications.
• Color-Coded Handle Option: For quick tool identification.

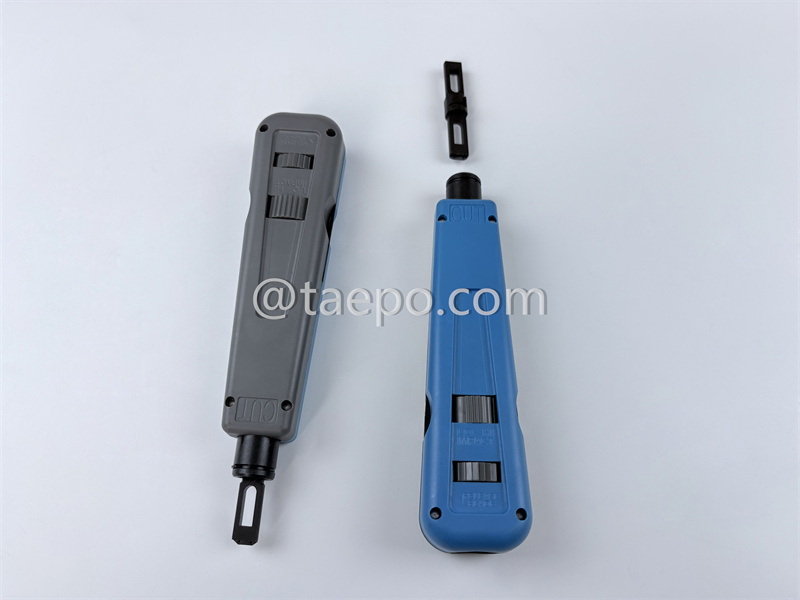

• Easy Blade Removal Mechanism: No tools required for swapping blades.
• Improved Installation Speed: Boosts productivity in large installations.
• Anti-Rust Finish: Corrosion-resistant for longer tool life.
• Impact Adjustable (Optional): Some models support impact tuning.
• Reusable Blade Design: Compatible with third-party replacements.
• Cost-Effective Solution: Ideal for both occasional and regular use.

    SCHEMATIC DIAGRAMS

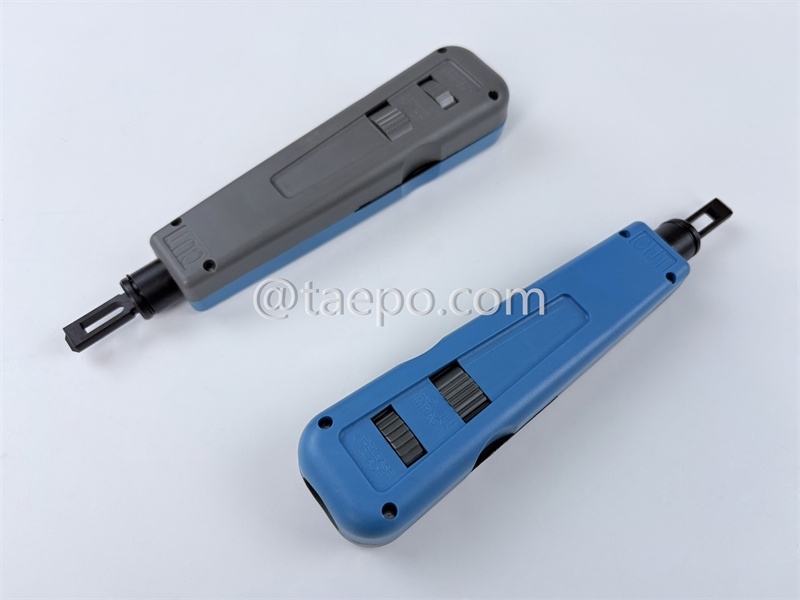

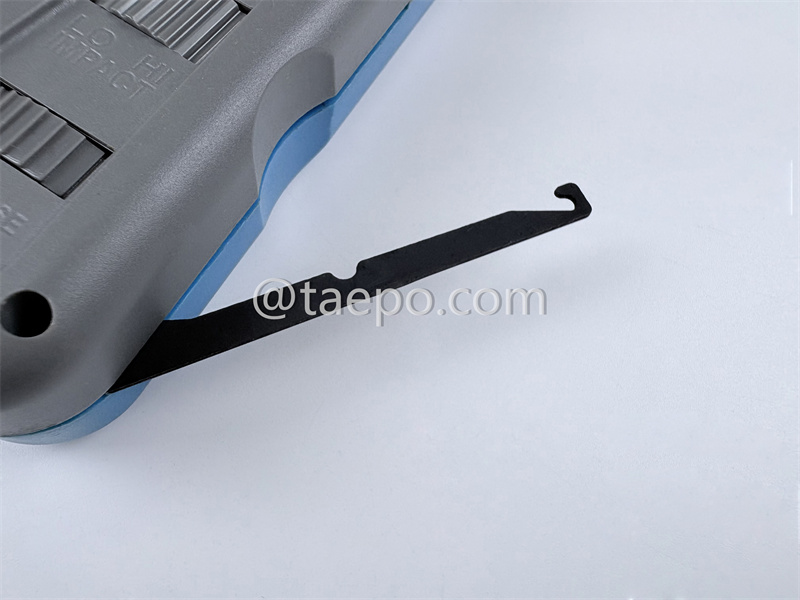

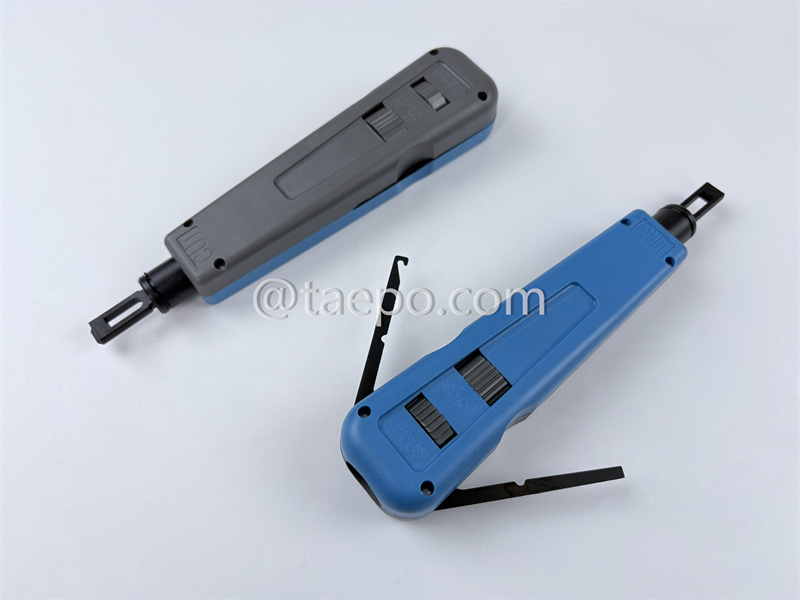

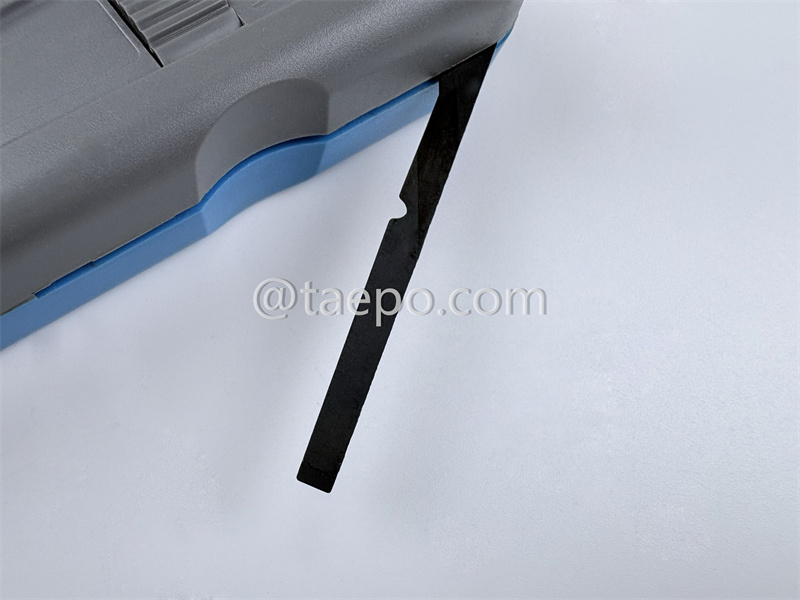

    ILLUSTRATION PICTURES
