Descriptions

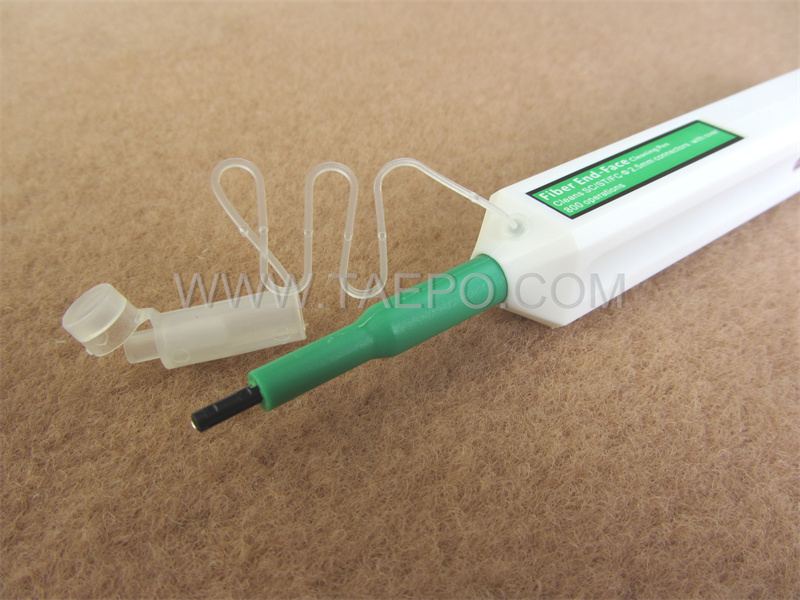

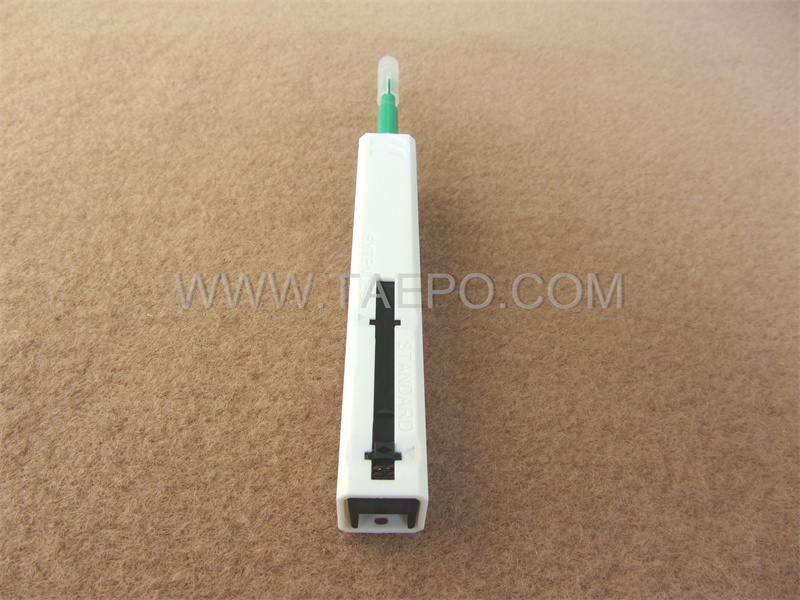

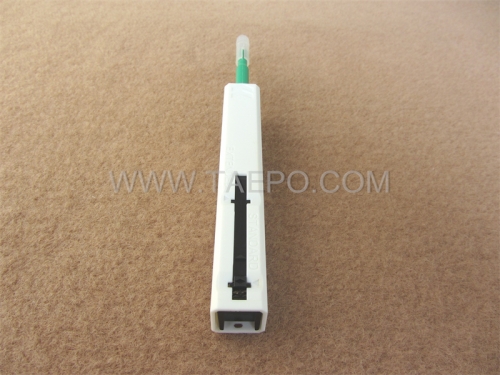

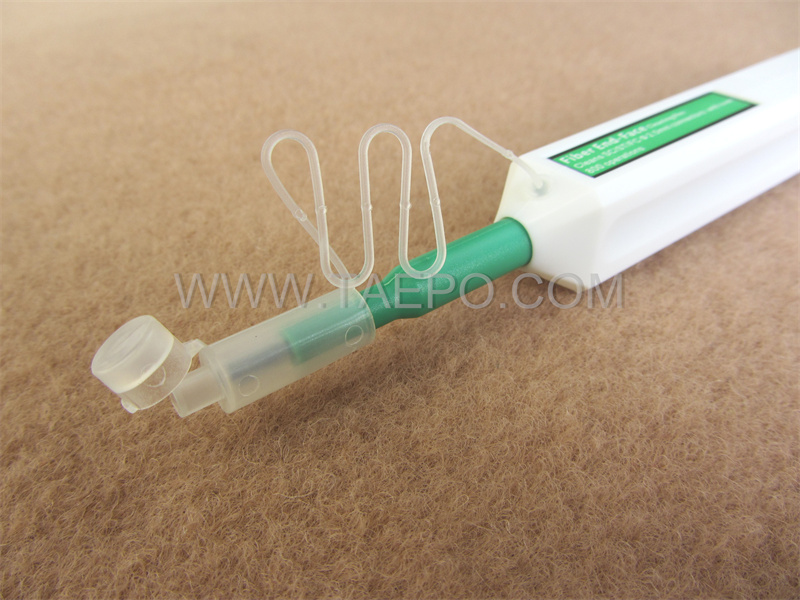

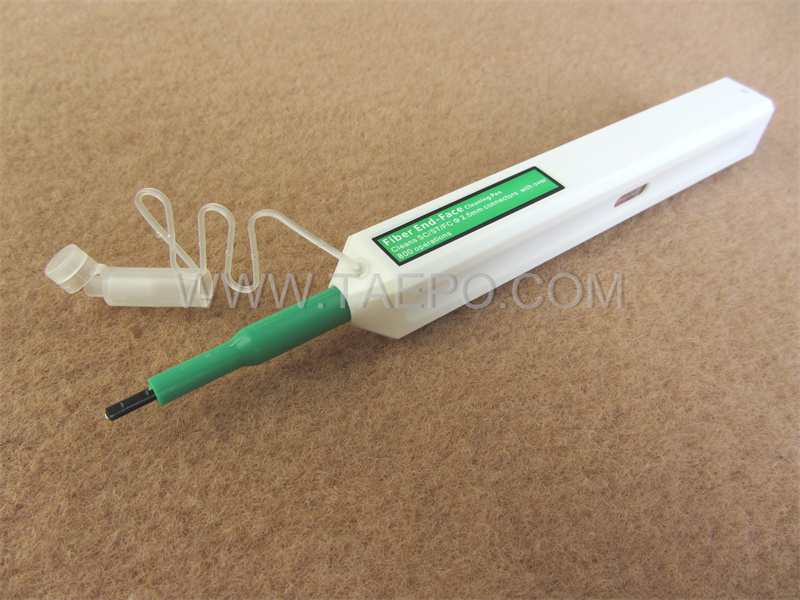

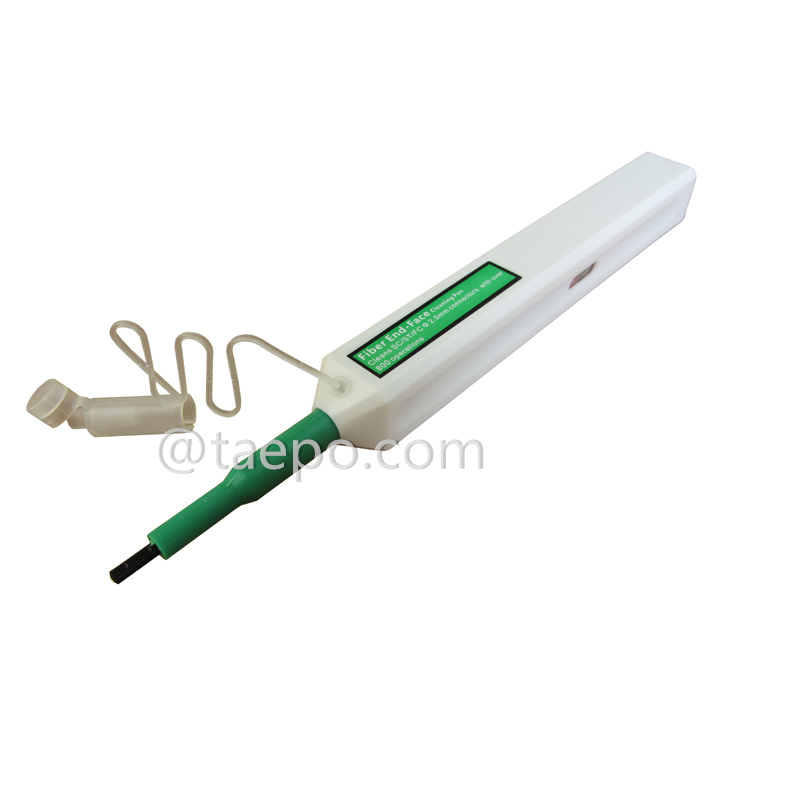

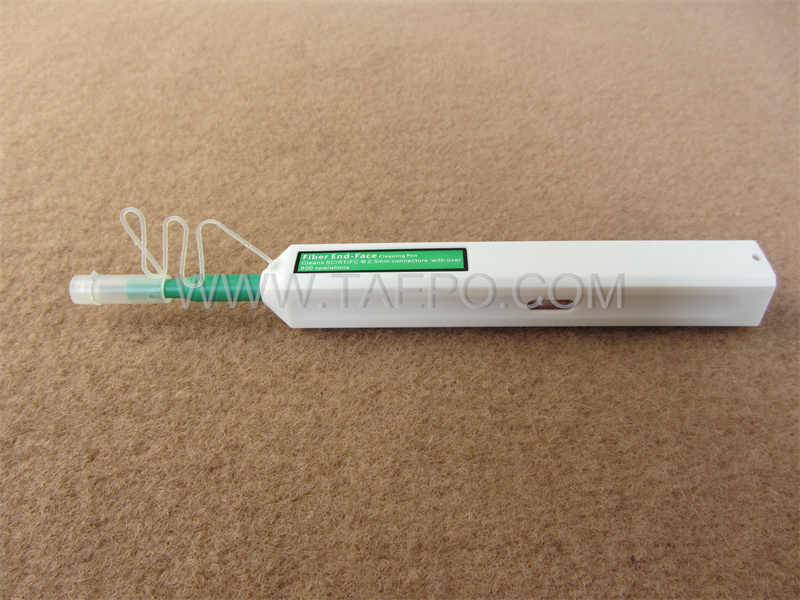

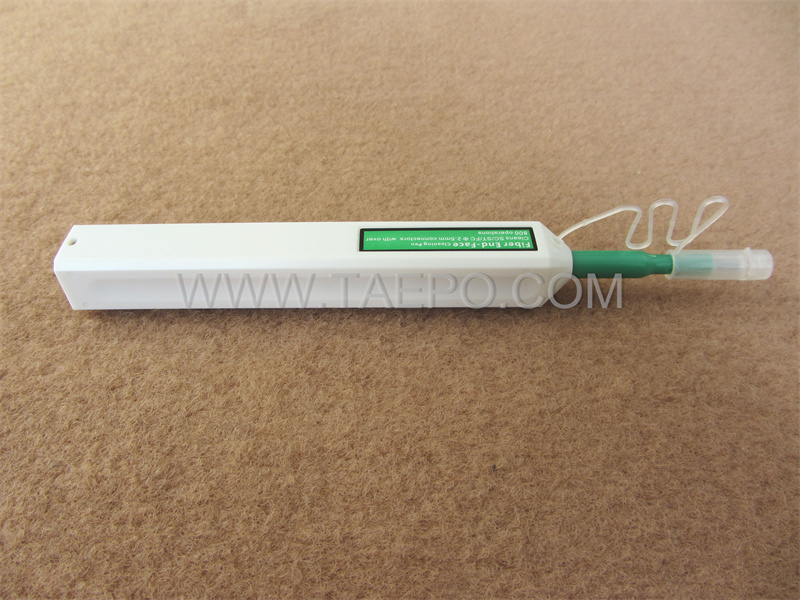

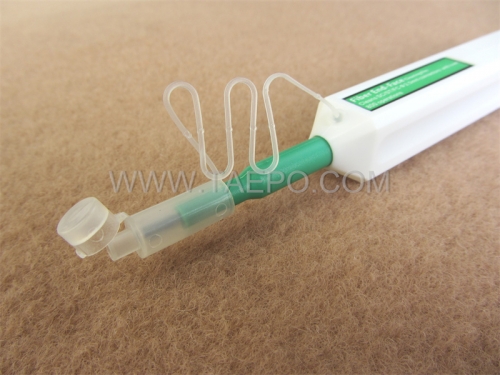

The Fiber Optic One-Click Cleaner Pen for 2.5mm FC, SC, and ST Fiber Connectors is a specialized cleaning tool used to clean the end faces of fiber optic connectors with 2.5mm ferrules, such as FC , SC , and ST connectors. These connectors are widely used in various fiber optic network installations, including telecommunications, data centers, and cable TV systems.
How It Works:

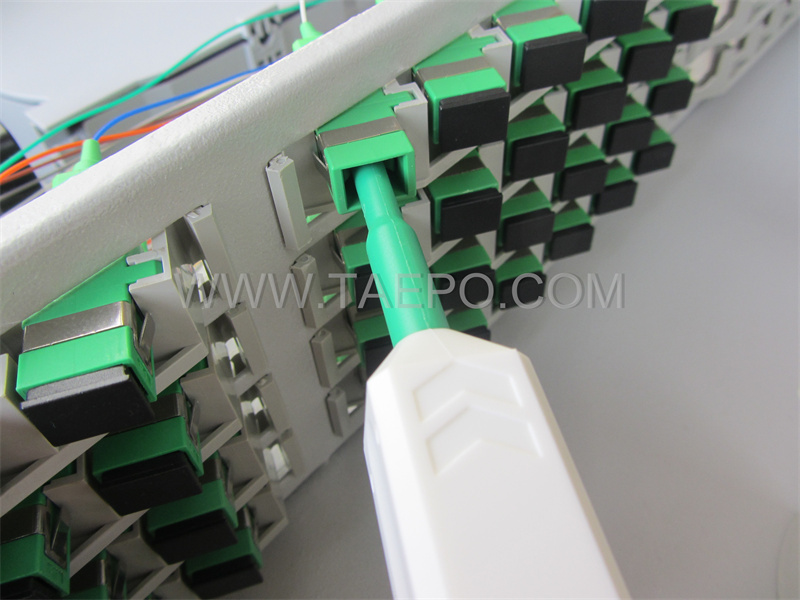

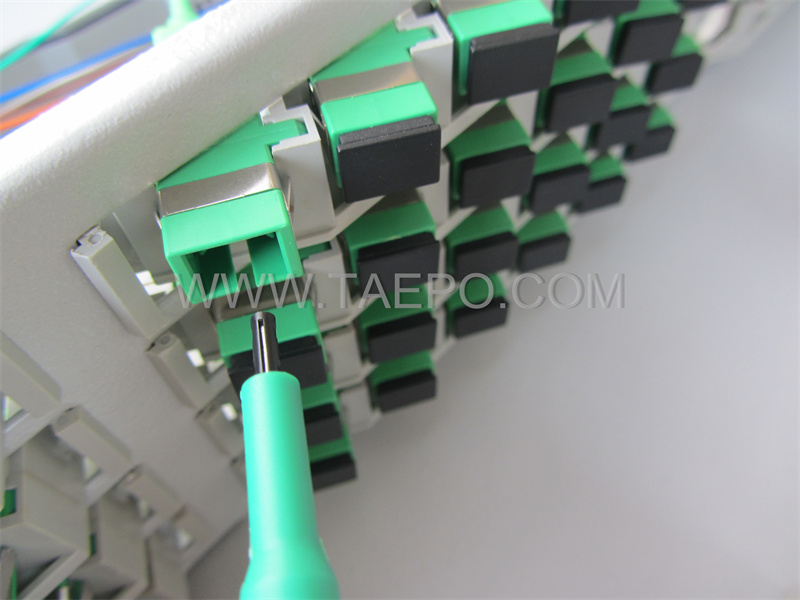

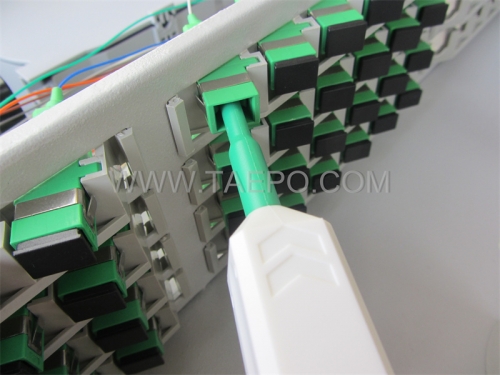

Insert the Cleaner: Insert the cleaner pen tip into the FC, SC, or ST fiber optic connector's ferrule.
Click to Clean: Press the pen's button or tip to engage the cleaning mechanism. As you press, a specialized cleaning tape or thread moves across the fiber end face, effectively wiping away contaminants.
Repeat Use: After the click, the pen resets, ready for use on the next connector. Each click pulls a new section of cleaning tape over the fiber end face, ensuring efficient cleaning.
Main Features
One-Click Mechanism: The cleaner pen is activated by a simple, one-click push mechanism, allowing for easy and quick cleaning of the fiber end face with minimal effort. It automatically deploys an internal cleaning tape to remove dirt, oil, and debris from the fiber connector end face.
2.5mm Ferrule Compatibility: This specific pen is designed for fiber connectors with 2.5mm ferrules, such as:
ST connectors: Commonly used in industrial applications and older fiber networks.
SC connectors: Often used in fiber to the home (FTTH) networks and cable TV systems.
FC connectors: Popular in telecommunications and data centers.
Dry Cleaning System: Utilizes a dry cleaning tape or thread system that effectively removes contaminants without the need for liquids or chemicals. The dry cleaning method reduces the risk of leaving behind residue or moisture, ensuring a clean fiber connection.
Compact and Portable: The pen is lightweight and portable, designed to be carried easily in the field for use during fiber optic cable installations or maintenance tasks. It's especially useful in hard-to-reach areas like network closets or dense patch panels.
High Cleaning Capacity: Most one-click cleaner pens provide hundreds (up to 800 or more) of cleaning cycles per pen. This makes it a cost-effective solution for cleaning multiple fiber connectors over time.
Precise and Gentle Cleaning: The cleaner pen is designed to apply just the right amount of pressure to the connector’s ferrule, ensuring thorough cleaning without damaging the end face of the fiber. This prevents scratches or micro-damage that could affect performance.

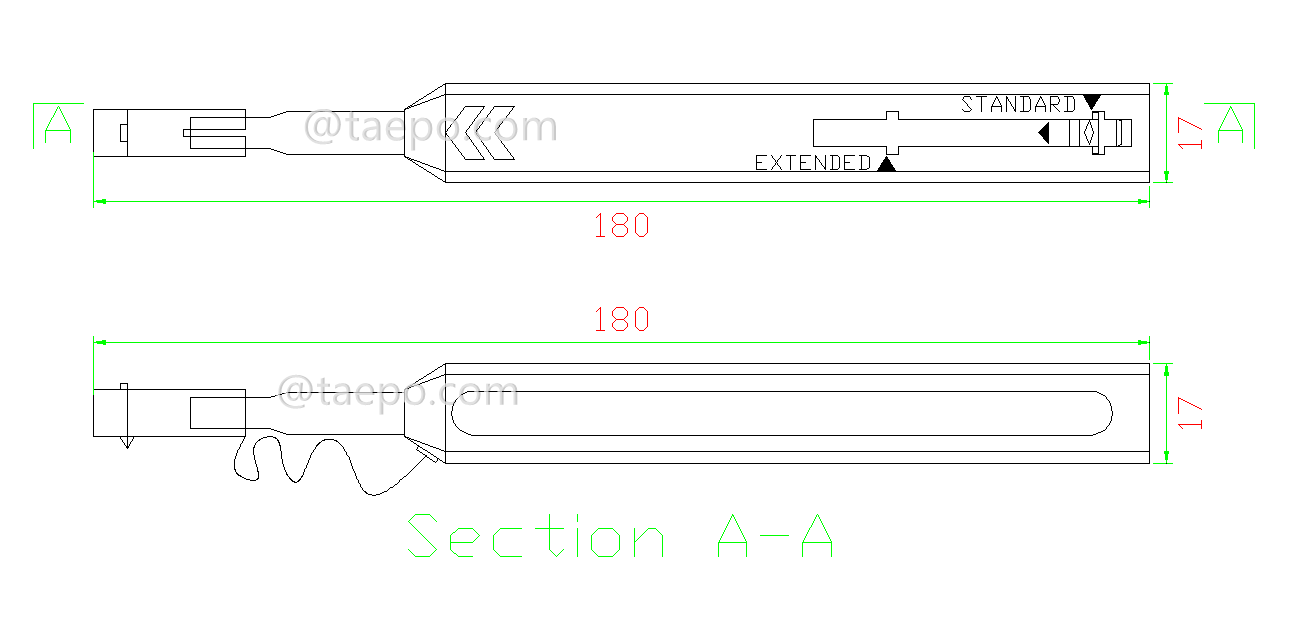

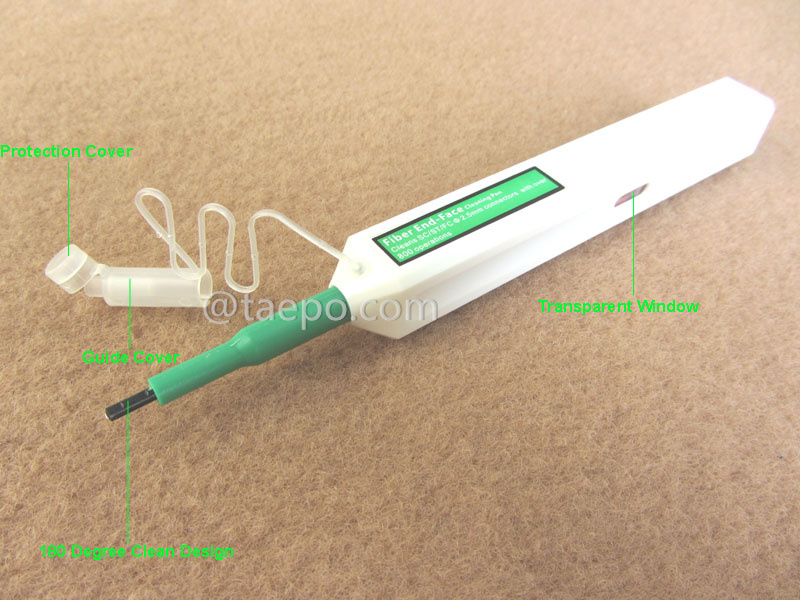

Schematic Diagrams

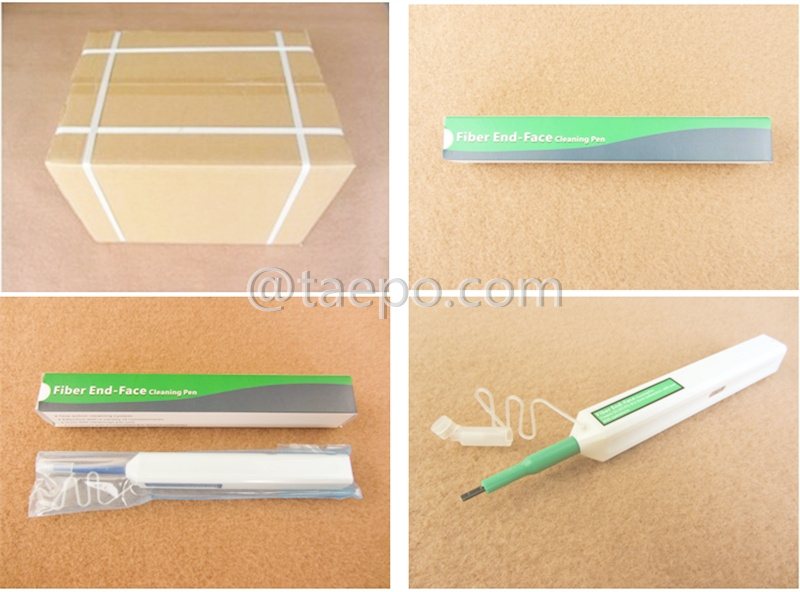

Packing Pictures
Order Data
| Item No |
Descriptions |
| TP-3716-B |
Fiber optic one-click cleaner, FC/SC/ST, 2.5mm |
