DESCRIPTIONS

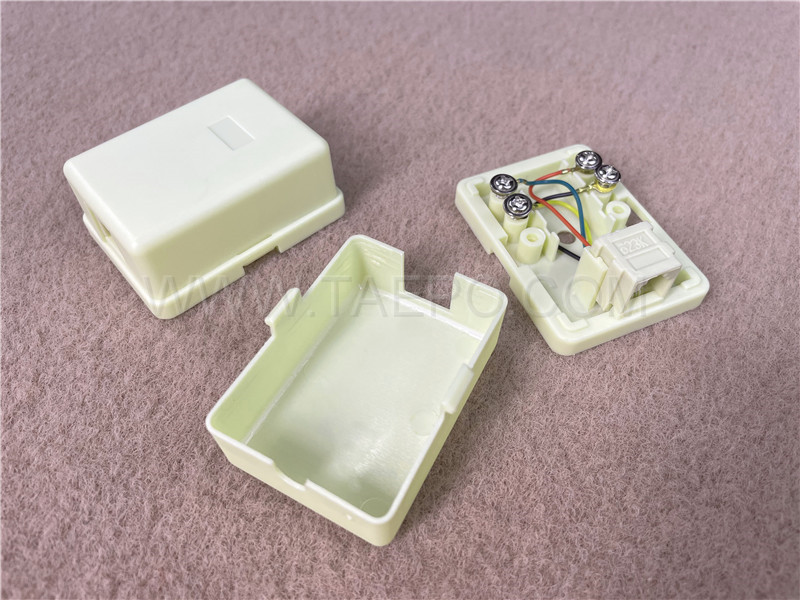

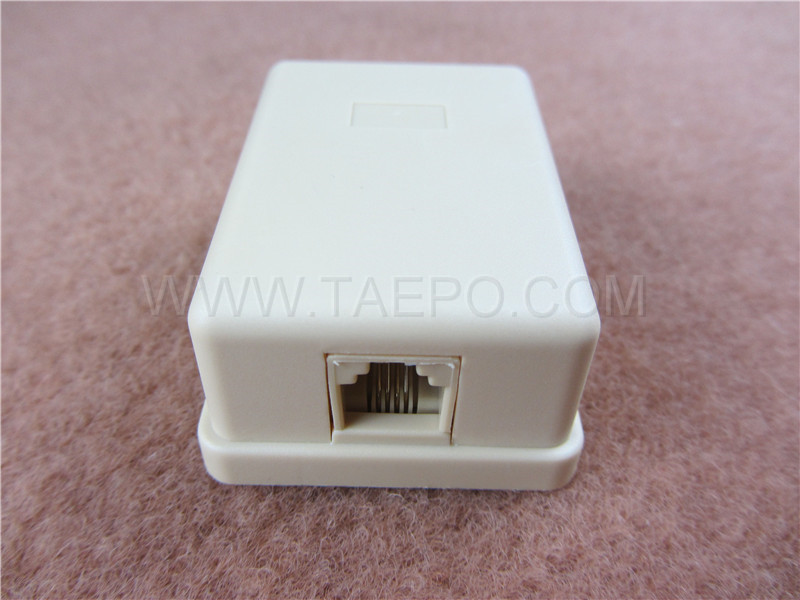

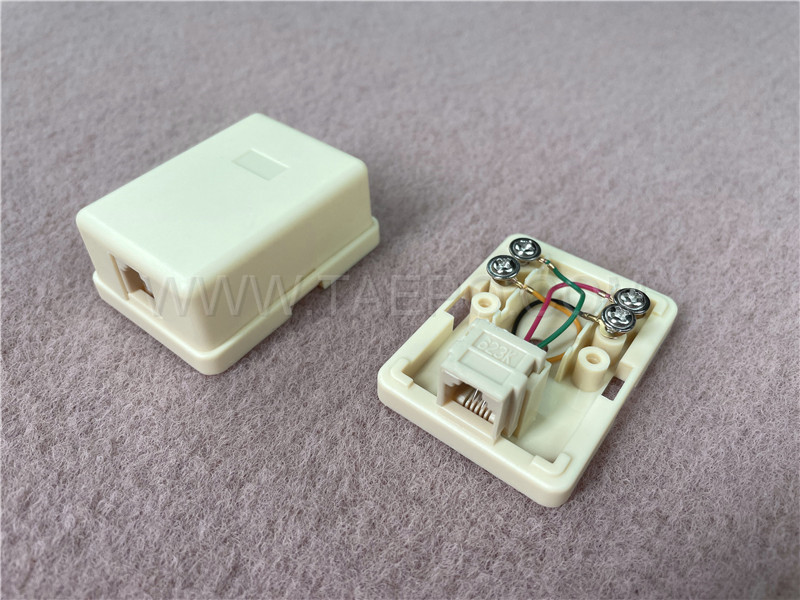

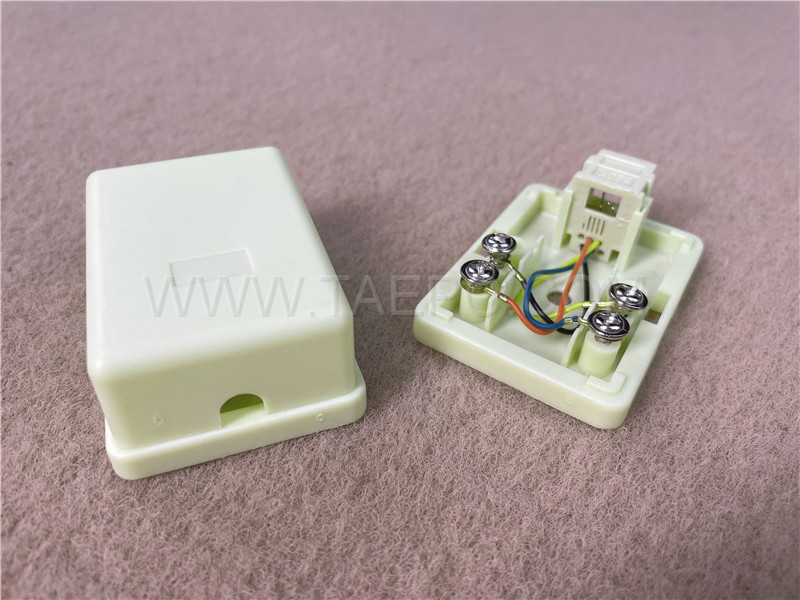

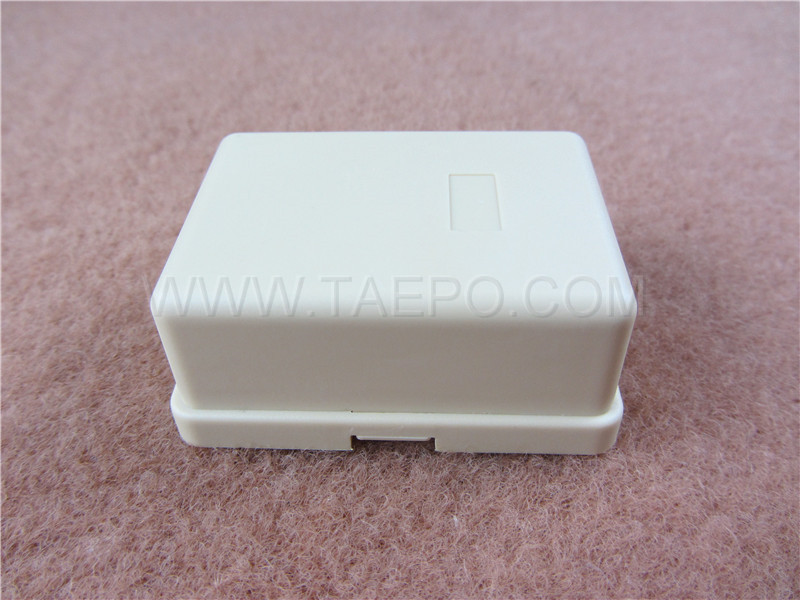

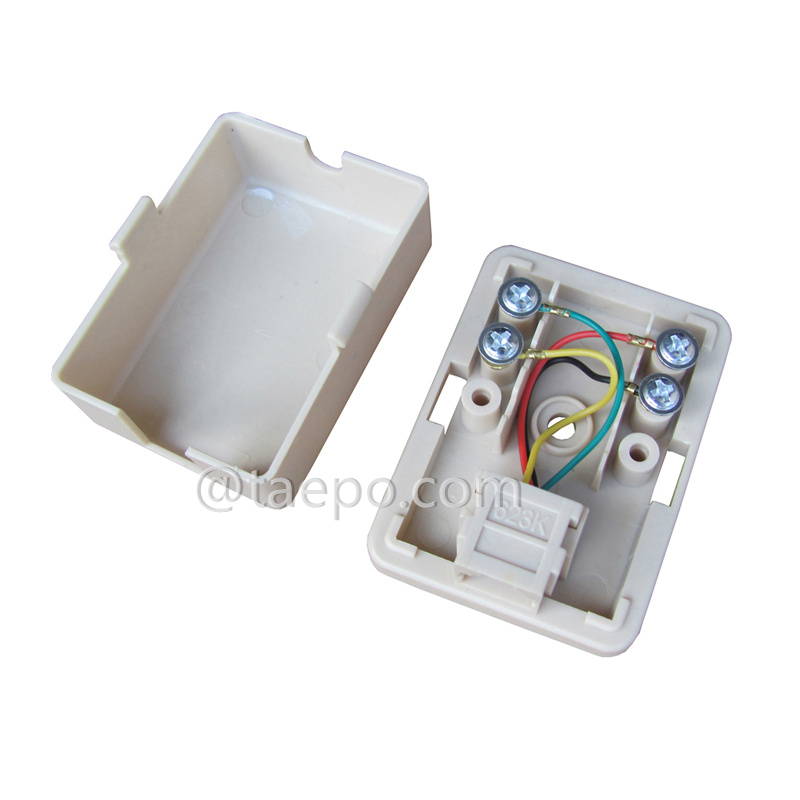

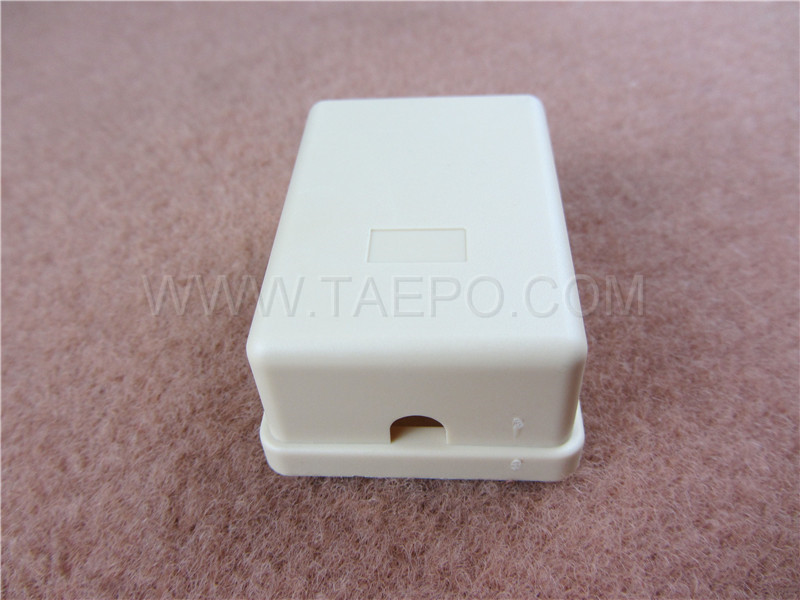

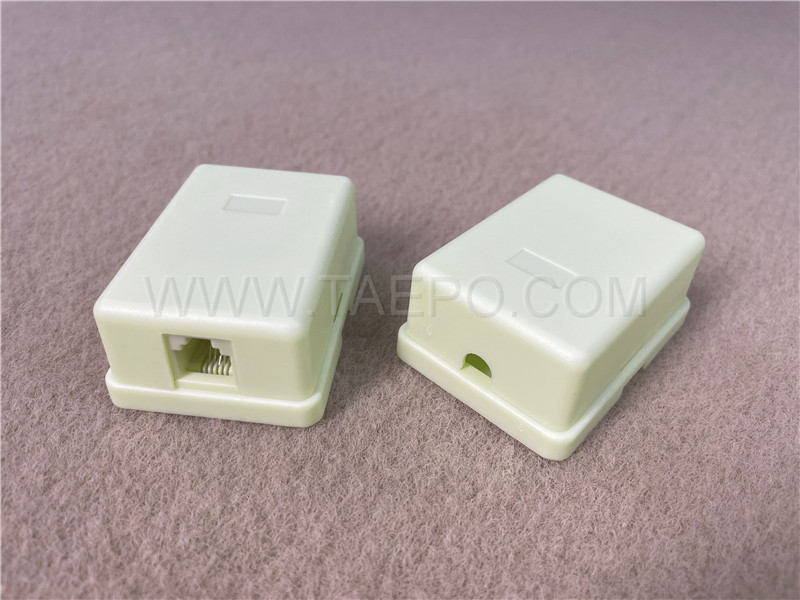

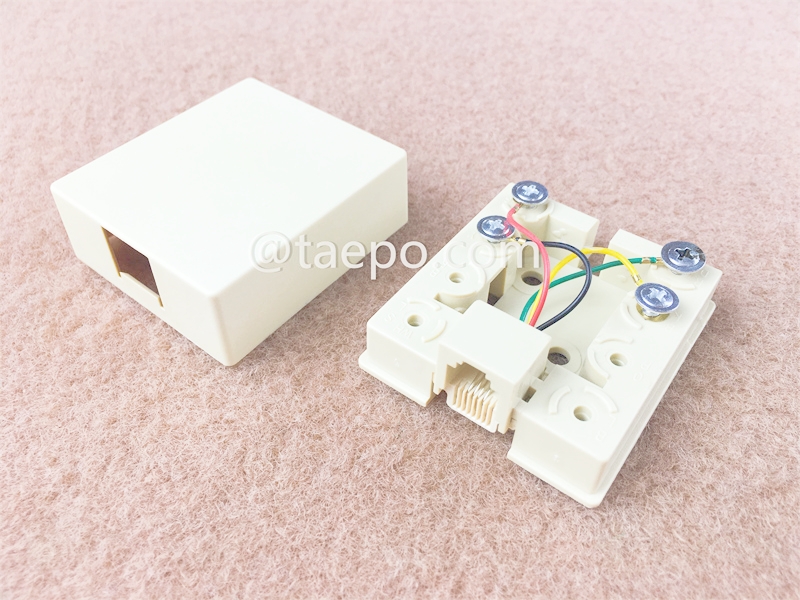

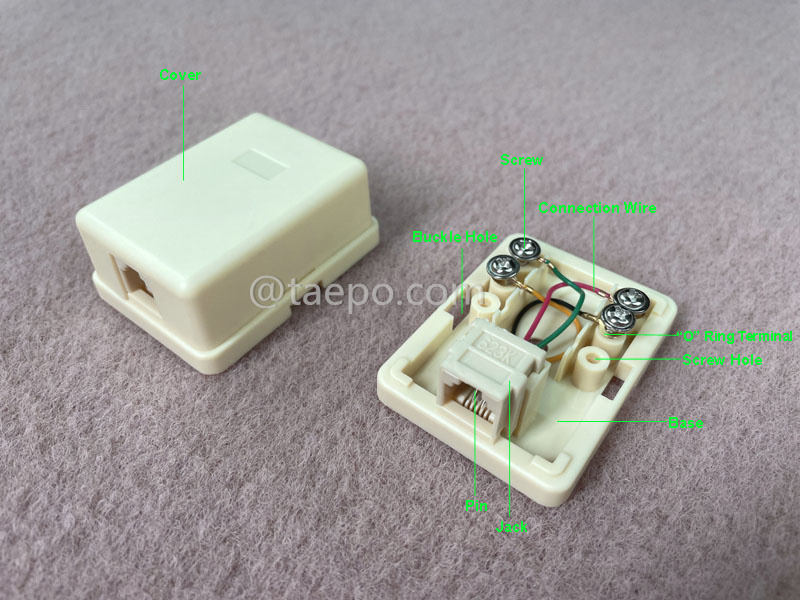

1-port connection box CAT3 6P4C (TP-5105-1C3U4) is used for the connection of telephone lines. At one end it is the screw terminal, at the other end, it is RJ11 port 4P4C, with CAT3 performance.
The connection box is also known as a telephone socket or rosette. It is the dry type. It is equipped both with 1 pcs screws for surface mounting and a double adhesive tape for sticking to the surface at option.
MAIN FEATURES
TECHNICAL PARAMETERS
General | |
Storage Temperature: | -40°C ~ +80°C |
Operating Temperature: | -30°C~+70°C |
Relative Humidity: | ≤90%(+30℃) |
Atmospheric Pressure: | 70kPa ~106kPa |
Appearance: | Uniform color, W/O crusting,14 and cracks |
Materials | |
Plastic: | Thermoplastic |
Contact: | Phosphor bronze |
Coating: | Gold over nickel |
Specifications | |
Current rating: | 1.5AMPS |
Voltage rating: | 125VAC |
Insulation Resistance: | > 50 GΩ @ 500 V |
Dielectric Strength: | > 2000Vrms |
Contact Resistance: | 20 mΩ (Typical) |
Conductor Diameter: | 0.4mm-1.20mm |
Insulation Diameter: | 0.7mm-2.00mm |
Life Circles: | > 750 Times |

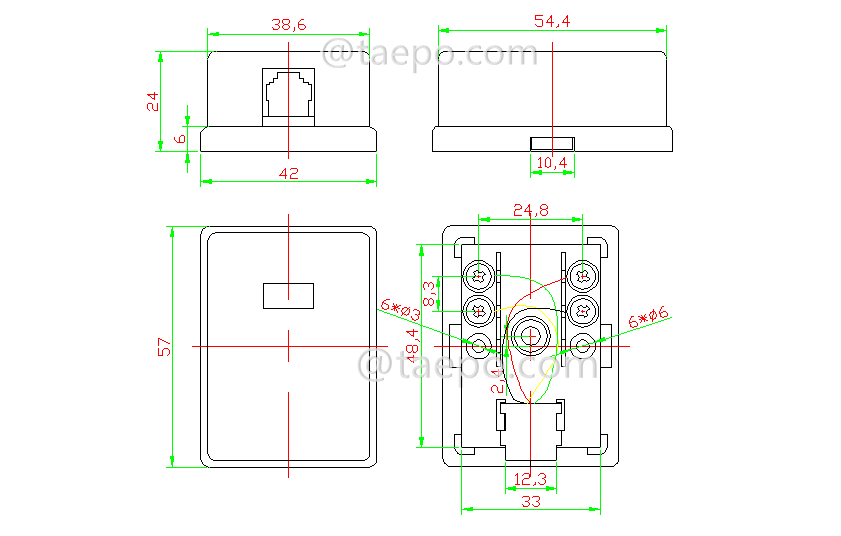

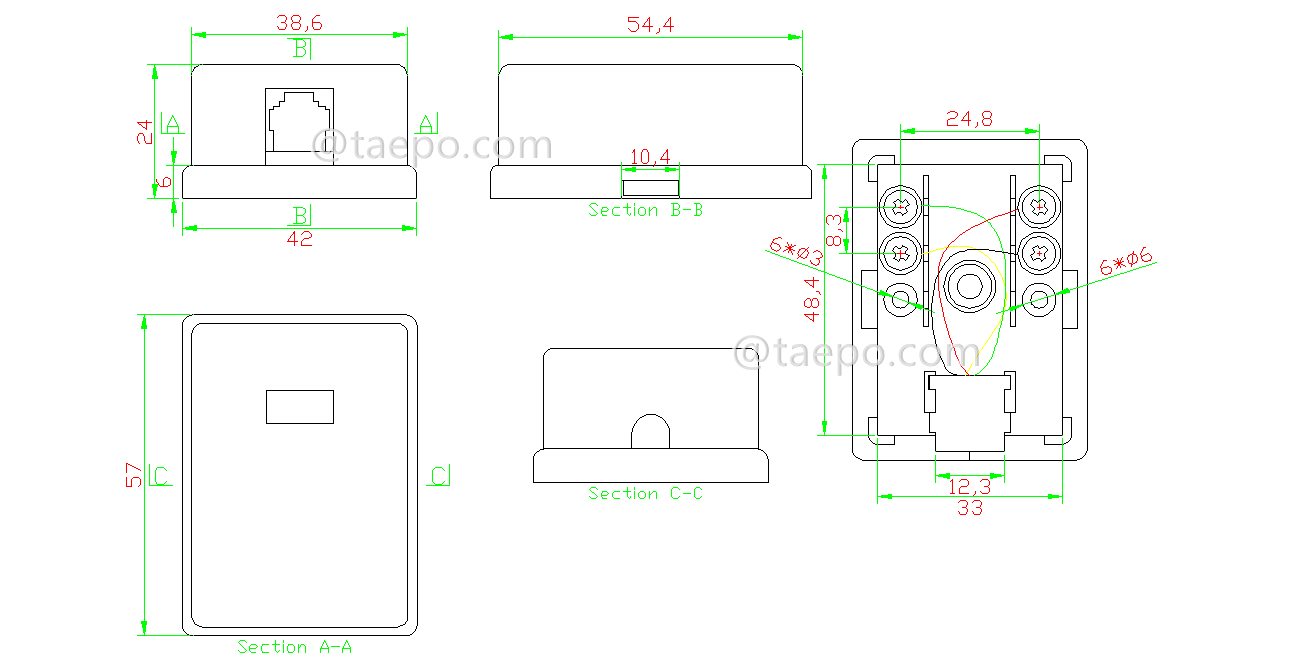

SCHEMATIC DIAGRAMS
