144 fibers outdoor SMC fiber cabinet

Item No.: TP-3401-144
TP-3401-144 |  used for the cross connection and terminations between trunk cable and the distribution cables | also called Optical Cross Connection Cabinet (OCCC) or Fiber Distribution Cabinet (FDC)
Description



Descriptions

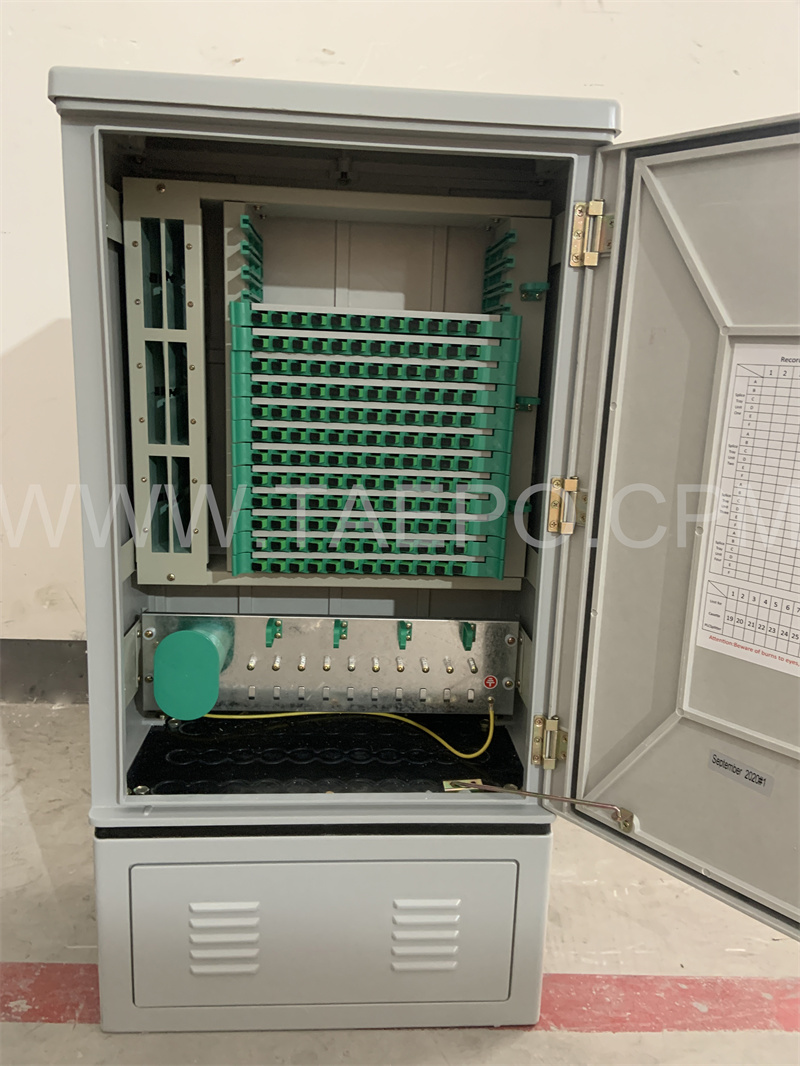

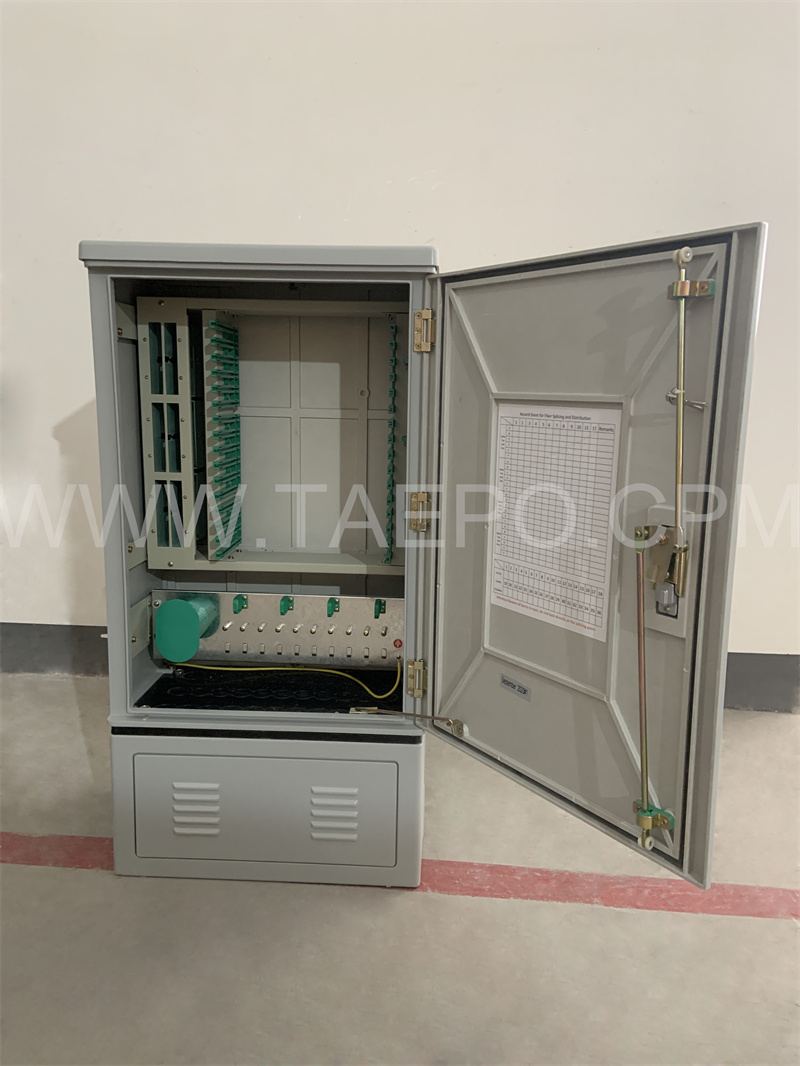

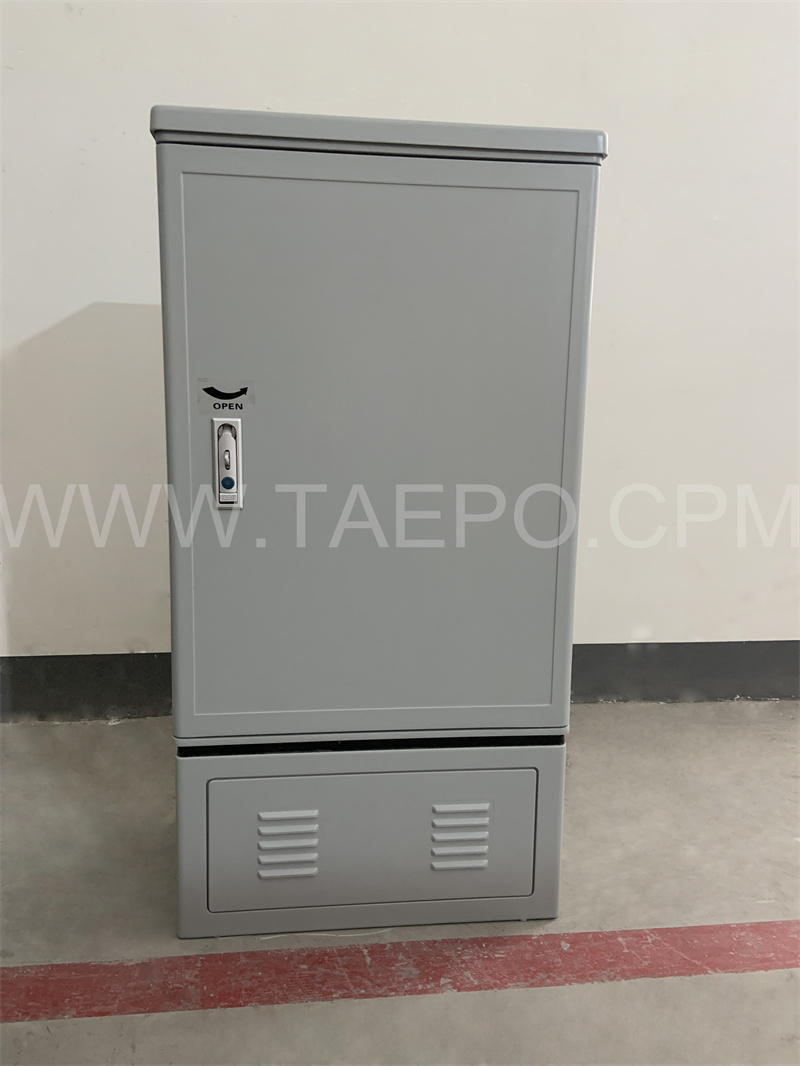

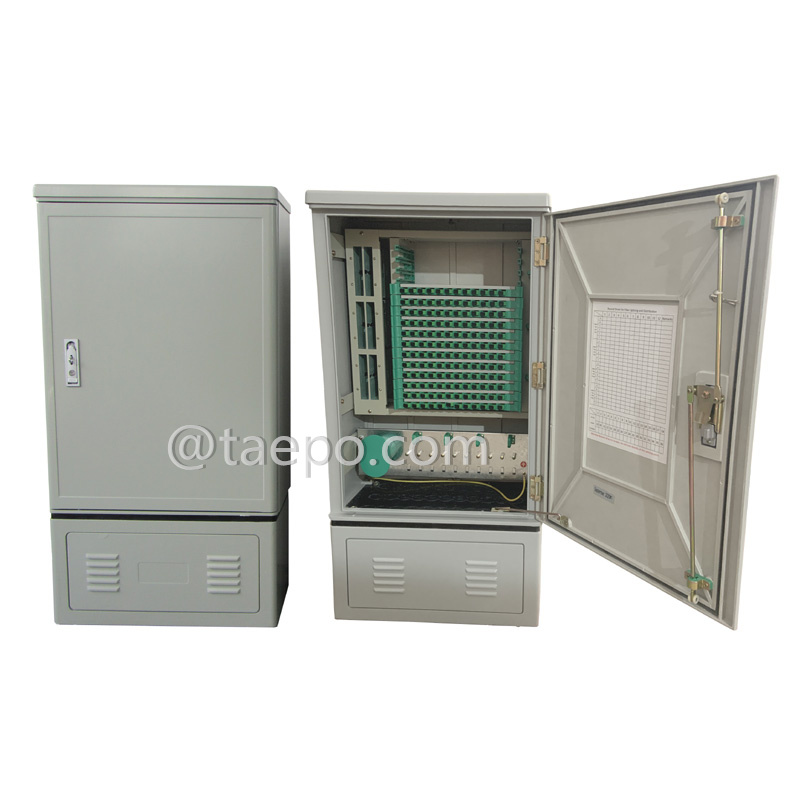

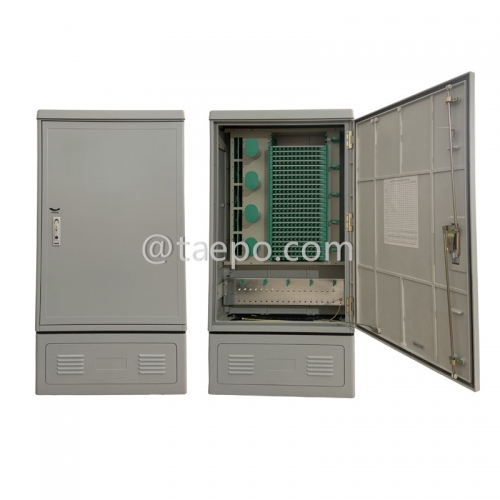

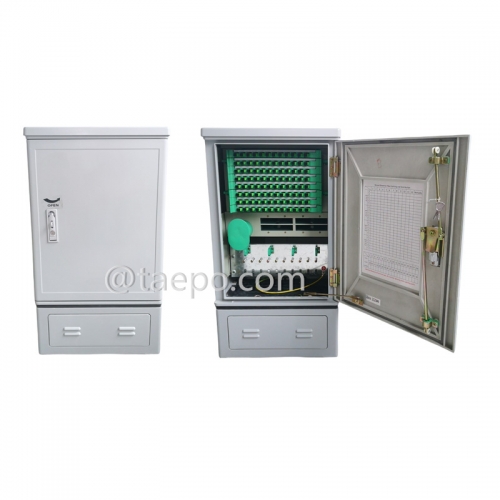

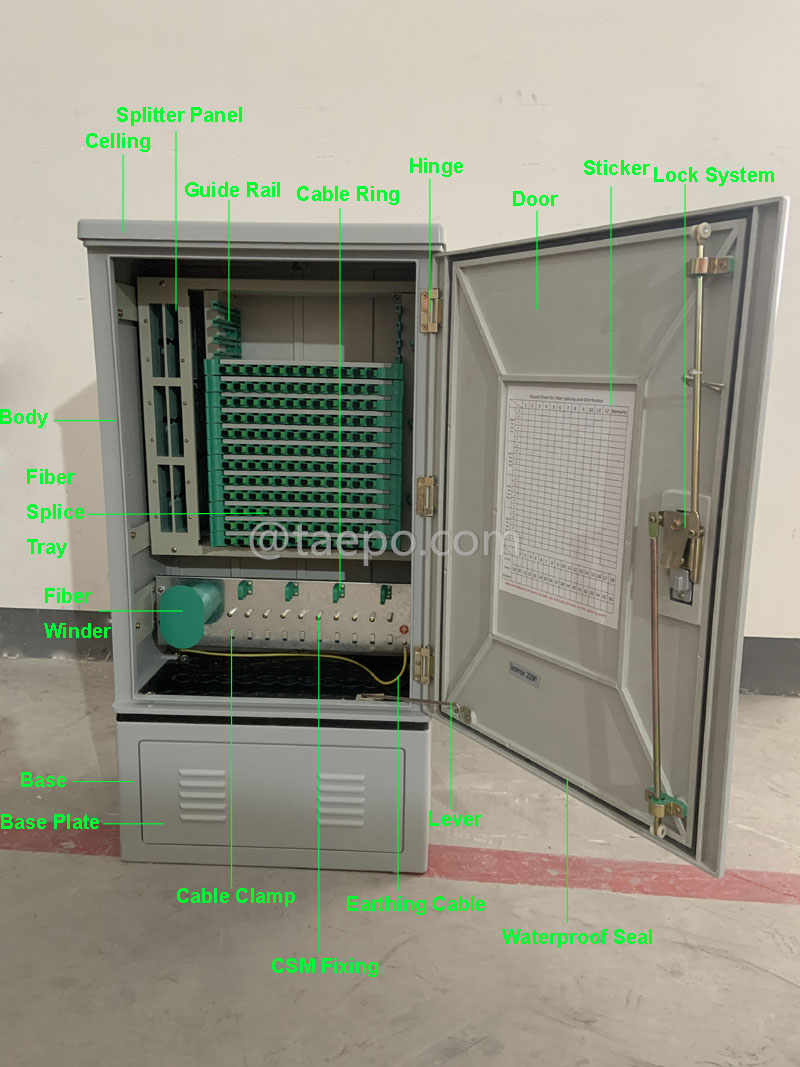

Outdoor SMC fiber cabinet (TP-3401-144S) is used for the cross connection and terminations between trunk cable and the distribution cables, with provision for fiber splitter. It is also called Optical Cross Connection Cabinet (OCCC) or Fiber Distribution Cabinet (FDC). It is used for outdoor environment. The cabinet consists of the body and the base, made of fiber glass reinforced polyester (SMC).

Designed to serve up to 144 homes in existing neighborhoods or over-build situations. This high density fiber cabinet combines simplified fiber routing management, with optical performance and reliability. The rugged and unique design supports PON and limited numbers of Point-to-point customers.





Main Features

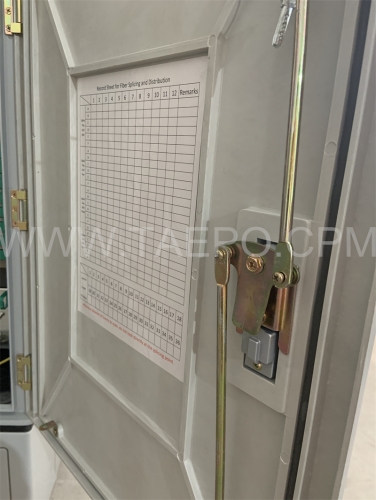

  • Front access door, total front operation.
  • Inlet and outlet cables from the bottom base.
  • Closure design, with protection grade at IP65.

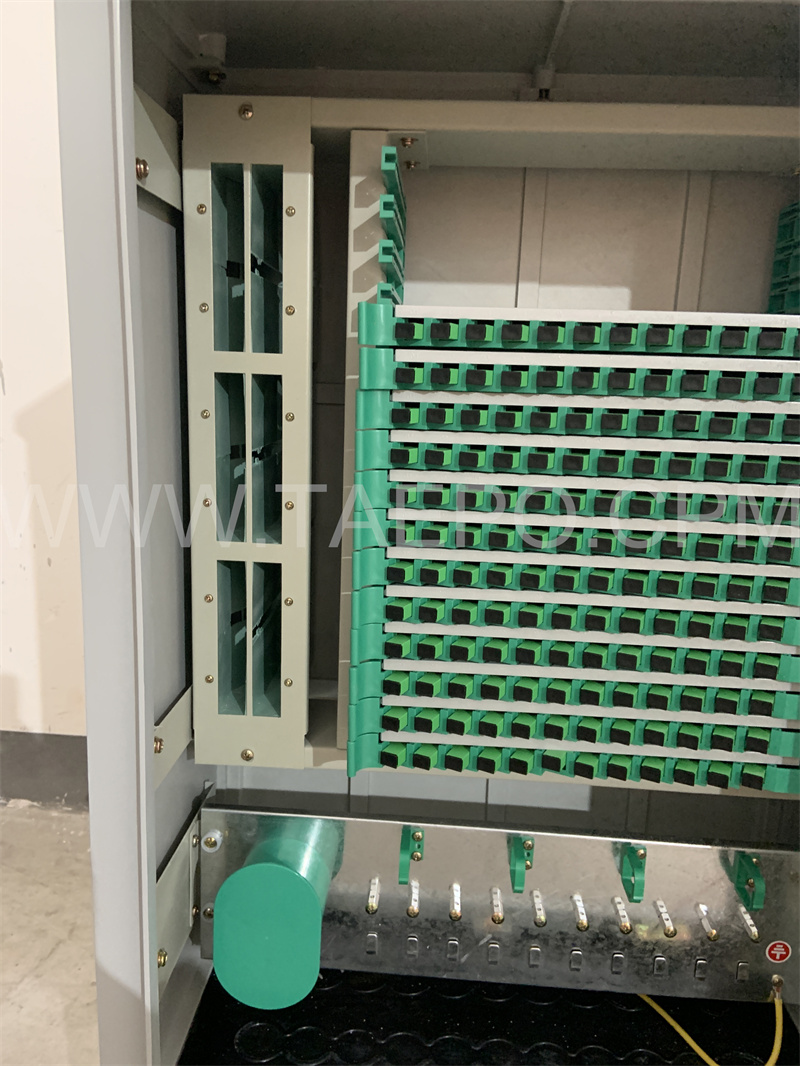

  • Unique design minimizes fiber routing congestion
  • Modular design, easy installation and maintenance.
  • Spacious room, easy operations.
  • Excellent optical performances.
  • Easier splitter upgrade.

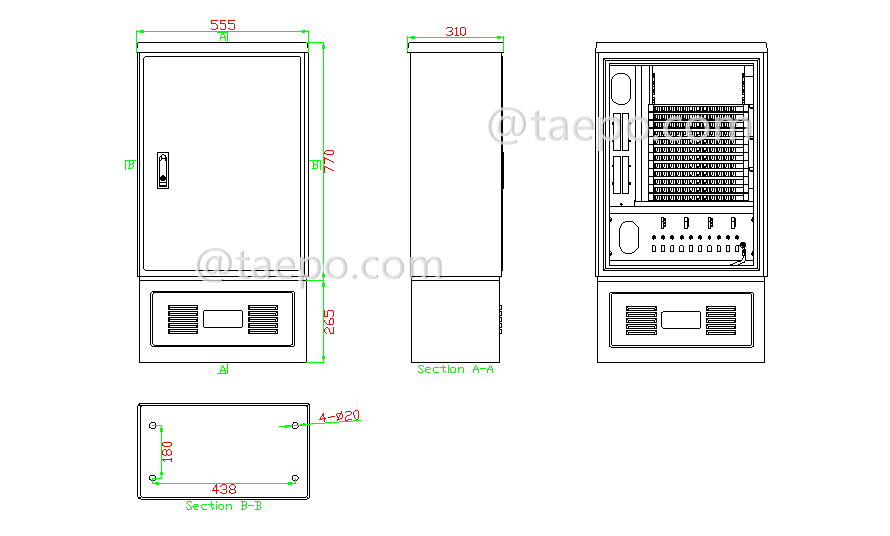

Schematic Diagrams









Packing Pictures





Order Data



TP-3401-144S

Outdoor SMC fiber street cabinet, SC, 144 fibers, single-sided, single door, plastic case splitter type, with 6 plastic case slots
Body : 770(H) x 555(W) x 310(D)mm
Base : 265(H) x 555(W) x 310(D)mm

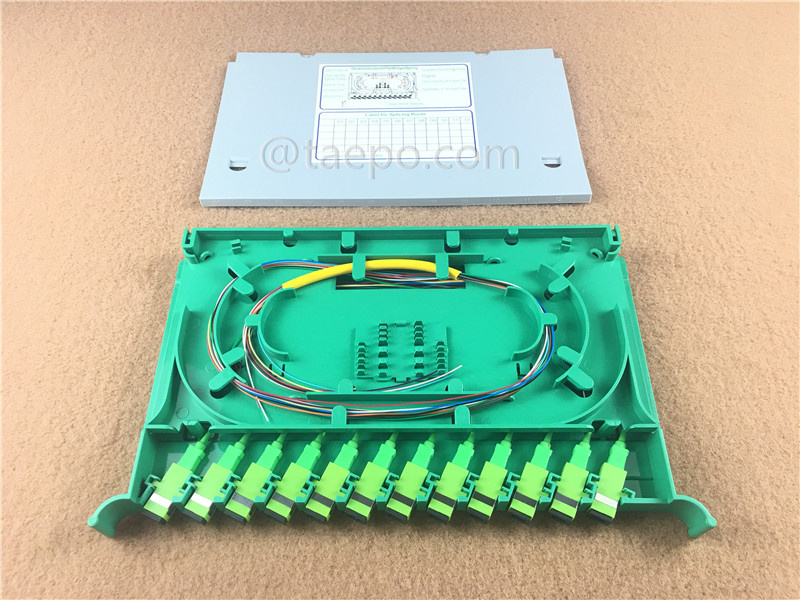

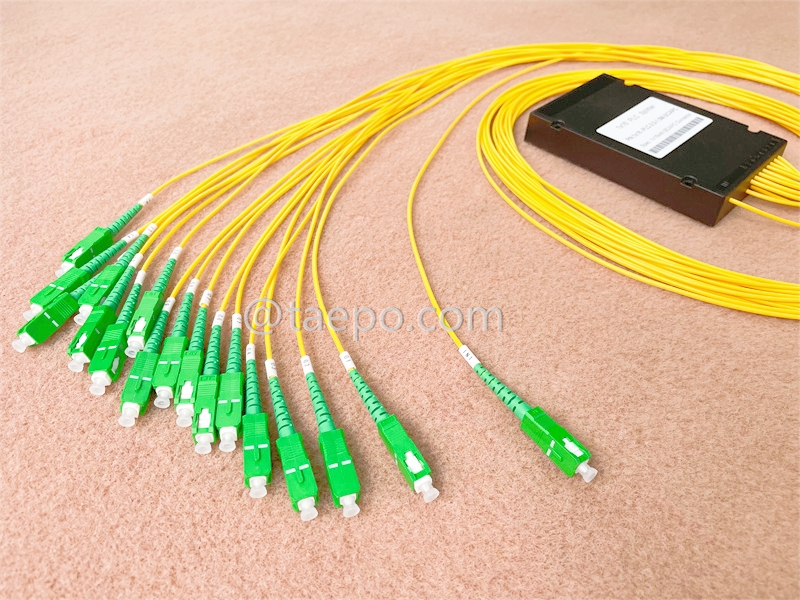

with 144F splice tray, without adapters, pigtails, plastic case PLC splitters
