12 fibers horizontal type mechanical sealing Fiber optic splice closure max 96 bunchy fibers

Descriptions

TP-3509 fiber optic splice closure is a horizontal or inline type, 2 inlets and 2 outlets. It belongs to the mechanical pressure seal splice closure system, and it is widely used for the terminations of communication fiber optic cables.

The FOSC is suitable for protecting fiber cable splices in straight-through and branching applications. It can be placed in aerial, direct buried, wall-mounted, manhole and duct applications.

Based on an advanced formula, the plastic parts are made of injection-molded, high-strength engineering plastic PC by numerical control equipment, therefore effectively prevent products from aging caused by coldness, heat, oxygen and ultraviolet radiation.

The strong housing and main components provide fire-resistant, water-proof, and quake-proof while protecting splices during pulling, tensioning and impacting.

It ensures long-term reliability and usage under ambient temperature from -40℃ to +60 ℃.

Main Features

l         Advanced internal structure design, thus fiber suffering no attenuation

l         The closure is spacious enough for winding and storing fibers

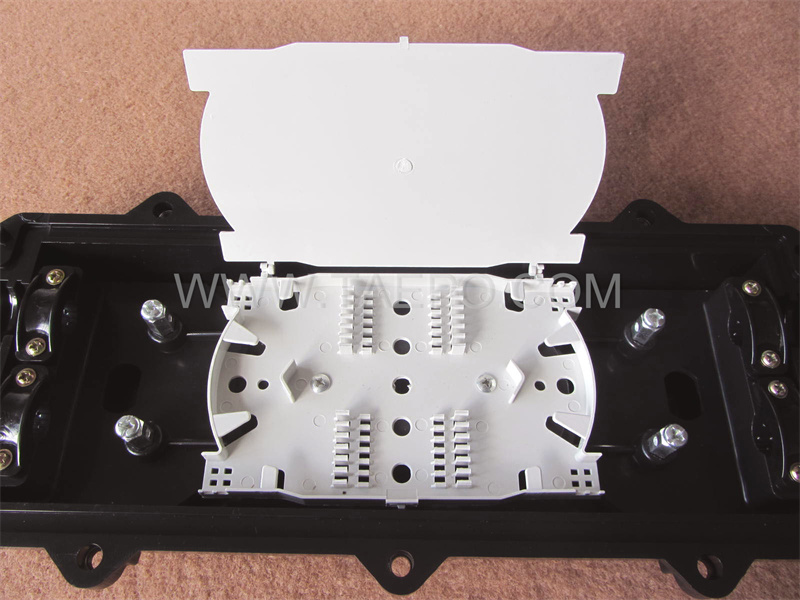

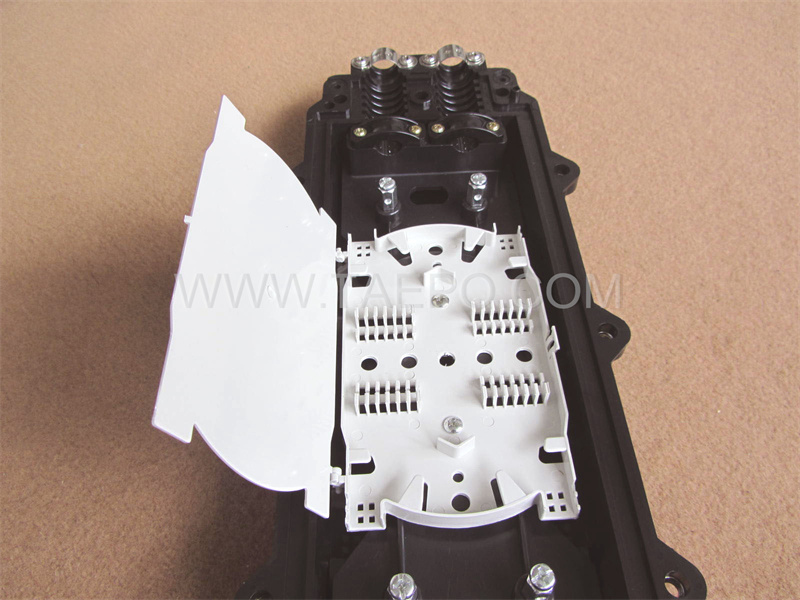

l         Flip style fiber splice trays are designed

l         The curved radius meets with international standard

l         Easy and fast to increase and reduce splice tray

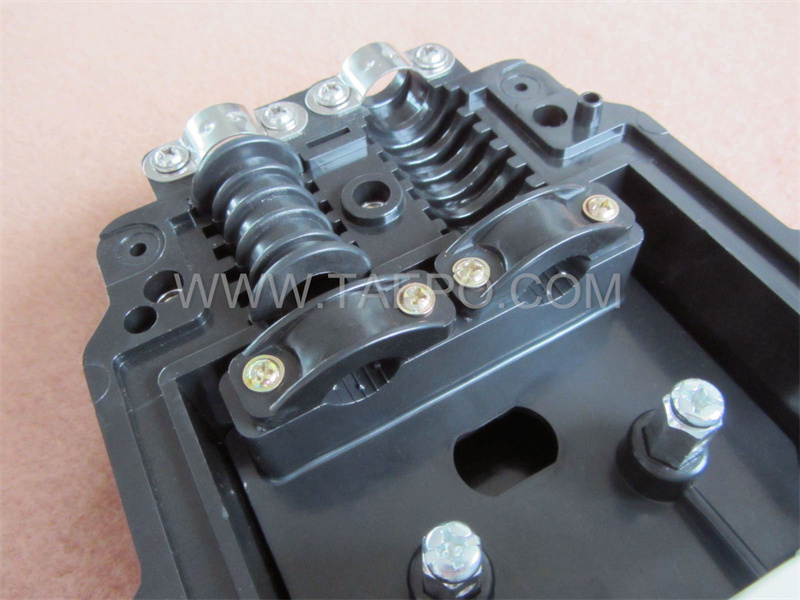

l         Innovative elastic integrated seal fitting

l         Adopting PC material for plastic parts and excellent steel for the external fasteners and structural parts.

l         With the function of reuse and capacity expansion for many times

l         With the function of electric connection and disconnection for electrical for the fiber optic cables.

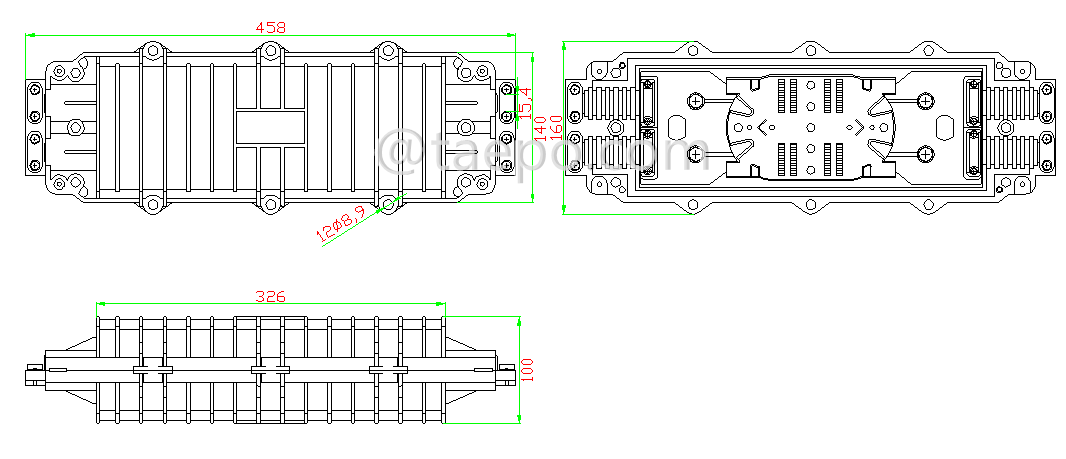

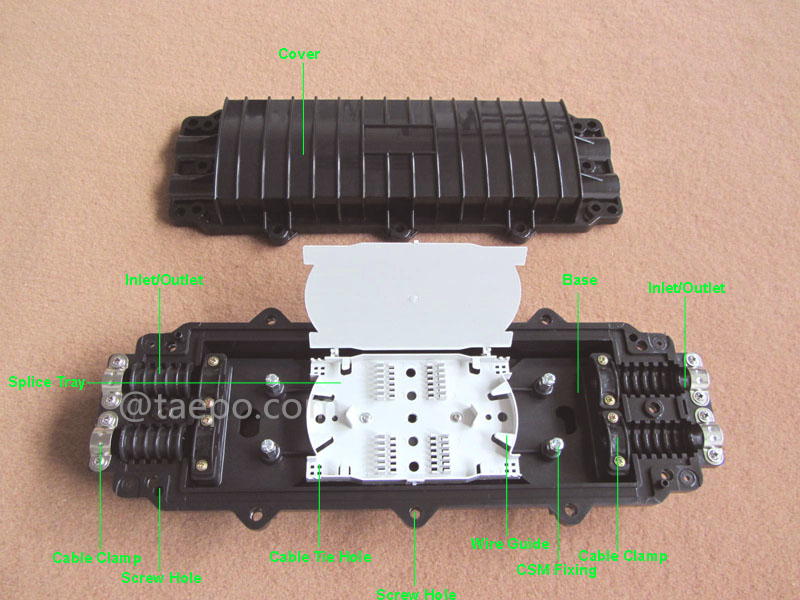

Schematic Diagrams

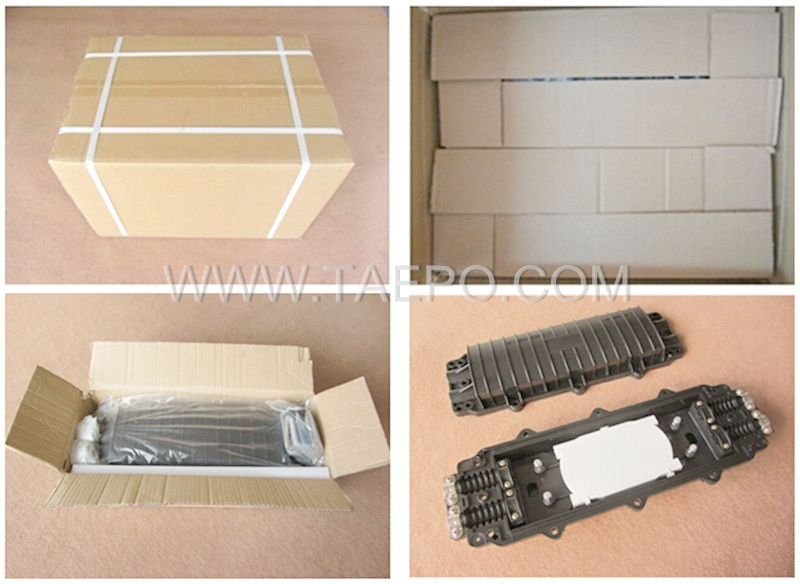

Packing Pictures

Order Data

TP-3509-12

Fiber optic splice closure, horizontal type, mechanical sealing, 12 fibers, max 96 bunchy fibers, 460(L) x 160(W) x 100(H)mm, 2 inlets 2 outlets, max cable dia 18mm, with 12F splice tray, 12F heat shrink sleeves, mounting hangers
