What Is 10 Pairs STG Disconnection Module Used for?
DESCRIPTIONS

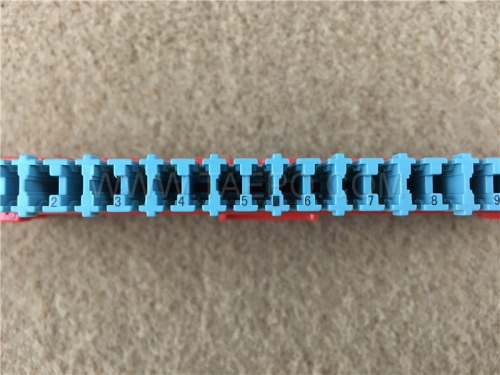

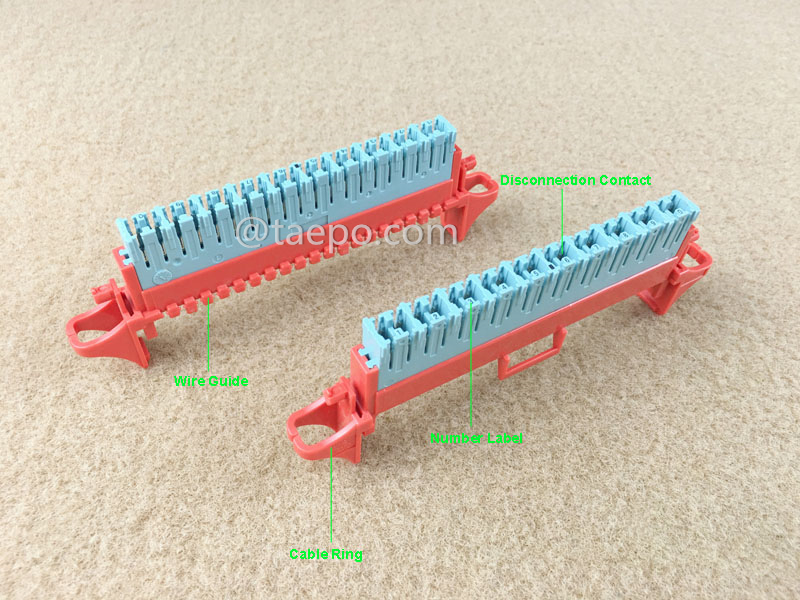

10 pairs STG disconnection module (TP-1311-10) serves as a termination point where multiple pairs of copper wires from a distribution cable are systematically arranged and connected. This module is designed to facilitate easy installation, maintenance, and disconnection of individual wire pairs without affecting others.
It is the last revolution of STG range of IDC (Insulation Displacement Connection) disconnection modules, that can be snapped onto STG back mount frame pitch 16mm.
This module offers category 5 transmission performance (100MHz) as a standard. As a result this module can be used in any modern network and is fully compatible with all kind of application.

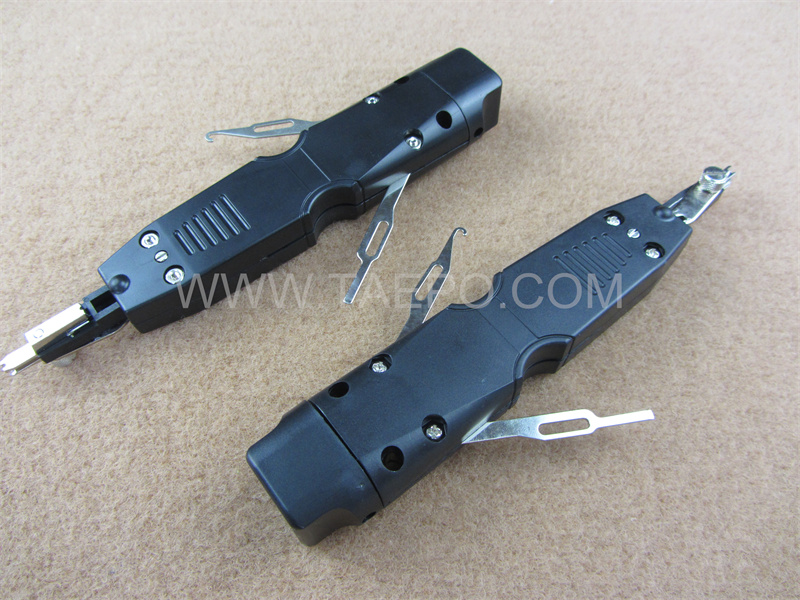

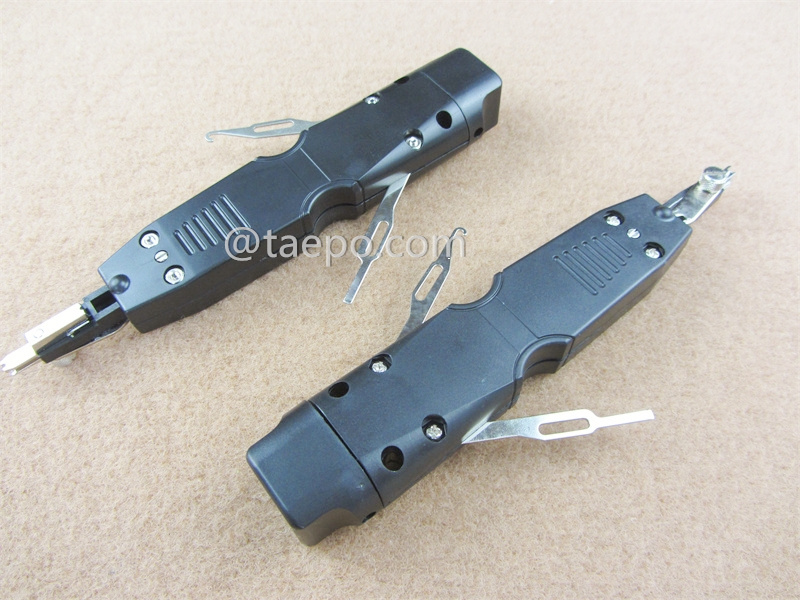

With termination and wire removal are easily operated with standard termination tool TP-5908. Cables are managed from the rear and jumpers from the side. The base of the module offers cable and jumper strain relief facilities.
Straight IDC technology offers reliability and outstanding performance like multi termination, wire retention and gas connection. The module can connect solid copper conductor in a range of diameters from 0.4-0.8mm with max insulation 1.5mm.
MAIN FEATURES
- Pair Termination: Accommodates up to 10 pairs of copper wires for termination and connection.
- Modular Design: Typically designed as a modular unit, enabling scalability by adding or removing modules as needed for expanding or reducing connections.
- Insulation Displacement Contact (IDC) Technology: Utilizes IDC technology for wire termination, providing secure connections without the need for stripping wires.
- Disconnection Capability: Enables individual pairs to be disconnected without interrupting other pairs, aiding in maintenance and repairs.
- Ease of Installation: Designed for straightforward installation, often supporting tool-less termination methods for quick setup.
- Durable Build: Constructed from durable materials to protect internal connections and ensure longevity.
- Identification and Labeling: Facilitates clear labeling or color-coding of wire pairs for easy identification and management.
- Mounting Options: Available in various mounting configurations, such as wall-mounted or rack-mounted, to suit different installation needs.
- Excellent conductivity: The module features a high-quality copper alloy construction that provides excellent conductivity, ensuring a strong and reliable connection.
- Gas-Tight Contacts: The IDC connection forms a sealed metal-to-metal interface, isolating the conductor from air and moisture. This prevents oxidation and corrosion, ensuring long-term stability even in adverse environmental conditions.
- Compatible with STG Tools: Designed for use with standard STG impact tools, enabling quick and secure terminations. These tools apply uniform force to each connection point, improving consistency and avoiding damage.

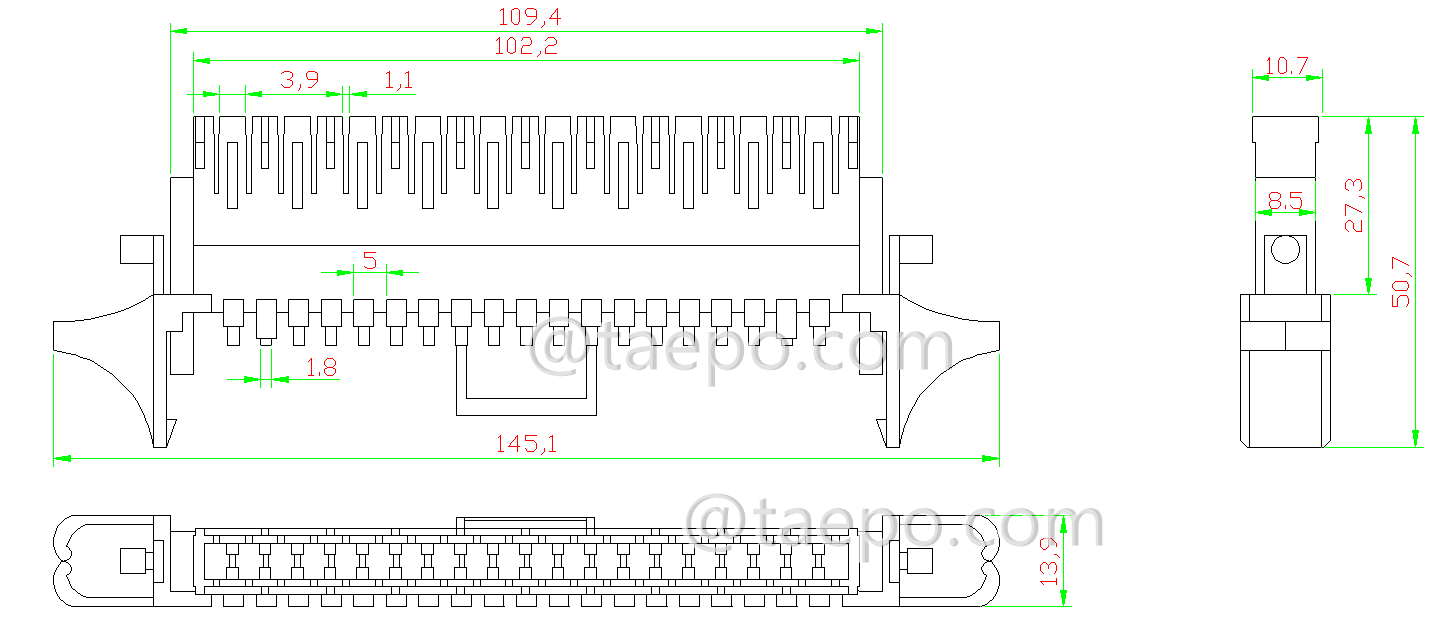

SCHEMATIC DIAGRAMS

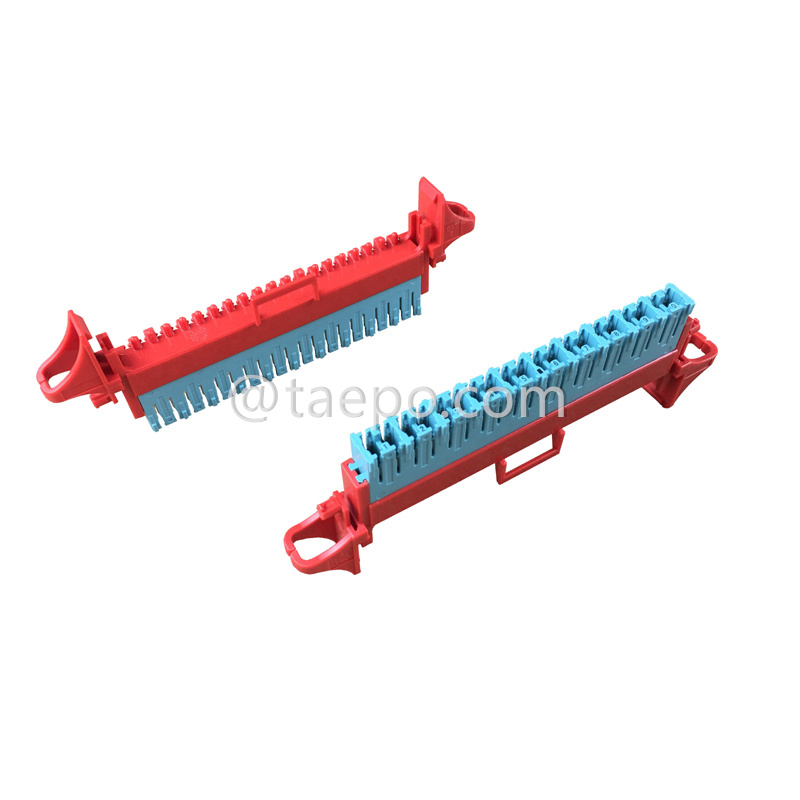

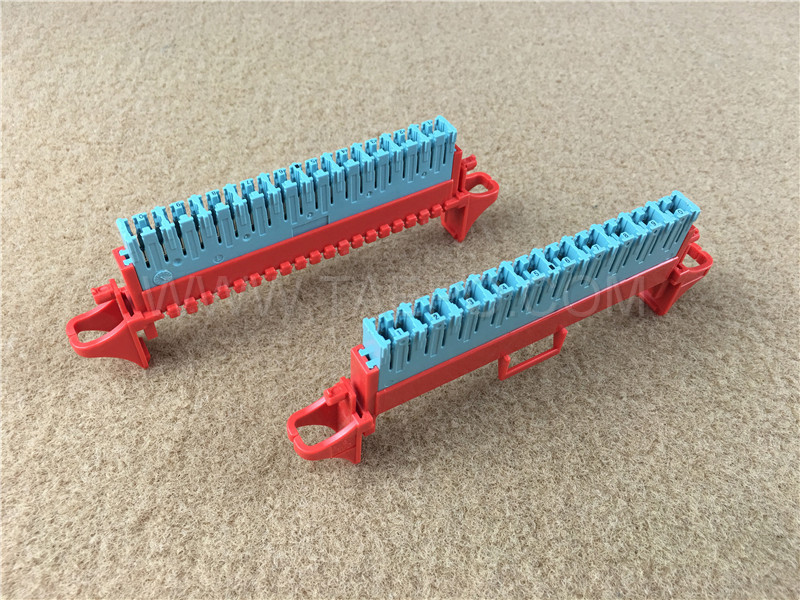

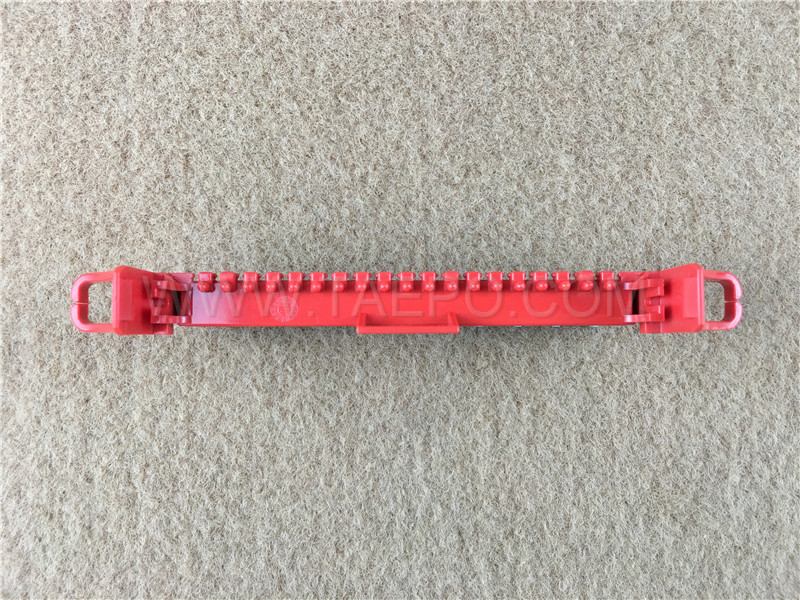

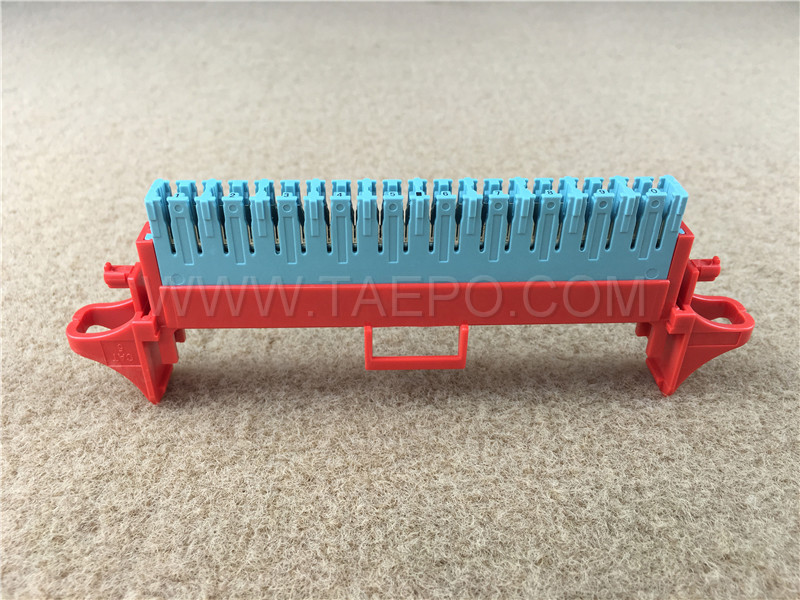

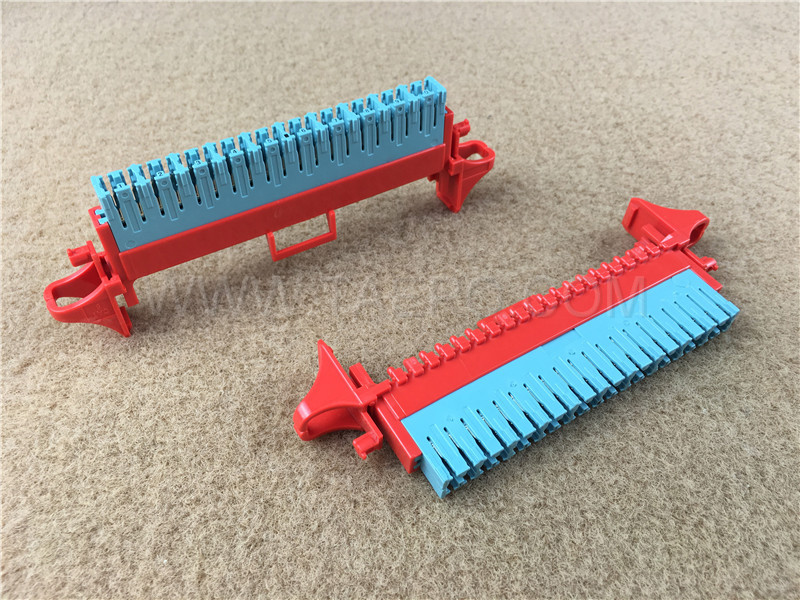

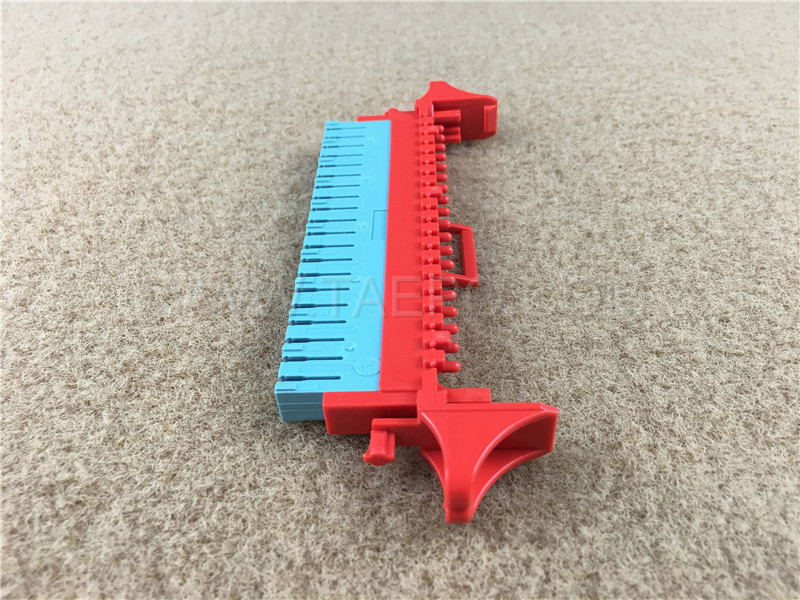

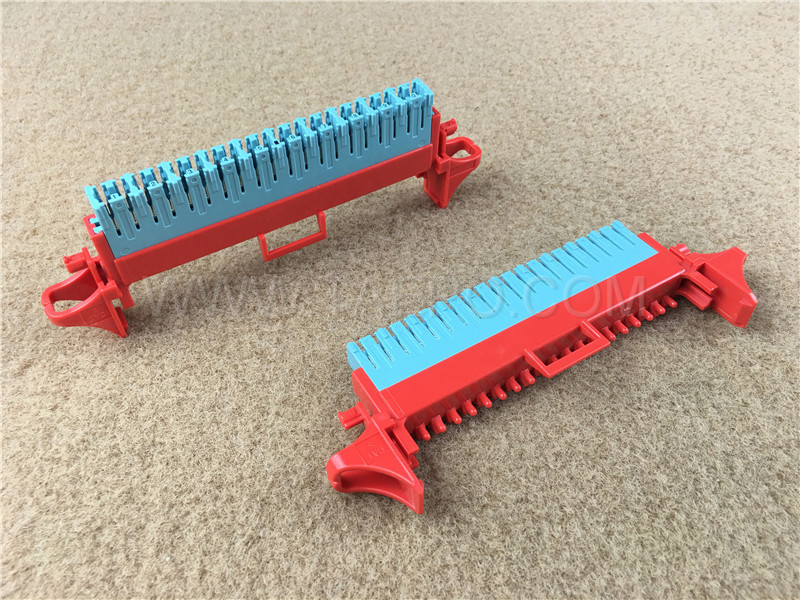

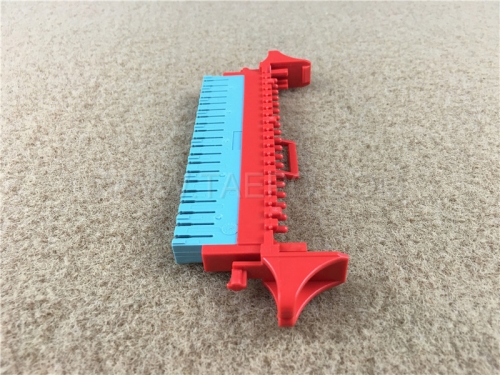

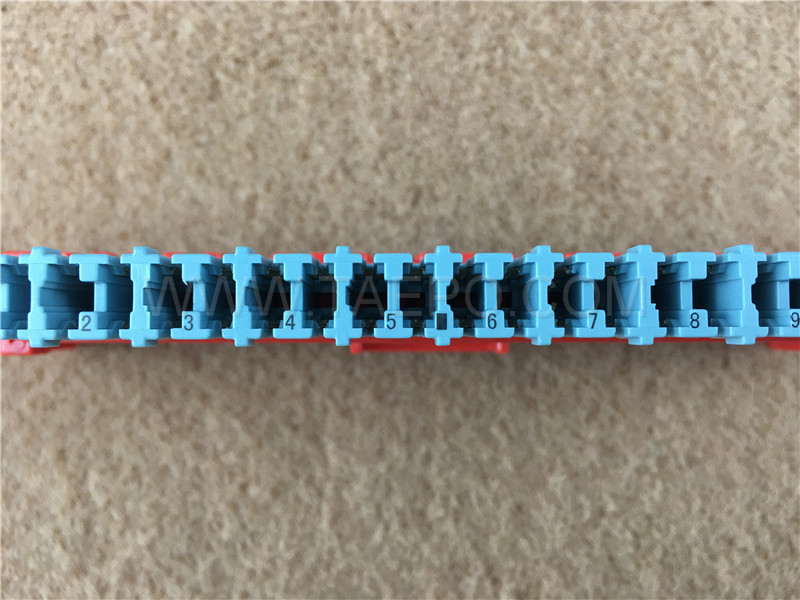

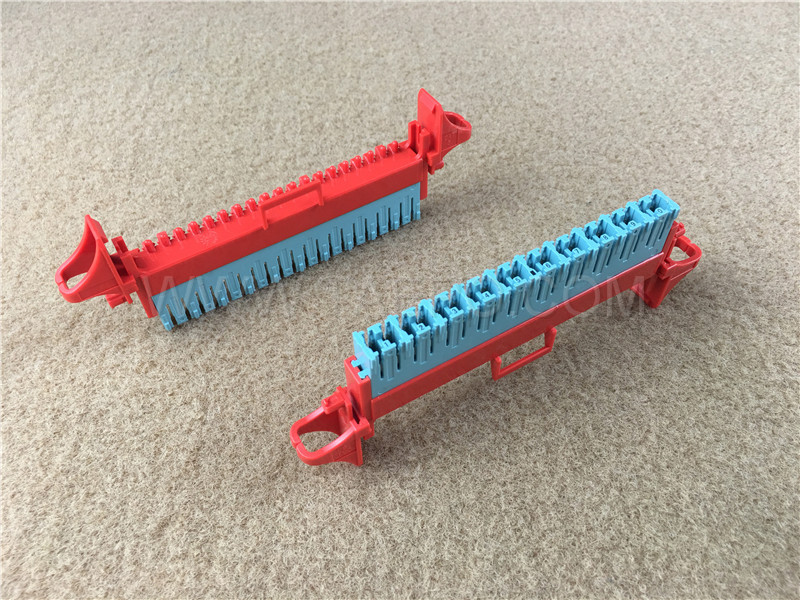

ILLUSTRATION PICTURES
PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-1311-10 |
10 pairs STG disconnection module |
