What does Fiber Optic PLC Splitter do?
DESCRIPTIONS

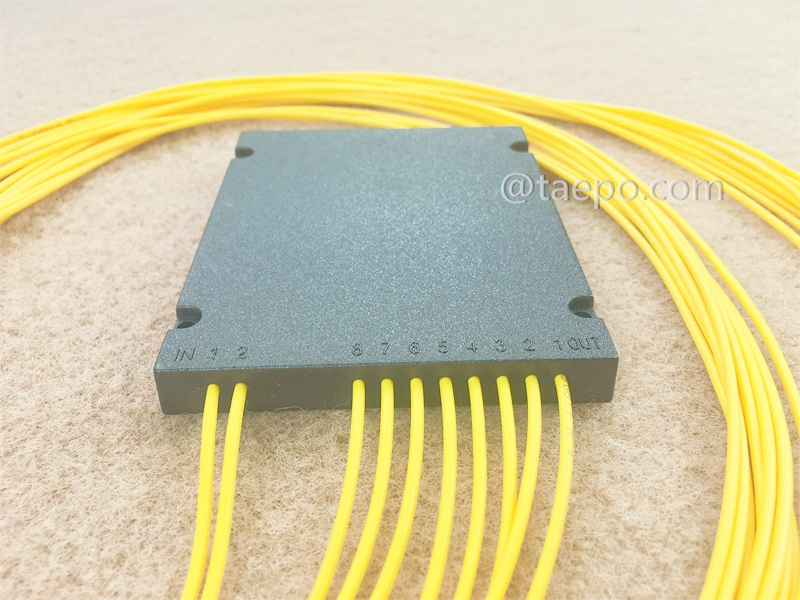

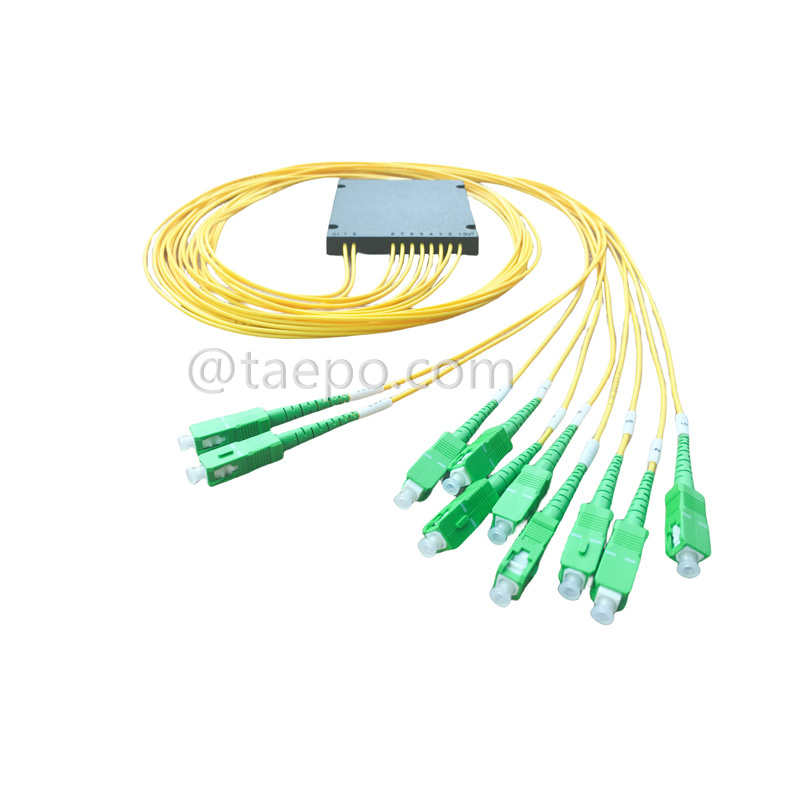

The 2x8 PLC fiber optic splitter (TP-3006-PC657A-0208-SCA20-0010) is a high-performance device designed to evenly distribute optical signals from two inputs across eight outputs each. Encased in a robust plastic housing, it employs planar lightwave circuit (PLC) technology to deliver stable and reliable signal splitting, ensuring minimal insertion loss and high return loss. This splitter is ideal for use in FTTH networks, Passive Optical Networks (PON), and other advanced optical distribution systems.
Manufactured with G657A fiber, this splitter ensures excellent bend performance, enabling installation in space-constrained environments without compromising signal integrity. The 2mm loose tube design provides additional fiber protection while maintaining flexibility, and the 1-meter pigtail length facilitates easy installation. SC/APC connectors are pre-installed, ensuring precise alignment and reducing return loss for seamless integration into existing optical networks.
This 2x8 configuration allows signal distribution from dual sources, making it suitable for network redundancy or load balancing. Its durable and lightweight plastic case ensures the splitter’s longevity, whether installed indoors or in protected outdoor environments, providing consistent optical performance for various applications.
MAIN FEATURES
- 2x8 Splitter Ratio: Distributes optical signals from two input ports to eight output ports each.
- PLC Technology: Ensures reliable and uniform signal splitting with minimal insertion loss.
- Durable Plastic Case: Protects internal components from physical damage and environmental factors.
- G657A Fiber Type: Offers superior flexibility and resilience to tight bends.
- SC/APC Connectors: Ensures low return loss and precise connections.
- 2mm Loose Tube: Enhances fiber protection while maintaining flexibility for installation.
- 1-Meter Pigtail Length: Allows for convenient and flexible connections.
- Wide Wavelength Range: Supports wavelengths from 1260nm to 1650nm.
- Low Insertion Loss: Maximizes network efficiency by minimizing optical power loss.
- High Return Loss: Reduces signal reflections for enhanced system performance.
- Compact Design: Fits seamlessly into splitter boxes and optical distribution frames.
- High Reliability: Delivers stable performance over a wide temperature range.
- Lightweight and Portable: Simplifies transportation and installation.
- Pre-Terminated Connectors: Ready for immediate deployment, saving installation time.
- Minimal PDL (Polarization Dependent Loss): Ensures consistent performance.
- UV-Resistant Housing: Suitable for indoor and protected outdoor installations.
- Uniform Optical Distribution: Maintains consistent power levels across all outputs.
- Environmentally Friendly: Complies with RoHS and REACH standards.
SCHEMATIC DIAGRAMS

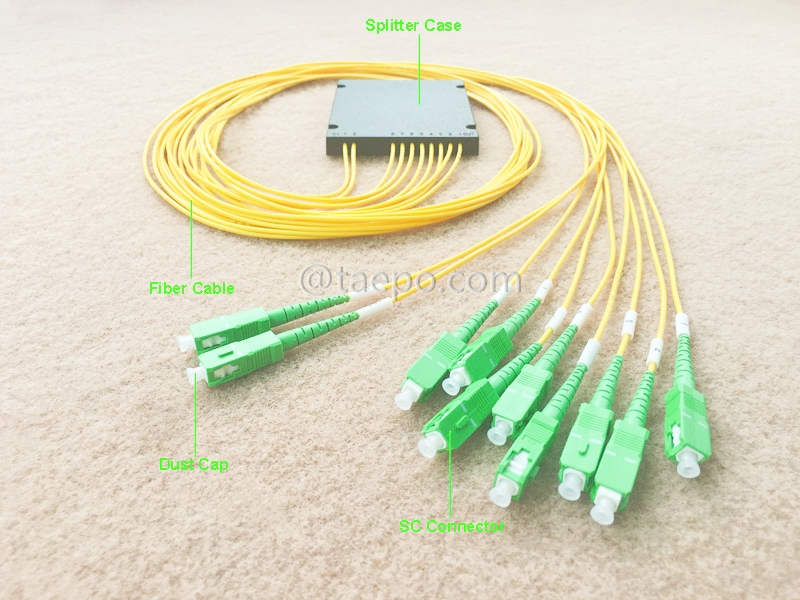

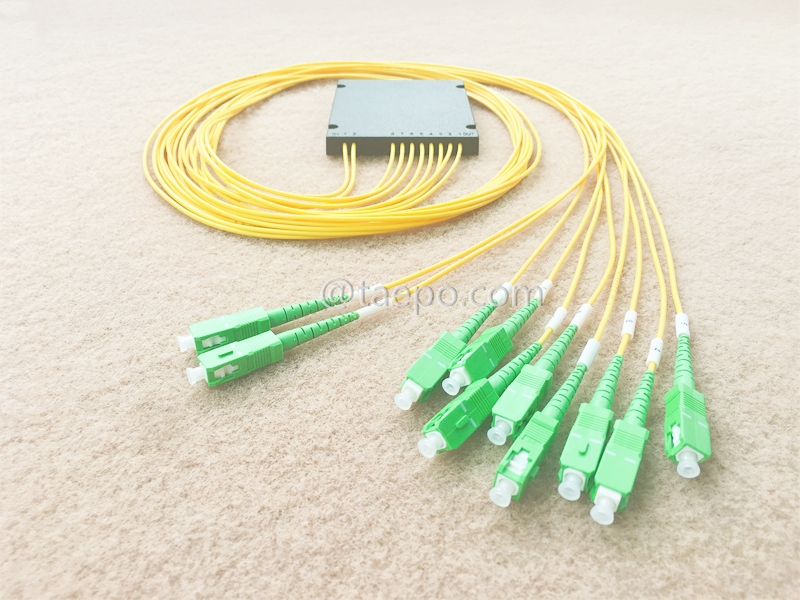

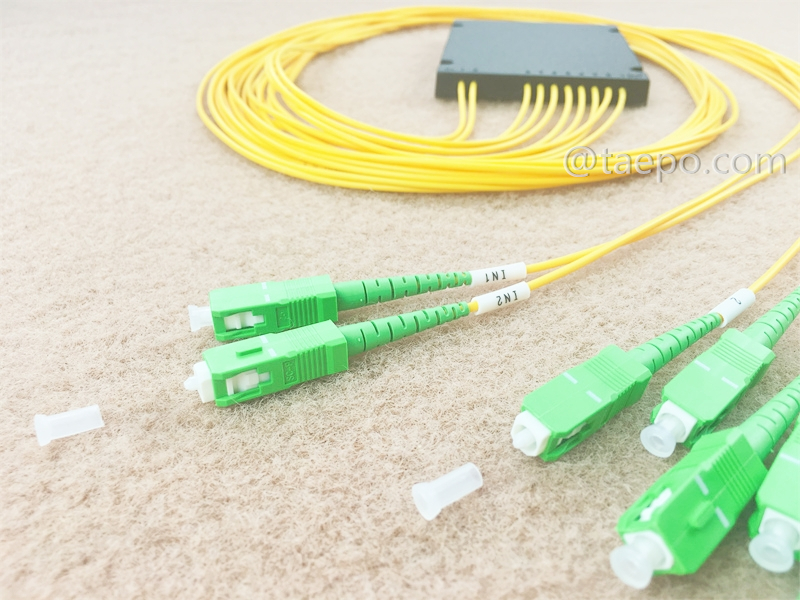

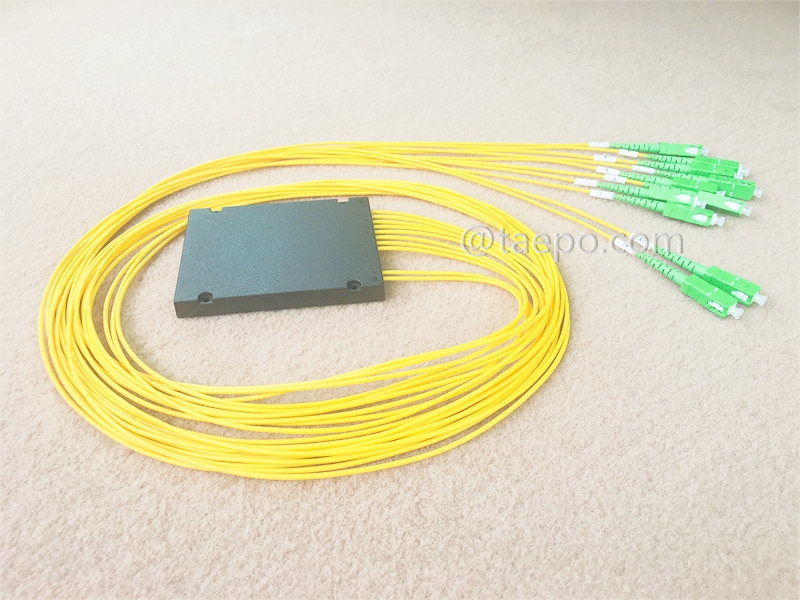

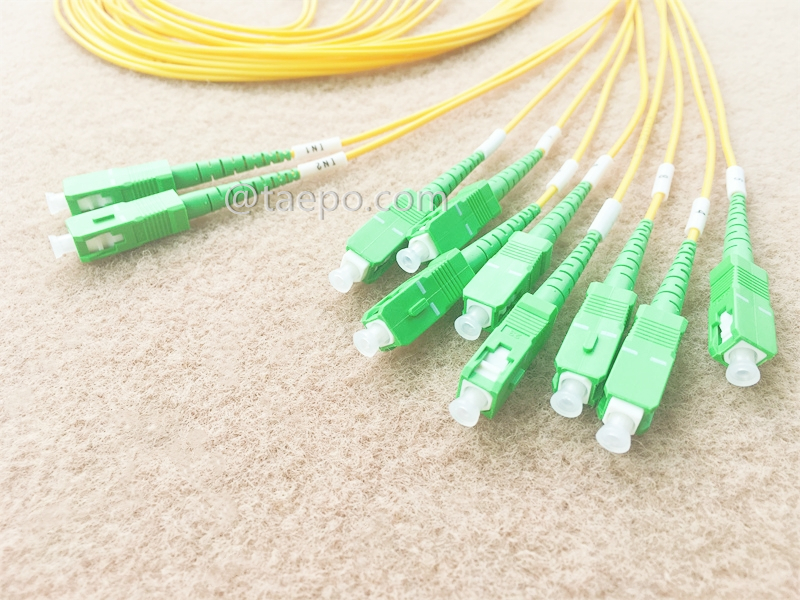

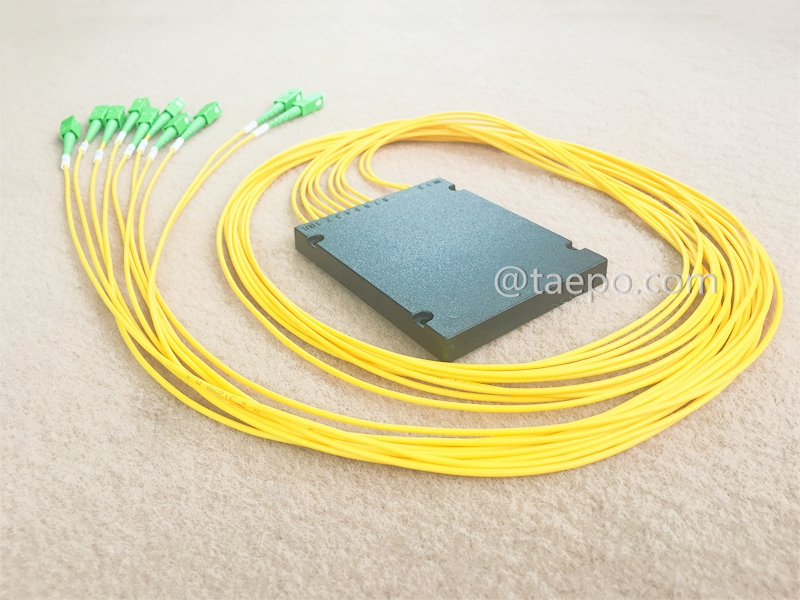

ILLUSTRATION PICTURES

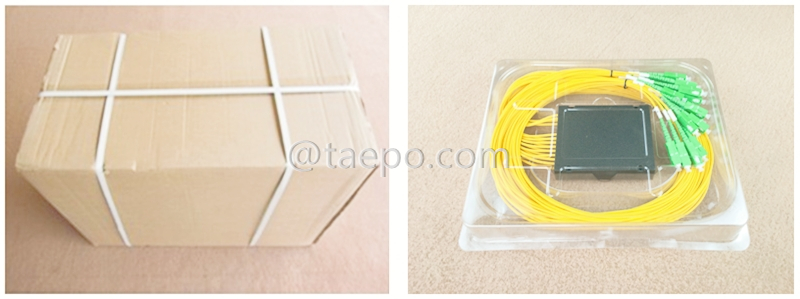

PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-3006-PC657A-0208-SCA20-0010 |
Fiber optic splitter, PLC, steel tube, G657A, 2x2, 0.9mm loose tube, 1m, with LC/APC connector |
