What does Fiber Optic PLC Splitter do?
DESCRIPTIONS

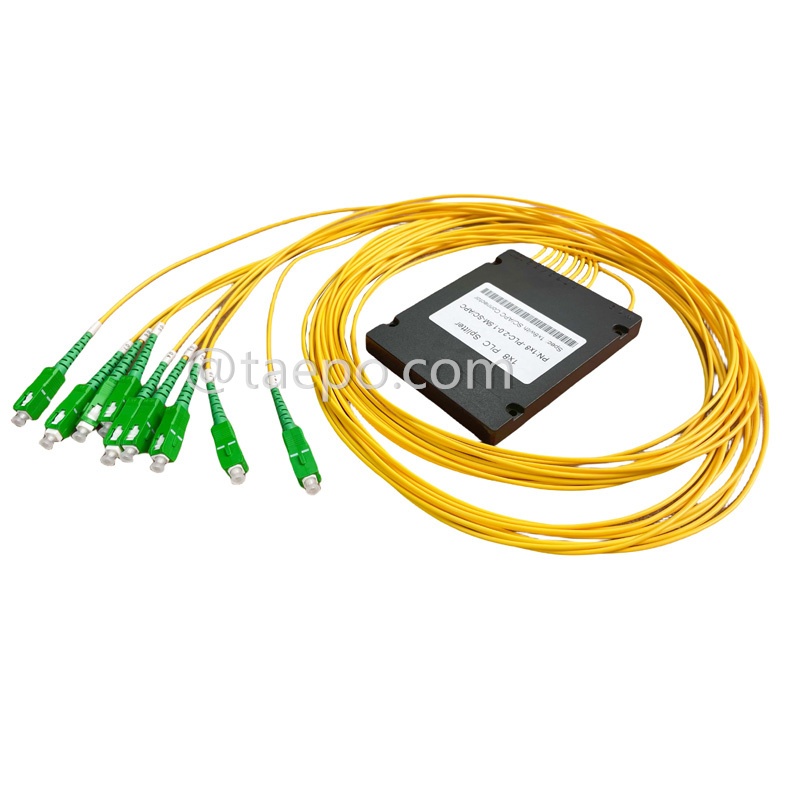

The 1x8 PLC fiber optic splitter (TP-3006-PC657A-0108-SCA20-0010) with SC/APC connectors is a premium-grade passive optical device designed for precise optical power distribution in FTTH networks, PON systems, and other fiber optic applications. Housed in a durable plastic case, it integrates advanced planar lightwave circuit (PLC) technology for exceptional reliability and consistent optical performance. With its compact design and lightweight 2mm loose tube construction, it offers flexibility during installation and operation in constrained or dynamic network environments.
This splitter supports singlemode G657A optical fiber, ensuring low insertion loss, minimal back reflection, and superior optical transmission. The pre-terminated SC/APC connectors guarantee efficient plug-and-play integration while providing excellent return loss for stable, long-term operations. Whether for indoor or outdoor deployment, this splitter is engineered to meet rigorous industry standards for performance and durability.
Designed for high-density optical distribution frameworks, the splitter enables seamless scalability, ensuring cost-effectiveness without compromising on signal integrity. Its 1-meter fiber length ensures convenient connectivity, reducing complexity and enhancing network efficiency.
MAIN FEATURES
- 1x8 Splitter Configuration: Divides a single input signal evenly into eight outputs with precise power balance.
- G657A Fiber Compliance: Employs bend-insensitive singlemode fiber for optimized performance in tight routing scenarios.
- Plastic Case Housing: Lightweight, durable casing ensures protection from environmental factors.
- 2mm Loose Tube Design: Enhances flexibility and resistance to mechanical stress.
- SC/APC Connectors: Pre-installed connectors with angled polish reduce signal reflection and improve stability.
- Low Insertion Loss: Provides efficient signal splitting with minimal optical power loss.
- High Return Loss: Ensures excellent optical performance and stability.
- Compact Size: Facilitates easy integration into crowded network environments.
- 1-Meter Fiber Length: Allows for versatile connections in diverse setups.
- Wide Operating Wavelength: Operates efficiently across the 1260-1650 nm spectrum.
- Uniform Power Distribution: Guarantees balanced optical power delivery to all output ports.
- High Temperature Resistance: Operates reliably in a range from -40°C to +85°C.
- Low Polarization Dependent Loss (PDL): Enhances signal integrity and uniformity.
- Lightweight Design: Simplifies transportation and installation processes.
- Plug-and-Play Connectivity: Simplifies installation for technicians and installers.
SCHEMATIC DIAGRAMS

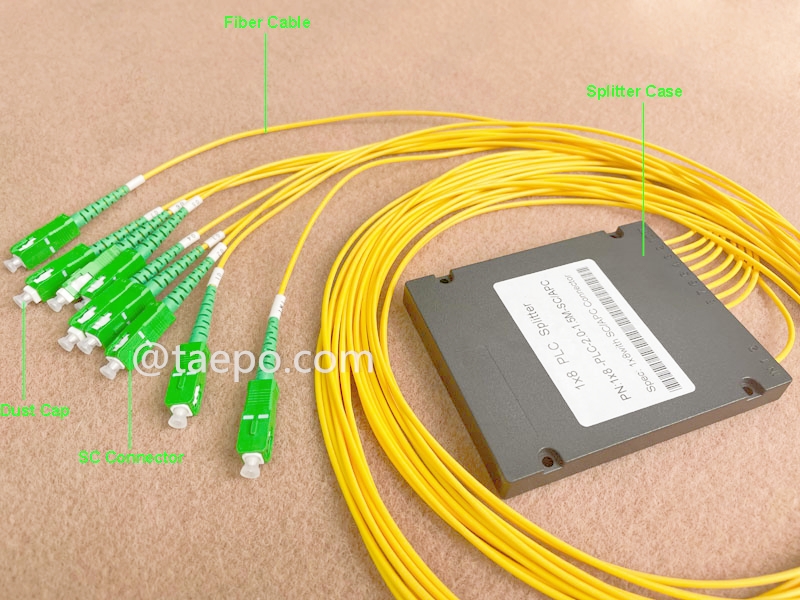

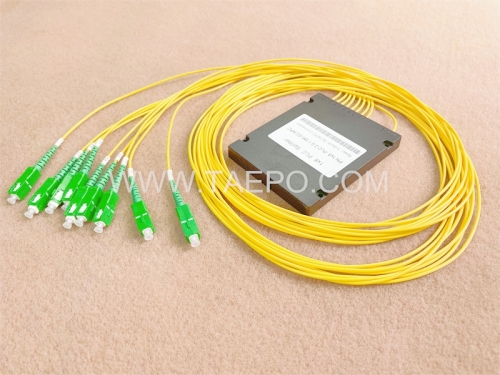

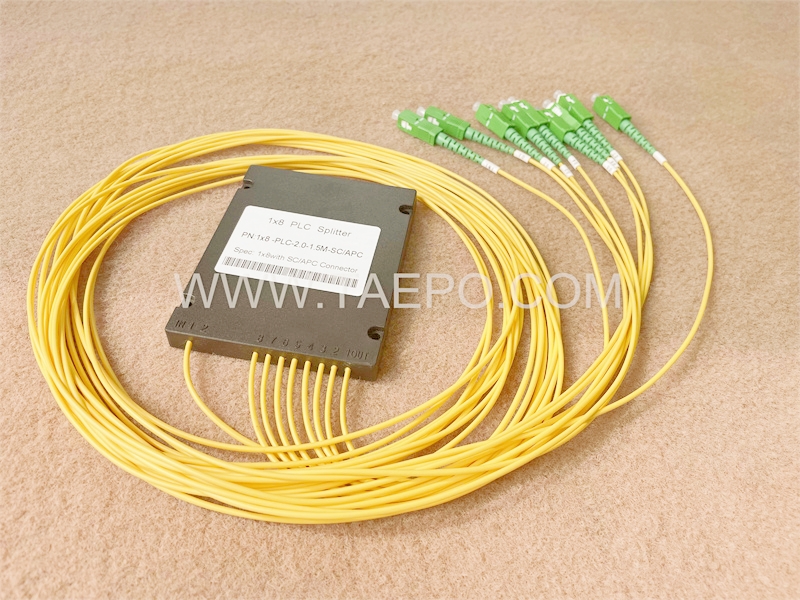

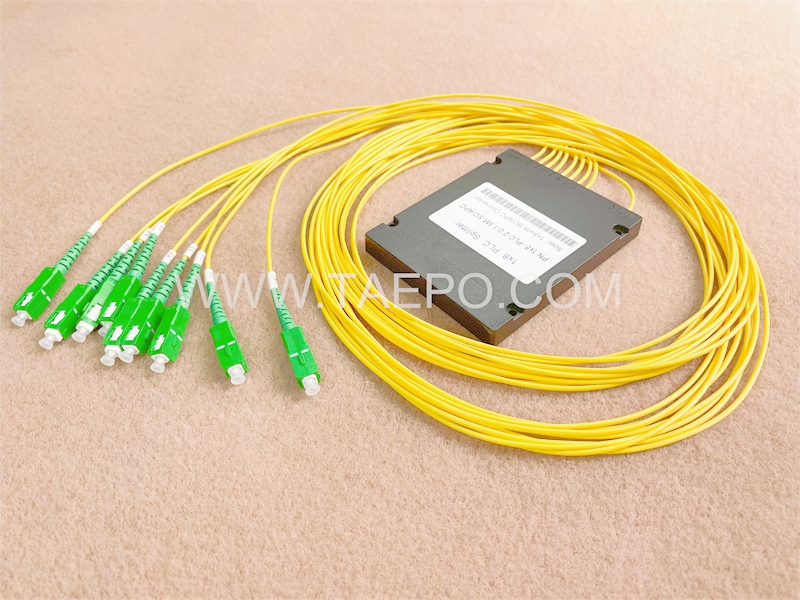

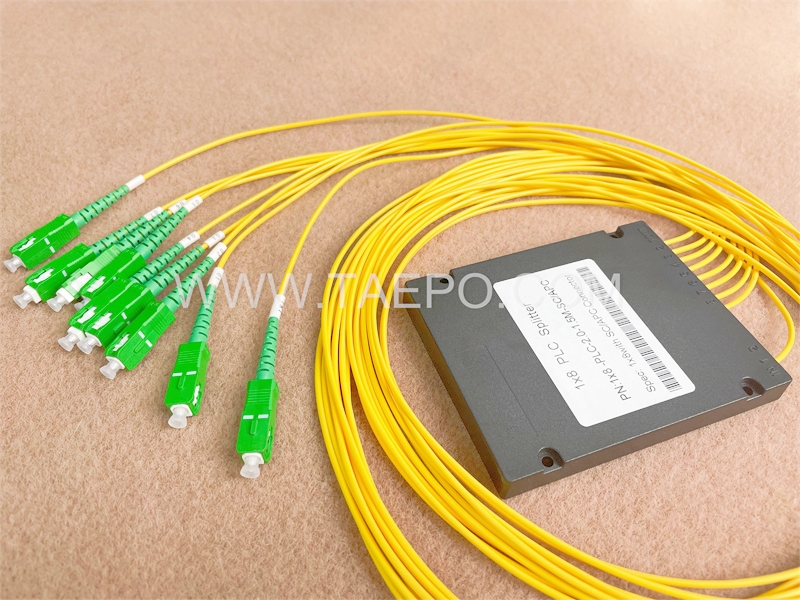

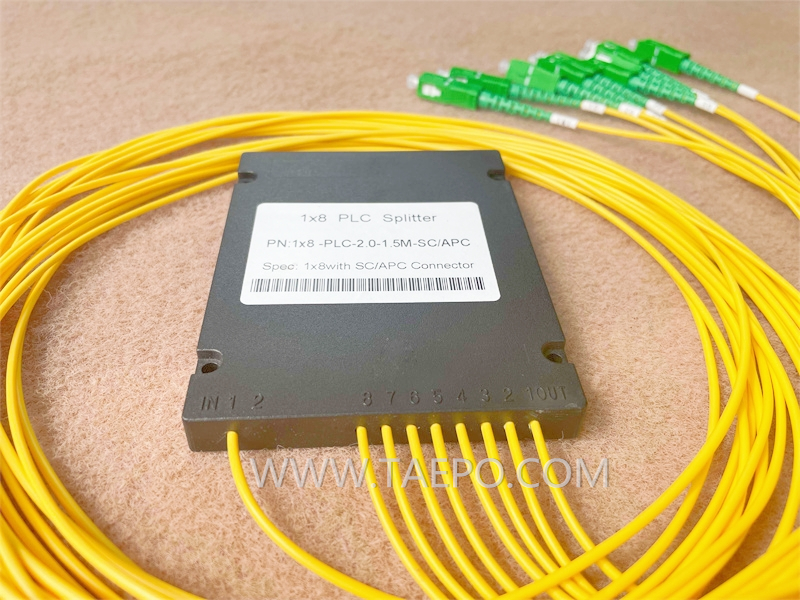

ILLUSTRATION PICTURES

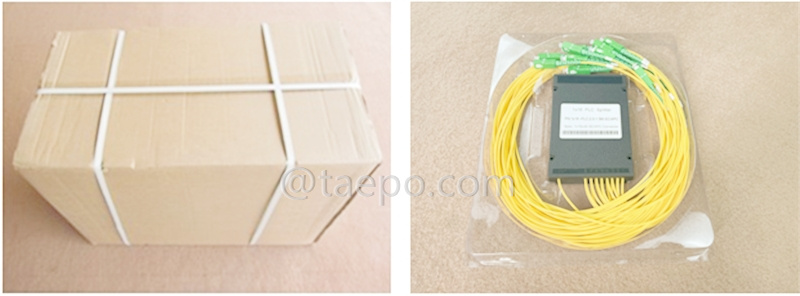

PACKING PICTURES
ORDER DATA
| Item No |
Descriptions |
| TP-3006-PC657A-0108-SCA20-0010 |
Fiber optic splitter, PLC, plastic case, G657A, 1x8, 2mm loose tube, 1m, with SC/APC connector |
